ESP32S Presence Radar — Wiring, Setup & Development

Overview and kit contents

ESP32S Presence Radar R1 combines a 45 × 50 mm ESP32-S3 mainboard with an external HLK-LD2410C radar. The USD $29 kit includes the assembled mainboard, radar module and matching connection cable; no enclosure, USB cable or power adapter. Made to order: 5-day production lead time after confirmation, with dispatch after production and checks.

Buy the kit on ESP32S · Open design on GitHub

Development status

This is an R1 engineering prototype. Hardware has not yet been powered on or qualified. ERC/DRC and netlist checks pass, but they do not validate power, USB or sensing performance. Complete CSI firmware is not implemented; the ESPHome example is radar-only and uncompiled.

Hardware and power

• ESP32-S3-WROOM-1-N8R8, built-in PCB antenna.
• 5 V USB-C input; AP63203 supplies 3.3 V to the controller.
• LD2410C uses 5 V power and 3.3 V UART logic, default 256000 baud.
• External regulated 5 V supply with 1 A capability is the design target; there is no USB-PD negotiation or CC current sensing.

The supplied radar manual calls for more than 200 mA supply capability for the radar alone. Verify actual voltage at the radar after cable losses. Keep metal, screws and the radar board away from the Wi-Fi antenna clearance region.

J2 radar wiring

Disconnect power before wiring. Match signals, not connector orientation. J2 TX/RX names follow the radar's viewpoint.

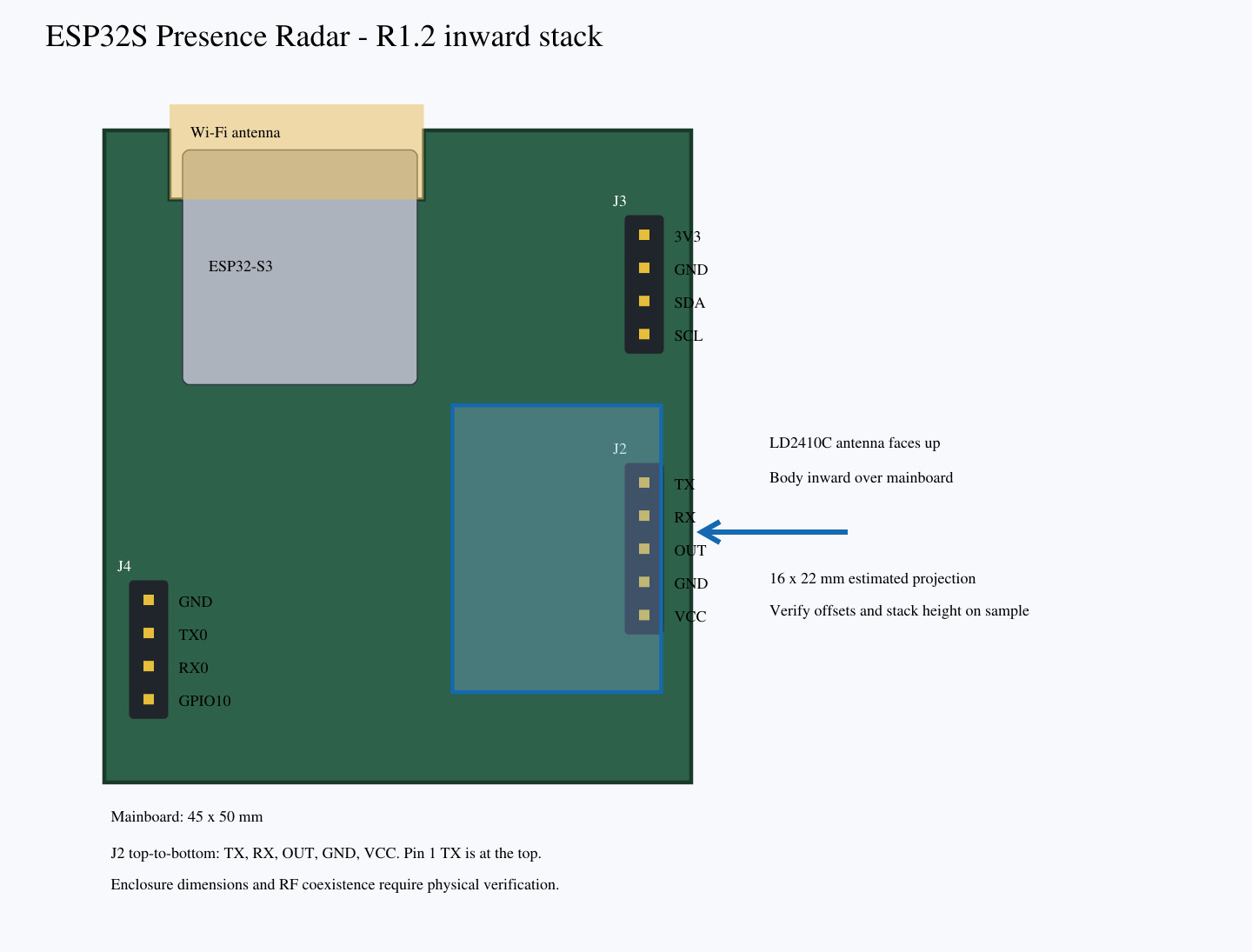

Pin 1 has a square pad and a printed 1. The module sequence is TX, RX, OUT, GND, VCC. Do not connect 5 V logic UART or RS-232 signals.

Other interfaces

J4 TX0/RX0 follow the ESP32 viewpoint; J4 has no power output. GPIO7 drives the status LED. GPIO35/36/37 are reserved for N8R8 PSRAM.

RESET and BOOT

SW1 RESET controls EN; SW2 BOOT controls GPIO0. To request download mode: hold BOOT, press and release RESET, then release BOOT. Use a USB data cable. UART0 is available for rescue debugging if native USB does not enumerate.

Start with radar-only software

1. Download and unpack the complete GitHub design archive.
2. Read the engineering notes before first power-up; check assembly and short circuits, then verify 5 V and 3.3 V using a current-limited supply.
3. With power removed, connect the radar cable by the J2 pin table.
4. Copy firmware/secrets.example.yaml to firmware/secrets.yaml and supply local Wi-Fi credentials.
5. Use an ESPHome version supporting ESP32-S3 and LD2410 to validate, compile and upload firmware/radar_baseline.yaml. It has not yet been compile-tested.
6. Compare radar presence, moving/still targets, distances and the OUT diagnostic in an empty room and with a person present.

Do not publish secrets.yaml. No pre-flashed firmware or ready-to-use cloud service is promised by this development kit.

Wi-Fi CSI development

Start from Espressif ESP-CSI under ESP-IDF. Choose suitable Wi-Fi traffic/transmitter placement, capture CSI and calibrate an activity detector. Coordinate Wi-Fi communication and CSI channel/packet tasks.

firmware/fusion_reference.py is an executable Python rule reference, not ESP32 firmware or a CSI detector. Radar asserts presence immediately. A valid, calibrated, fresh CSI event may grant one departure grace period of at most 5 seconds; ongoing activity cannot extend it indefinitely. Radar loss results in unknown. CSI alone must not assert presence.

python -m unittest discover -s firmware -p "test_*.py" -v

Six reference-rule tests pass. Validate real rooms, static occupants, fans and adjacent-room movement before claiming any accuracy or coverage.

Mechanical and manufacturing files

KiCad 10 source, local libraries, BOM, Gerber, drill and assembly placement files are in the complete design archive. The PCB is 45 × 50 mm with a 19.5 × 5.3 mm top antenna notch. Antenna and USB overhang must be considered for enclosure design. Mounting centres relative to the upper-left board envelope: H1 (2.5, 27.5), H2 (42, 3), H3 (3, 48), H4 (42, 47), in mm.

The radar and cable are separate from the SMT assembly positions. Stock/prices and replacements in the BOM are not verified. Current USB routing uses a two-layer board without controlled impedance and requires actual enumeration and waveform testing.

Troubleshooting

• No serial port: check USB data cable, BOOT/RESET sequence, supply voltage and UART0 debug.
• No radar data: verify 5 V at the module, common ground, crossed TX/RX and 256000 baud.
• False presence: begin with radar-only tuning; check moving objects, mounting position and interference before enabling CSI.
• Unexpected resets: measure supply drop and ripple during Wi-Fi transmission.

Resources and licence

GitHub design and examples · ESP32S purchase page · ESP32-S3 module datasheet

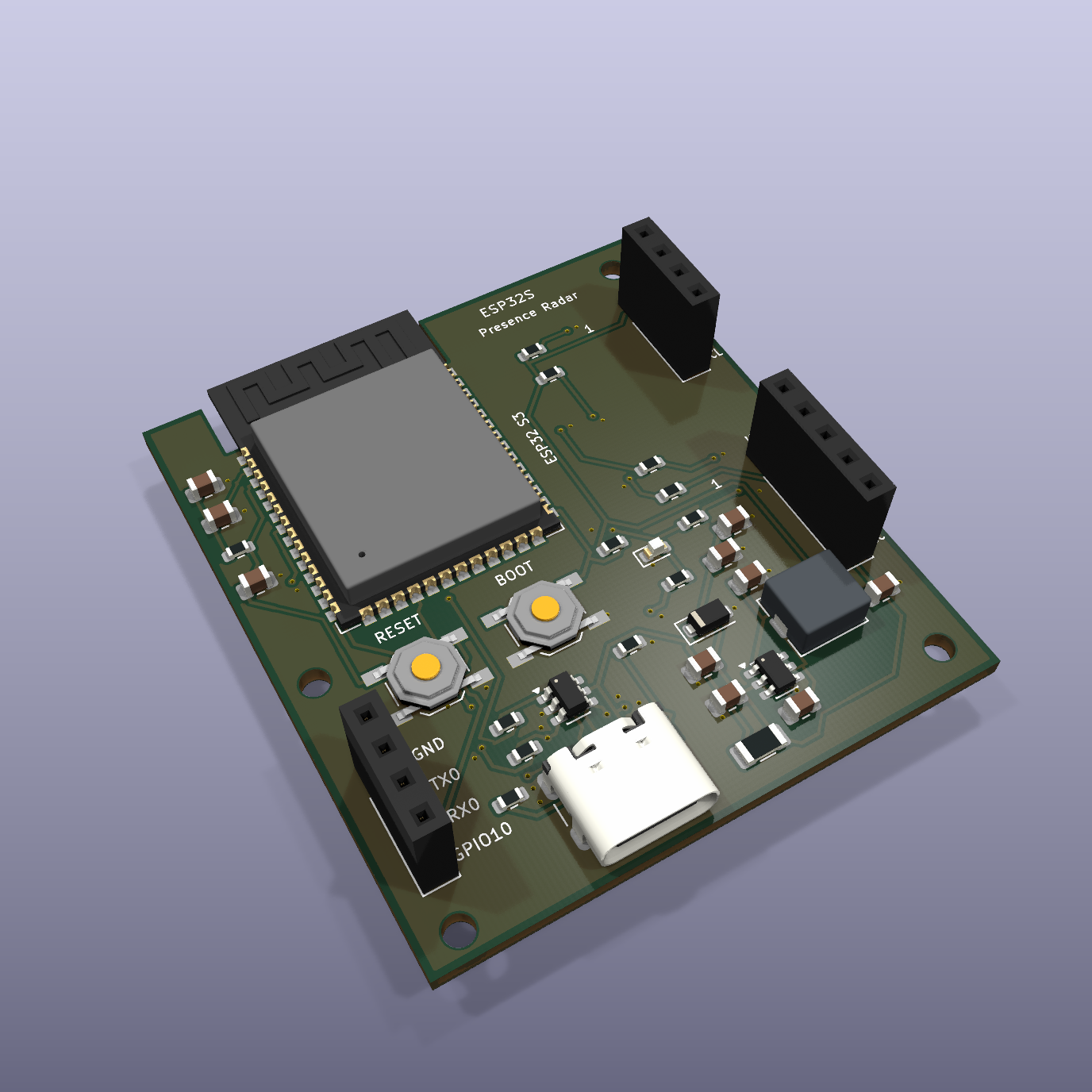

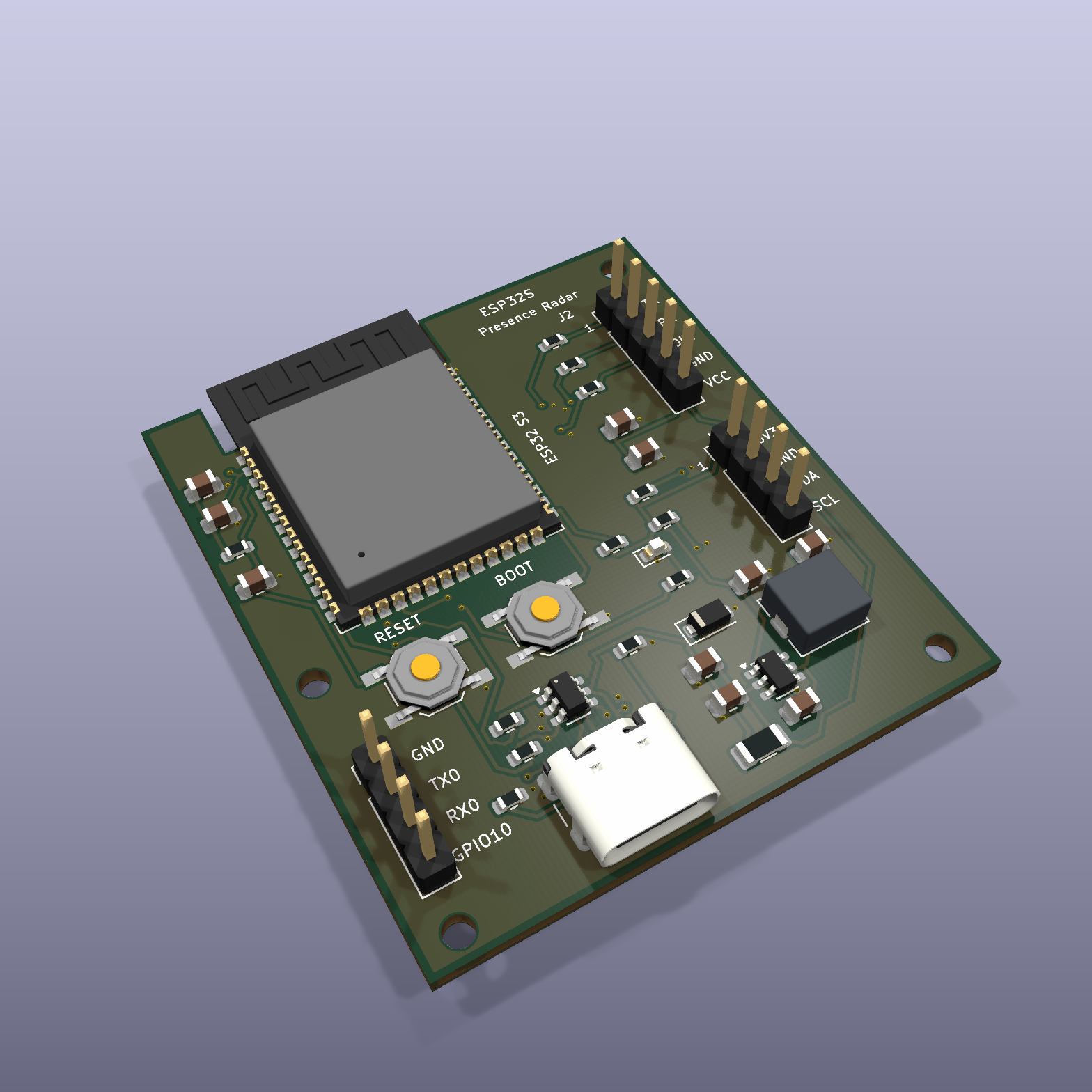

Original hardware: CERN-OHL-P-2.0. Original code/documentation: MIT. Upstream KiCad library licences are retained. Mainboard images are 3D renders; module reference photos do not show the complete kit.
