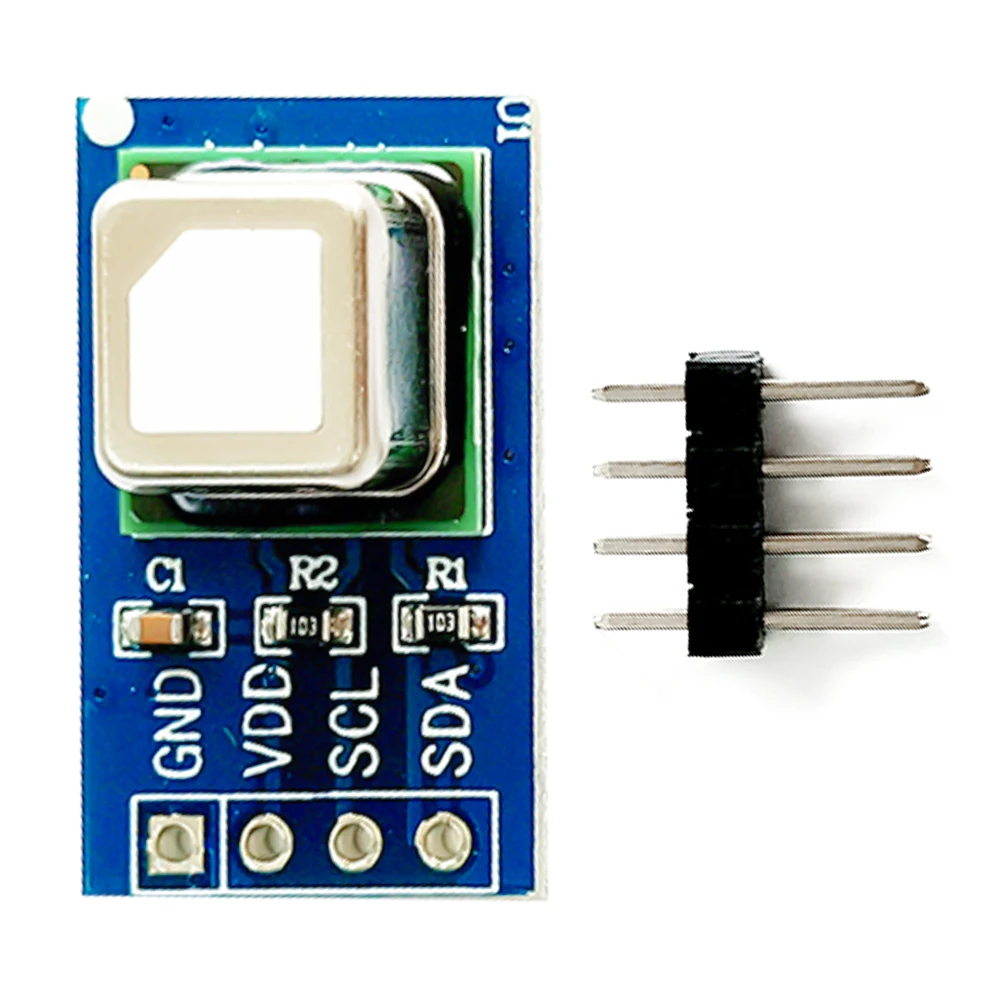

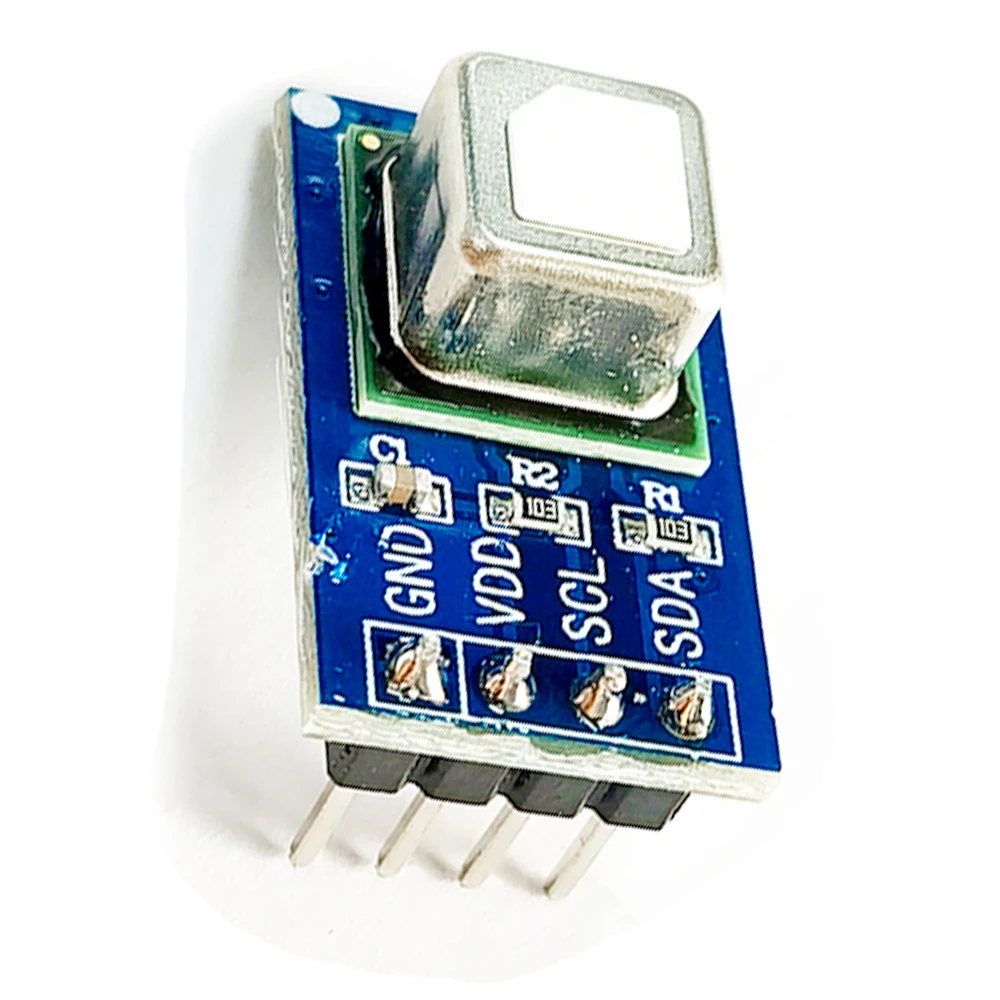

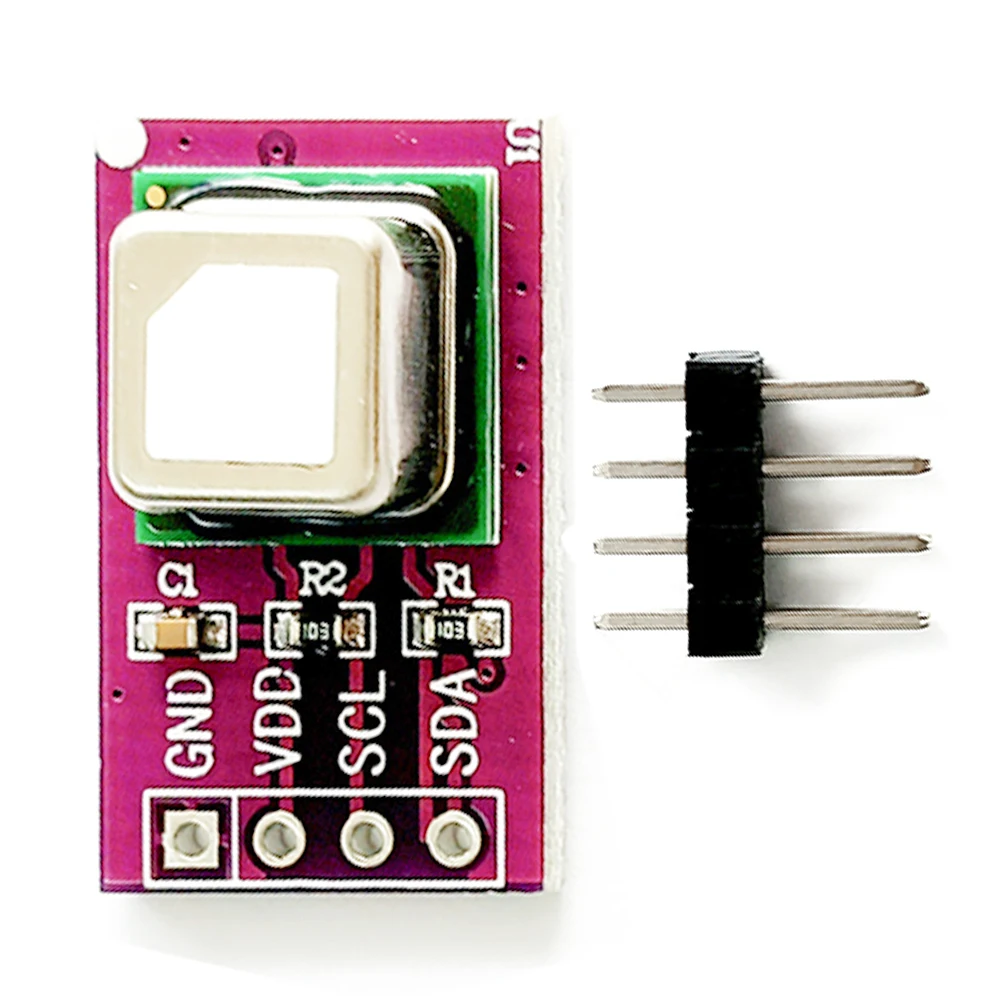

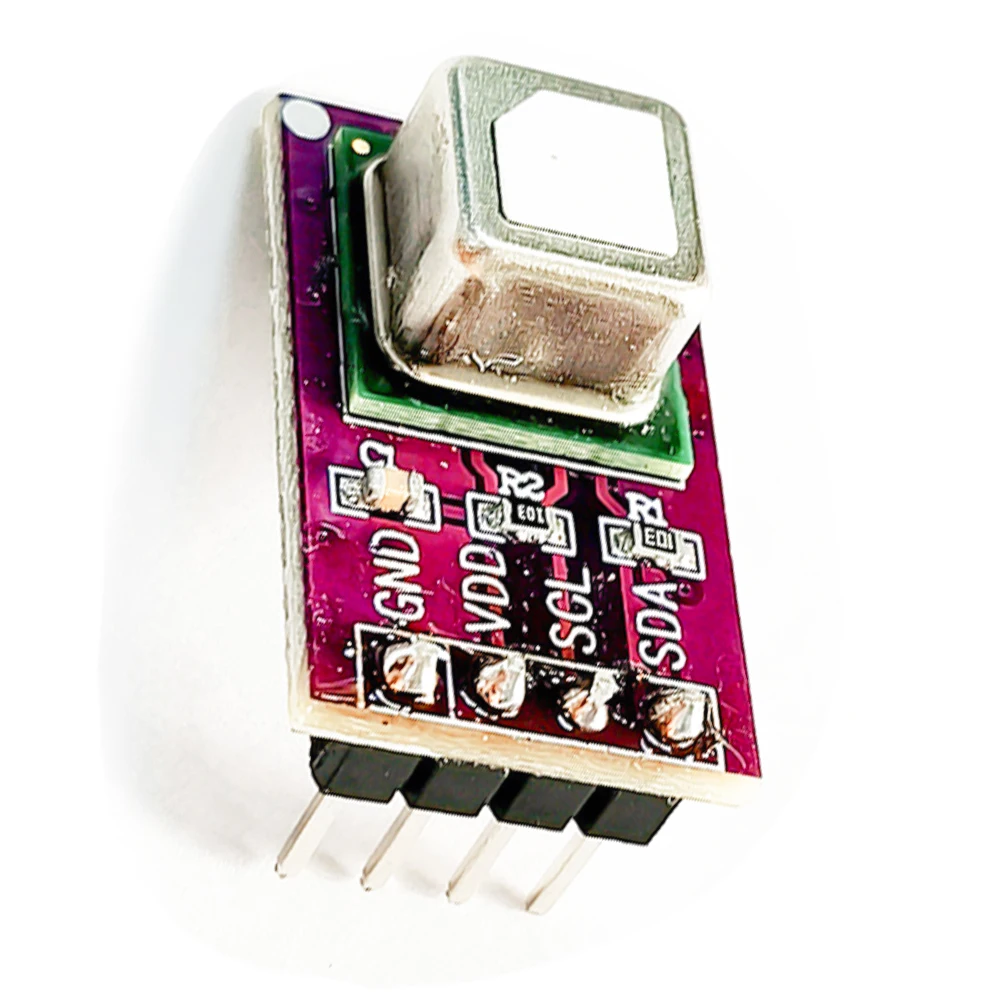

SCD40 SCD41 Gas Sensor Module I2C Communication 4PIN High Precision CO2 Temperature and Humidity 2 in 1 Detection Sensor

SCD41:

CO2 Measurement Accuracy: ± (40ppm+5%MV)

Measurement range: 400-5000 ppm (low power)

Accuracy: ±40 ppm

Relative Humidity Measurement Range: 0-95%RH

Typical RH accuracy: 6%RH

SCD40:

CO2 Measurement Accuracy: ± (50ppm+5%MV)

Measurement range: 400-2000 ppm (low power)

Accuracy: ±50 ppm

Relative humidity measurement range: 0-95%RH

Typical RH Accuracy: 6%RH

Product Description:

Carbon dioxide is a key indicator of indoor air quality impairing human cognitive ability and well-being, SCD40/SCD41 is Sensirion’s next generation of miniature carbon dioxide sensors, the SCD40/SCD41 boasts high accuracy and cost-effective performance, the module leads the power supply and communication pins out with a 2.54mm pitch row of pins interface. The on-chip temperature and humidity compensation is realized by the built-in temperature and humidity sensor for humidity and temperature measurement. SCD40/SCD41 can realize intelligent adjustment of indoor ventilation system according to the carbon dioxide concentration, and the indoor air quality can help to maintain a healthy and efficient environment with low carbon dioxide concentration over a period of time.

Characteristics:

1. Reference accuracy, specified range,SCD40:400-2000 ppm SD41:400-5000 ppm

2. Supply voltage range: 2.4-5.5 V

3. High accuracy: ± (40 ppm + 5%)

4. Digital I2C interface

5. Integrated temperature and humidity sensors

6. Low power operation to <0.4 mA averaged @ 5 V, 1 meas./5 minutes

Interface Definitions:

1.GND: Power negative input port

2.VDD: Power supply positive input port

3.SCL: I2C clock port

4.SDA: I2C data port
