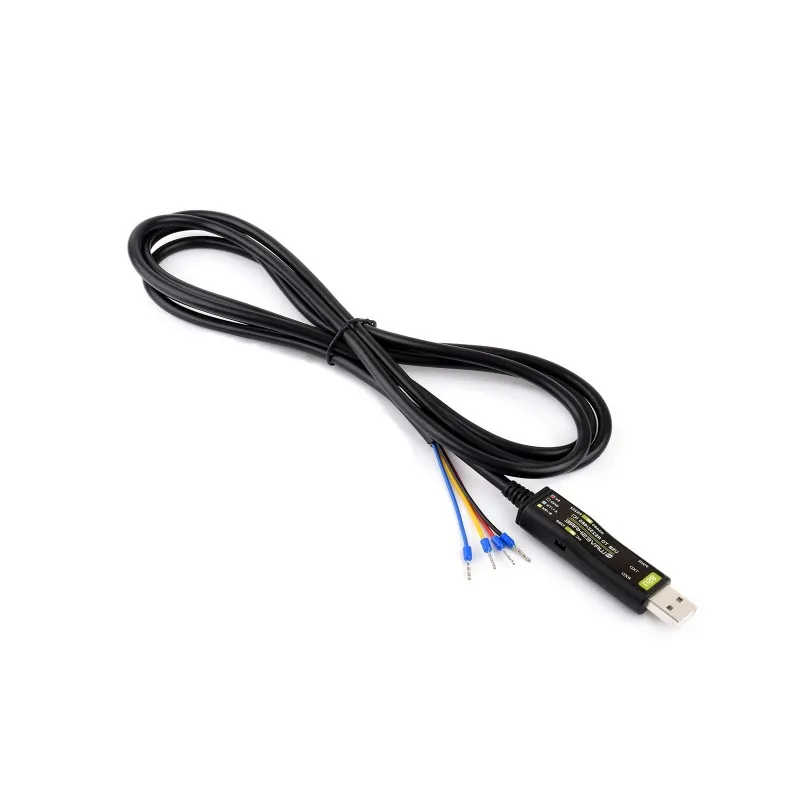

This product is a USB to RS232 / RS485 serial cable, adopts original FT232RNL chip. Onboard power supply and signal indicators, supports 3.3V / 5V level and RS232 / RS485 communication switching. Built-in self-recovery fuse, ESD and IO protection diode circuits, etc.
Specifications
| PRODUCT TYPE | USB to RS232/485 serial cable | |
| Chip | Original FT232RNL chip | |
| Host port | USB | |
| Device port | RS232 / RS485 (switchable) | |
| USB | Connector | USB-A |
| Protection | Self-recovery fuse, ESD protection | |
| RS232 | Connector | 4PIN cable with female crimp connector |
| Protection | TVS tube, surge-suppress and ESD protection | |
| Transmission mode | Point-to-point | |
| Baud rate | 300bps ~ 921600bps | |
| RS485 | Connector | 4PIN cable with female crimp connector |
| Protection | 200W lightningproof, surge-suppress and ESD protection | |
| Transmission mode | Point-to-multipoints | |
| Baud rate | 300bps ~ 921600bps | |
| LED indicators | PWR | Power indicator, lights up when there is USB connection and voltage is detected |
| TXD | TX indicator, lights up when the USB port sends data | |
| RXD | RX indicator, lights up when the device port sends data back | |
| Cable | Black, PVC sheath, 2m cable length | |
