DYS 35A/70A 3-6S BLheli_32bit Brushless RC Drone ESC with special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing and helicopter.The twisted-pair signal wire can lower the crosstalk inside cooper wire when it transfer,which will make the flight more stable
1.ESC Brushless: DYS Aria BLHelii_32bit 35A 70A ESC With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor, throttle 2048 resolution ratio,strong anti-interference capacity

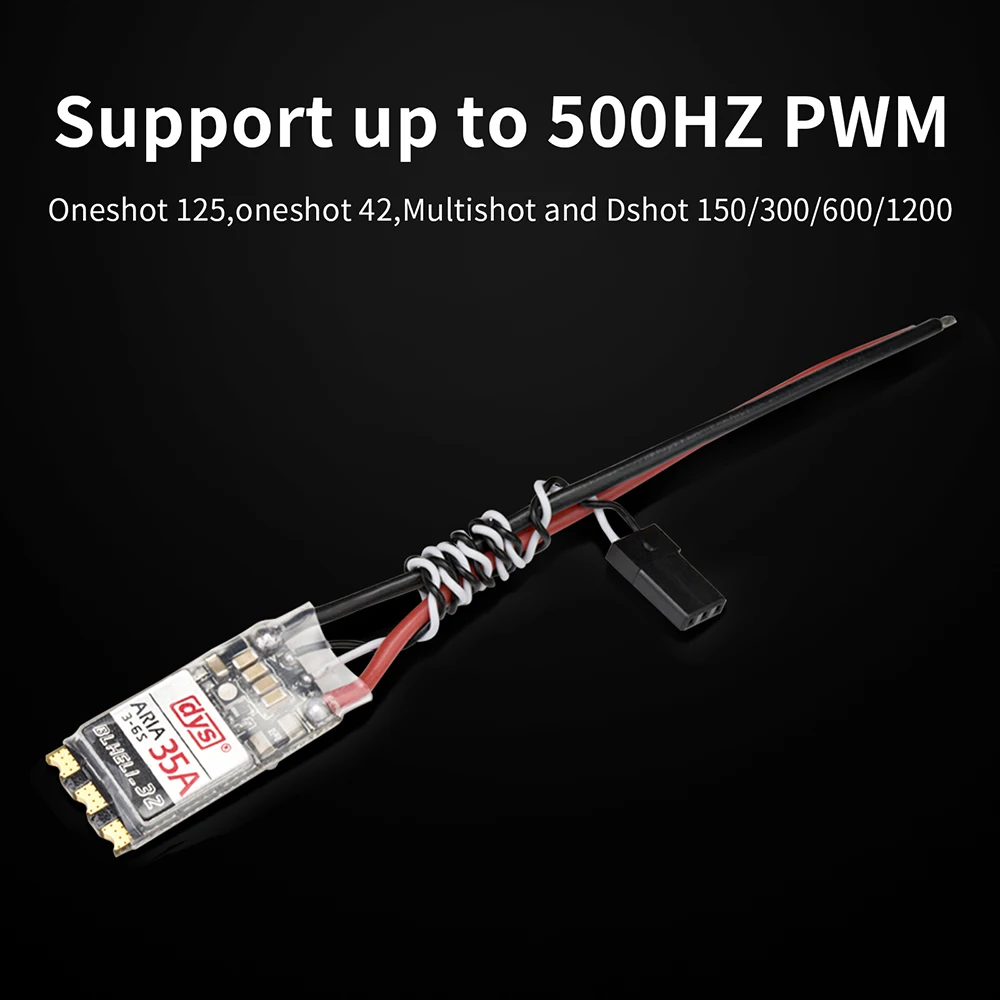

2.Drone Esc 6S: The electronic speed controller support Blheli_32 firmware,can use the signal wire to upgrade the firmware or change the configuration on line.It use the self-adaption control system,can go automatic with the all kind of the motor in the market,at the mean time it support up to 500HZ PWM,oneshot 125,oneshot 42,Multishot and Dshot 150/300/600/1200 Input voltage: 3-6S Lipo
3.Drone ESC Controller Configuration: Built-in sensor can be reaction of temperature,output power,output current etc,also programmable for protection.
4.USB Linker RC ESC Brushless: Electronic speed controller can be programmable throttle setting like support positive and negative,two way mode,FPV 3D mode,motor speed,braking ,PWM frequency, inlet angle speed setting, onboard RGB LED for customize color, Beep etc
5.6s ESC Performance:The drone ESC with special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing and helicopter.
Specifications:
Brand: DYS
Item Name: Aria BLHelii_32bit Brushless ESC
Con. current: 35A/70A
Burst current(A)>10s: 40A/80A
Input voltage: 3-6S Lipo
BEC: NO
Size: 32*16mm/42*21.5mm
Weight: 4.37g/9.52g(without motor wires)
Package Included:
1x Aria BLHelii_32bit ESC
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
