PACKAGE CONTENT：
1.14inch LCD Display Module x 1 ( NOT include Raspberry Pi Pico.) Note :Only for Raspberry Pi Pico.

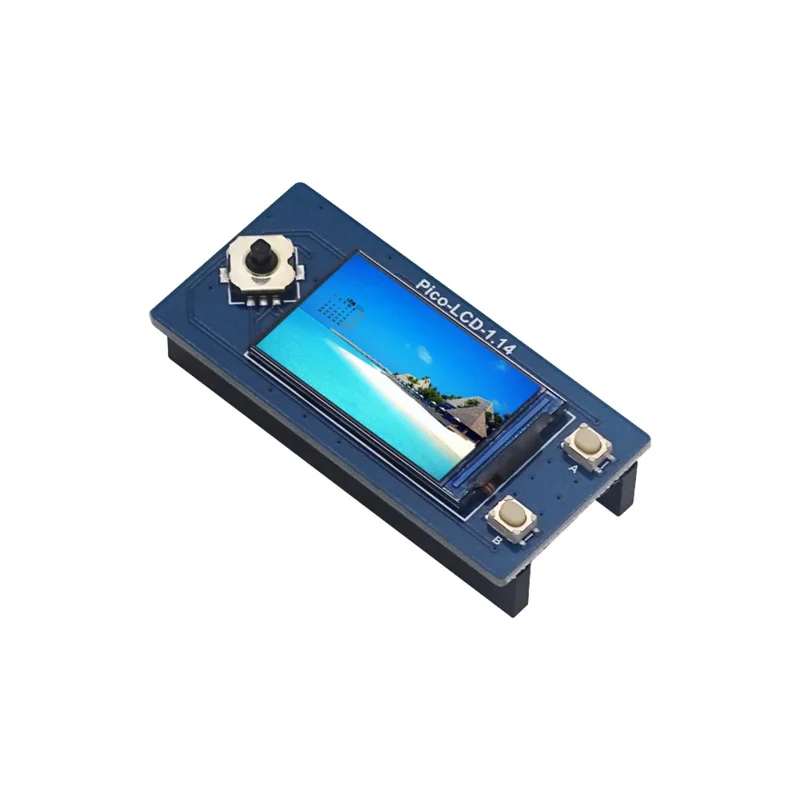

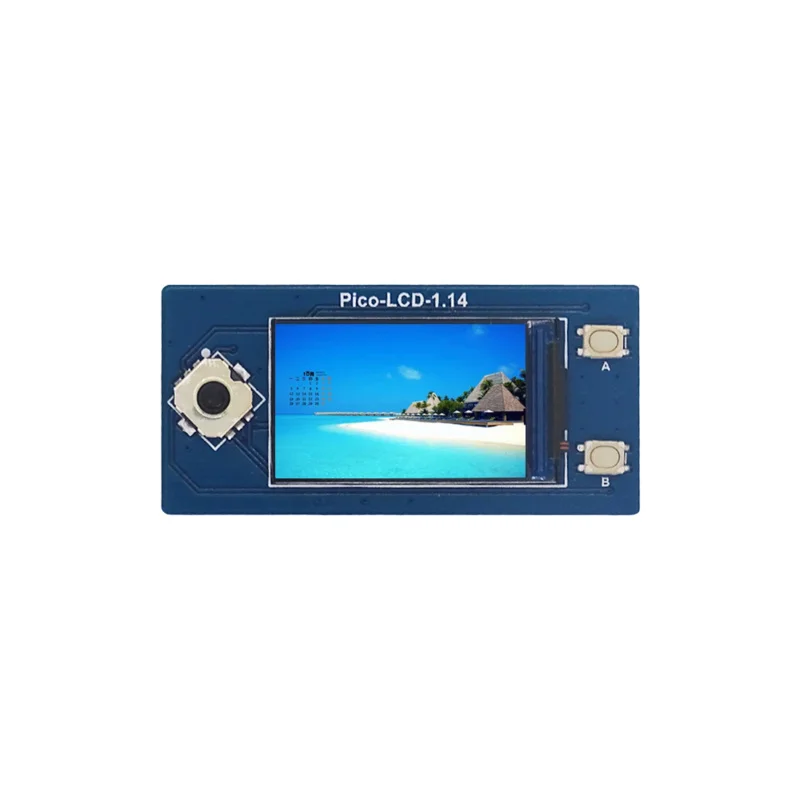

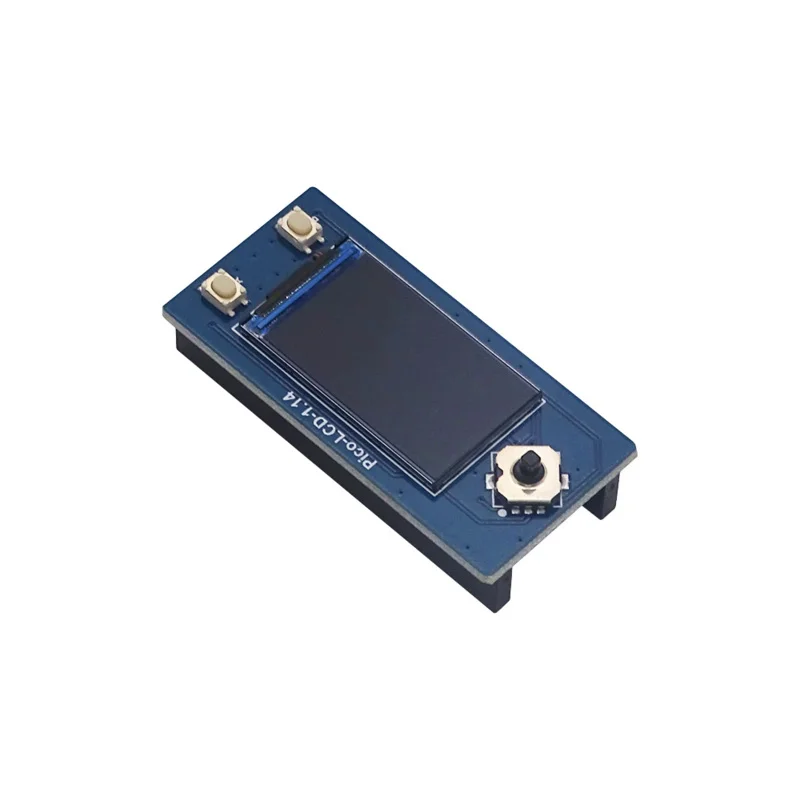

1.14″ LCD Display Module For Pico
Embedded ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C and MicroPython Demo
- Size1.14″
- Resolution240 × 135
- Color Display65K RGB
- InterfaceSPI
- Display PanelIPS
- DriverST7789
Features At A Glance
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- wiki manual (Raspberry Pi Pico C/C and MicroPython examples)
- WIKI: www.waveshare.com/wiki/Pico-LCD-1.14
Specifications
| OPERATING VOLTAGE | 2.6 ~ 5.5V | RESOLUTION | 240×135 pixels |
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 24.91 × 14.86mm |
| DISPLAY PANEL | IPS | Pixel size | 0.1101 × 0.1035mm |
| DRIVER | ST7789 | DIMENSIONS | 52.00 × 25.00mm |

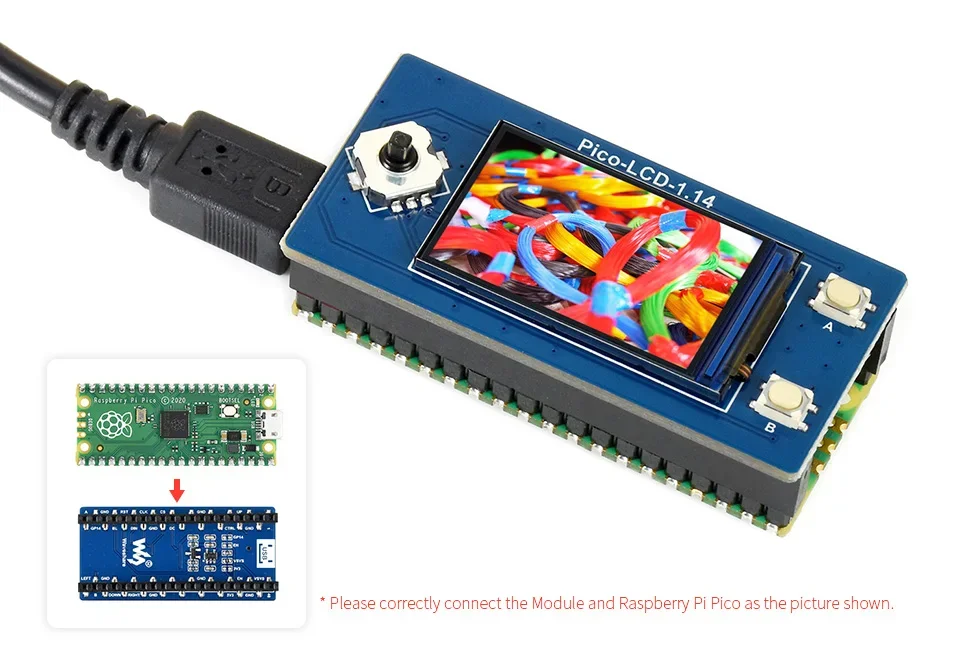

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting
Raspberry Pi Pico is NOT included.

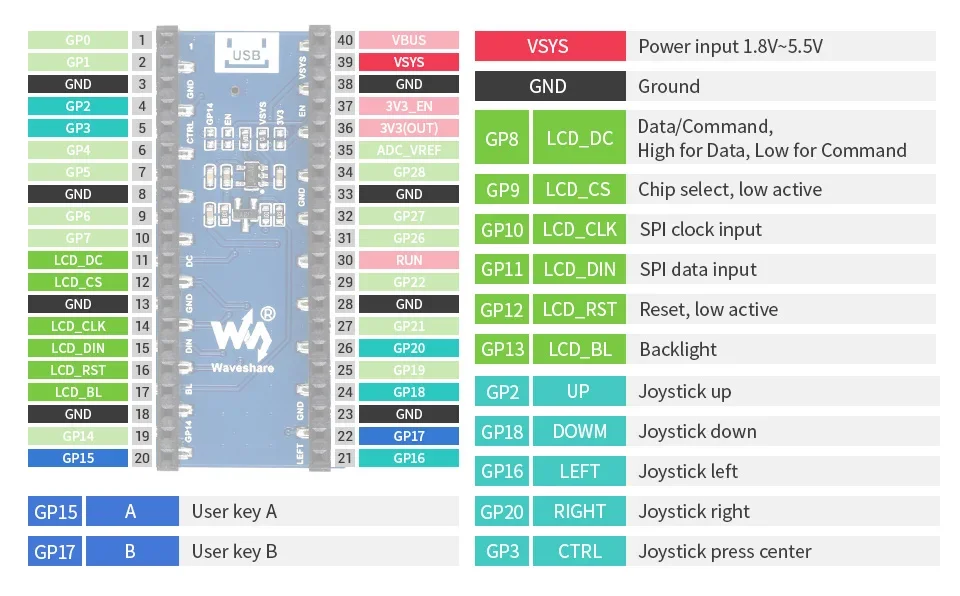

Pinout Definition

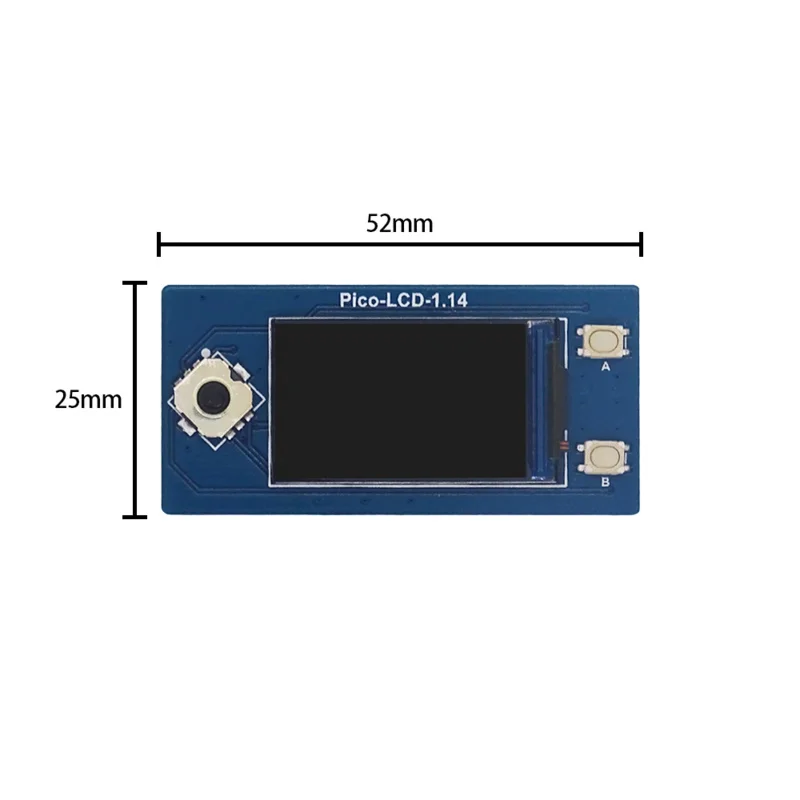

Outline Dimensions
