- Hign-concerned Chemical: None
- Display Mode: 2.0
- is_customized: Yes
- Model Number: 2.0 inch TFT module
- Type: TFT
- Brand Name: DIY LEARNER
- Origin: Mainland China
- Resolution: 320×240
| Diagonal Screen Size | 2.0inch |
| Color | 262K |
| Resolutions | 240X320 |

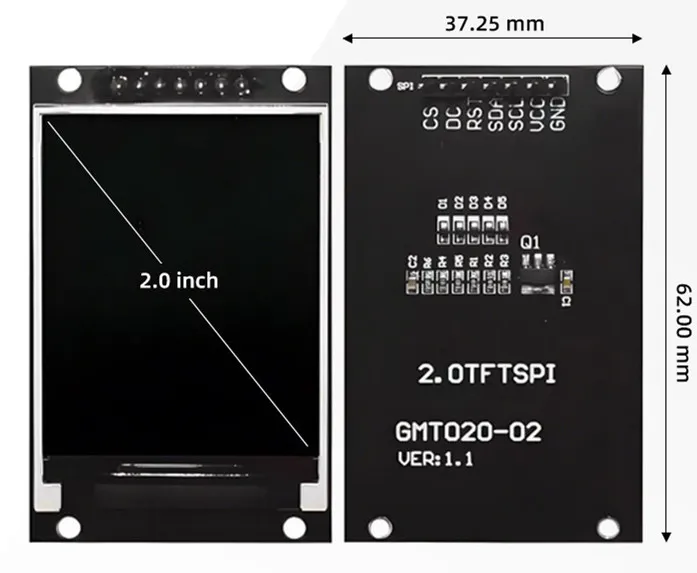

| Outline dimension | 37.25mm×62.00mm×12.10mm |
| Active area | 30.60mm×40.80mm |
| Pixel pitch | 0.1275mm×0.1275mm |
| Pixel size | 0.1175mm×0.1175mm |
| Driver IC | ST7789 |
| Voltage | 3V-5V |
| Interface | 4 Line SPI |
| Operating temperature | -20℃~70℃ |
| Storge Temperature | -30℃~80℃ |
| Assemble | Soldering |
| Pins | 7P |
