Applies to the confirmed LOLIN D1 mini V4 hardware and ESP8266 Arduino setup.
Technical setup notes
- LOLIN D1 mini V4 is an ESP8266 board. Install the ESP8266 Arduino core separately from the ESP32 core and select a matching D1 mini profile.
- GPIO uses 3.3 V logic. V4 provides USB-C and the LOLIN I2C connector; verify the printed board revision when using its pinout.
- The documented V4 A0 input limit is 3.2 V at the board pin, distinct from a bare ESP8266 ADC input.

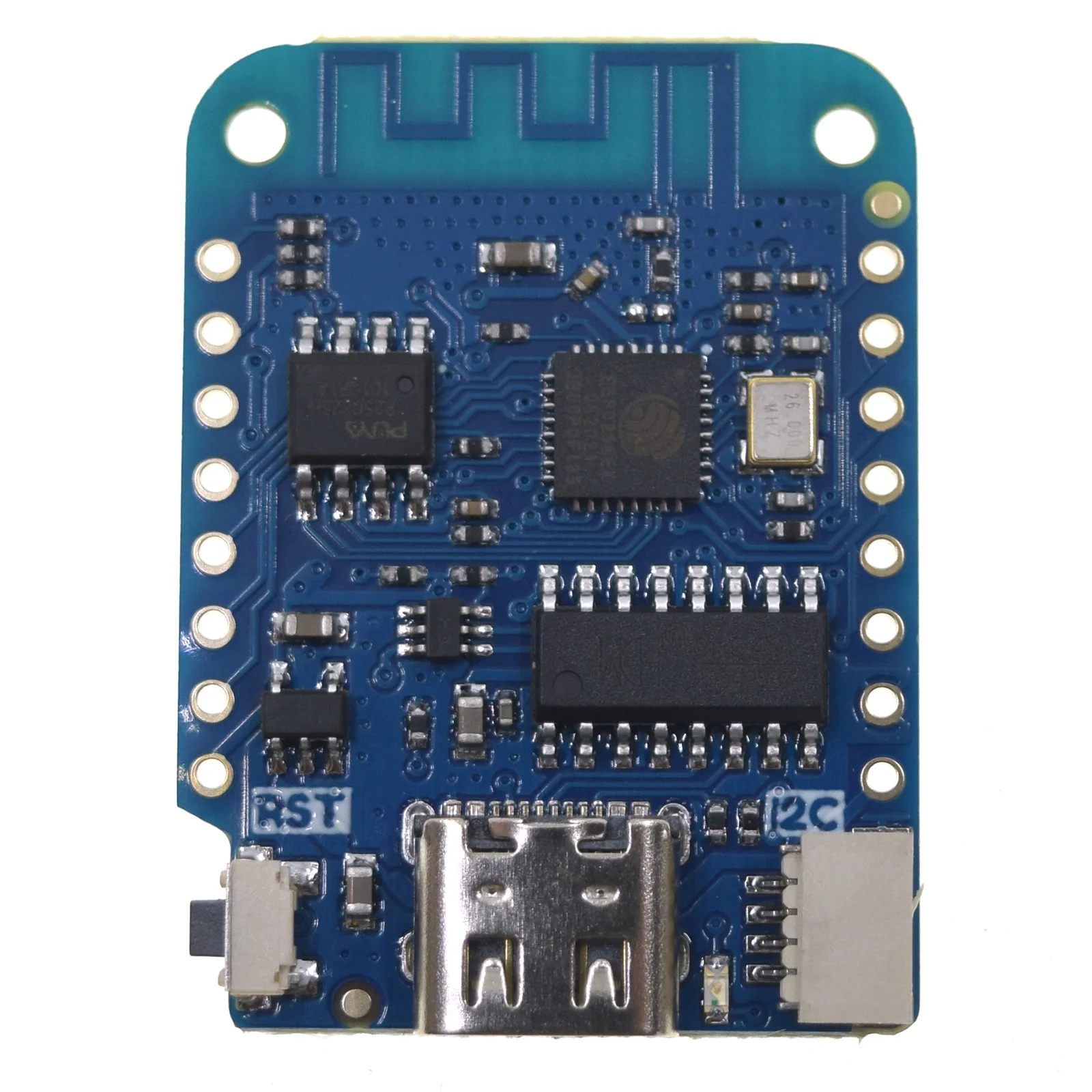

What's new about V4.0.0
- Optimize the circuit
- Add LOLIN I2C PORT
- TYPE-C USB port

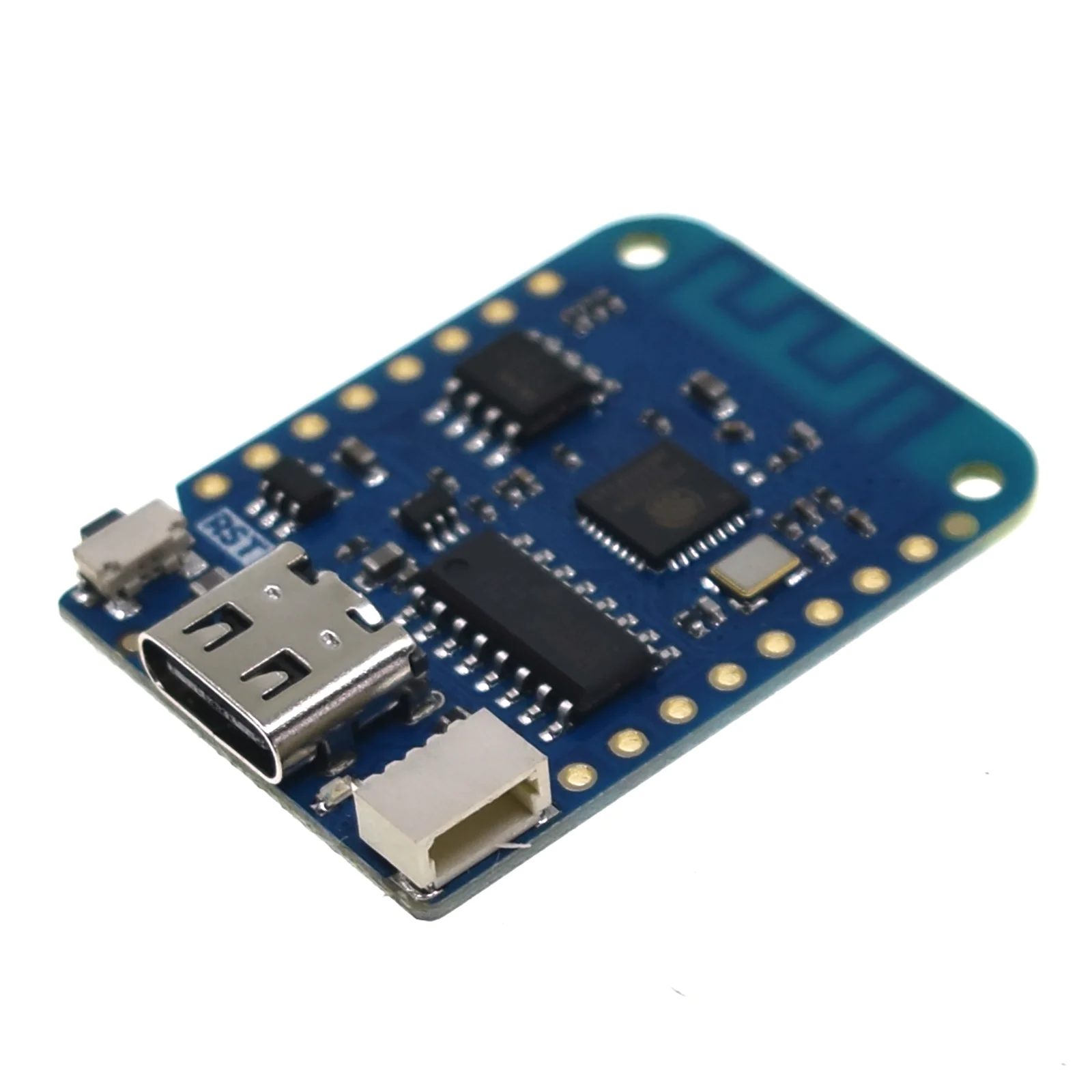

Features
- 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
- 1 analog input(3.2V max input)
- Type-C USB Port
- LOLIN I2C Port
- Compatible with MicroPython, Arduino, Nodemcu
- lots of Shields

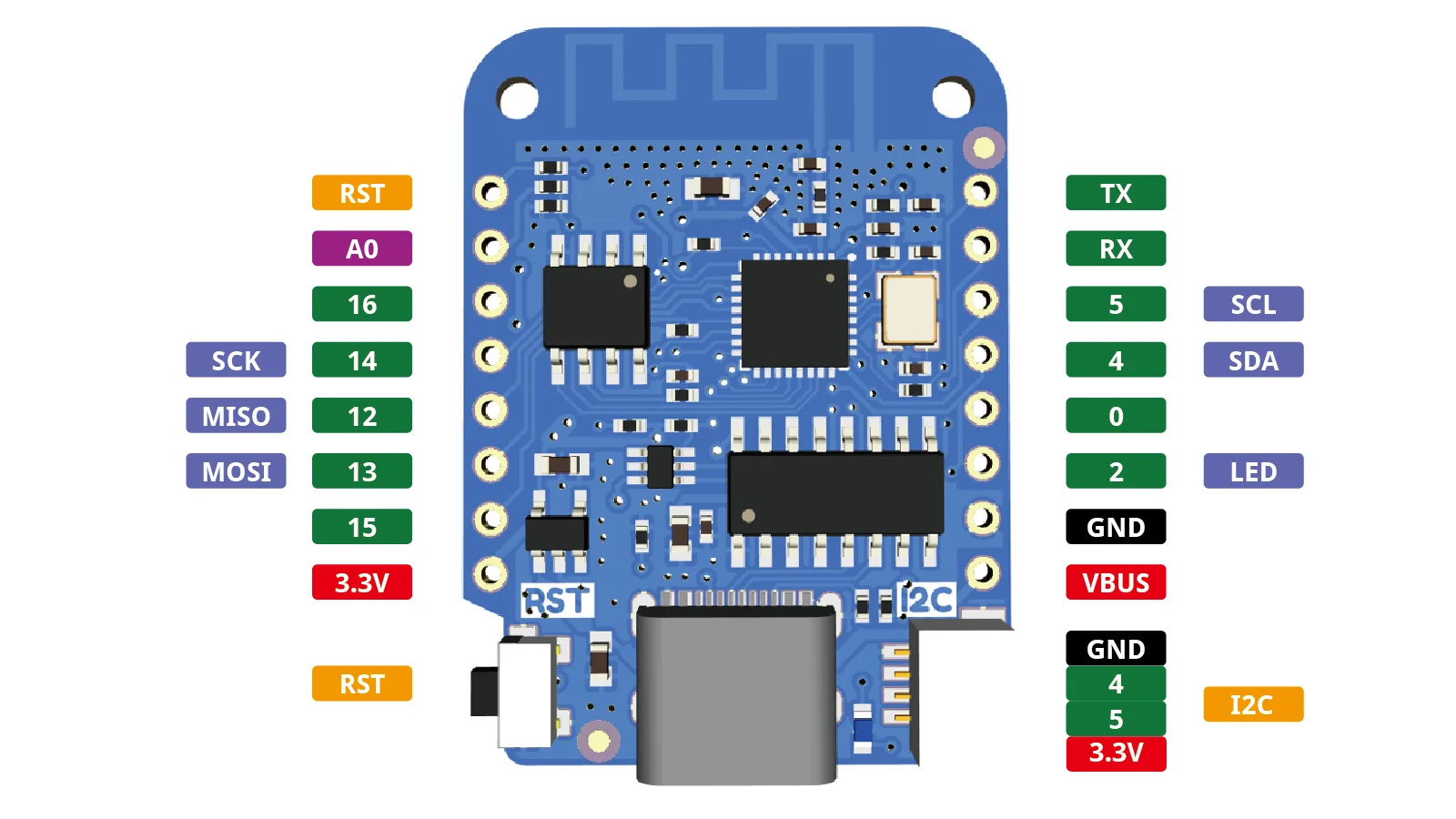

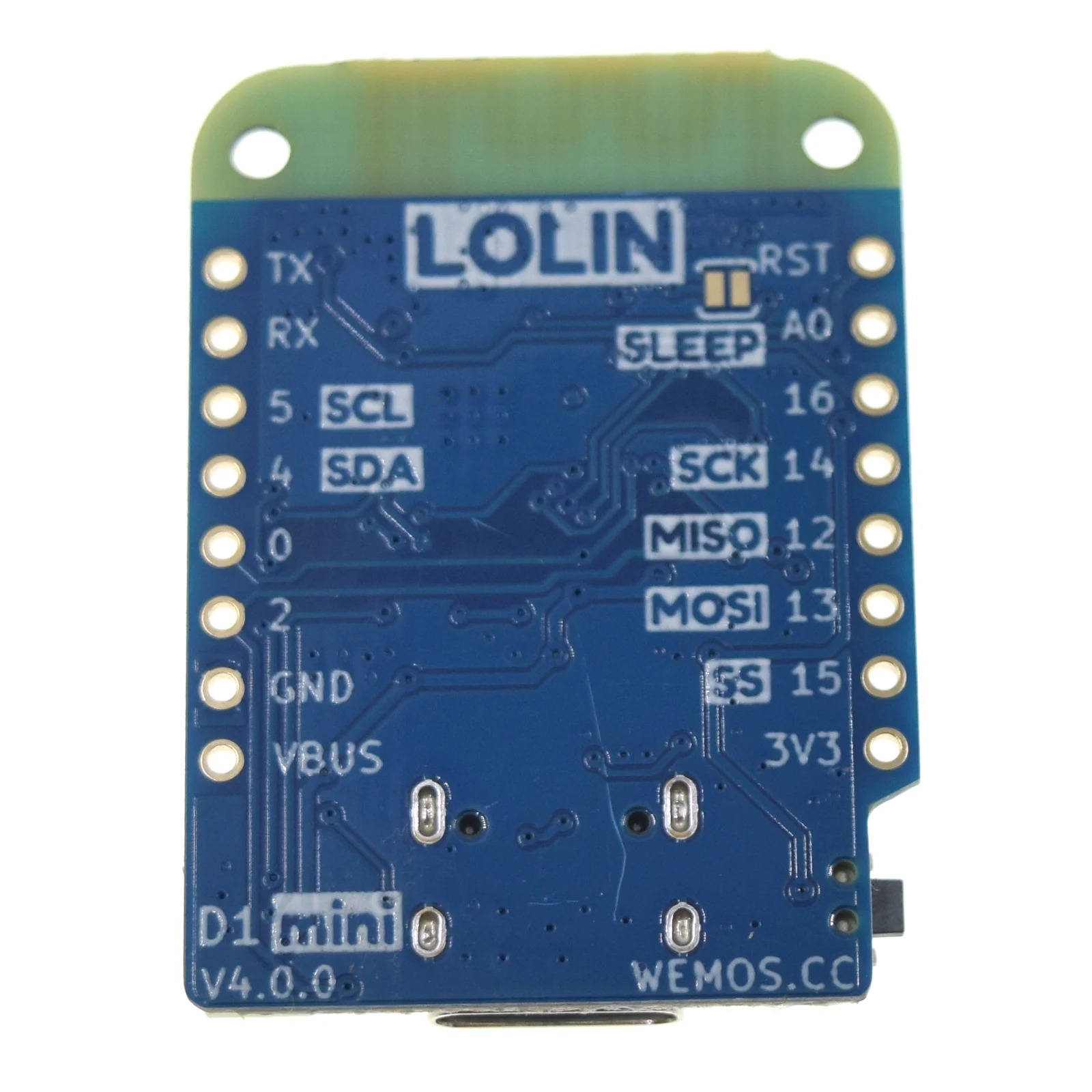

Pins

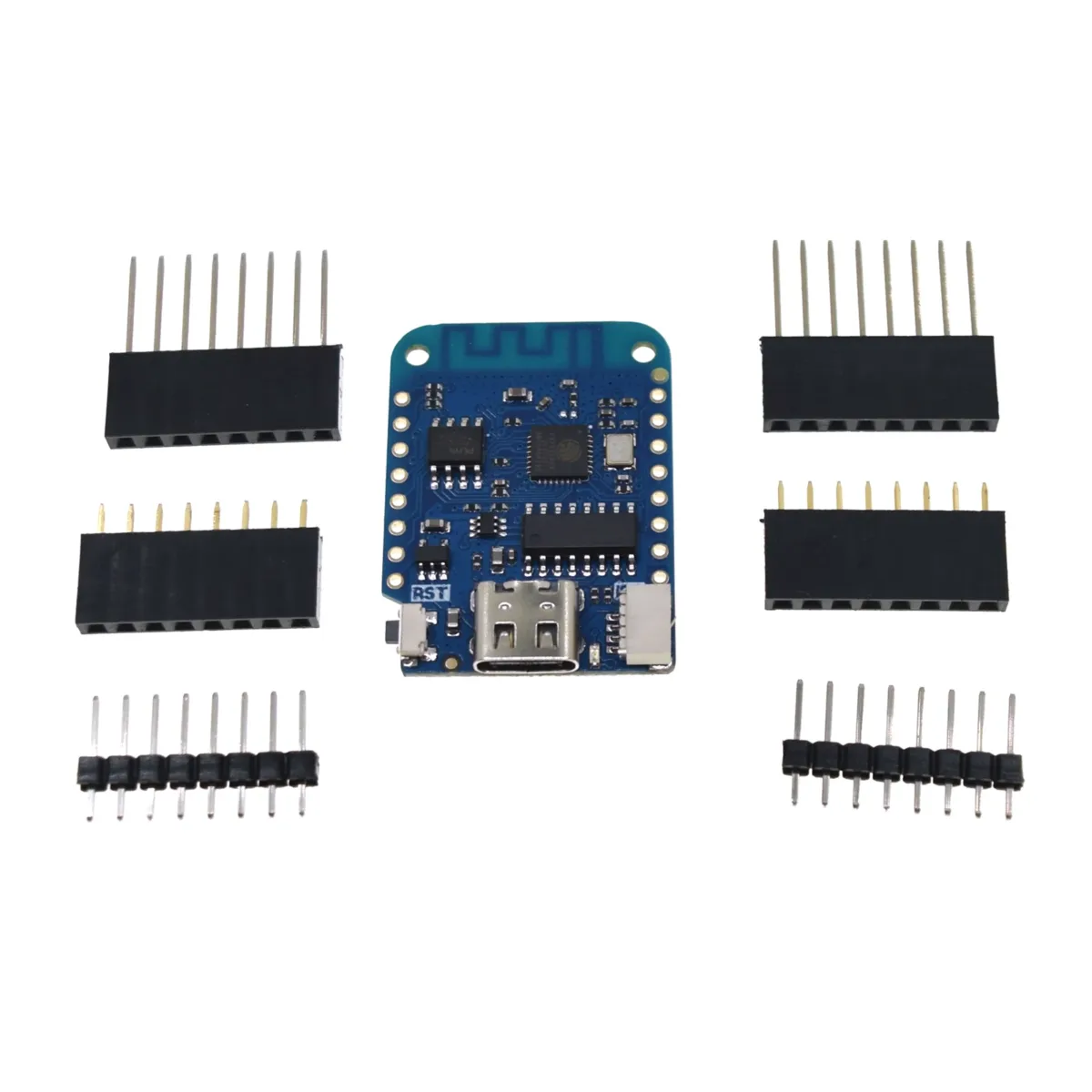

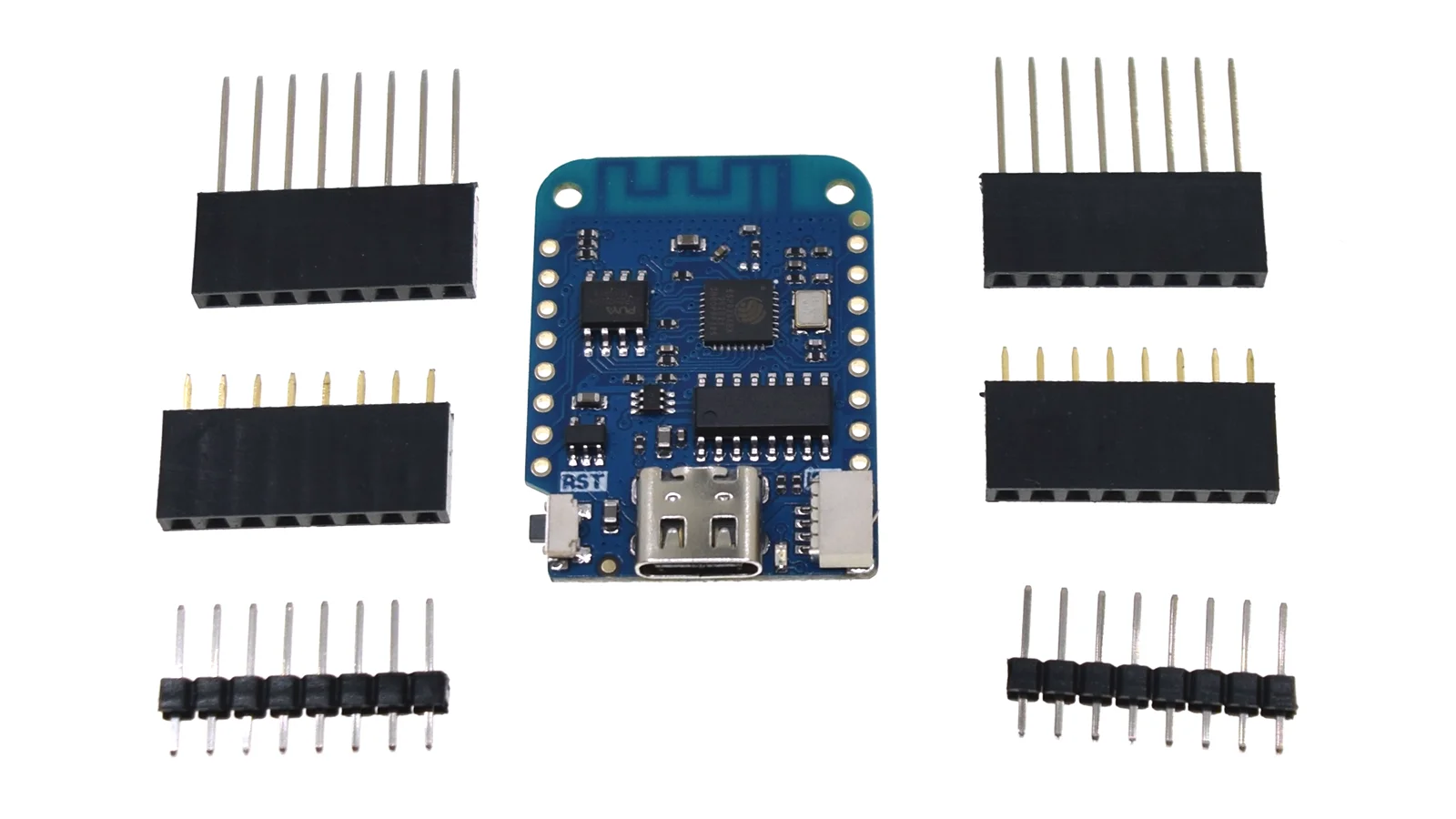

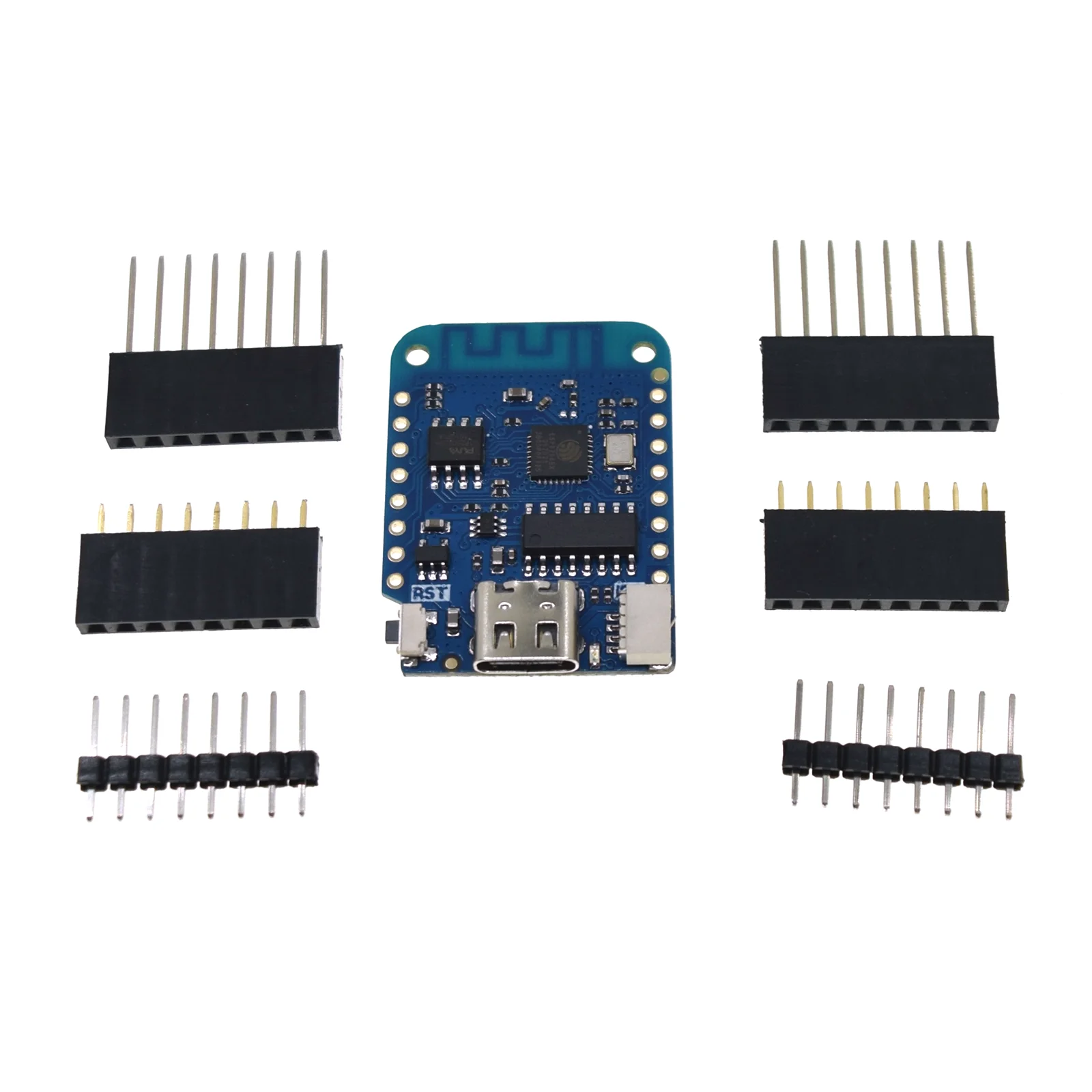

Shipping List
1.Long femalepinsx2pcs
2.Short female pins x2pcs
3.Normal pins x2pcs
4.LOLIN D1 mini x1pcs
