ESP32-C6 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi 6 and Bluetooth 5

$22.90

In stock

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

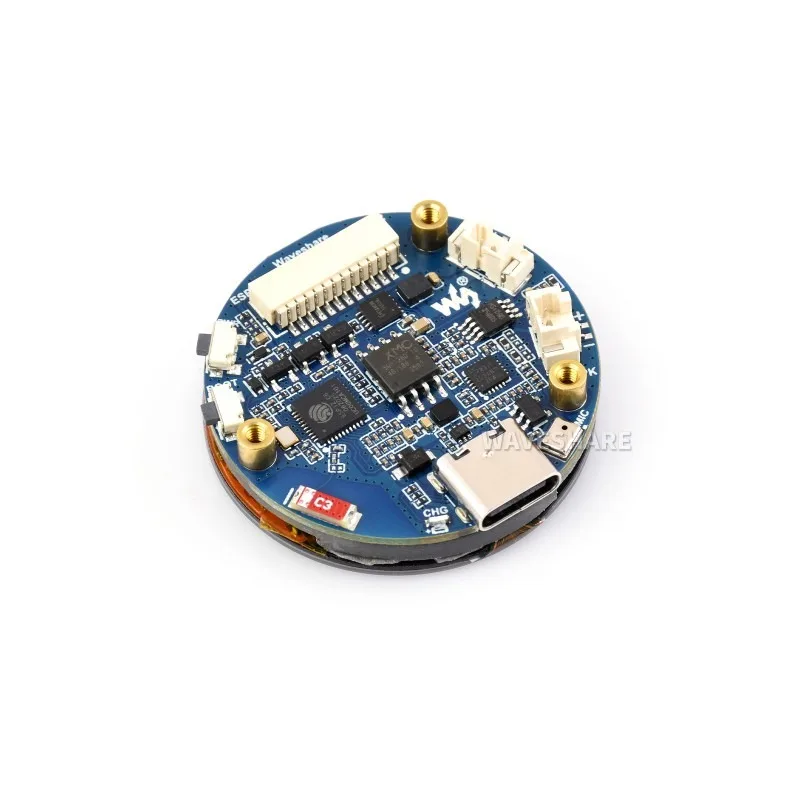

ESP32-C6 1.32inch AMOLED Display Development Board

Embedded with CO5300 Display Driver and CST820 Capacitive Touch Chip


Features

The ESP32-C6-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.

  • Equipped with ESP32-C6 high-performance 32-bit RISC-V processor, up to 160MHz main frequency
  • Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and 16MB Flash memory
  • Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
  • Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
  • Onboard PWR and BOOT programmable buttons for easy custom function development
  • Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
  • Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
  • Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
  • Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
AMOLED parameters
Display Panel AMOLED Display Size 1.32 inch
Resolution 466 × 466 pixels Display Colors 16.7M
Brightness 500 cd/㎡ Contrast Ratio 10000:1
Communication Interface QSPI Driver IC CO5300
Touch Supported Touch IC CST820



Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-machine Interaction Function. Supports connecting to a Batt. for independent operation

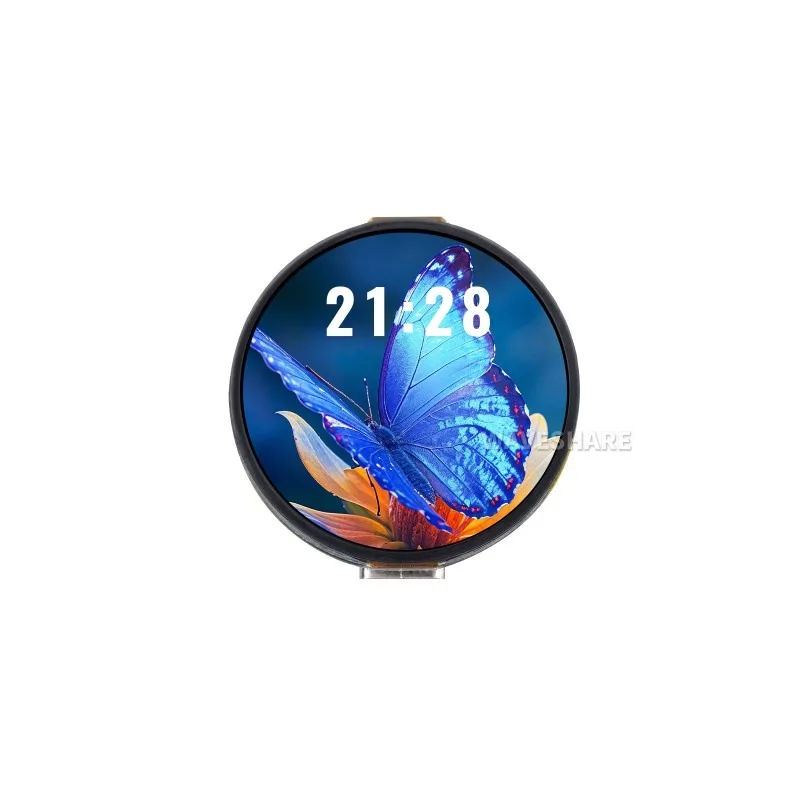

Adopts AMOLED screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Onboard audio codec chip

Supports high-quality audio processing, providing clear and high-quality audio input and output

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.



Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started





ESP32-C6 suitable for AIoT applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor

Wi-Fi 6 and BLE 5 support

Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

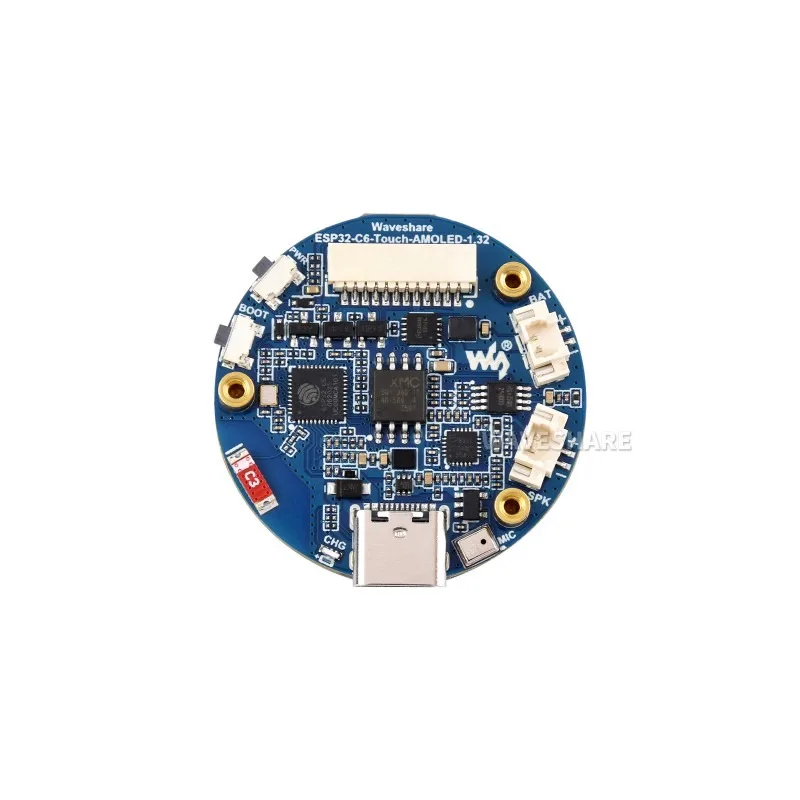

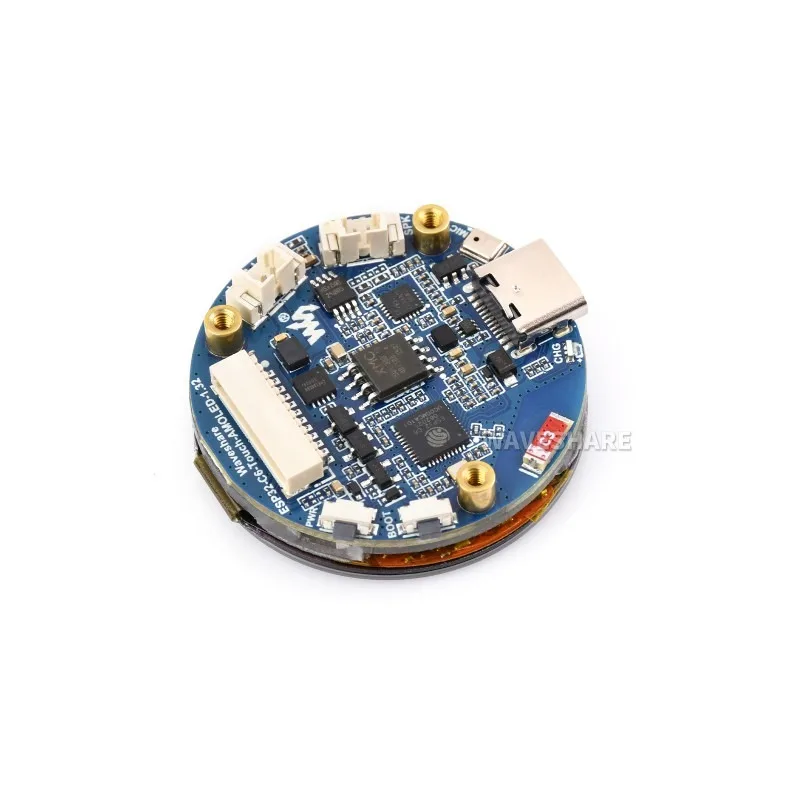

What’s On Board
  1. ESP32-C6
    RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 6 and BLE 5 support
  2. W25Q128JVSI
    16MB Flash
  3. Onboard antenna
    Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  4. PWR button
    for power supply ON/OFF when powered by Lithium Batt., driver required
  5. BOOT button
    Press and hold the BOOT button, then power up again to enter download mode
  1. Digital microphone
    for audio capture
  2. MX1.25 2PIN Lithium Batt. header
    for 3.7V Lithium Batt., supports charging and discharging
  3. MX1.25 2PIN speaker header
    Audio signal output, supports connecting external speakers
  4. SH1.0 12PIN interface
    for external device connection and debugging, allowing flexible configuration of peripheral functions
  5. Type-C port
    for program burning and log printing
  6. ES8311
    High-performance and low-power audio codec chip
interface definition

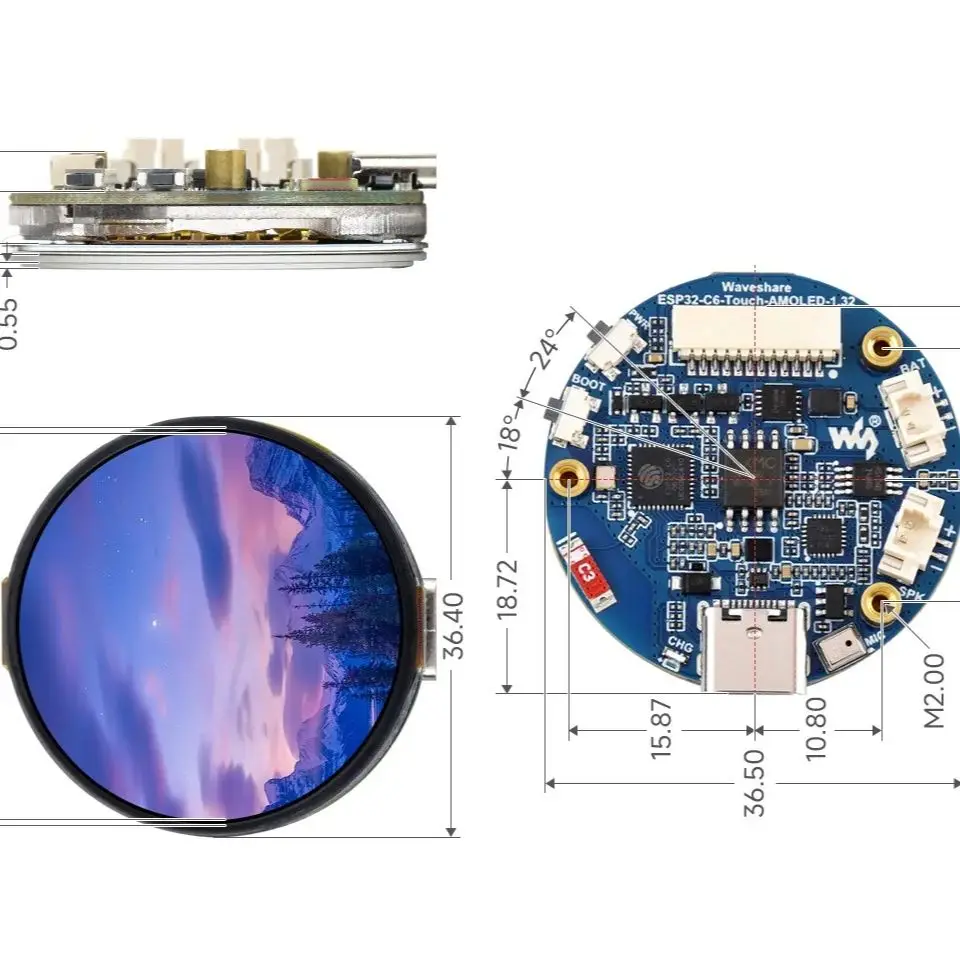

outline dimensions
SHOW MORE

Additional information

Weight 180 g
