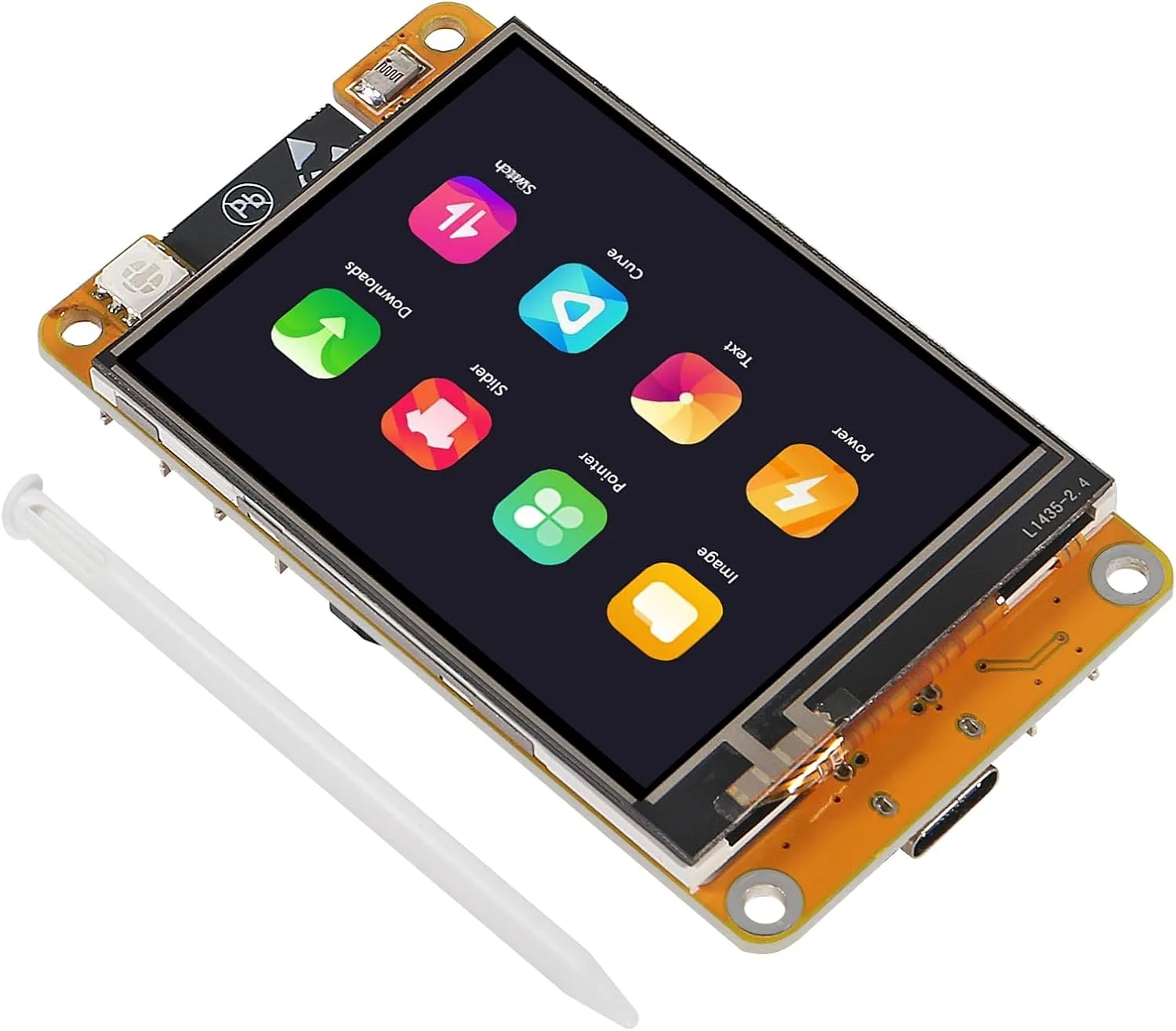

ESP32 LVGL WIFI&Bluetooth Development Board 2.4 inch CYD LCD TFT Module 240*320 Smart Display Screen With Touch WROOM

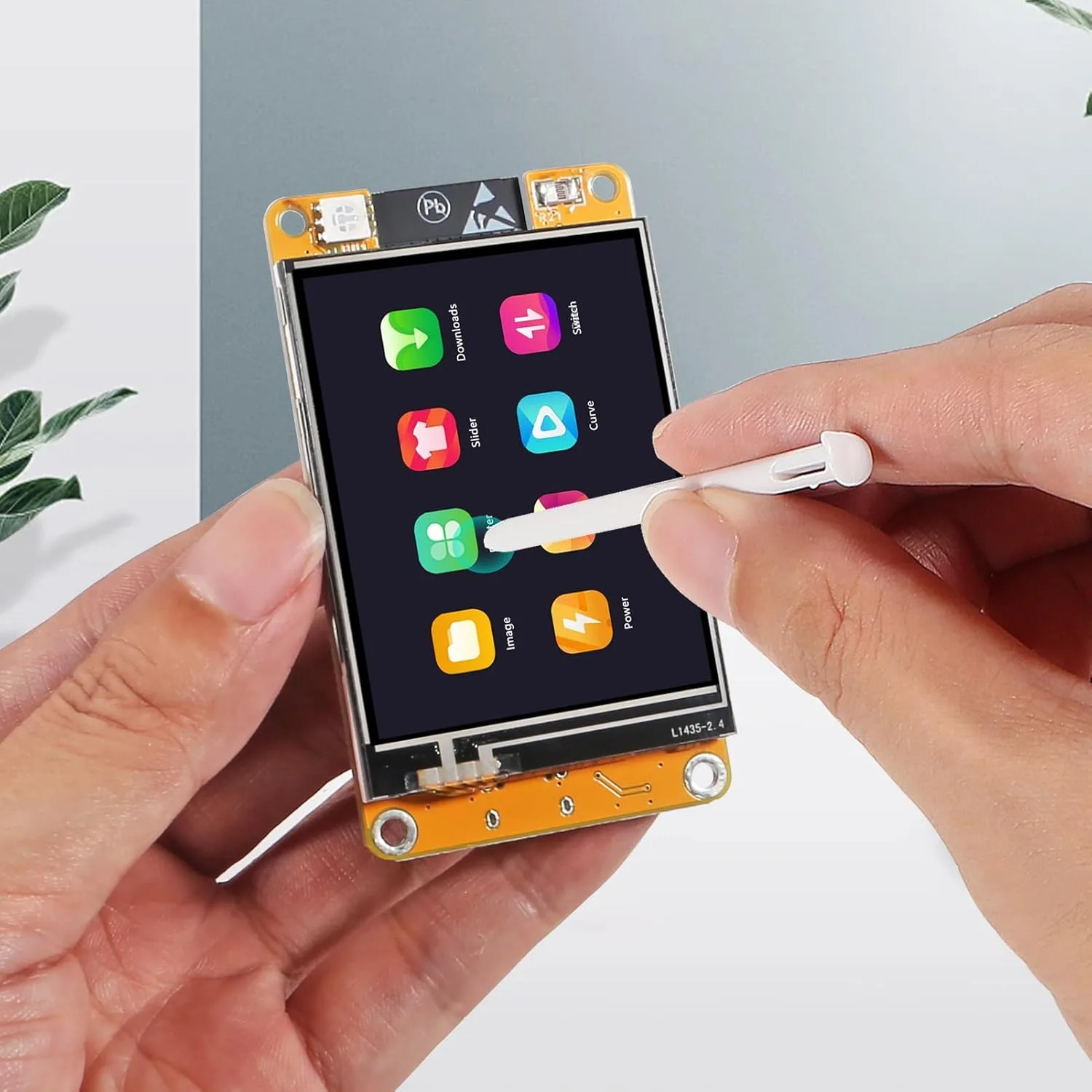

• High resolution and rich colors: 2.4-inch capacitive touch display screen, 240×320 resolution, with delicate and vivid picture quality.
• Multi functional development support: Built in ESP32-WROOM-32 dual core MCU, integrated Wi Fi and Bluetooth functions, flexible and efficient development.
• Strong scalability: Equipped with TF card slot, serial interfaces, and reserved IO ports for easy function expansion and secondary development.
• Good stability: Military grade process standards, with overcharge and over discharge protection function, ensuring long-term stable operation.
• Quick to get started: Pre programmed sample programs and library functions, supports one click program download.

Product Description

The LCD display module adopts ESP32-WROOM-32 module as the main control, which is a dual core MCU with integrated Wi-Fi and Bluetooth functions.
The main frequency can reach 240MHz, with 520KB SRAM, 448KB ROM, and 4MB flash memory.
Display resolution is 240×320 with resistive touch support.

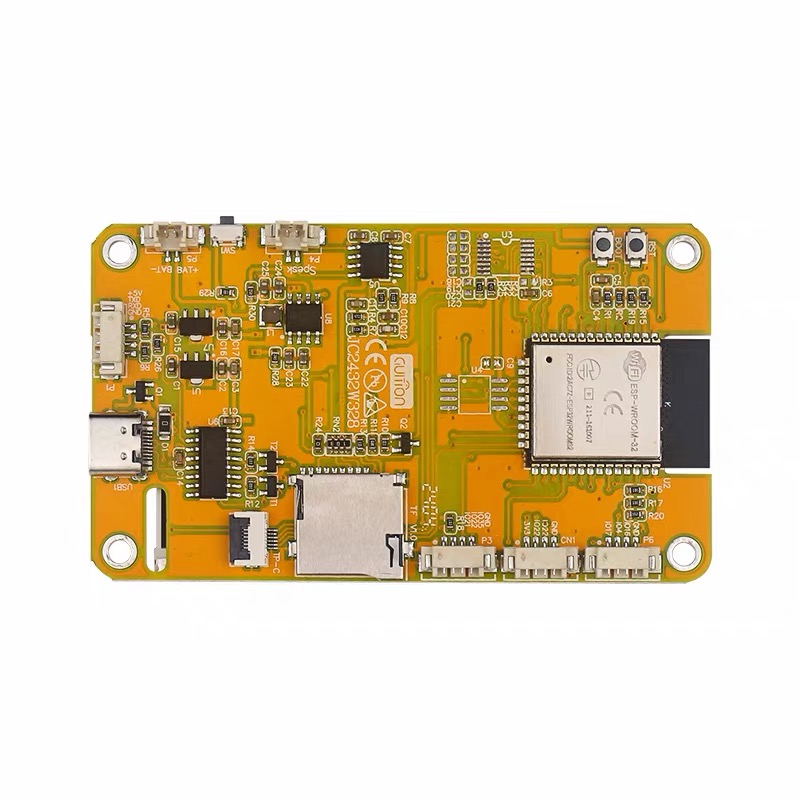

This module includes LCD display, backlight control circuit, touch screen control circuit, speaker driver circuit, photosensitive circuit, and RGB LED control circuit.
It is also equipped with TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface), and reserved IO ports.
The module supports development in Arduino IDE, ESP-IDF, and MicroPython.

Parameters

• Type: TFT LCD Display Module Development Board
• 2.4-inch color screen, supporting 16-bit RGB 65K color display
• 40×320 resolution
• Display Color: RGB 65K Color
• View Angle: Greater than 60 Degree
• Main Control: ESP32 WROOM 32 Dual Core MCU Integrated WIFI and Bluetooth
• Pre-programmed example programs, ready to use
• TF card slot for storage expansion
• Sample library functions and programs for quick secondary development
• Support one click download of programs
• Military grade process standards, stable long-term operation
• Supports lithium battery power supply with charging and discharging, overcharge and over discharge protection
• Product Name: ESP32 LVGL WIFI Bluetooth Development Board 2.4 inch LCD TFT Module 240×320 Smart Display Screen With Touch WROOM
• Brand Name: XYCJJCXL
• Type: TFT LCD Display Module Development Board
• Effective Display Area: 48.96 x 36.72 mm

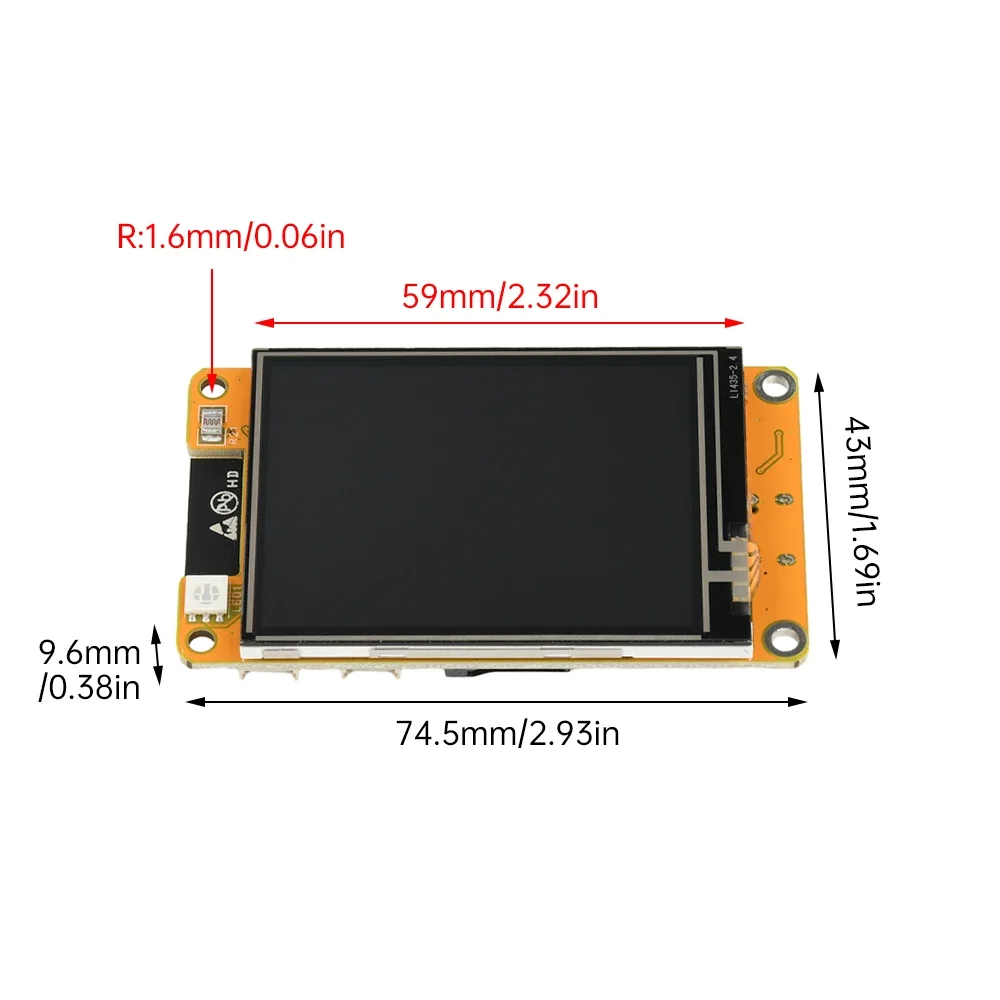

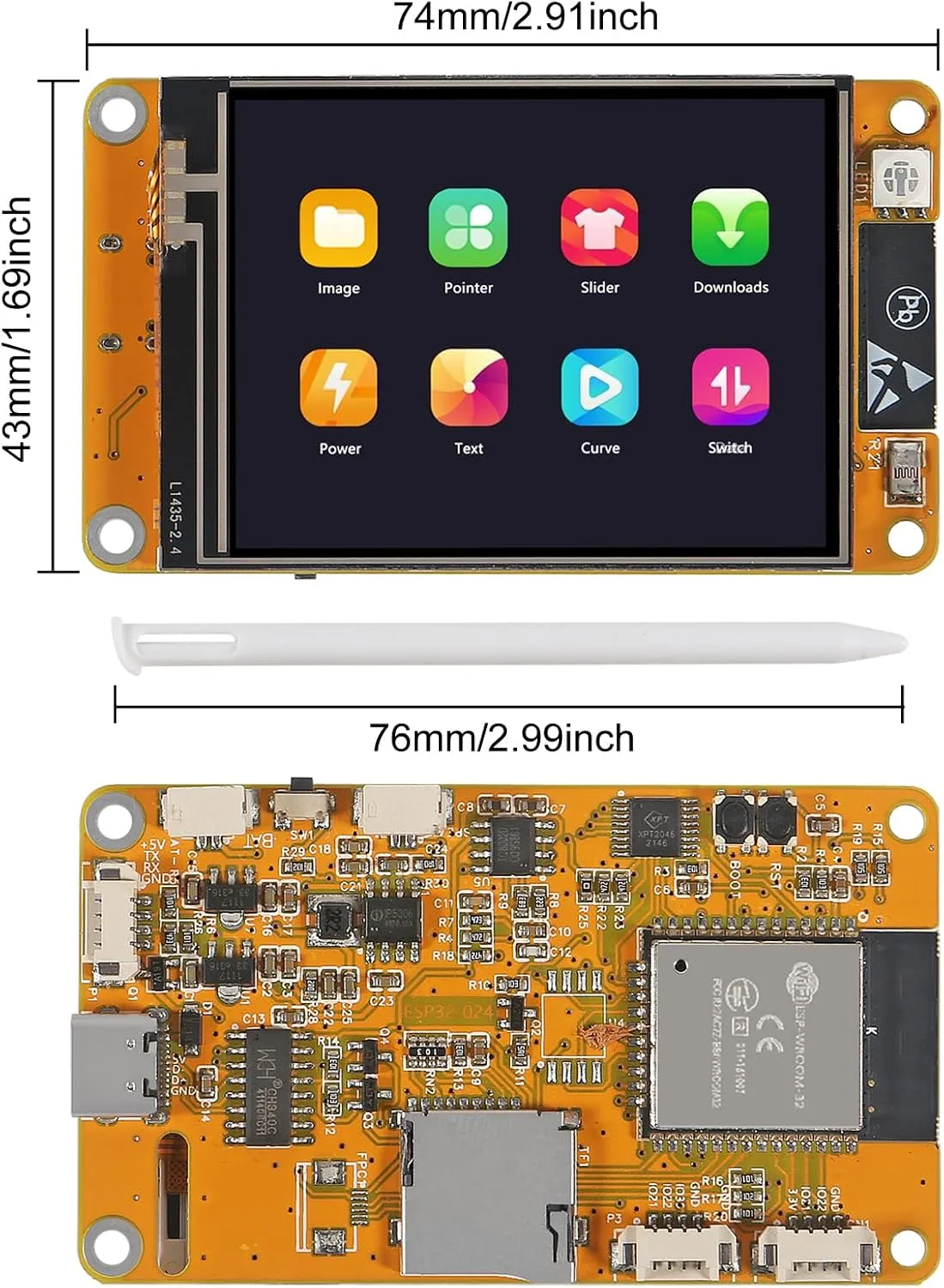

• Module Size: 74.4 x 42.9 mm
• Operating Voltage: 5V
• Power Consumption: About 100 mA
• Operating Temperature: Minus 20 to 70 Celsius
• Storage Temperature: Minus 30 to 80 Celsius
• Functions: Touch Screen Backlight Control Speaker Drive Temperature and Humidity Sensor Interface RGB LED Control
• Interface: Extended IO TF Card Reset Boot Type C Port Battery Interface Lithium Battery Switch
