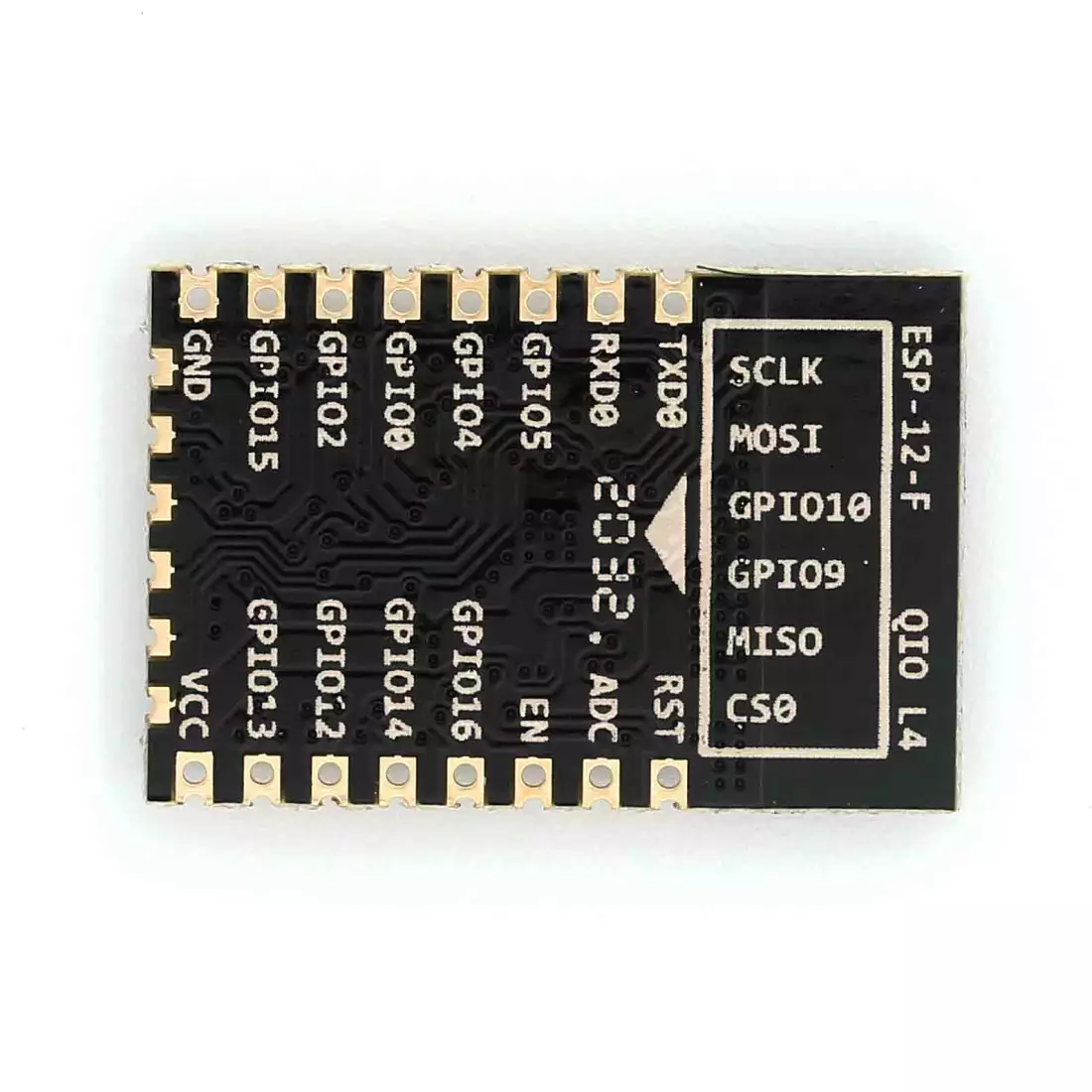

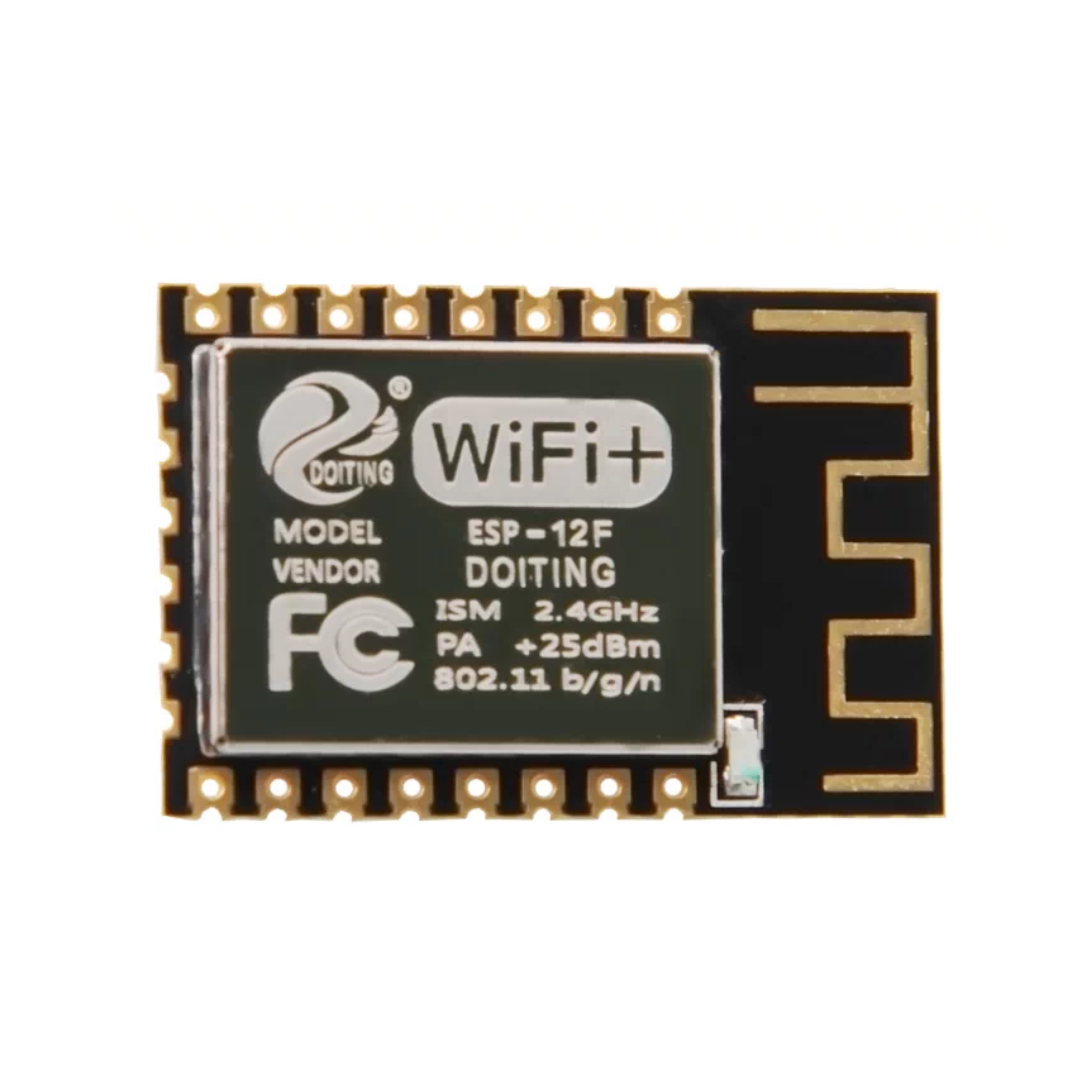

The ESP-12F, ESP8266 Wi-Fi Module is an integrated chip it can handle all the necessary overhead for communicating with our network, such as TCP/IP stack and 802.11 networks. It is completely addressable over SPI and UART protocols to connect our sensors or project directly to it through its GPIO’s. ESP8266 Serial Wi-Fi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor.
Each ESP8266 module comes pre-programmed with an AT command set firmware, so it can simply hook to Arduino device and get about as much Wi-Fi ability as a Wi-Fi Shield offers. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.
The ESP8266 module is an extremely cost-effective board with a huge, and ever-growing, community. ESP8266 Serial WiFi Wireless Transceiver Module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.
Features :
- Communication interface voltage: 3.3V
- Working current: 240mA (MAX)
- Serial port baud rate: 115200 (default)
- Serial communication format: 8N1
- Wireless Network Mode: station / softAP / SoftAP + station
- Wireless criteria: 802.11 b / g / n
- Output power: +19.5dBm
- Power down leakage current: <10uA
- WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
- Easy to develop projects with AT commands
- Surface Mount Package with 2mm Pitch Pads
- Multiple GPIO’s for all sensor needs
- Integrated TCP/IP protocol stack
- Integrated Wi-Fi MAC/ BB/RF/PA/LNA
- Integrated low power 32-bit CPU could be used as an application processor
- Supports UART, GPIO, ADC, PWM, I2C
- Wake up and transmit packets: < 2ms
- Pin pitch: 2.0mm
