- High-concerned chemical: None
- Package: SMD
- is_customized: Yes
- Application: Computer
- Type: Voltage Regulator
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Condition: New

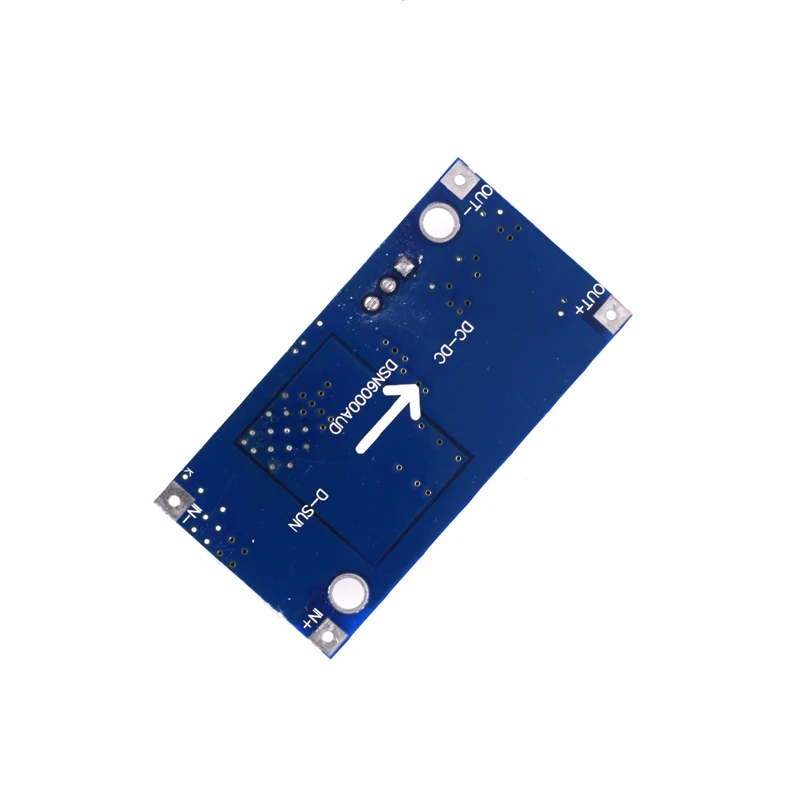

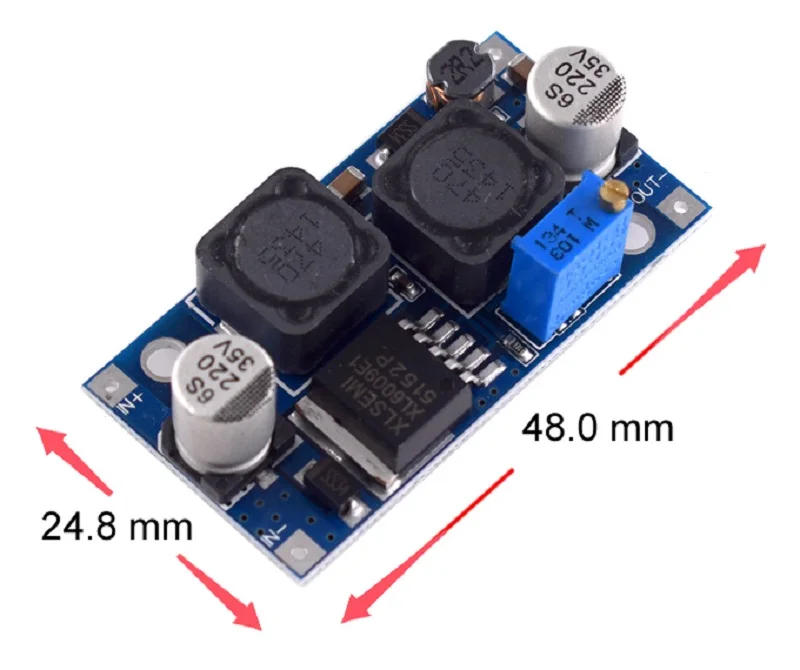

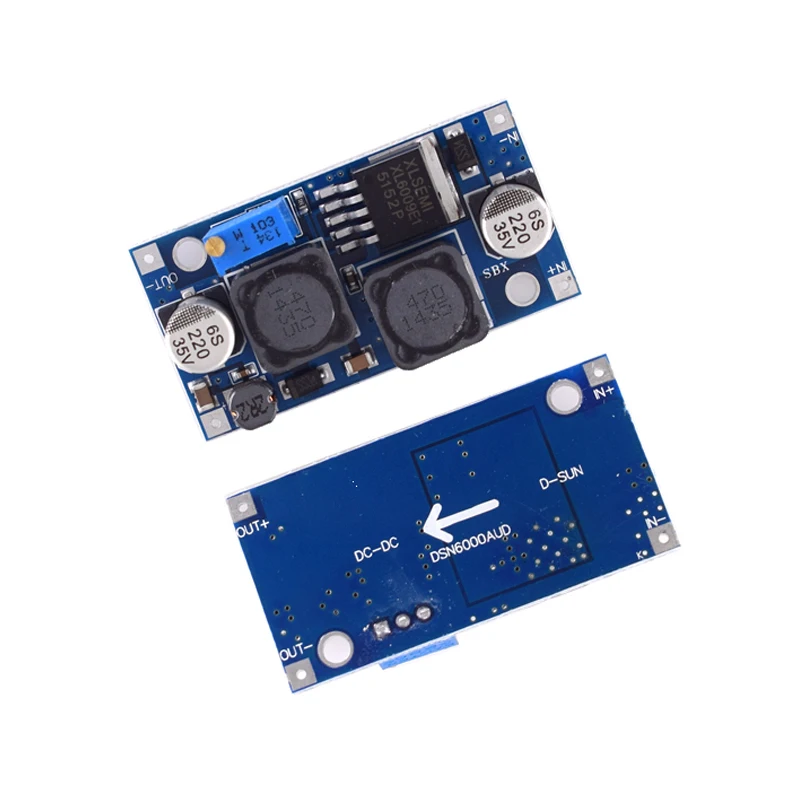

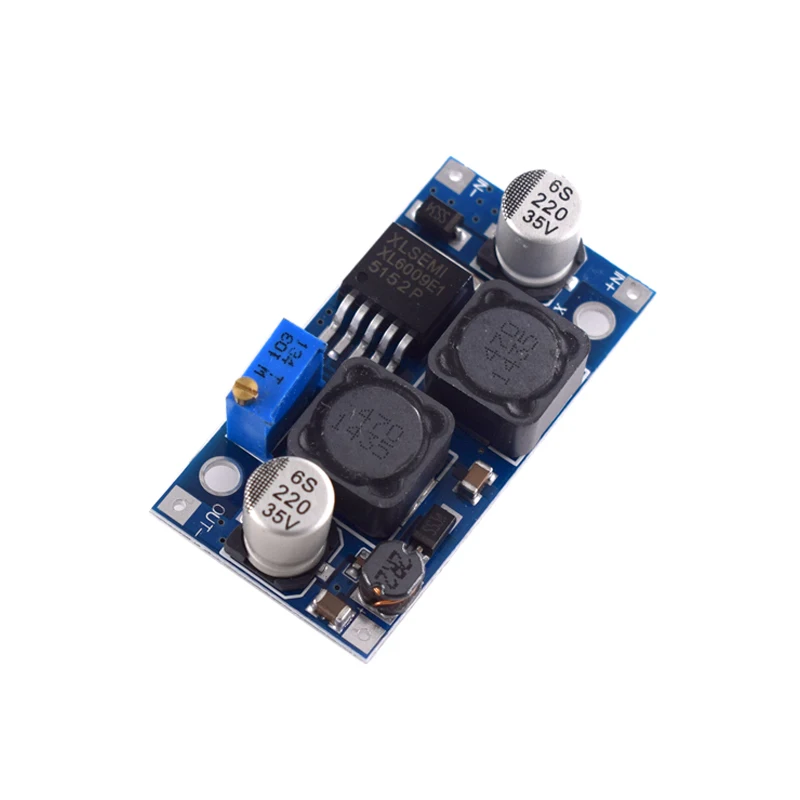

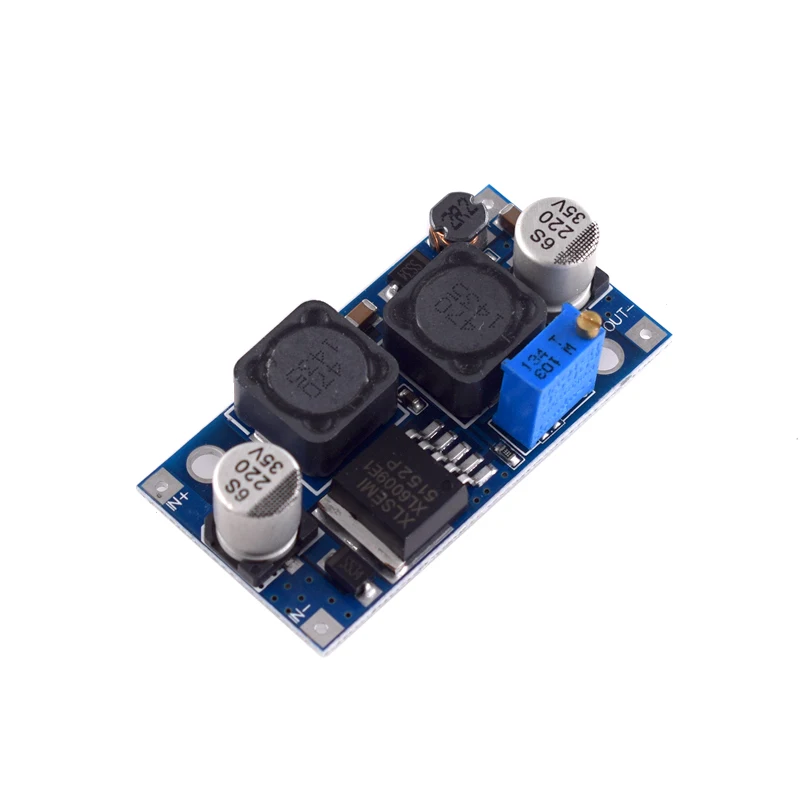

- Model Number: XL6009 Module
Parameters:
Input range: 3.8V-32V
Output range: 1.25V~40V
Input current: 3A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the no-load current. ）
Conversion efficiency:<94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400KHz
Load adjustment rate: ± 0.5%
Voltage regulation rate: ± 0.5%
Working temperature: -40 ℃~+85 ℃
Short circuit protection: None (please install fuses or protective circuits in the input)
Tip: The module current is determined by the connected load and the output voltage itself
