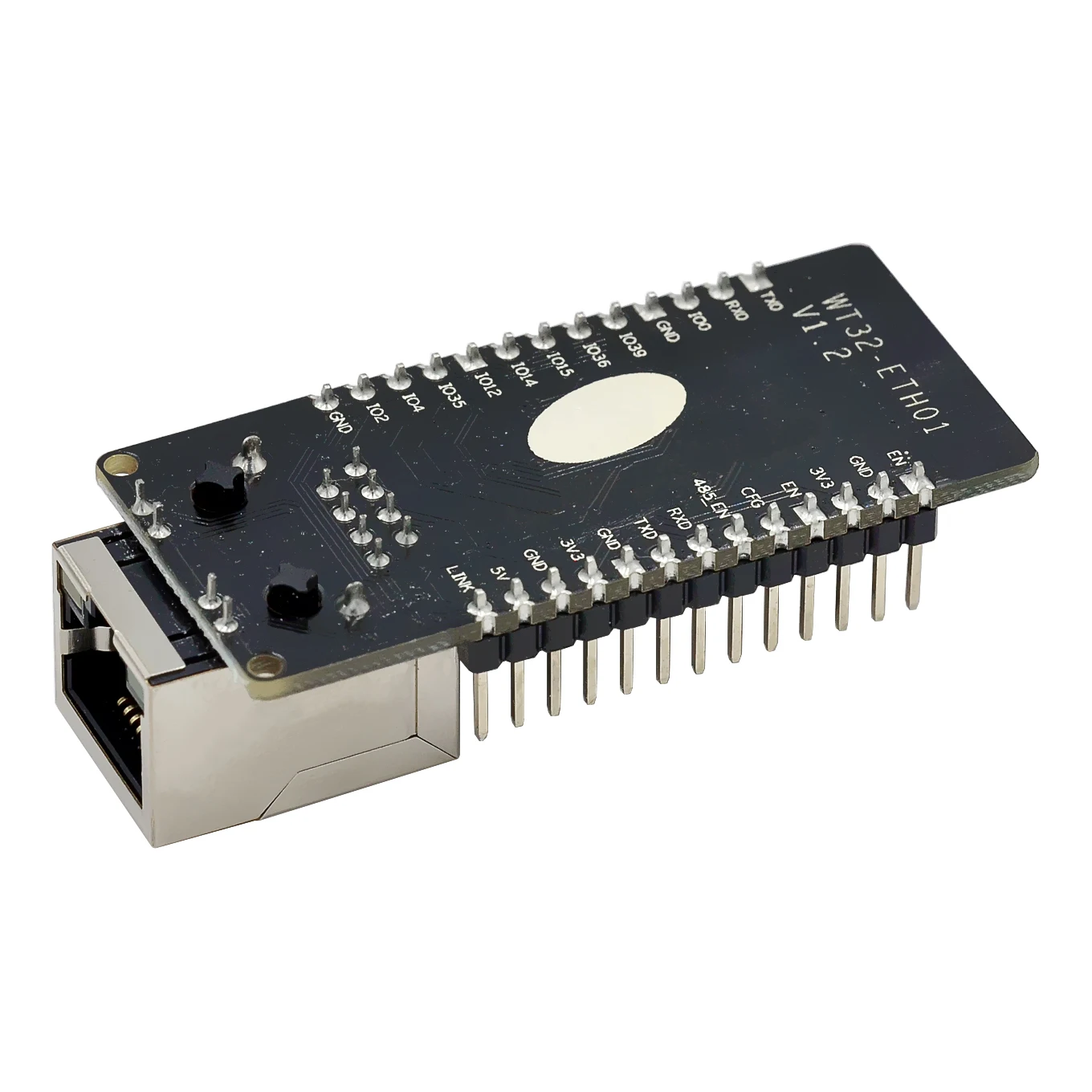

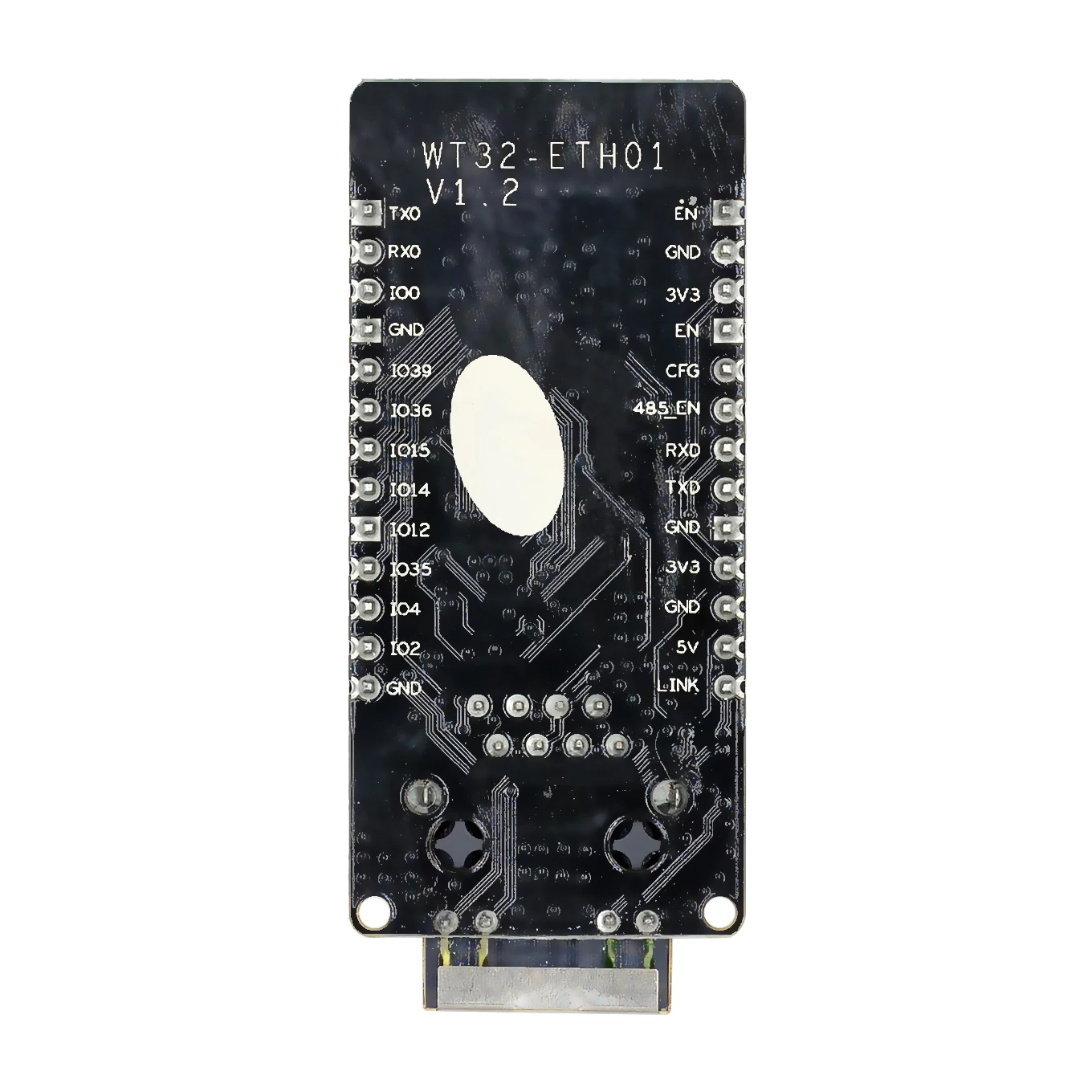

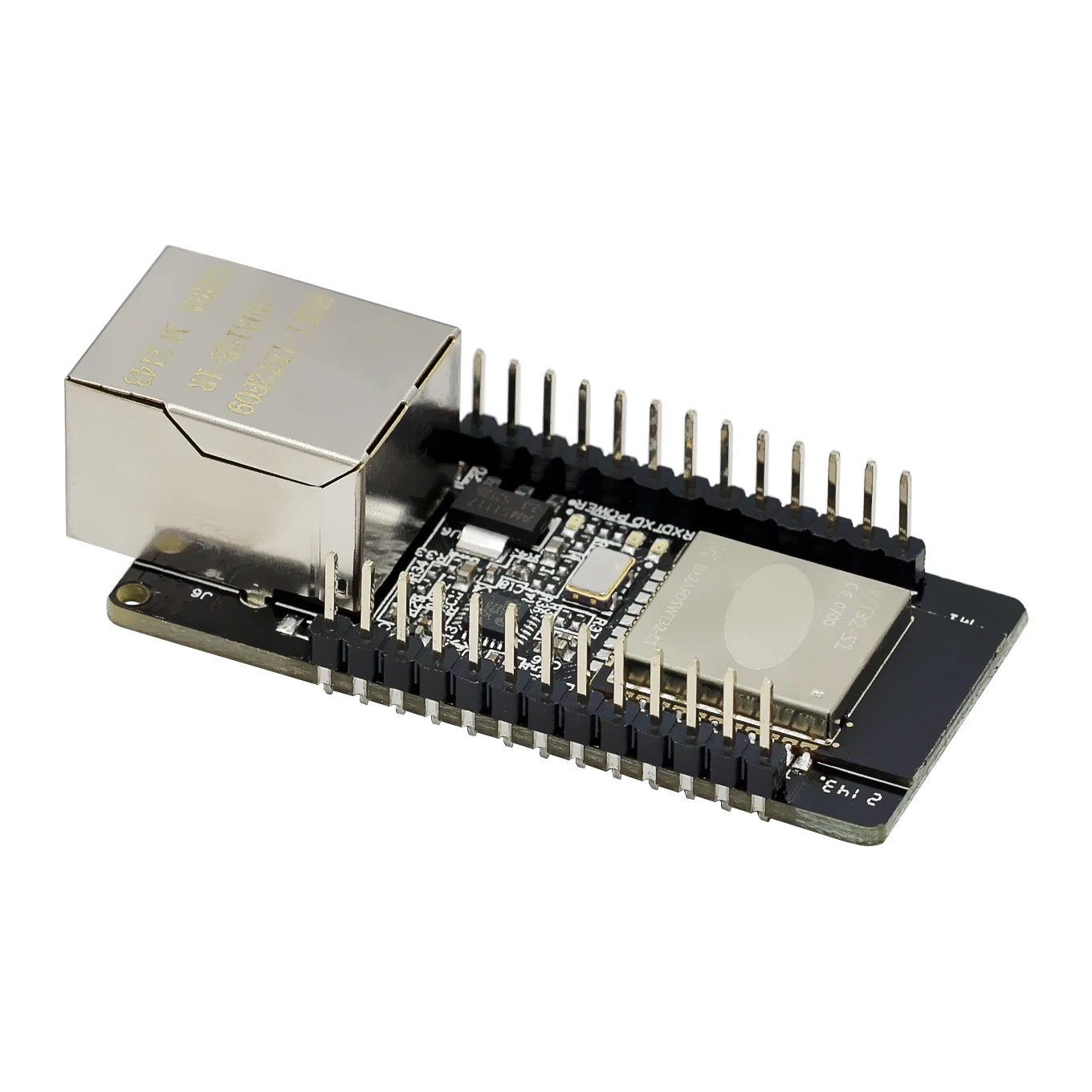

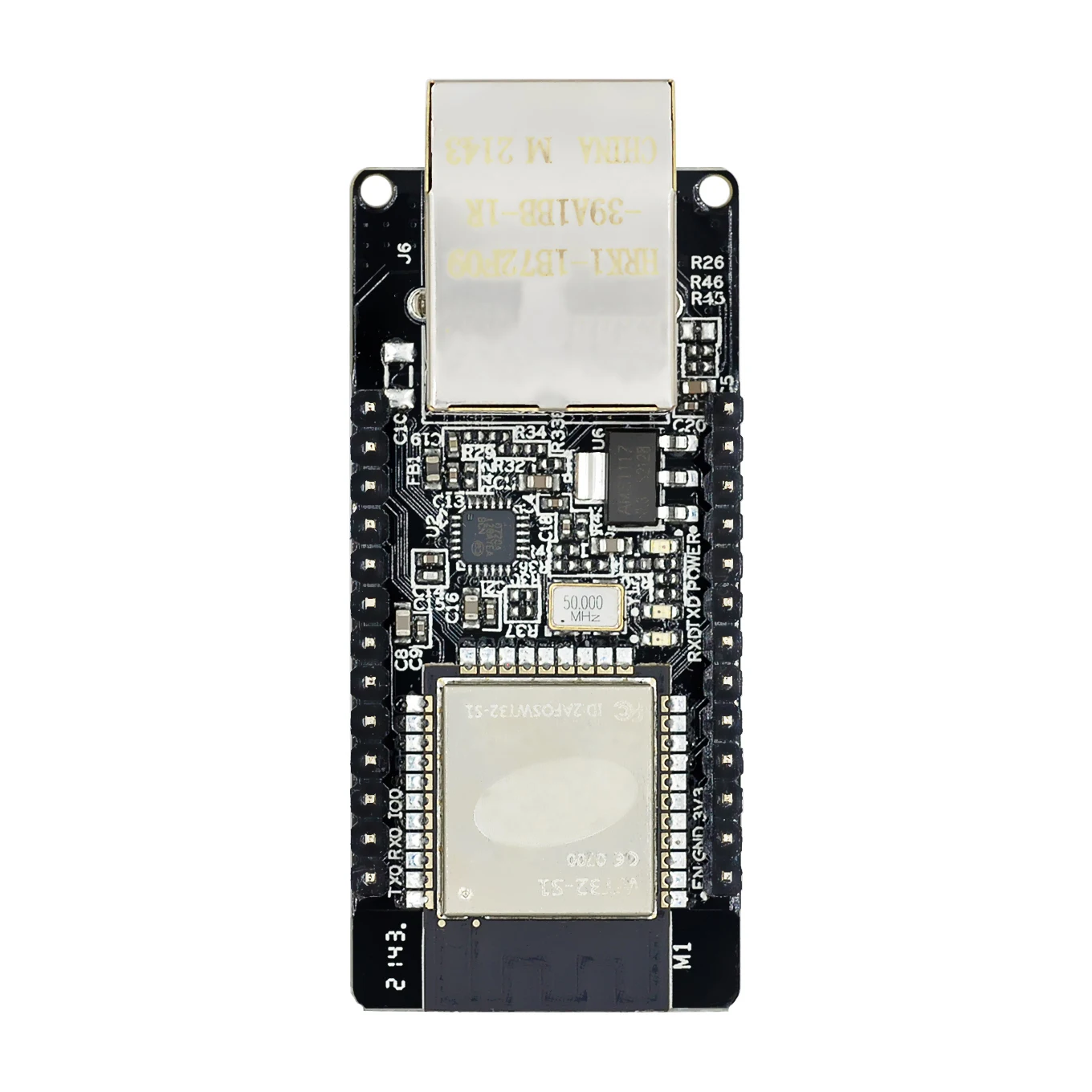

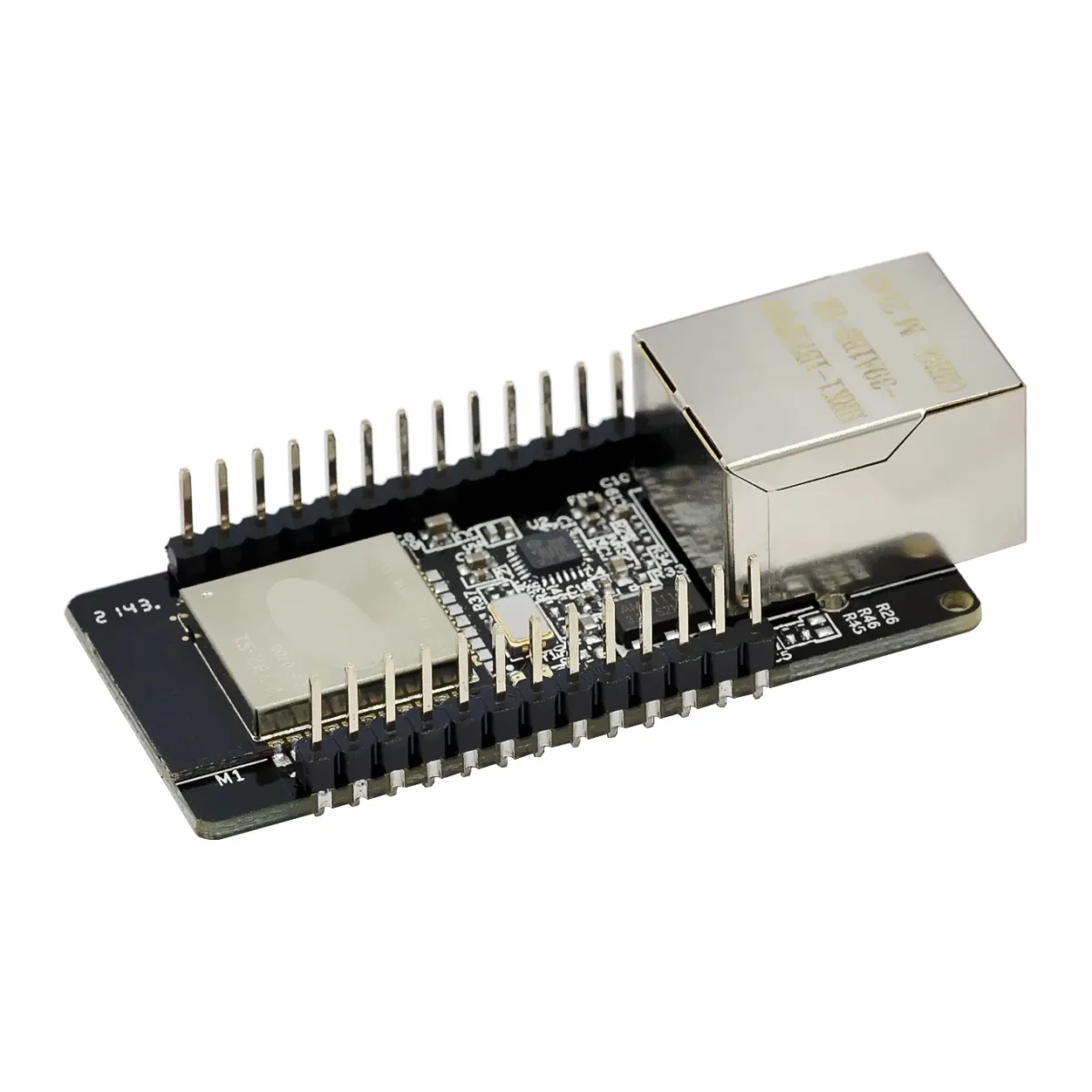

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth WIFI MCU Module ESP32 Wireless Combo Gateway Module Board
- Main features of ETH 01 gateway:
- Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 MbitSRAM 520 KB
- Support TCP server, TCP client, UDP server, UDP client working mode
- Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted
- Support to connect to the network via wired network or wifi to upgrade the firmware
- Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user’s designated service
- Device.
- Support wired network access
- Support user secondary development
- Industrial grade working temperature range: -40~+85
- Serial port baud rate: 80-5000000
- Network protocol: IPv 4, tcp/udp
- Software encryption: AES/RSA/ECC/SHA
