* Note: the 5G module is NOT included in the USB 3.2 Gen1 5G DONGLE kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for
more details.

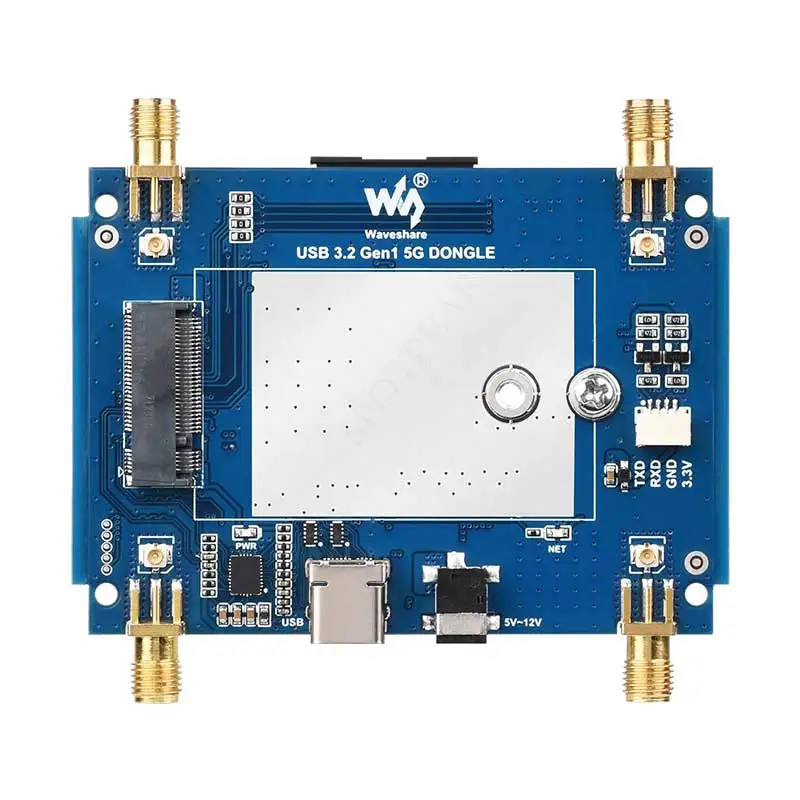

Features At A Glance
Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from brands such as SIMCom, Quectel, and Fibocom
Supports 5G modules in 3042 / 3052 packages such as SIM82XX, RM5XX and FM650XX series
Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input
Built-in UART communication interface for data transmission and other functions with some modules
Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas
Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port
Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5×6) package, dual card single standby, switchable via AT command
Onboard power supply and network indicators for checking working status of the module and 5G debugging
Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
Compatible 5G Modules
Multiple Size Compatible
Supports 3042 / 3052 Packages

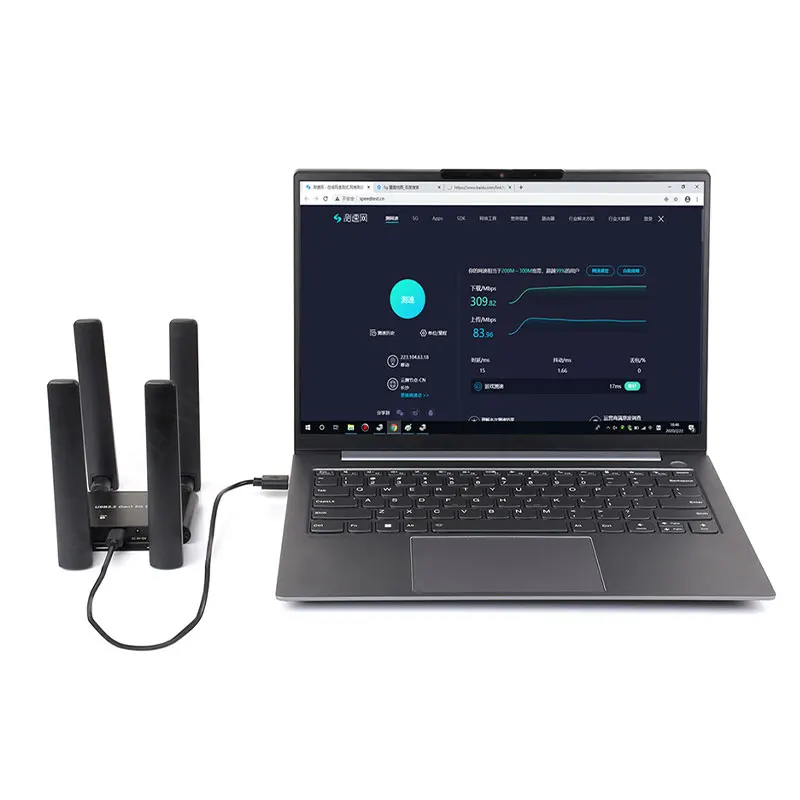

Connection Examples
Connect To Windows PCs, Raspberry Pi Motherboards And Jetson Nano Series Motherboards Via USB Port For 5G Networking

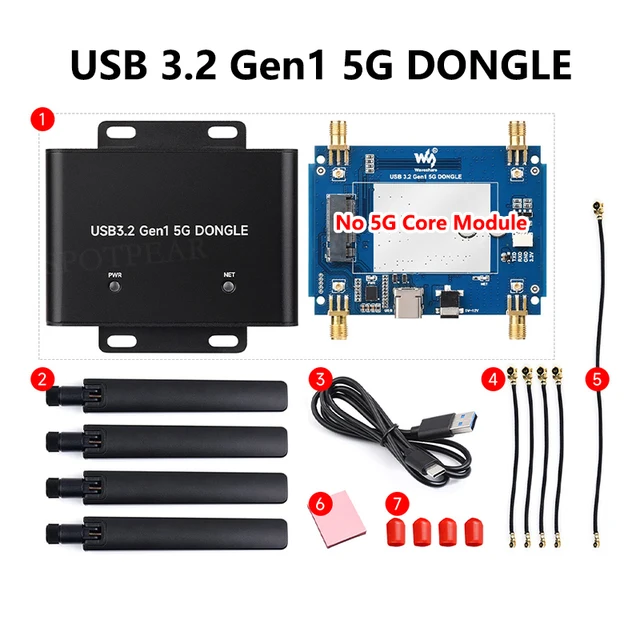

* for reference only, please refer to the Package Content for the detailed part list.
Multi System Support, Easy To Use
Supports Windows / Linux…
Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use
Application Scenarios
Interface Introduction

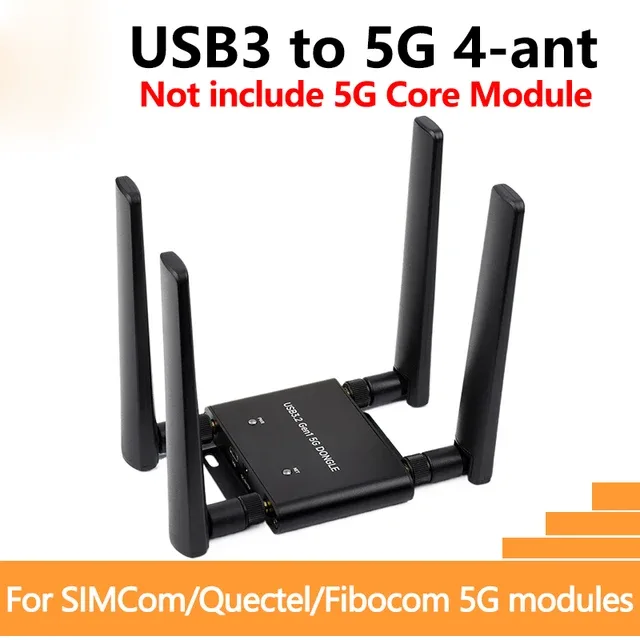

Industrial Grade Aluminium Alloy Enclosure
Aluminum Alloy Enclosure With Oxidation Dull-Polish Surface, Solid And Durable, Compact Size, Desktop Or Wall-Mount Support
Outline Dimensions
* Note: The above dimensions are measured manually, there is a certain error
5G Module Installation Introduction
* Note: the 5G module is NOT included in the USB 3.2 Gen1 5G DONGLE kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.
