- Battery Included: No
- High-concerned chemical: None
- Model Number: DSLogic U3Pro32
- Demo Board Type: ARM
- Brand Name: cbhioarpd
- Origin: Mainland China
- Digital channels: 16/32
- Interface: USB 3.0
- Sample rate: Up to 1GHz
- Sample depth: Up to 16G
TZT 16-CH Logic Analyzer 1GHz Sample Rate USB 3.0 Bandwidth 5Gbps Maximum DSLogic U3Pro16/32
DSLogic U3Pro16:
Key Features: 64891,64892
– 16 digital channels
– USB 3.0 interface
– Up to 1GHz sample rate
– Up to 2Gbits hardware memory
– Up to 16G sample depth (stream mode)
– Adjustable Threshold (0.1V Step)
– Shielded fly wires
– Unibody aluminum case
Connectivity:
– USB Type-C interface (USB 3.0 device port)
– 1.27mm dupont female connector (Host device)
– 2.54mm dupont female connector (Fly wires)
Power Source:
– Power source voltage: 5VDC±5%
– Power consumption: 2.5 W maximum
Input Output Ports:
Direction Descriptions Protected Voltage Range
USB 3.0 port InOut Connect to host computer 4.75v ~ 5.25v
CH0 ~ CH15 Input Connect to under test signals -30v ~ 30v (with fly wires)
CK Input Clock input at state sample mode 0v ~ 3.3v
TI Input External trigger signal input 0v ~ 3.3v
TO Output External trigger signal output —
Designed to make your work enjoyable:
DSLogic U3Pro16 is an USB-based logic analyzer, which has a portable size (79x74x9mm), but powerful performance (up to 1GHz sample rate, USB 3.0 interface). With the easy-to-use and cross platform software for DSView, you can use your favorite computer to debug and analysis your circuits, observe the digital wave and decoder various protocols at anywhere and anytime.
Technical Specifications:
Input Voltage and Thresholds:
– Operation voltage range: -0.9v ~ 6v
– Threshold voltage: 0v ~ 5v (0.1v step)
– Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.)
– ESD protected
Input Impedance:
– 250KΩ // ~13pF
Max Sample Rates:
Buffer mode Stream mode
8 channels: 1GHz 3 channels: 1GHz
16 channels: 500MHz 6 channels: 500MHz
— 12 channels: 250MHz
— 16 channels: 125MHz
Buffer mode: 1GHz when using 8 channels, 500MHz when using 16 channels
Stream mode: 1GHz when using 3 channels, 500MHz when using 6 channels, 250MHz when using 12 channels, 125MHz when using 16 channels
Max Sample Depth:
– Buffer mode (without RLE compression): 2G / num. of channels
– Buffer mode (with RLE compression): 16G / num. of channels
– Stream mode: 16G
Error/Accuracy:
– Minimum acquisition pulse: 2ns
– Acquisition Accuracy: ±sample interval (for example: ±10ns@100M sample rate, ±1us@1M sample rate)
Noise Immunity:
– Each channel provides independent shielding ground.
System Requirements:
– For Windows XP, Vista, Win7, Win8 & Win10
– For Mac OS X 10.12 or above
– For Linux: For recent Ubuntu, Fedora, Arch, etc.
– USB 3.0 Host port
Package Included:
– 1 x DSLogic U3Pro16
– 1 x USB 3.0 Data Cable
– 1 x 4-Group Shielded Cables
– 16 x Signal Hook Clips
– 1 x Carrying Case

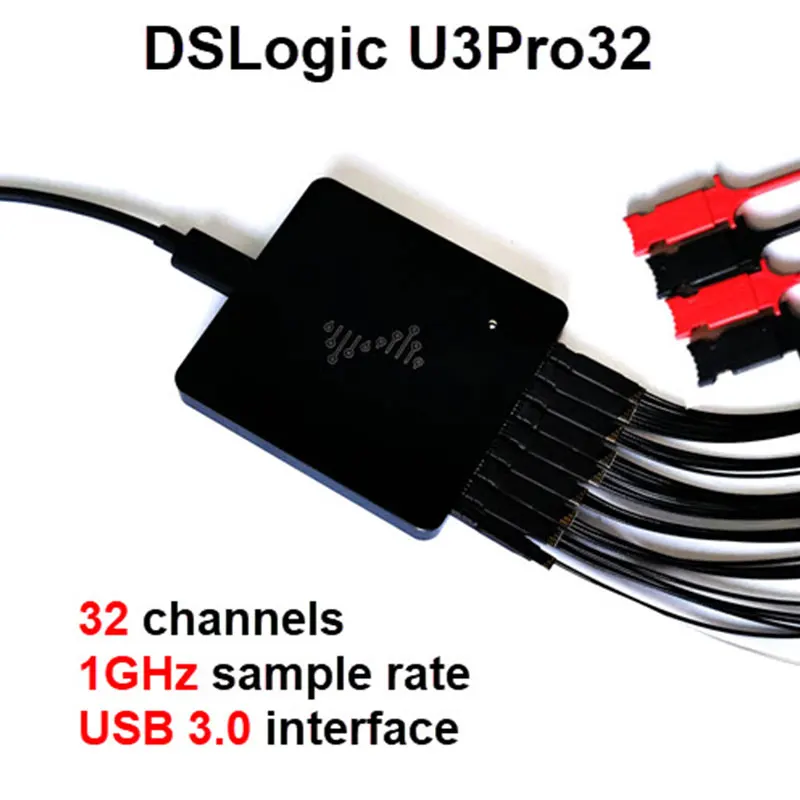

DSLogic U3Pro32:
Key Features:
– 32 digital channels
– USB 3.0 interface
– Up to 1GHz sample rate
– Up to 2Gbits hardware memory
– Up to 16G sample depth (stream mode)
– Adjustable Threshold (0.1V Step)
– Shielded fly wires
– Unibody aluminum case
Connectivity:
– USB Type-C interface (USB 3.0 device port)
– 1.27mm dupont female connector (Host device)
– 2.54mm dupont female connector (Fly wires)
Power Source:
– Power source voltage: 5VDC±5%
– Power consumption: 2 W maximum
Input Output Ports:
Direction Descriptions Protected Voltage Range
USB 3.0 port InOut Connect to host computer 4.75v ~ 5.25v
CH0 ~ CH15 Input Connect to under test signals -30v ~ 30v (with fly wires)
CK Input Clock input at state sample mode 0v ~ 3.3v
TI Input External trigger signal input 0v ~ 3.3v
TO Output External trigger signal output —
Designed to make your work enjoyable:
DSLogic U3Pro32 is an USB-based logic analyzer, which has a portable size (79x74x9mm), but powerful performance (up to 1GHz sample rate, USB 3.0 interface). With the easy-to-use and cross platform software for DSView, you can use your favorite computer to debug and analysis your circuits, observe the digital wave and decoder various protocols at anywhere and anytime.
Technical Specifications:
Input Voltage and Thresholds:
– Operation voltage range: -0.9v ~ 6v
– Threshold voltage: 0v ~ 5v (0.1v step)
– Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.)
– ESD protected
Input Impedance:
– 250KΩ // ~13pF
Max. Sample Rates:
Buffer mode Stream mode
8 channels: 1GHz 3 channels: 1GHz
16 channels: 500MHz 6 channels: 500MHz
32 channels: 250MHz 12 channels: 250MHz
— 30 channels: 100MHz
— 32 channels: 50MHz
Max Sample Depth:
– Buffer mode (without RLE compression): 2G / num. of channels
– Buffer mode (with RLE compression): 16G / num. of channles
– Stream mode: 16G
Error/Accuracy:
– Minimum acquisition pulse: 2ns
– Acquisition Accuracy: ±sample interval (for example: ±10ns@100M sample rate, ±1us@1M sample rate)
Noise Immunity:
– Each channel provides independent shielding ground.
System Requirements:
– For Windows XP, Vista, Win7, Win8 & Win10
– For Mac OS X 10.12 or above
– For Linux: For recent Ubuntu, Fedora, Arch, etc.
– USB 3.0 Host port

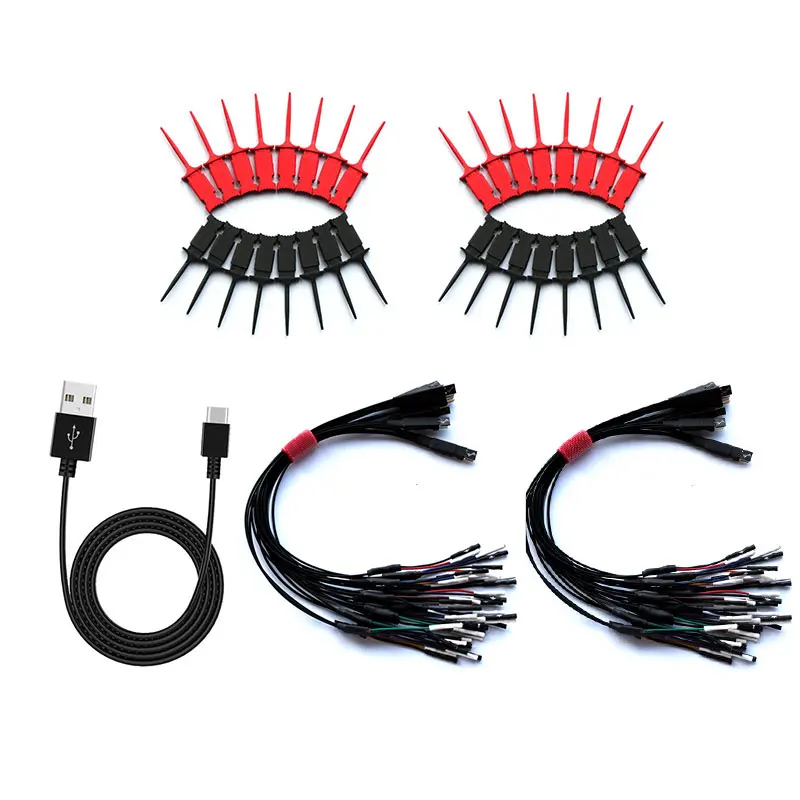

Package Included:
– 1 x DSLogic U3Pro32
– 1 x USB 3.0 Data Cable
– 1 x 8-Group Shielded Cables
– 32 x Signal Hook Clips

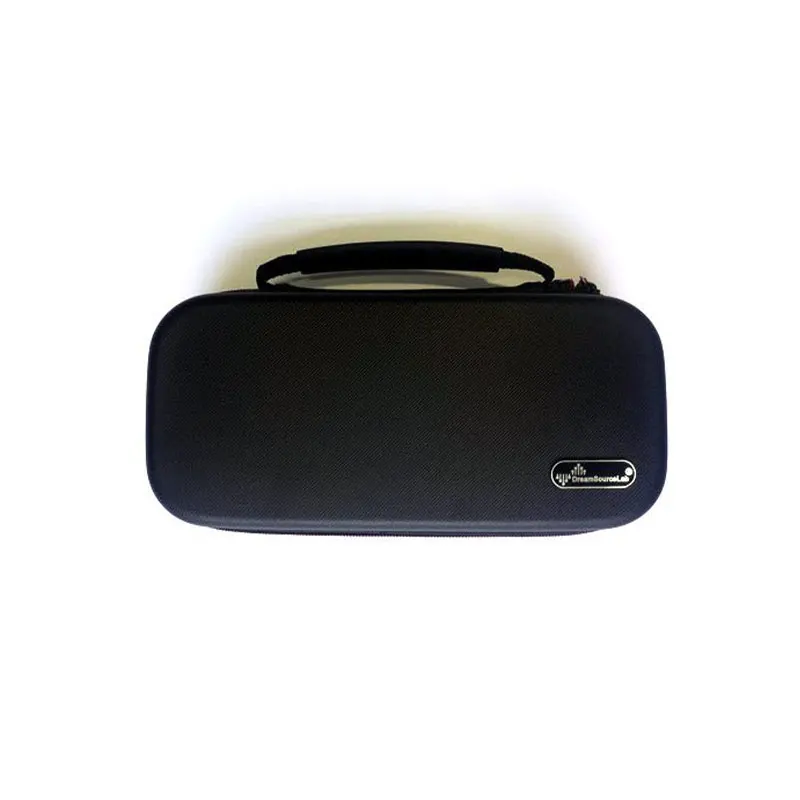

– 1 x Carrying Case
Download Software Here:
https://www.dreamsourcelab.com/download/
