Flash the correct XIAO S3 target, pair a phone, configure the LoRa region and verify two-way messages on the SX1262 kit.
Technical setup notes

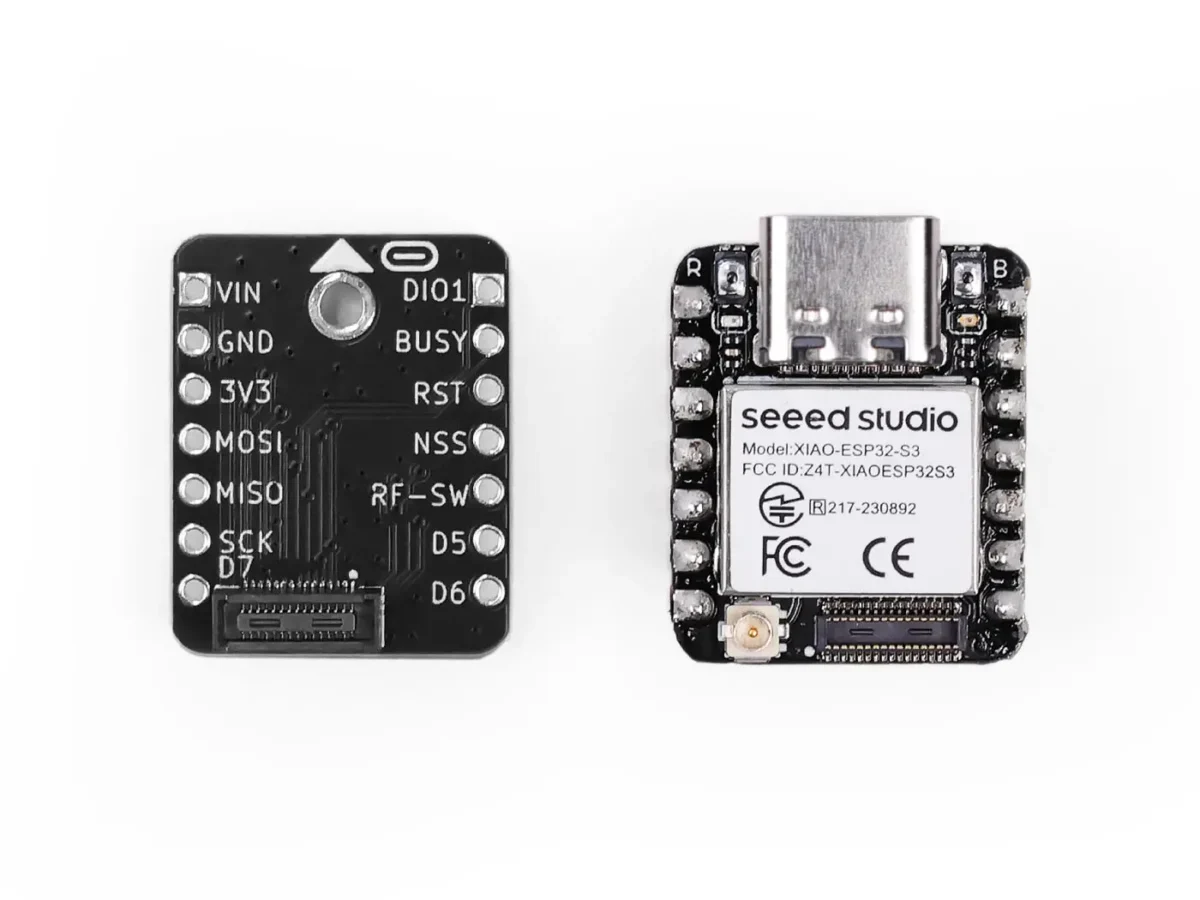

- XIAO ESP32S3 paired with its kit-compatible Wio-SX1262 extension; use the correct LoRa antenna before transmitting.
- The Meshtastic USB flashing target is Seeed XIAO S3. This ESP32-S3 controller does not use the nRF52840/NRF-OTA update route.
- Choose the software region for the deployment and match the second node modem/channel settings. An enclosure or antenna option does not identify the installed firmware.
- Radio range depends on antenna, mounting and environment; verify two-way communication with a nearby node before a range test.
Feature
🌱Meshtastic support: Supports Meshtastic; check the installed application and use the matching USB flashing procedure if setup or recovery is required.
🌱Outstanding RF performance: Supports LoRa(862-930MHz) 2.4GHz Wi-Fi and BLE 5.0 dual wireless communication, support 2~5km(LoRa) and 100m+(Wi-Fi/BLE) remote communication when connected with U.FL antenna.
🌱Thumb-sized Compact Design: 21 x 18mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices.
🌱Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
🌱Elaborate Power Design: Includes a Type-C USB interface and lithium battery charge management.
🌱Same Hardware for Multiple Applications: Can be developed as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa & LoRaWAN sensor.

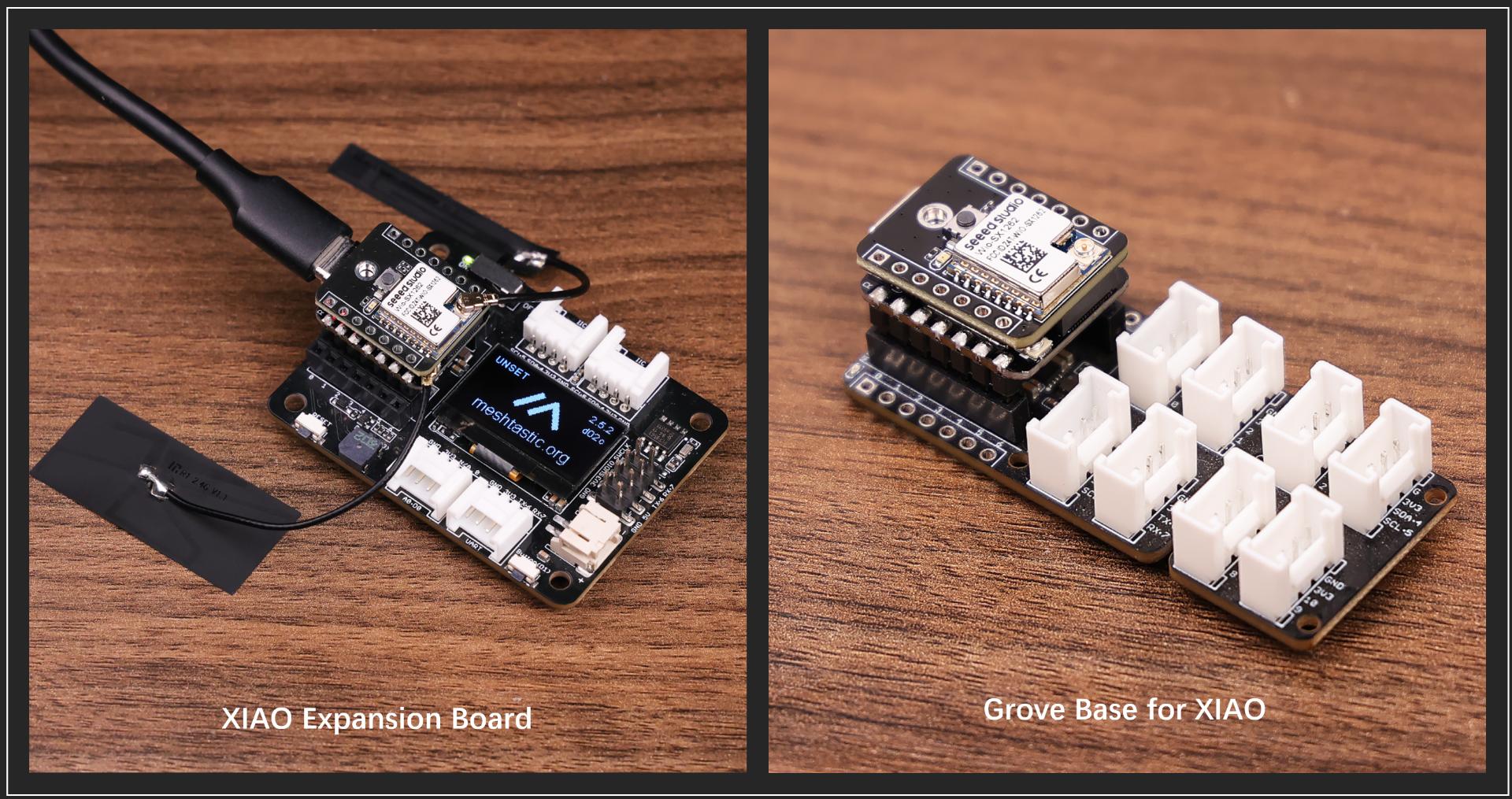

Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion Board.

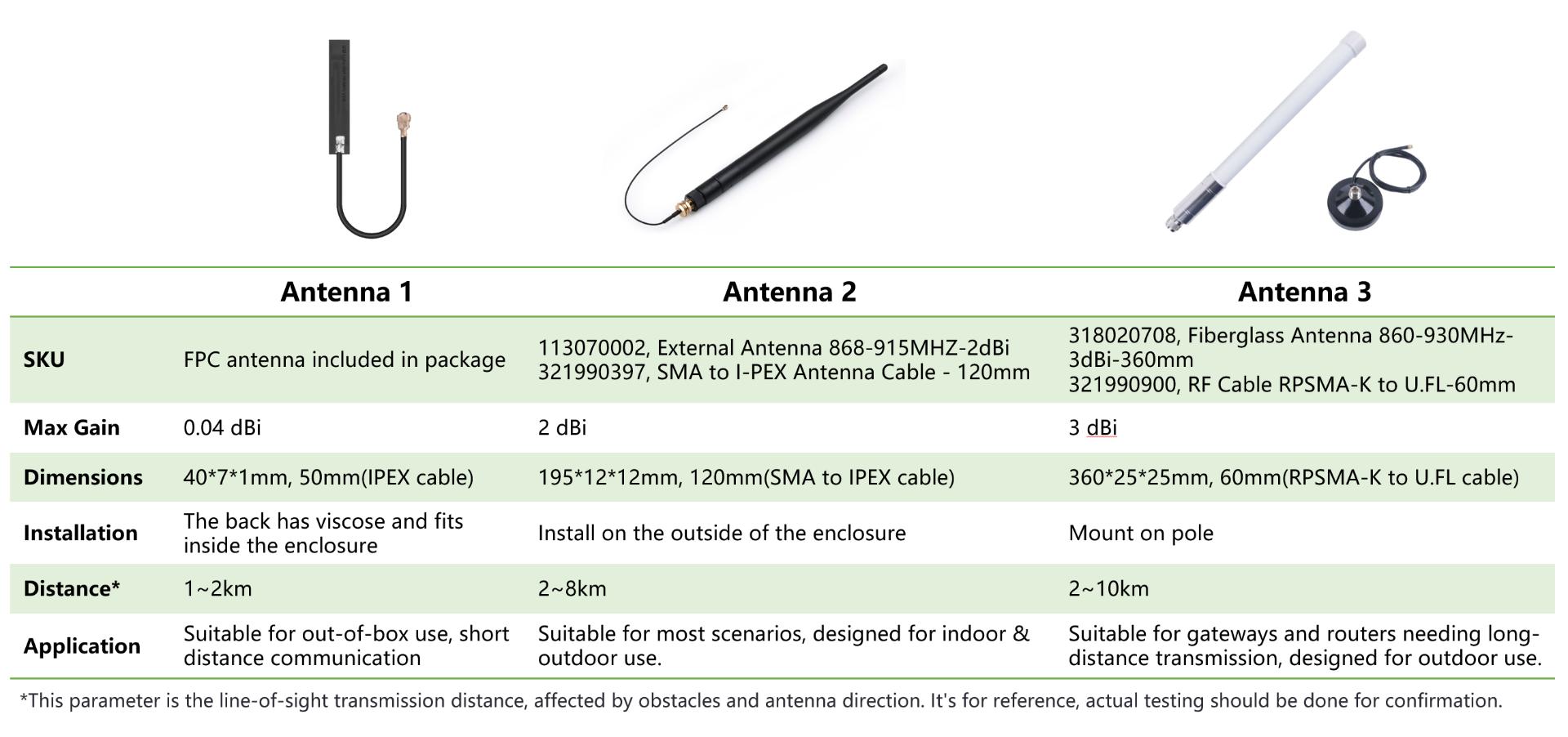

Support connecting an external high-performance LoRa antenna using an IPEX to SMA connector:
- FPC antenna included in package
- 2 dBi external antenna and SMA to I-PEX antenna cable.
- 3 dBi fiberglass antenna and RPSMA-K to U.FL RF cable
Specification

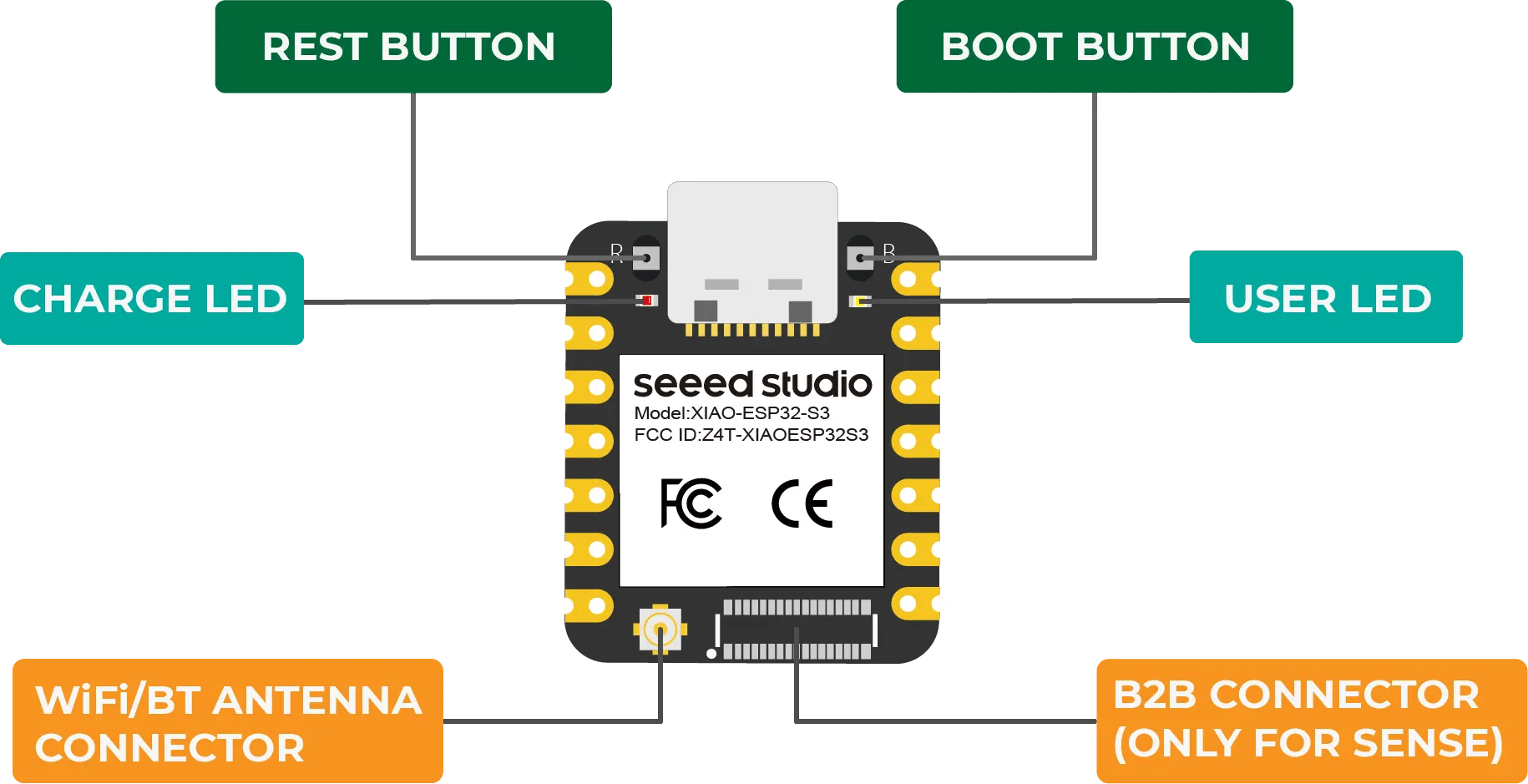

Hardware Overview

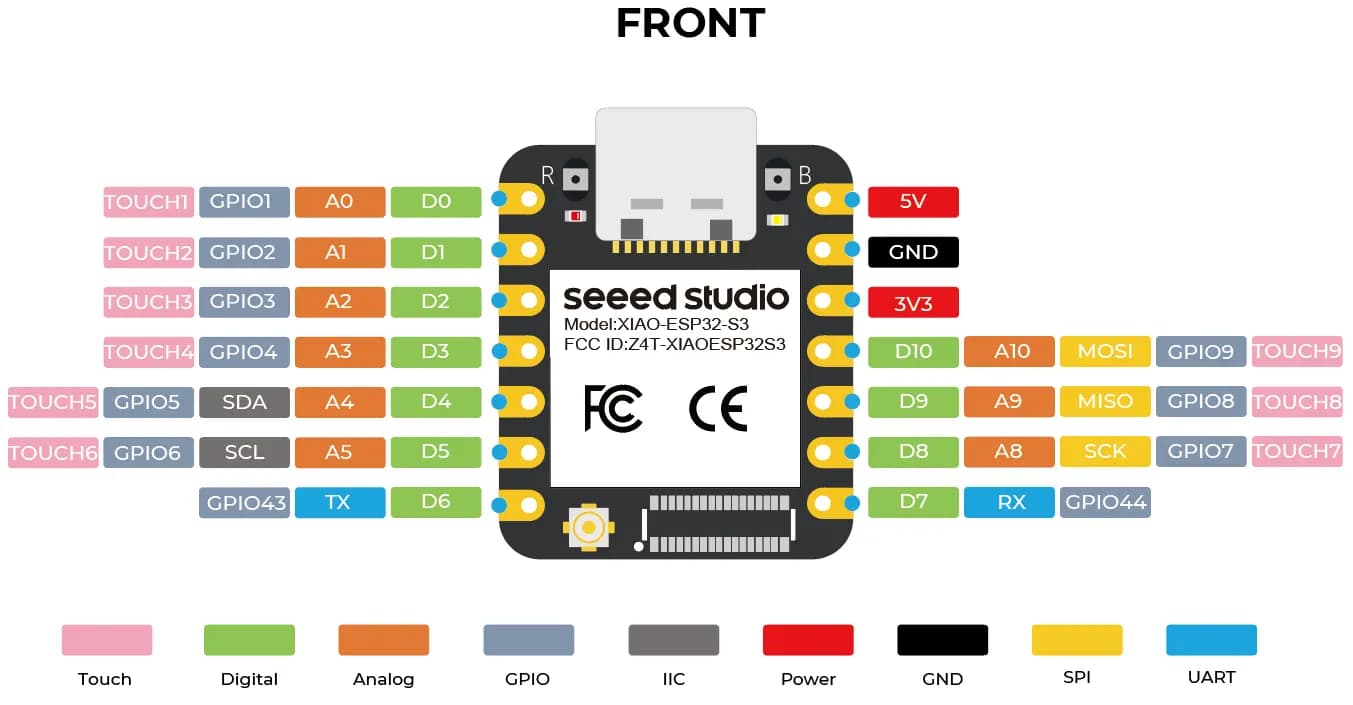

ESP32S3:

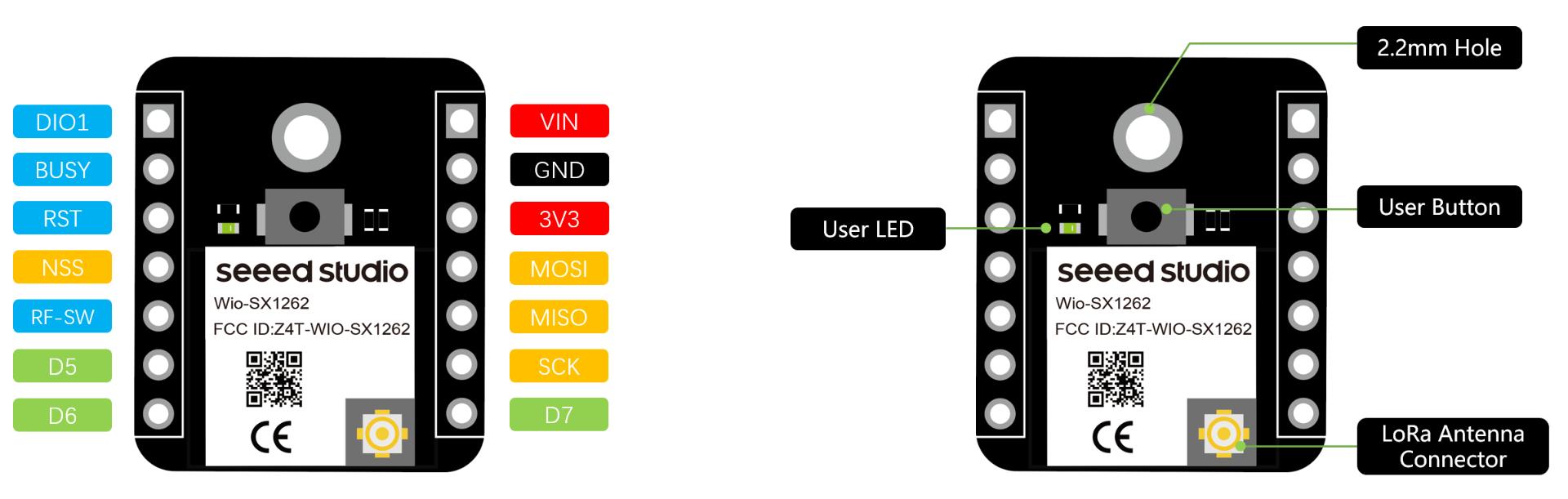

Wio-SX1262 extension board:
Part List
XIAO ESP32S3
x1
Wio-SX1262 extension board
x1
Wi-Fi antenna
x1
LoRa antenna
x1
