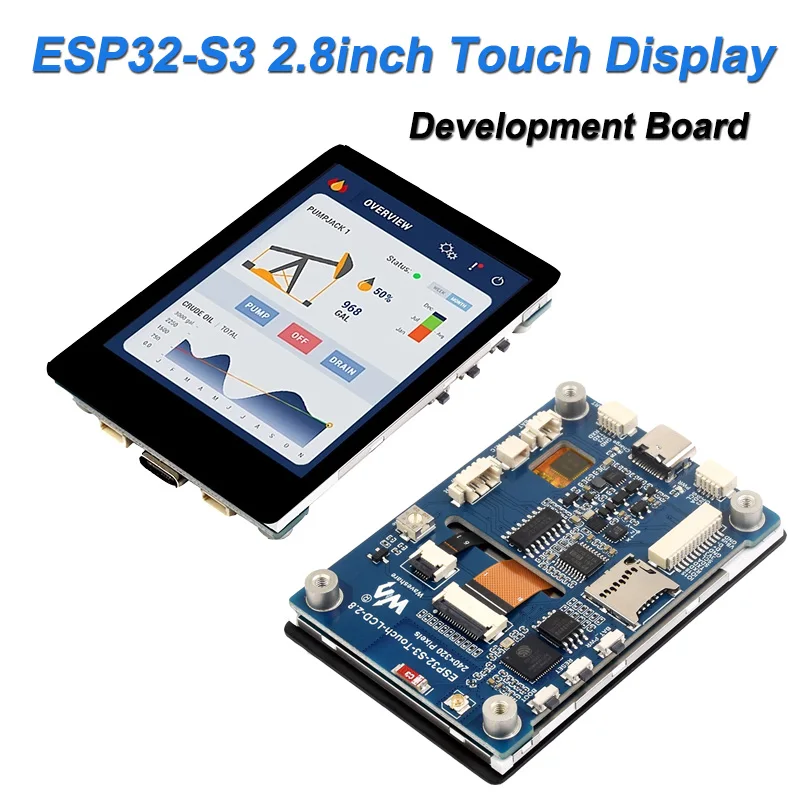

ESP32-S3 2.8 inch IPS Touchscreen Development Board 5-point 240×320 Touch Display Support WiFi Bluetooth HMI/LVGL GUI

Name: ESP32-S3 2.8 inch IPS Touchscreen Development Board 5-point 240x320 Touch Display Support WiFi Bluetooth HMI/LVGL GUI
SKU: 1005008364747035
Price: 25.90 USD
Availability: InStock
Rating: 5.00 (1 reviews)

$25.90

In stock

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

ESP32-S3-Touch-LCD-2.8

Integrates SPI Interface Display And 5-Point Capacitive Touch, Multiple Peripheral Interfaces

Features

ESP32-S3-Touch-LCD-2.8 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 2.8inch capacitive touch display, 240×320 resolution, 262K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Application Scenarios

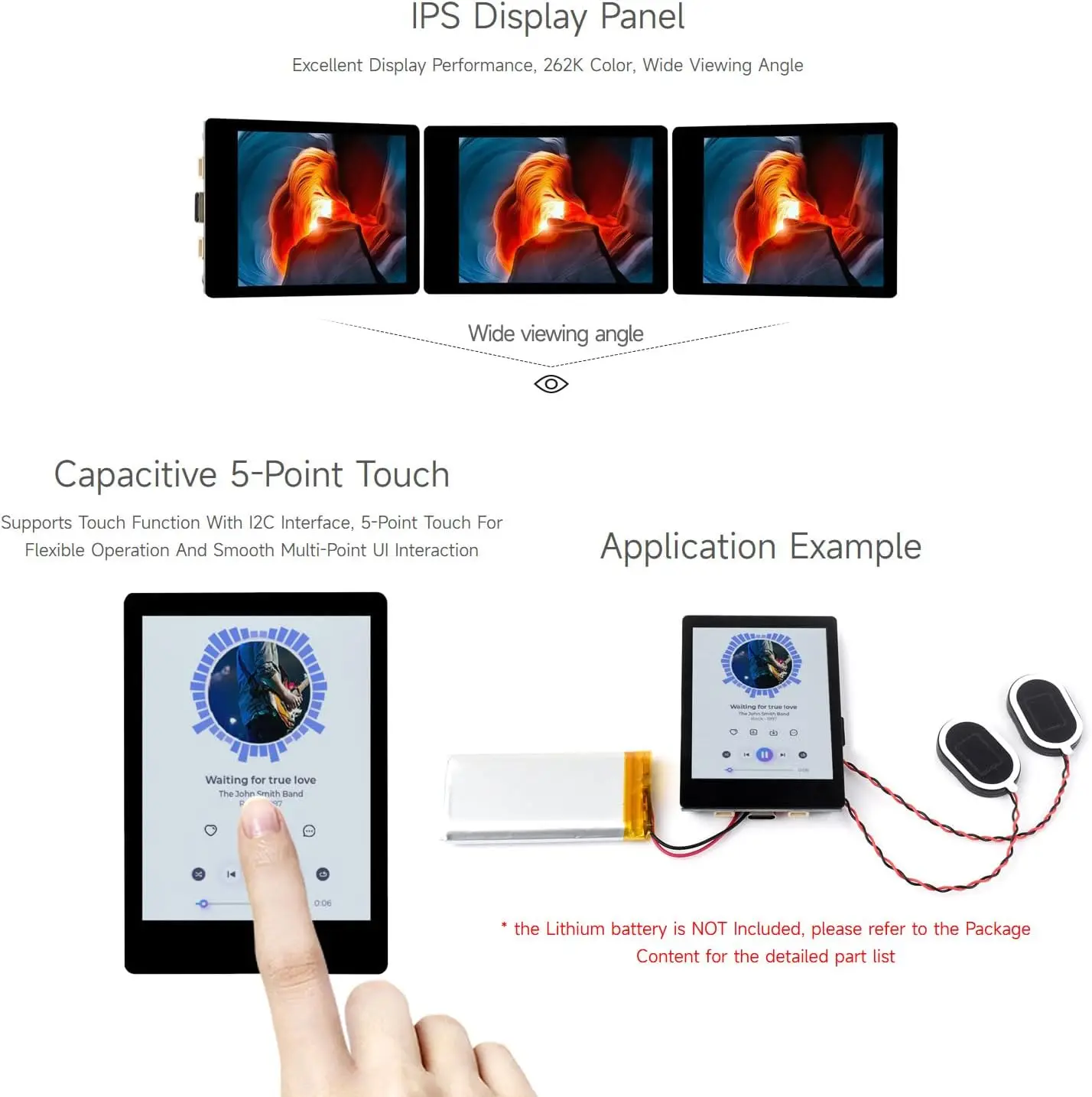

IPS Display Panel

Excellent Display Performance, 262K Color, Wide Viewing Angle

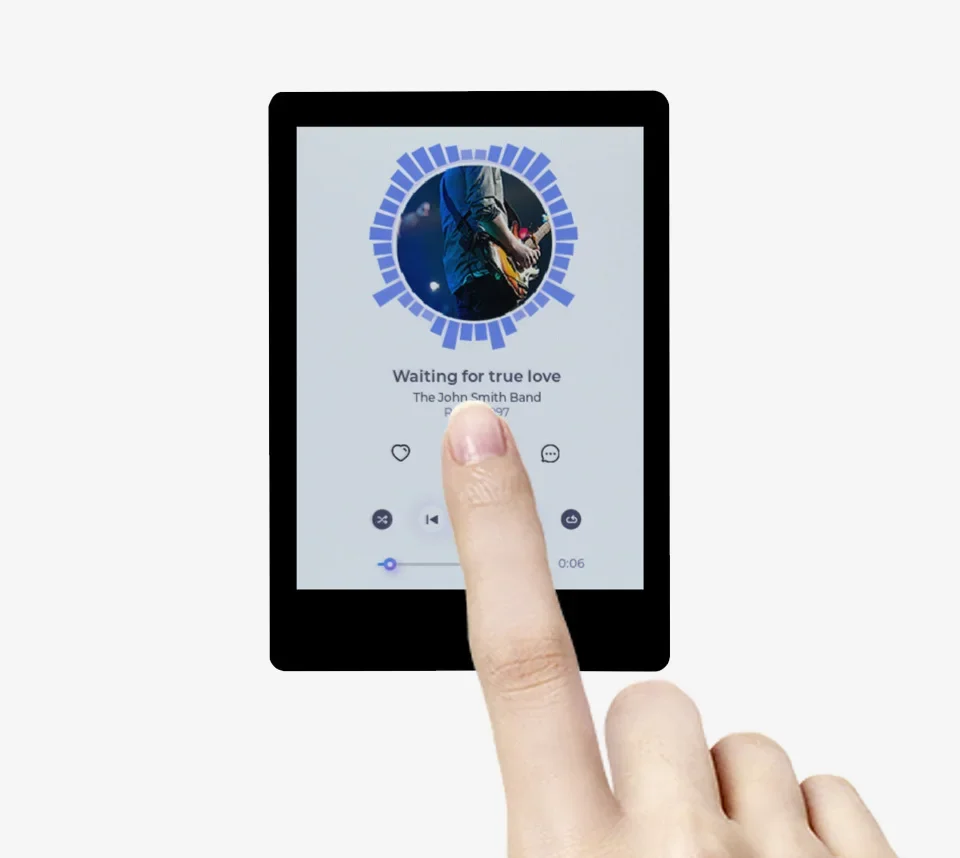

Capacitive 5-Point Touch

Supports Touch Function With I2C Interface, 5-Point Touch For Flexible Operation And Smooth Multi-Point UI Interaction

Supports Multiple Peripherals

Supports The Expansion Of Multiple Peripherals Via GPIO, UART, I2C Interfaces, Etc.

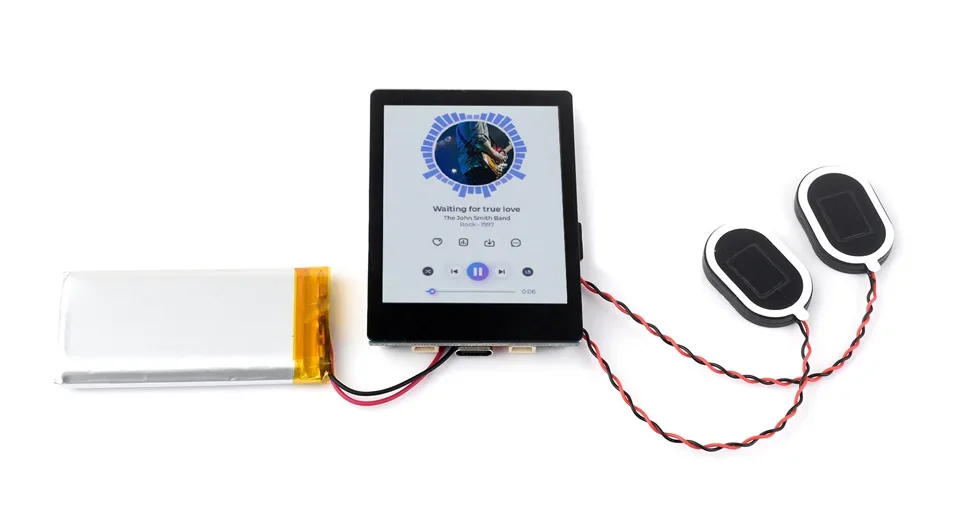

Application Example

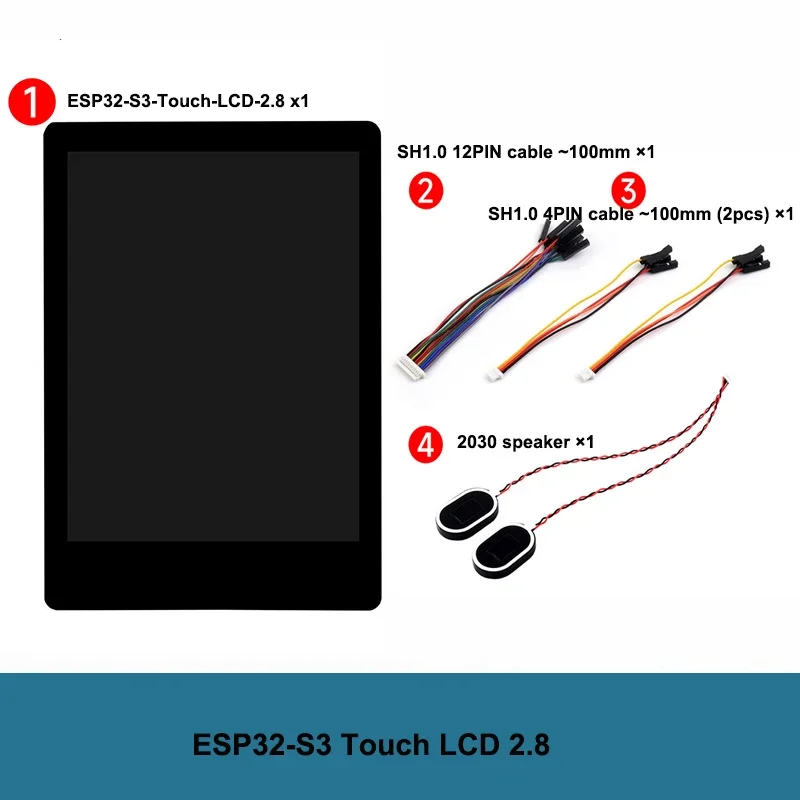

* the Lithium battery is NOT Included, please refer to the Package Content for the detailed part list

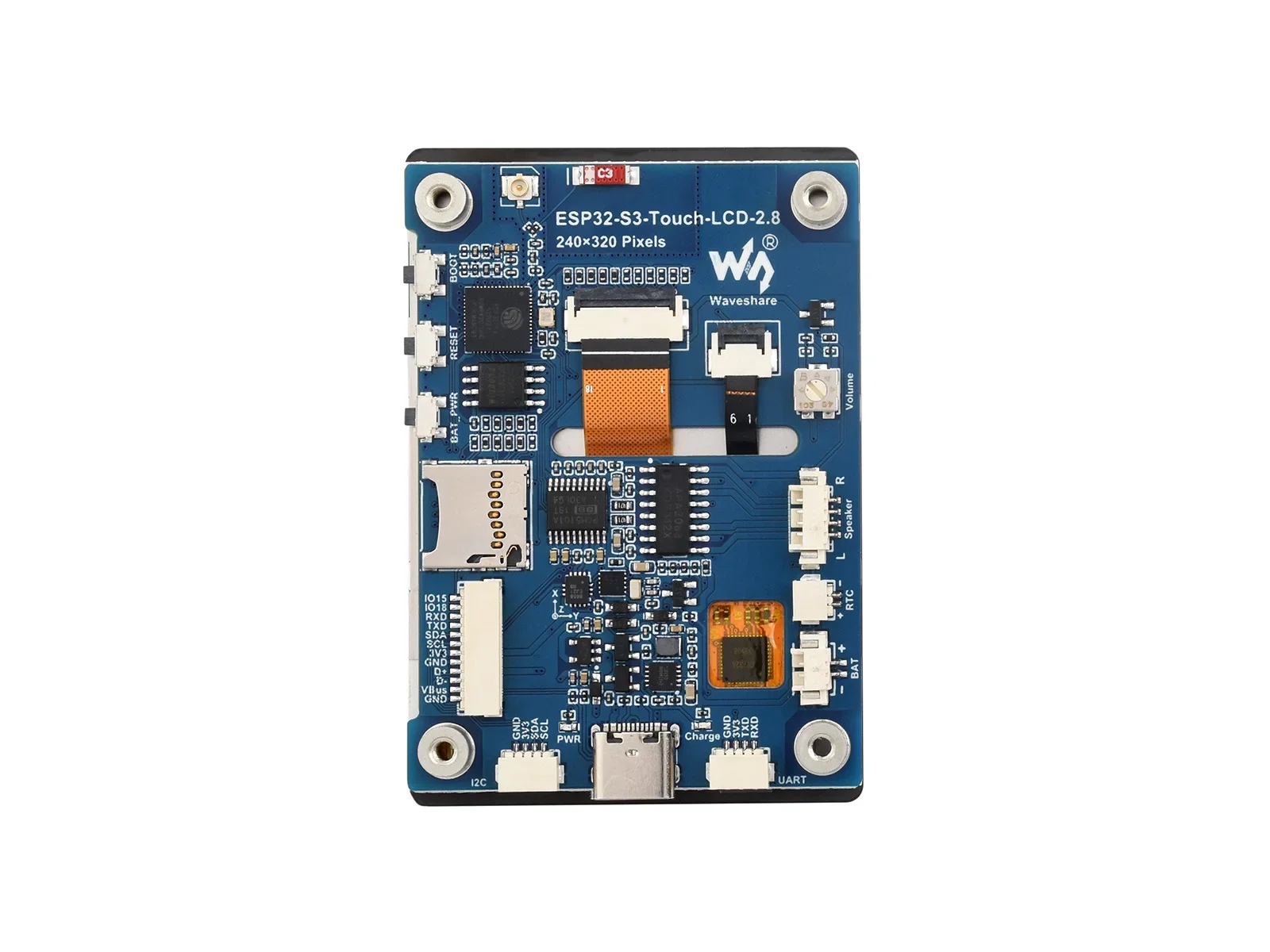

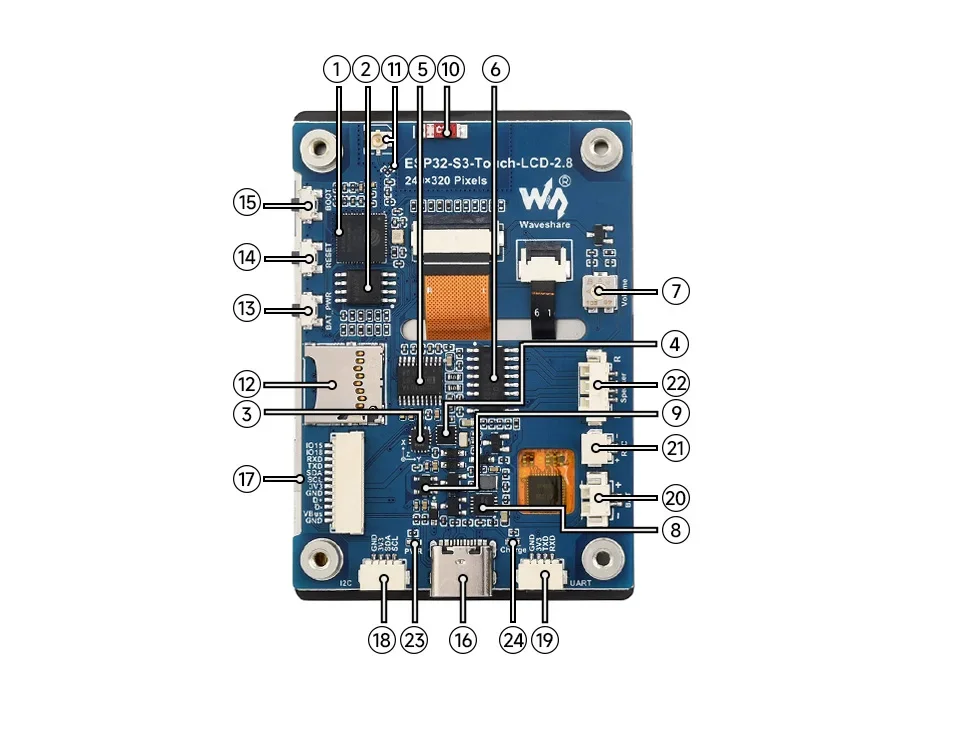

What’s On Board

ESP32-S3R8
dual-core processor, up to 240MHz operating frequency
16MB Flash
QST attitude sensor
QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
RTC chip
PCF85063 RTC chip
PCM5101 audio decoder
Amplifier chip
Volume adjustment knob
Battery recharge manager
ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
Onboard ceramic antenna
IPEX1 connector and switching resistor
Switching to use external antenna via desoldering the resistor
TF card slot
Supports TF card up to 16GB
Battery power supply control button
Relevant driver program is required

RESET button
BOOT button
USB Type-C port

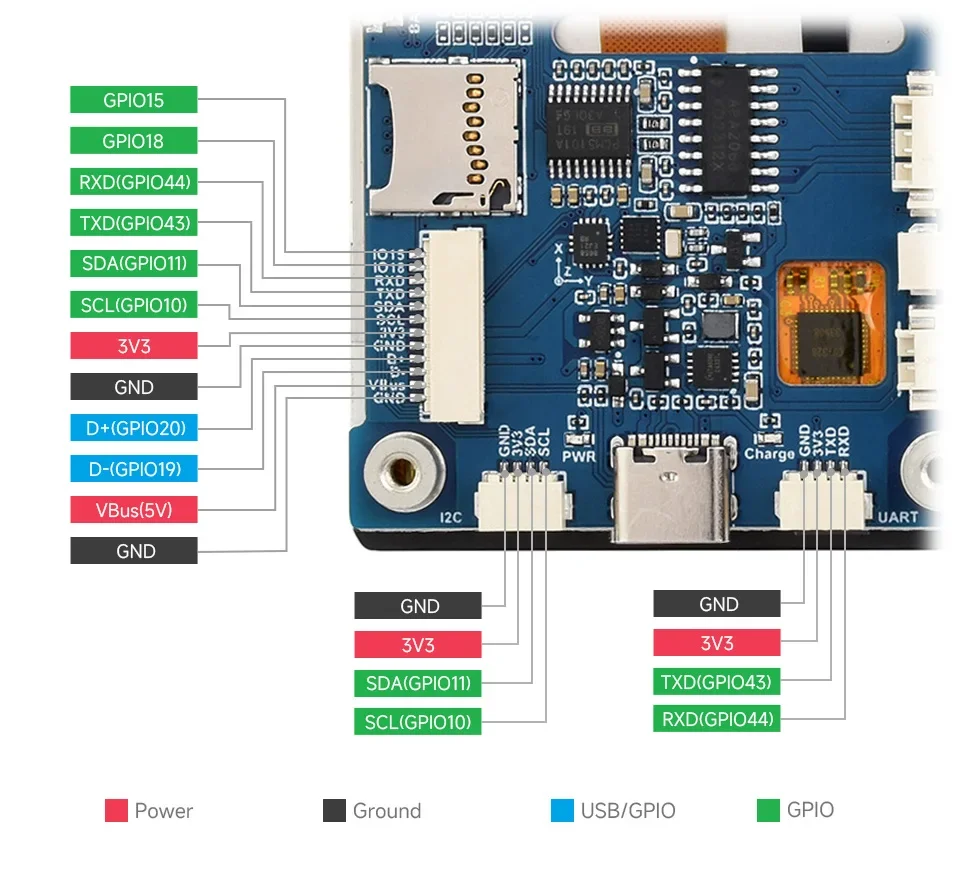

13PIN multi-functional pin header
I2C header
connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
UART header
MX1.25 battery header
MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
RTC battery header
for connecting rechargeable RTC battery
Speaker header
Comes with 8Ω 2W 2030 speaker
Power indicator
Charge indicator
Lithium battery charge indicator, light up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
