Introduction
SimpleFOCMini DC brushless motor development drive board adopts DRV8313 chips. DRV8313 provides three independently controllable semi H-bridge drivers, mainly used for Drive DC brushless motor. Just connect the control signal and motor UVW three-phase line to control The brake motor rotates. Support SPWM and SPVMW control algorithm, not traditional 6-step commutation control Algorithm. It can be quickly used through SimpleFOC.
Specification
-
1. Input power voltage: 8~30V
-
2. The maximum output current of each circuit is 2.5A
-
3. On board 3.3V LDO output, maximum current 10mA
-
4. The input control signal is compatible with 3.3V and 5V.
-
5. Support SPWM and SPVMW control algorithms
-
6. Powerful open source library, quick start.

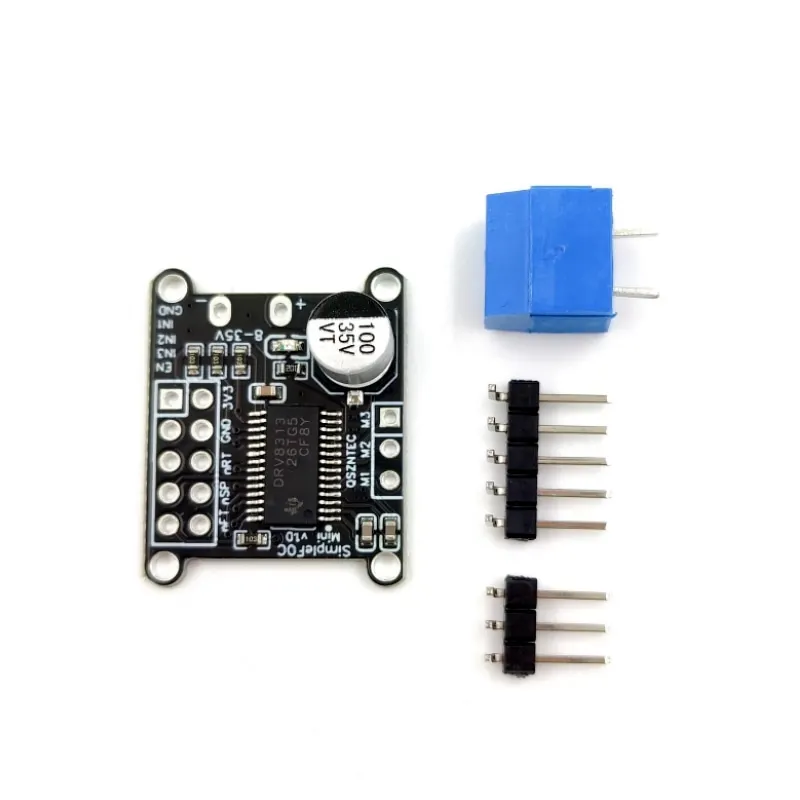

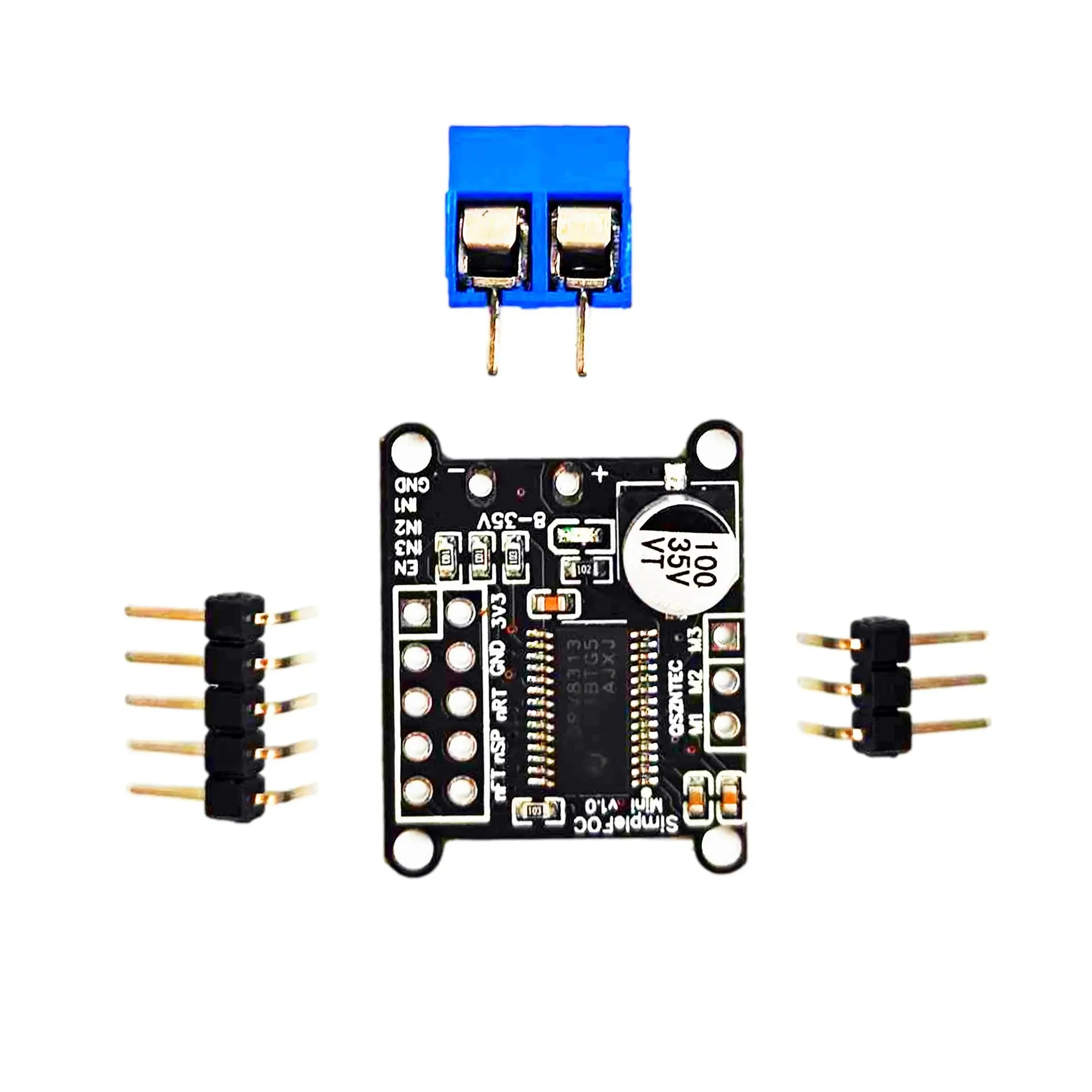

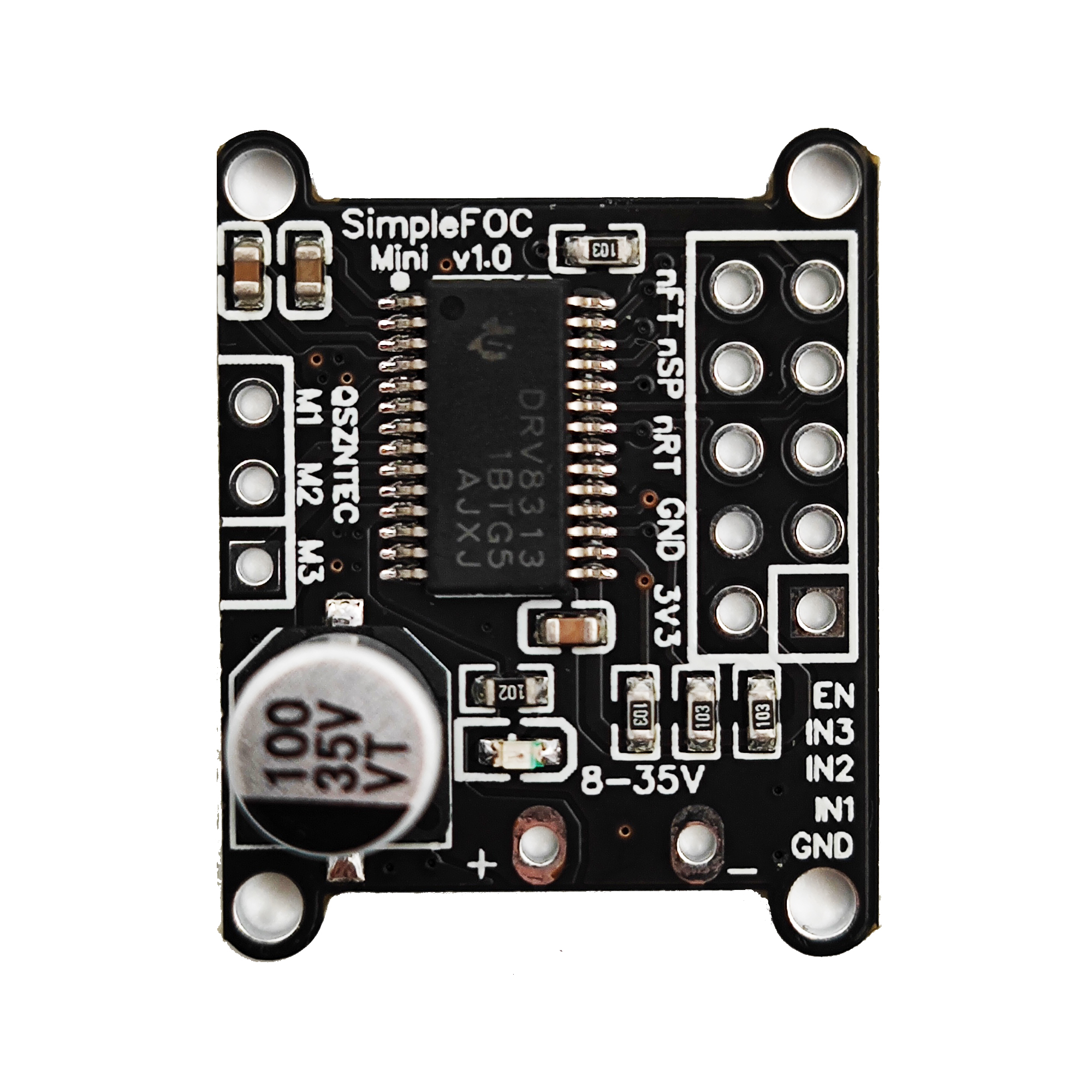

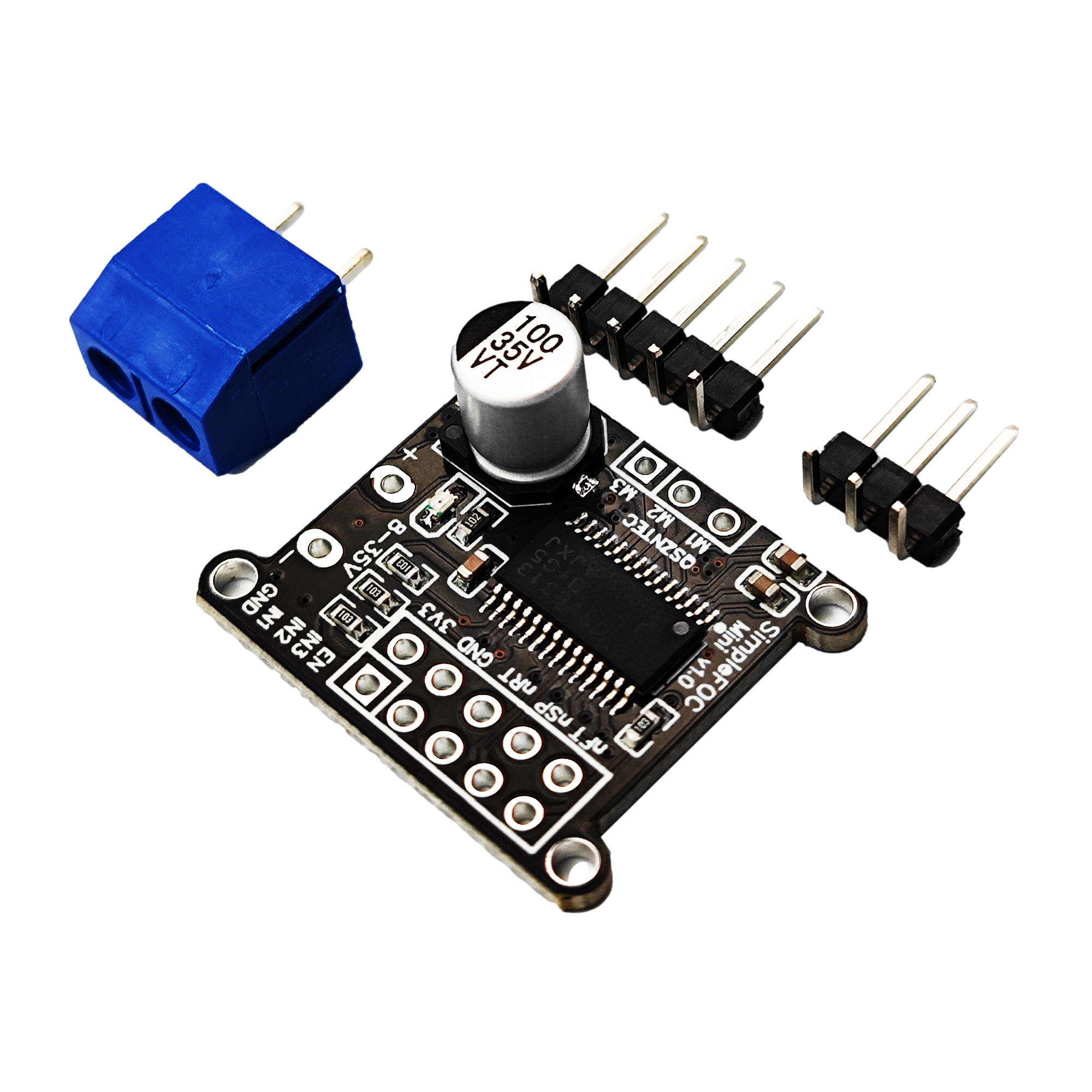

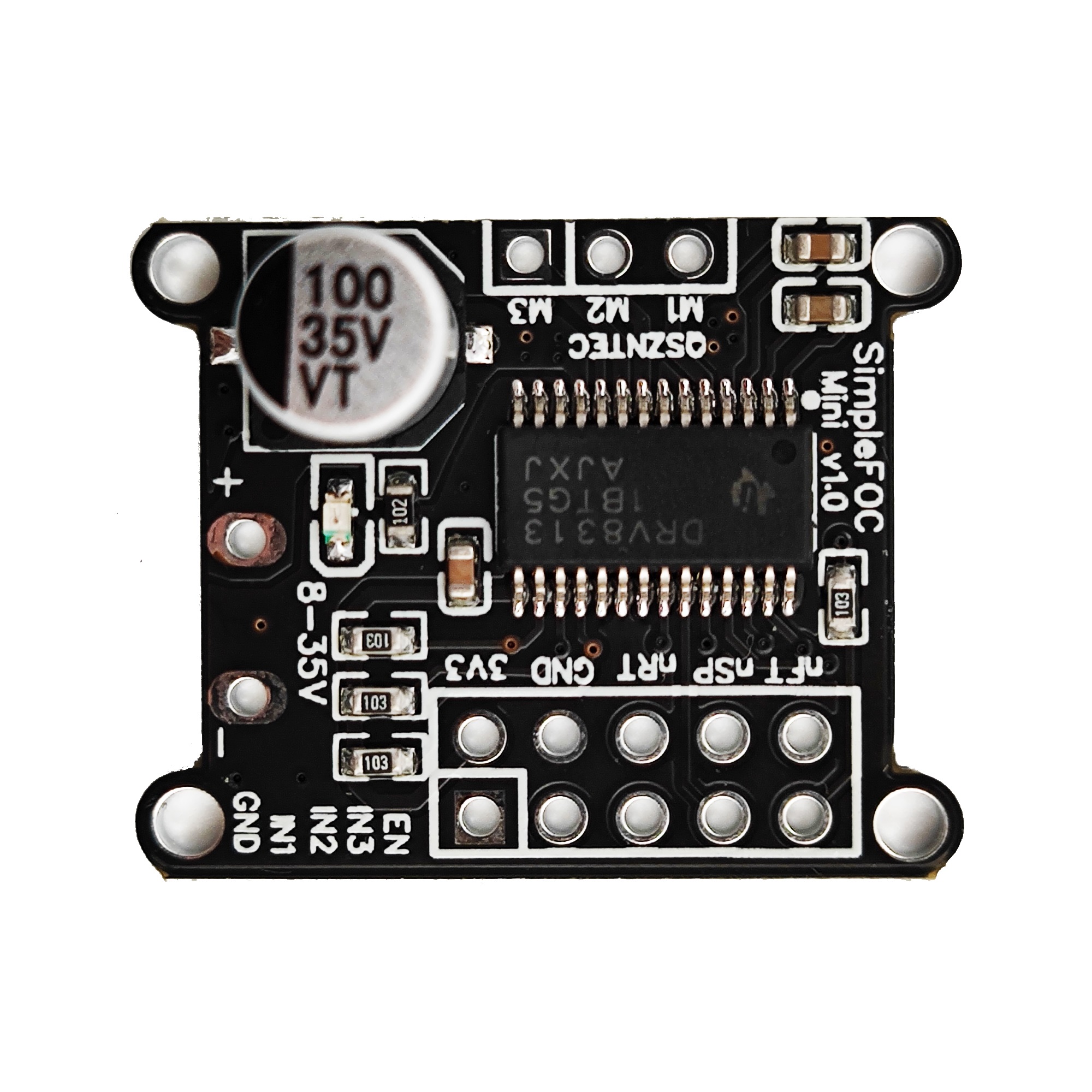

Product Image

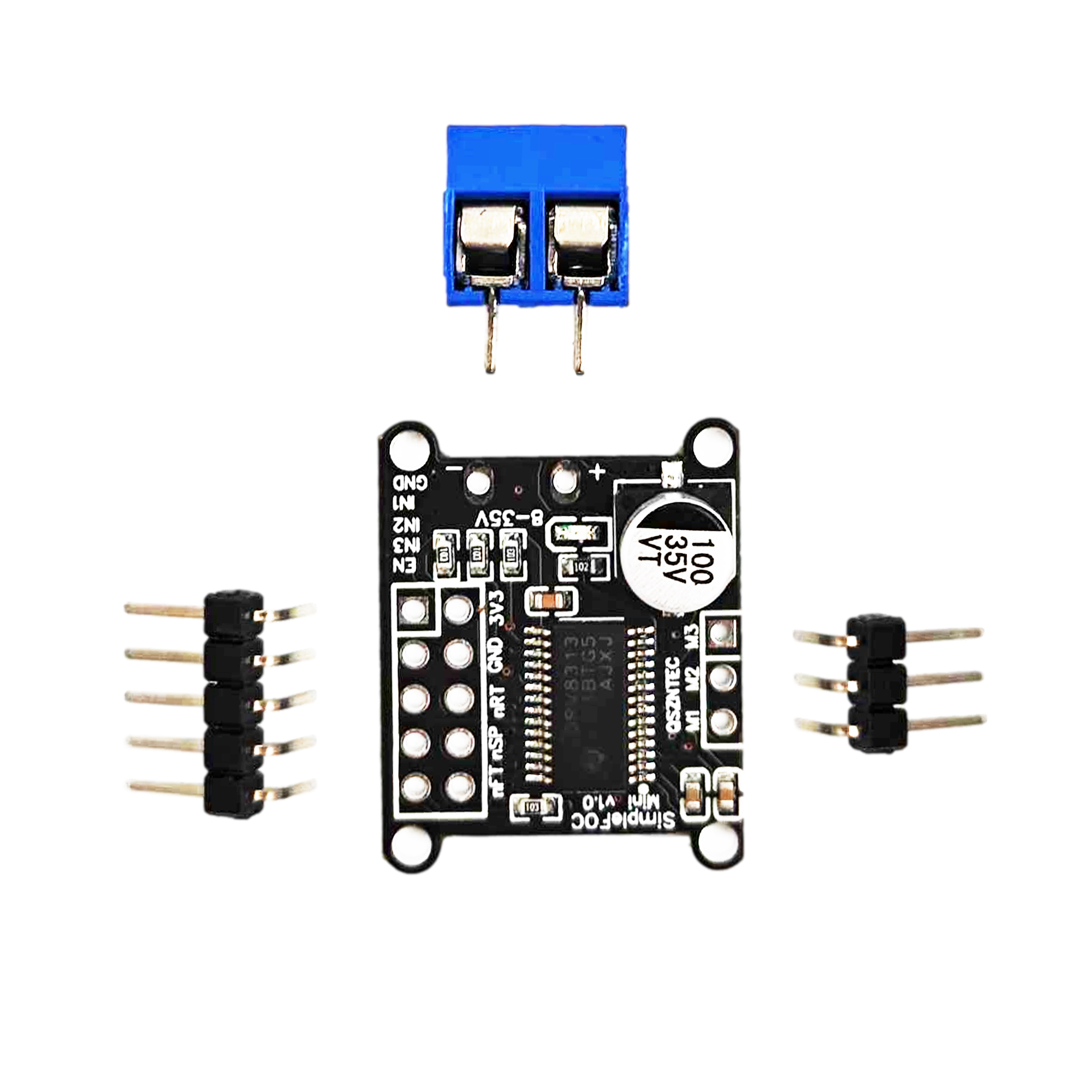

Shipping List
-
SimpleFOCMini development borad*1

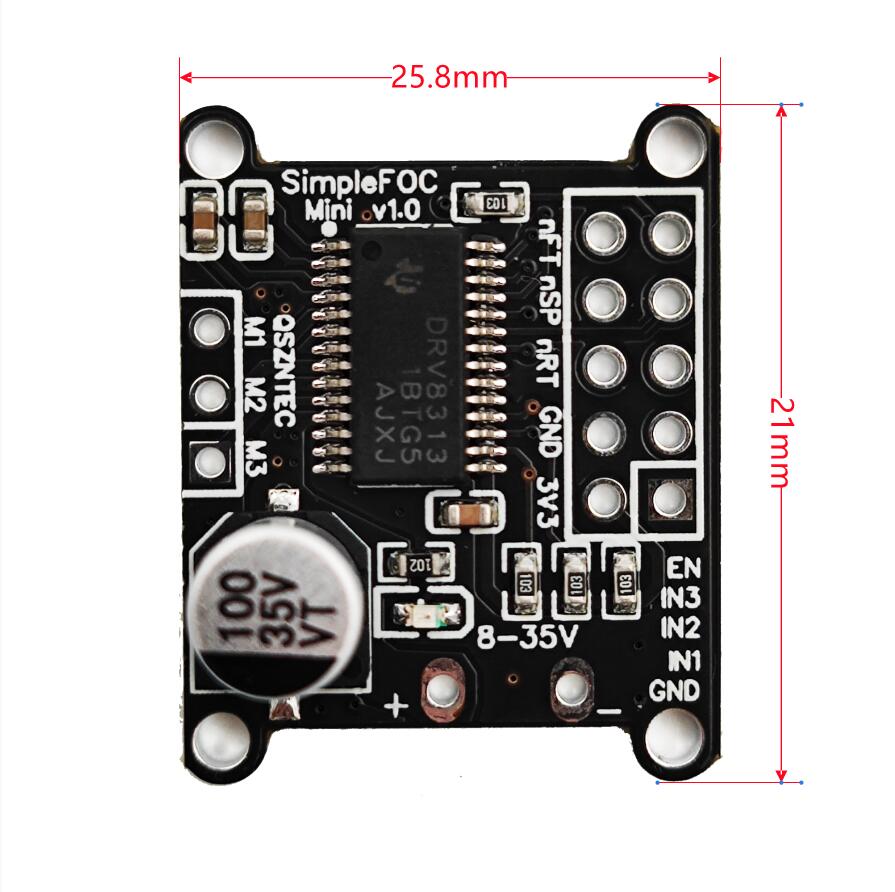

Product size
