1.Features:
One button to turn off the output;
Supply ON/OFF display screen;
Support low power mode;
Support sleep mode;
Support both standard USB and Micro USB and pads input voltage;
Potentiometer with rotating handle.
2.Parameters:
Input voltage: DC 3.5-12V;
Output voltage:DC 1.2-24V;
Output power:
Input 1.2-2V,output power within 2W;
Input 2V-20V,output power within 3W;
Input 20V-24V,output power with in 2.5W;
Display:3Bit digital tube display;

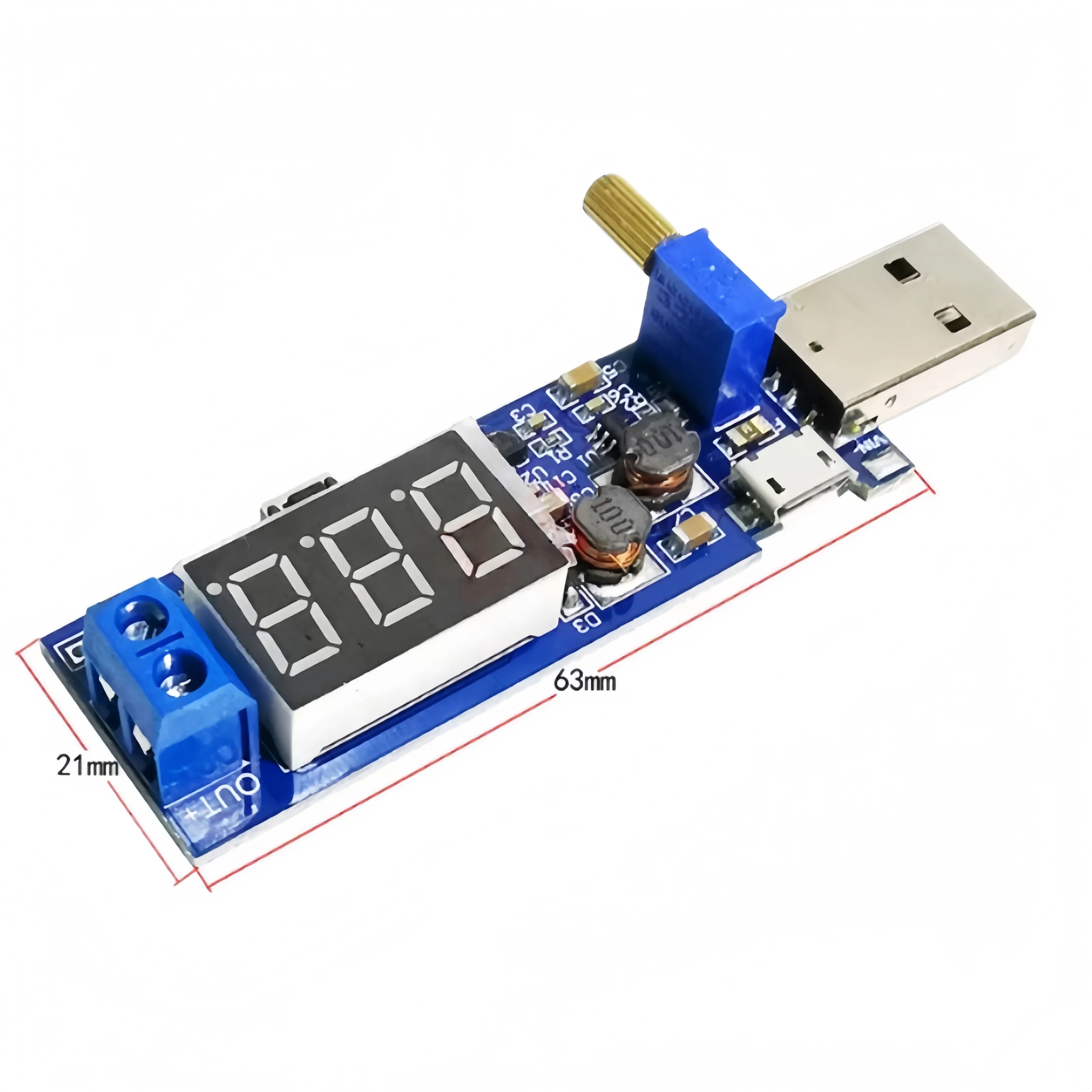

Size:80*20*14mm.
3.Use steps:
Input voltage from Standard USB or Micro USB or ‘VIN+’ and ‘VIN-‘;
Turn ON display screen;
Adjust potentiometer to get the required voltage;
Connect load.
4.Application:
Ordinary power supply;
Battery charger;
LED drive power;
Instrument voltage display;
Test meter;
Circuit test;
Power conversion.
5.Please Note:
It is not a high power supply, please use it within the power range.
