Description:

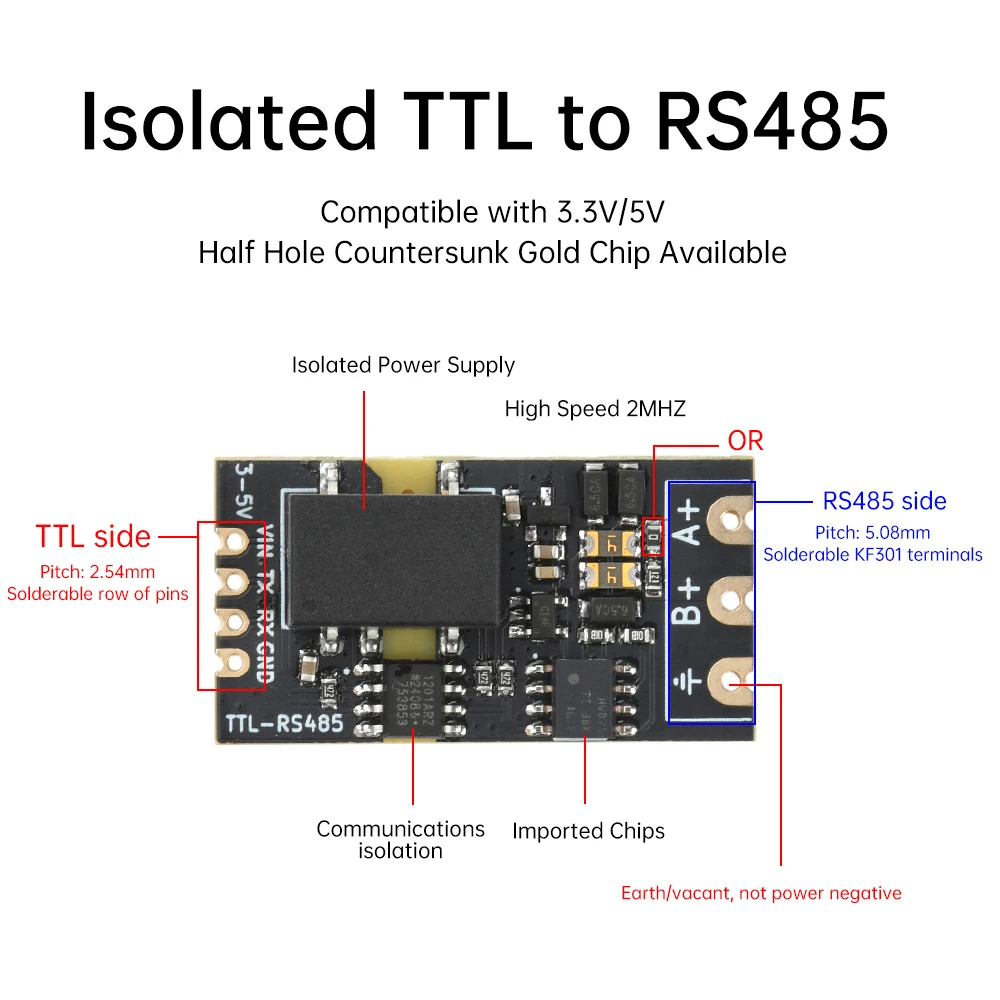

1. Fully Isolated Design: Utilizes a fully isolated TTL-to-RS485 level conversion module to effectively prevent signal interference and enhance communication stability.
2. Compatible with 3.3V/5V Power and Communication: The TTL end supports 3.3V/5V power supply and communication levels, accommodating diverse device requirements.
3. High-Speed Communication: Maximum communication rate reaches 2Mbps, meeting the demands of high-bandwidth application scenarios.
4. Multiple Protection Measures: On-board TVS diodes and fuse protection safeguard against overvoltage and surges, ensuring safe and reliable operation.
5. Half-Hole Immersion Gold Pads: Features half-hole immersion gold pads for easy surface-mount assembly, enhancing efficiency and flexibility.
Product Specifications:
Supply Voltage: Compatible with DC 3.3V/5V
Communication Rate: 2Mbps
On-board Balancing Resistor: 120Ω

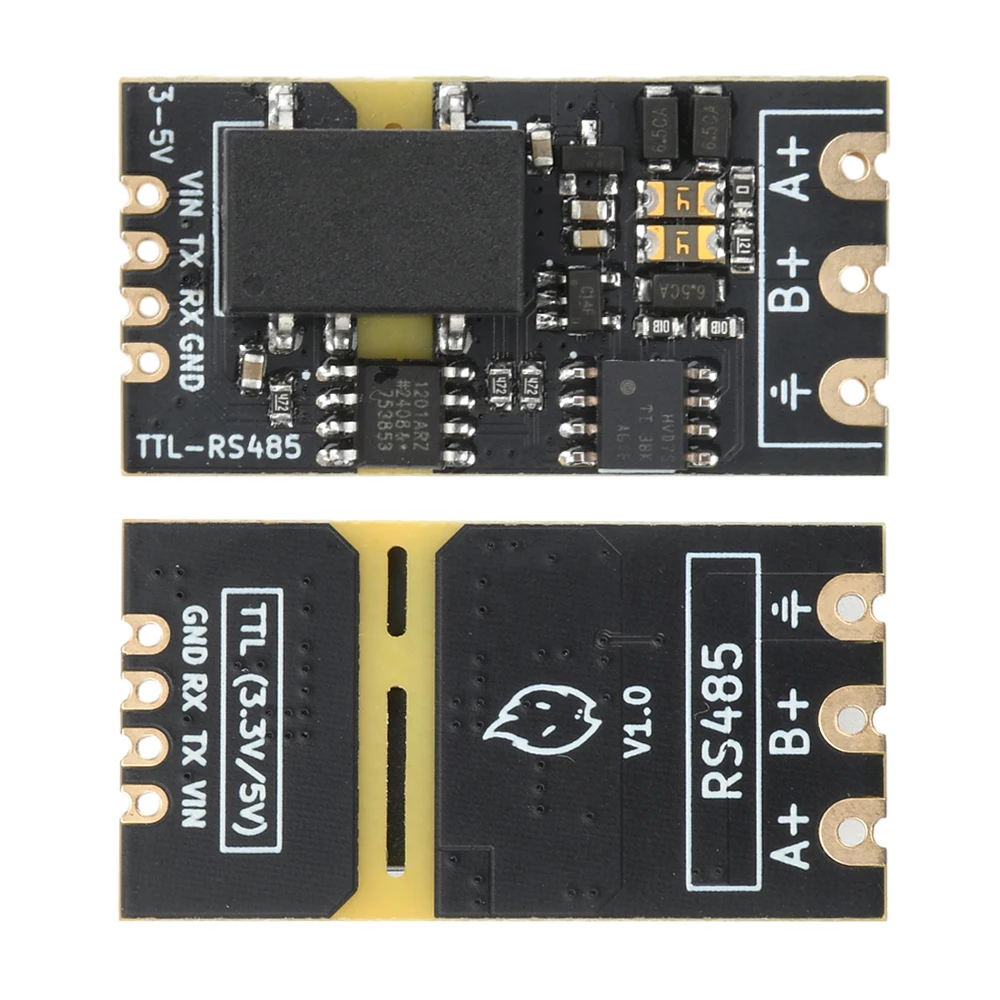

TTL Pin Pitch: 2.54mm (Solderable Pin Header)
RS485 Pin Pitch: 5.08mm (Solderable KF301 Terminal)

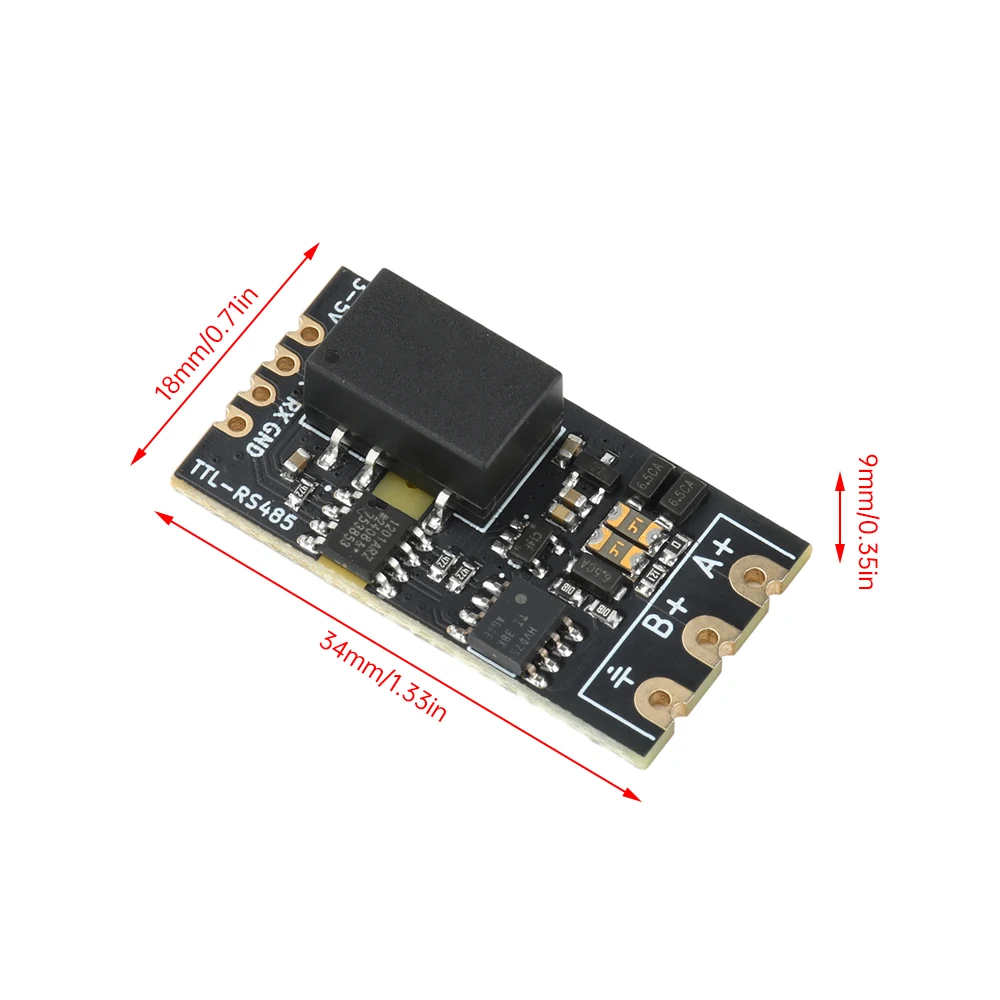

Product Dimensions: 34*18*9mm
Package Contents:
Module*1
