Specifications

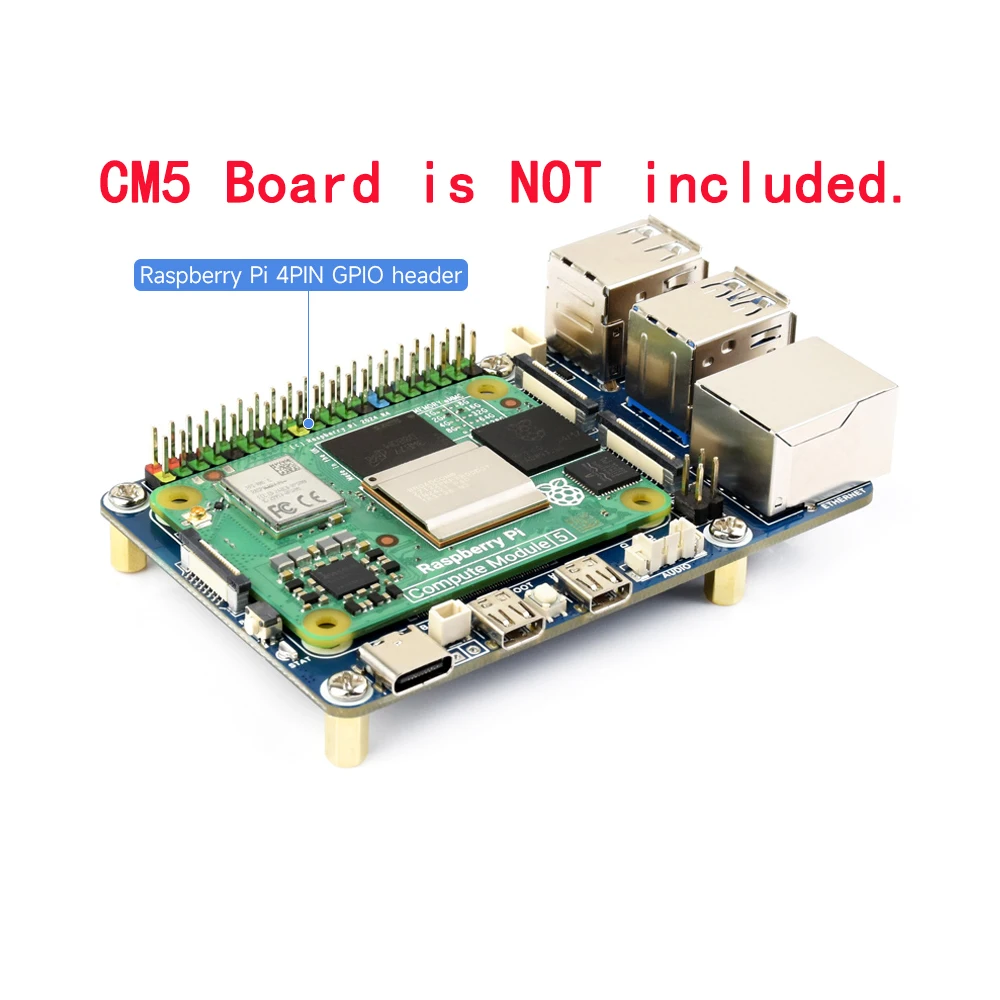

| CM5 socket | Suitable for all variants of Compute Module 5 |
| Networking | Gigabit Ethernet RJ45 port |
| Connector | 16PIN PCIe (PCIe Gen2/3 × 1) Raspberry Pi 40PIN GPIO header × 1 |
| USB | USB 3.2 Gen1 × 2; USB 2.0 × 2 |
| MIPI | MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) |
| Video | HDMI port × 2, supports dual 4K outputs |
| Audio | Onboard audio header, comes with an audio adapter for connecting 3.5mm headphone / microphone, enabling audio input and output |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan Header | 5V, 4PIN JST-SH PWM connector |
| Power input | DC 5V 5A |
| Dimensions | 85 × 56 (mm) |
