7.3-inch E-ink Spectra 6 Full Color E-Paper Display High-saturation 800×480 module

7.3″ Color E Ink Spectra™ 6 Display

Spectra™ 6 Color Revolution

Technical Details

Product Specifications

Features & Compatibility

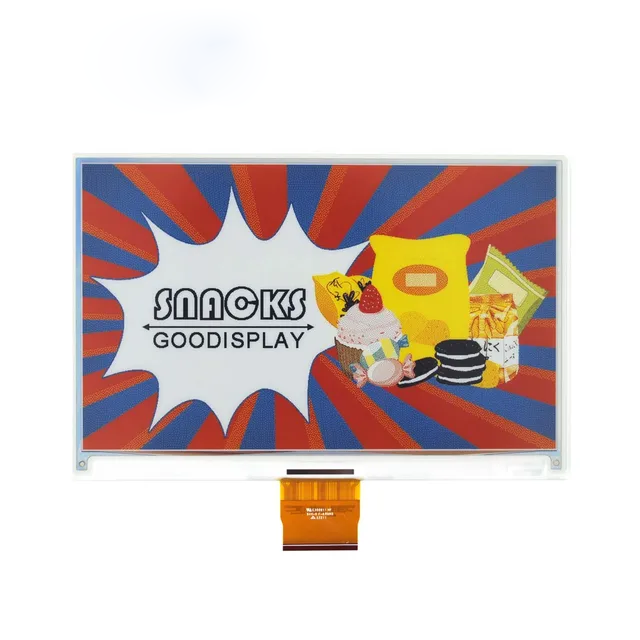

S7e36bd45fb7c4c248ee4ca4437558120r-1769744556

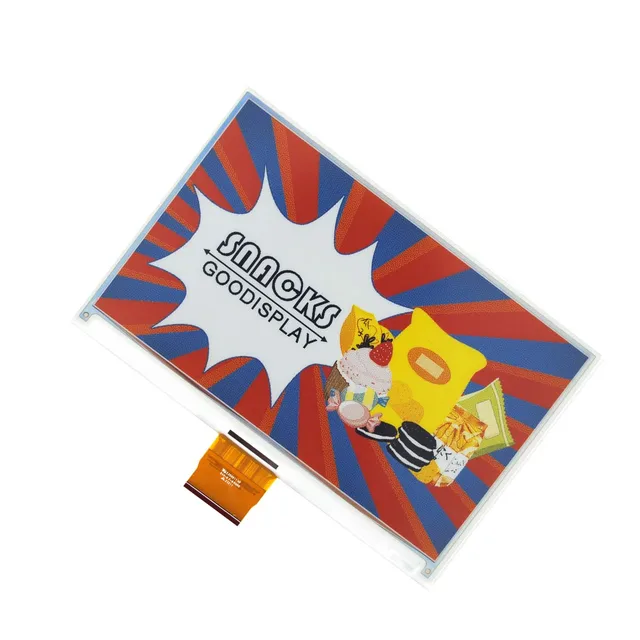

S9c219f933ad14164b8dd3f64477ac5e6M-1769744559

Click to enlarge

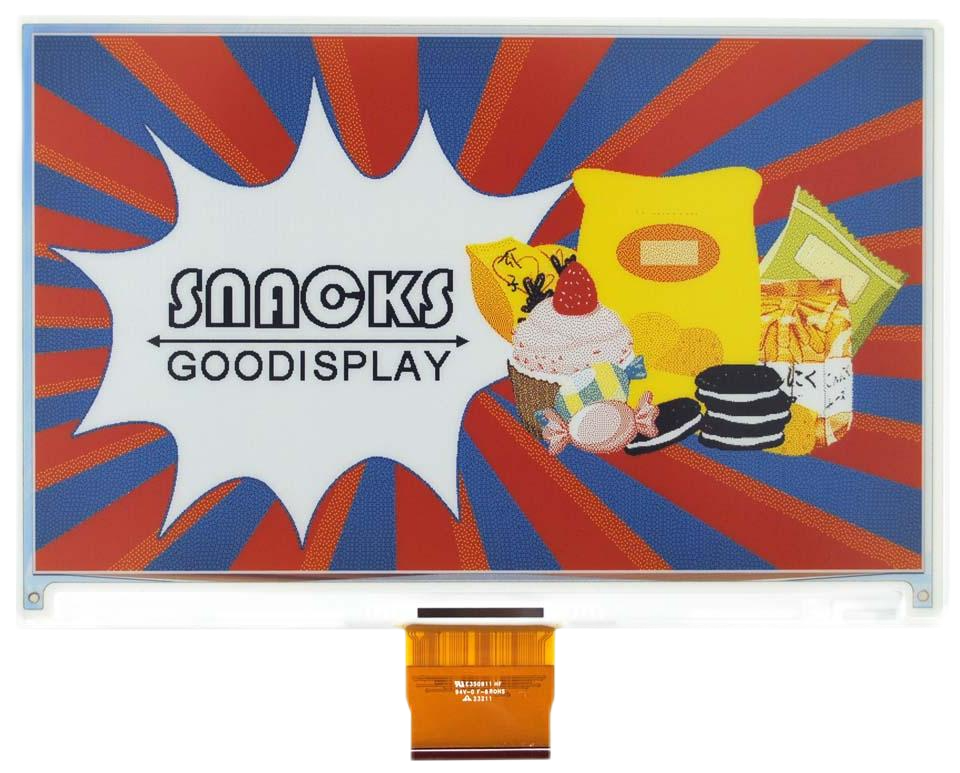

Name: 7.3-inch E-ink Spectra 6 Full Color E-Paper Display High-saturation 800x480 module
SKU: 1005007253583430
Availability: InStock

Price range: $61.90 through $80.90

Size

Clear

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Experience E Ink Spectra 6’s lifelike color revolution—crisp, glare-free, and zero energy waste. Transform your world with eco-conscious elegance, designed to captivate eyes and inspire action.

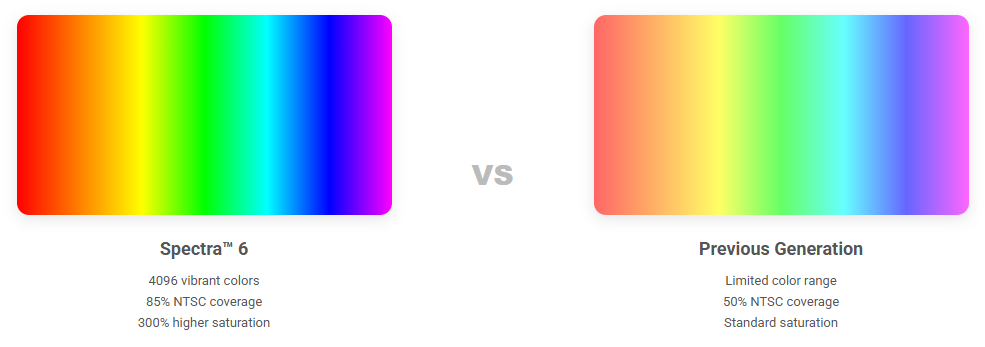

64% wider color gamut than previous generation technology

Key Features

6-Color Imaging System

Advanced color rendering with black, white, red, green, blue, and yellow pigments

Ultra HD Resolution

127.8 PPI with 800×480 pixel density for crystal-clear content

Wide Temperature Range

Operates flawlessly from 0°C to 50°C in any environment

PART NUMBER	GDEP073E01
TYPE	Dot Matrix
SIZE	7.3 inch
IC	NC
RESOLUTION	800×480
PPI	127.8

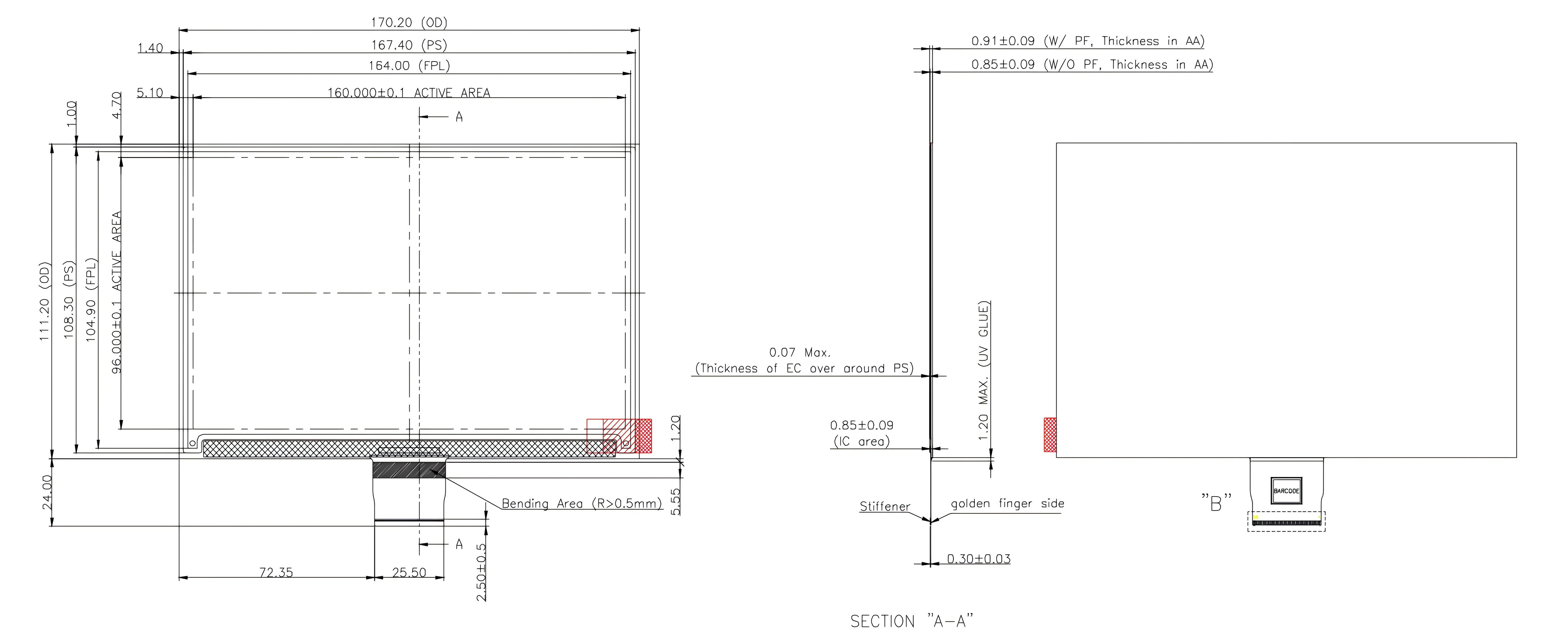

OUTLINE SIZE(mm)	170.2×111.2×0.91
ACTIVE SIZE(mm)	160×96
PIXEL PITCH(mm)	0.2×0.2
OPERATING TEMP.	0℃~50℃
STORAGE TEMP.	-25℃~60℃

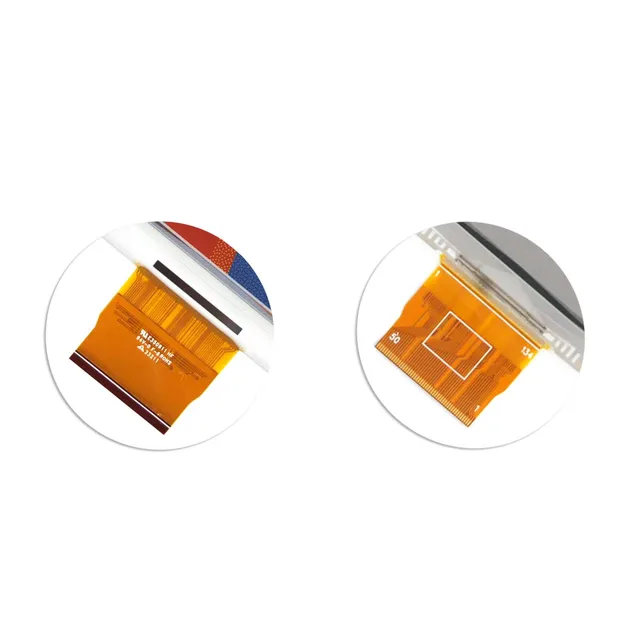

CONNECTOR	50 Pin FPC
INTERFACE	SPI
FULL REFRESH TIME(s)	15~22
POWER CONSUMPTION OF THE REFRESH(mW)	TBD
STANDBY POWER CONSUMPTION (mW)	TBD
