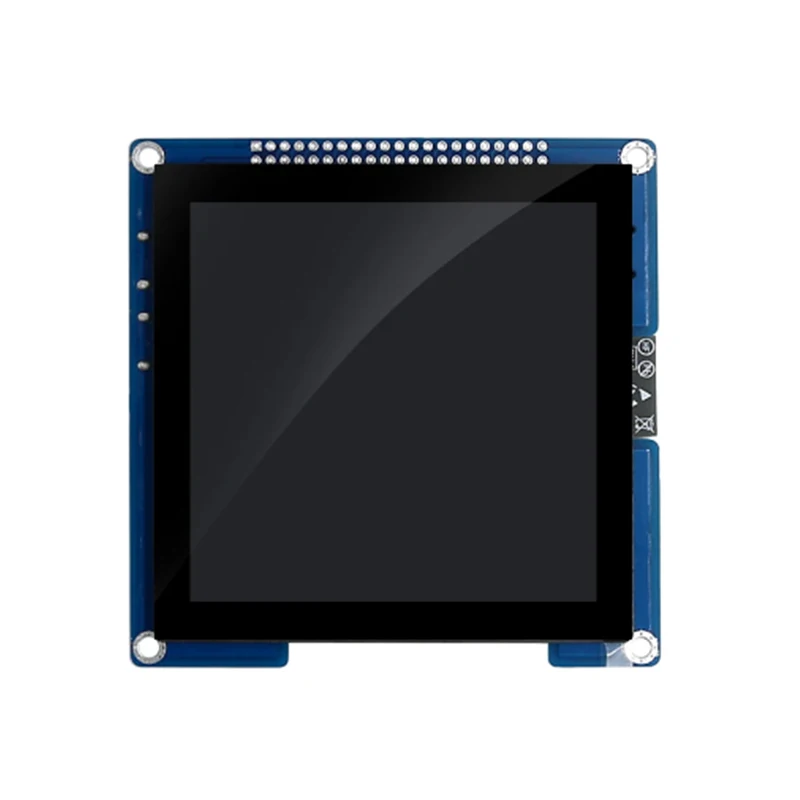

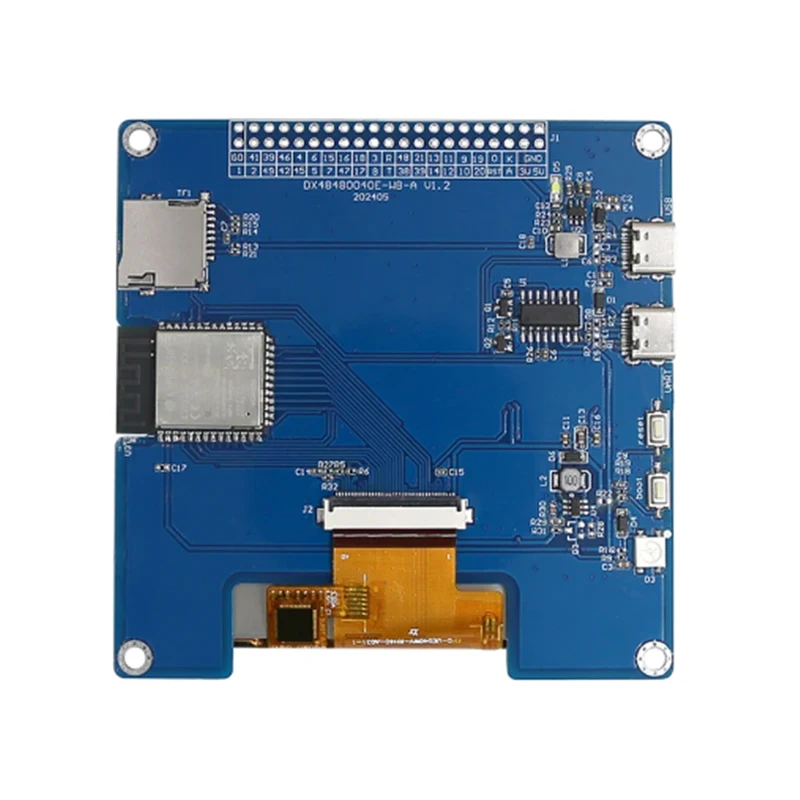

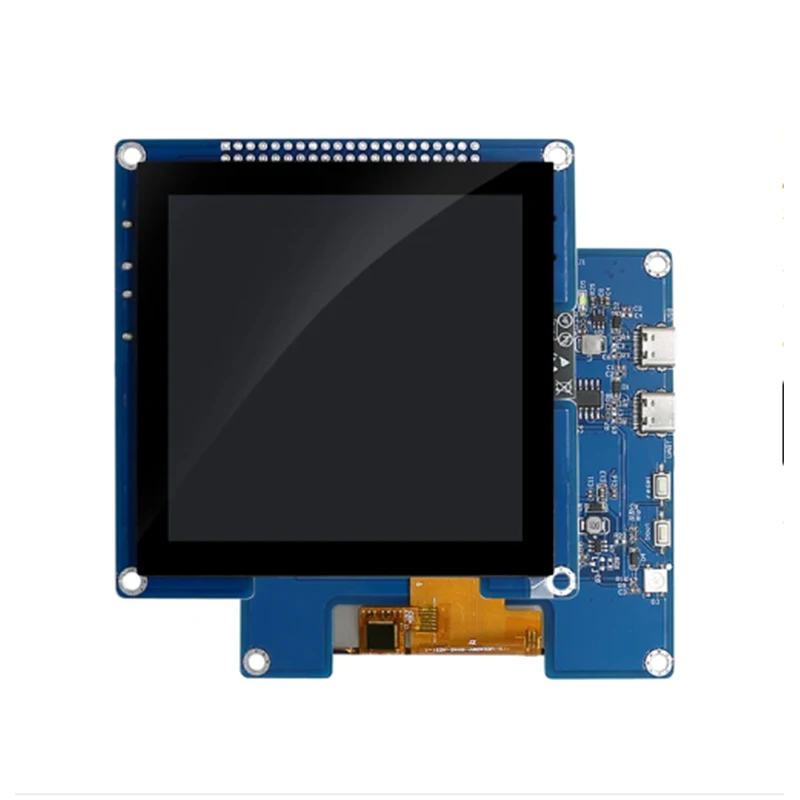

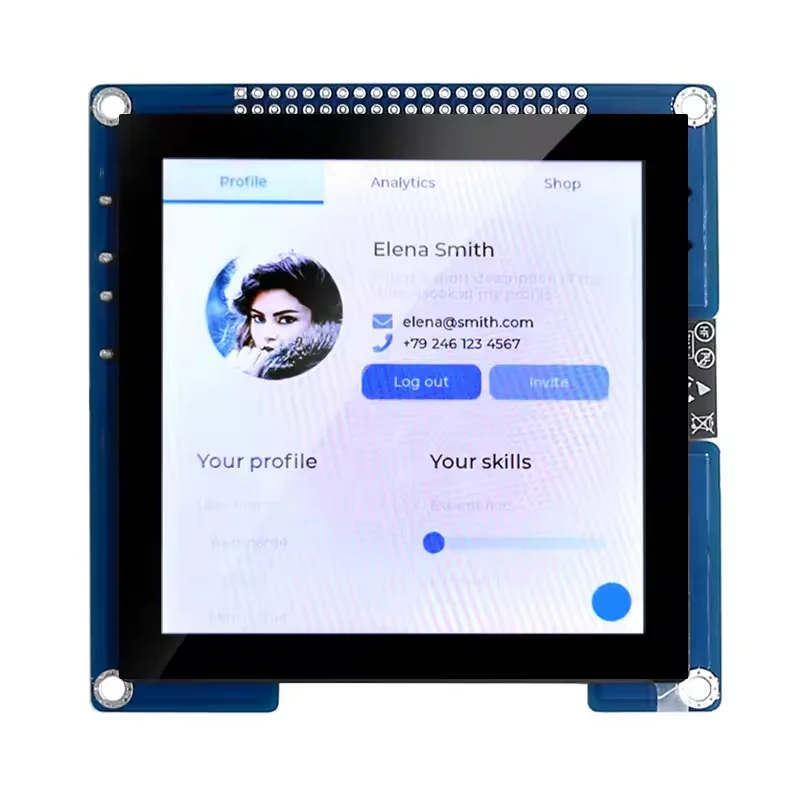

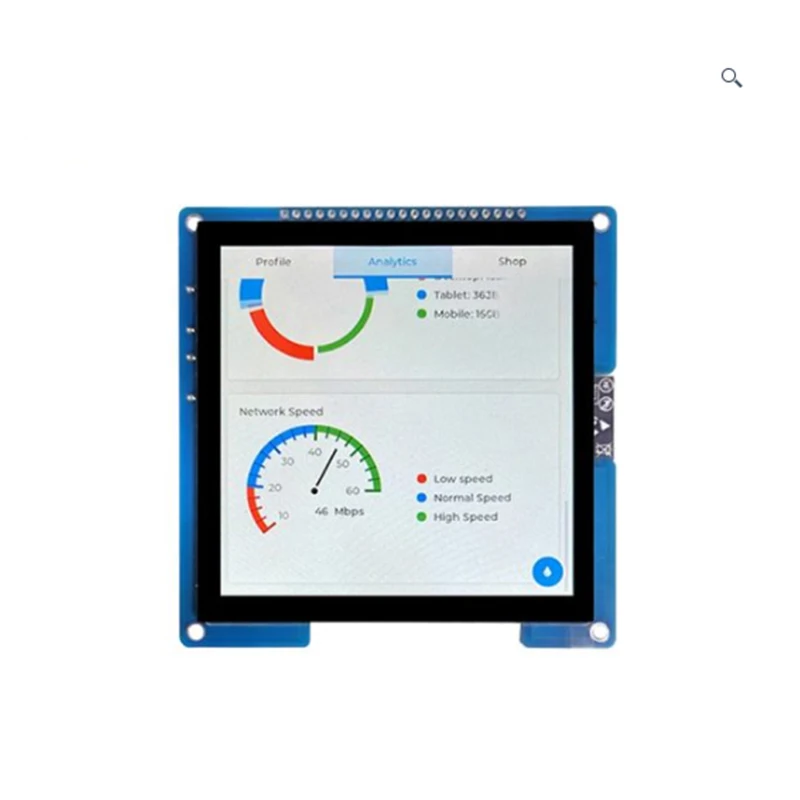

Our 4 inch 480*480 ESP32 LVGL WIFI&Bluetooth LCD Graphic Display TFT Smart Display Screen Module Development Board With Touch IPS TFT LCD screen Module board combines cutting-edge display technology with exceptional performance. Featuring vibrant colors and high-resolution clarity, this module delivers superior visual quality ideal for a variety of applications. With wide viewing angles and precise color reproduction, it ensures optimal visibility from any perspective. Built for reliability, it withstands continuous use in diverse environments. Additionally, responsive touch capability (if applicable) enhances user interaction, making it versatile for interactive displays. Perfect for industrial control panels, medical devices, and consumer electronics, our IPS TFT LCD screen module sets a new standard in visual excellence and functionality.
- Hign-concerned Chemical: None
- Display Mode: 4 Inch ESP32 Touch Screen
- is_customized: Yes
- Model Number: 4 Inch ESP32 Touch Screen
- Type: TFT
- Origin: Mainland China
- Resolution: 800*480
ESP-IDF SDK：
https://github.com/VIEWESMART/ESP32-IDF/tree/main/examples/4.0inch/UEDX48480040E-WB-3touch-SDK
Arduino SDK:
https://github.com/VIEWESMART/ESP32-Arduino/tree/main/examples/4.0inch
- OS : RTOS
- CPU: 240MHz Xtensa 32-bit LX7 Dual-core Processor
- RAM : Built-in 512KB of SRAM/ 384KB ROM/8MB PSRAM
- FLASH : 8MB Flash
- Internet : 2.4GHz Wi-Fi (802.11 b/g/n) Bluetooth 5 (LE)
- Size : 4 Inch
- Resolution : 480*480
- Brightness : 300 cd/m2
- Viewing Angle : All O’clock
- Touch : Mult-Point Capacitive Touch
- Interface : CAN/RS485/ I2C/RS232/USB
