- High-concerned chemical: None
- Type: Module
- Brand Name: Aideepen
- Origin: Mainland China
- Condition: New
Description:

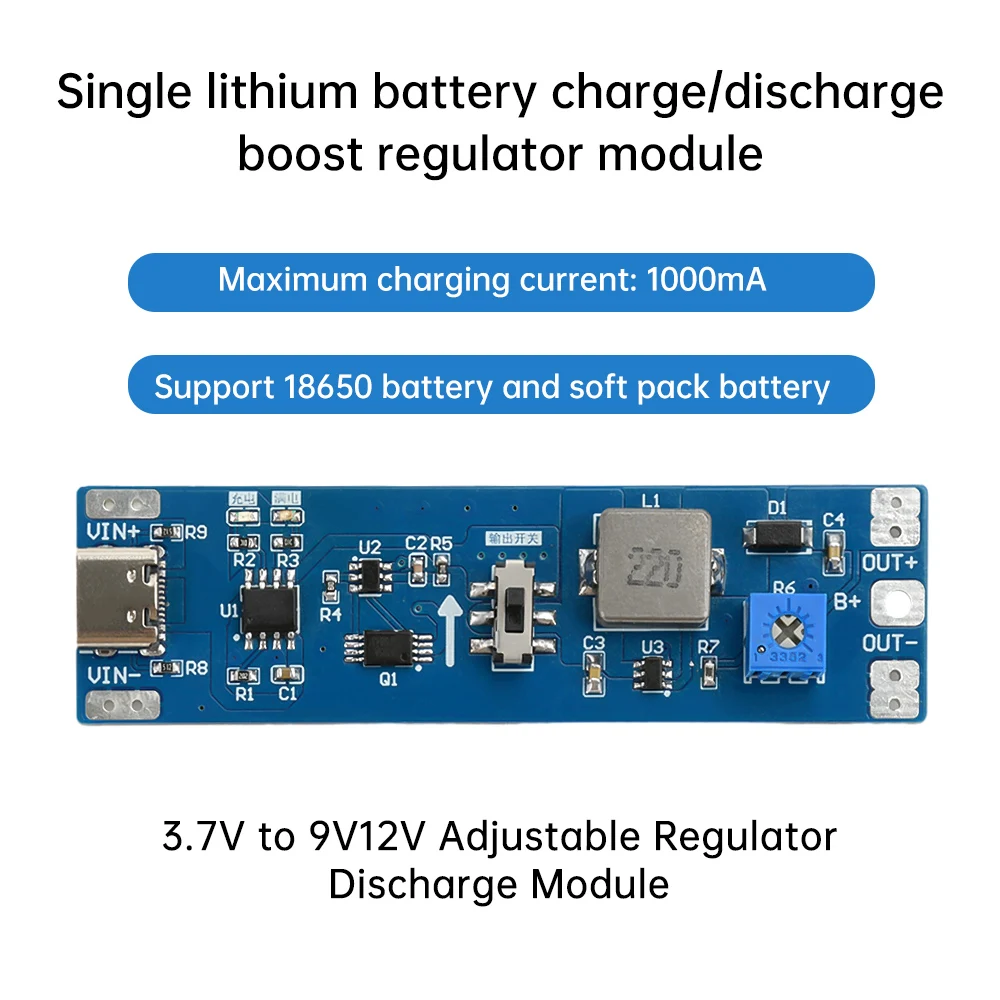

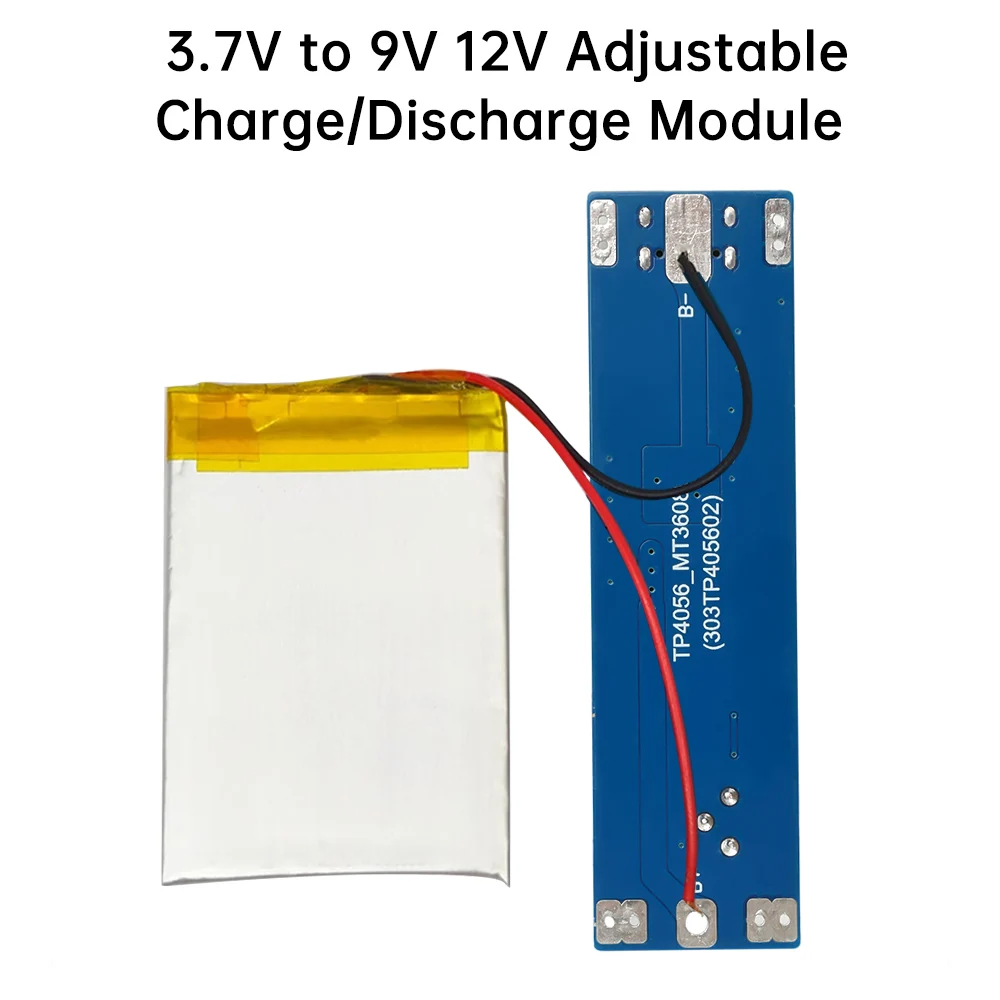

1. Boosts 3.7V lithium battery voltage to 9V or 12V to meet diverse device requirements
2. Supports adjustable 9V and 12V output voltages for versatile application scenarios
3. Integrates charging and discharging functions to simplify circuit design and enhance efficiency

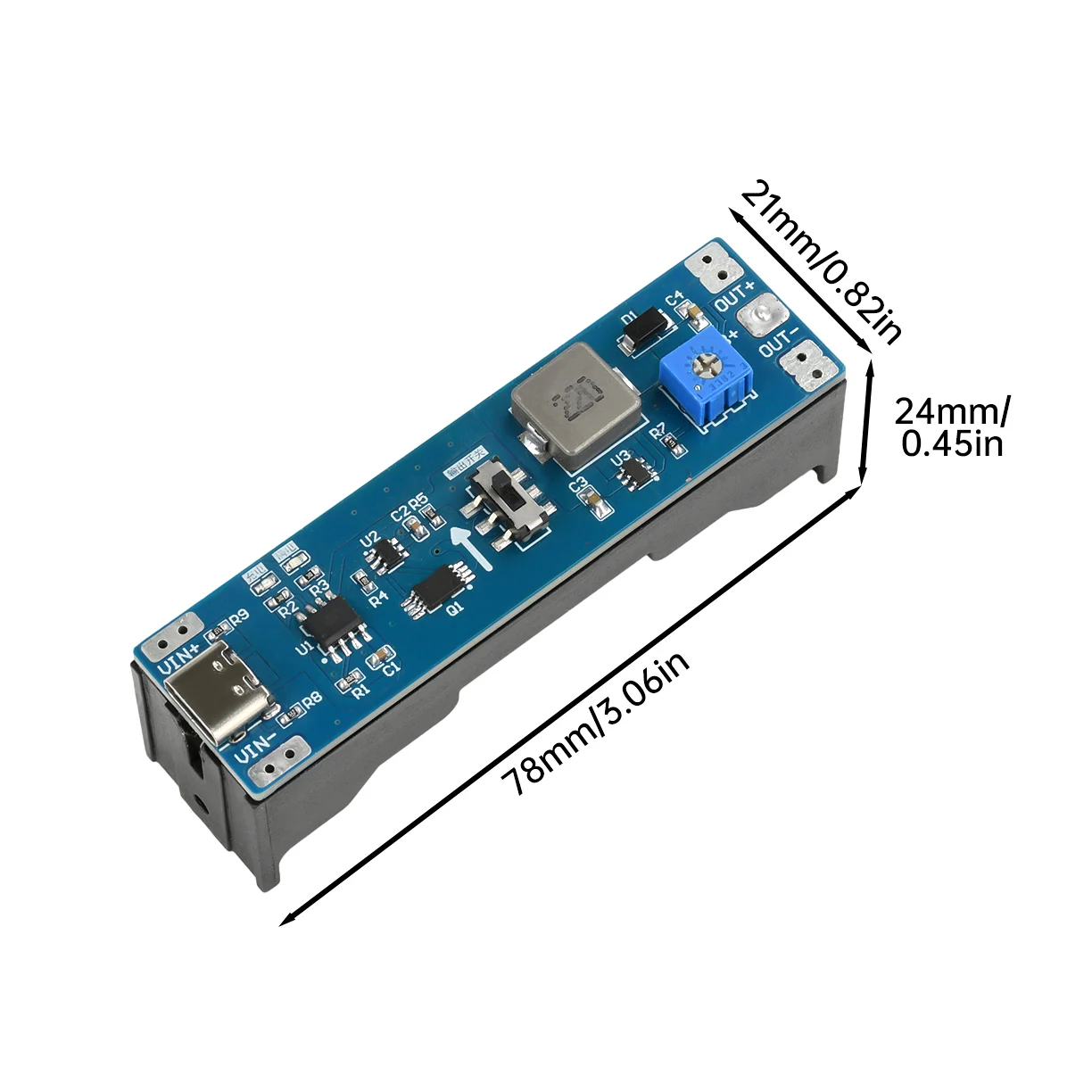

4. Compact size facilitates easy installation in various portable devices
5. High conversion efficiency minimizes energy loss and extends battery life

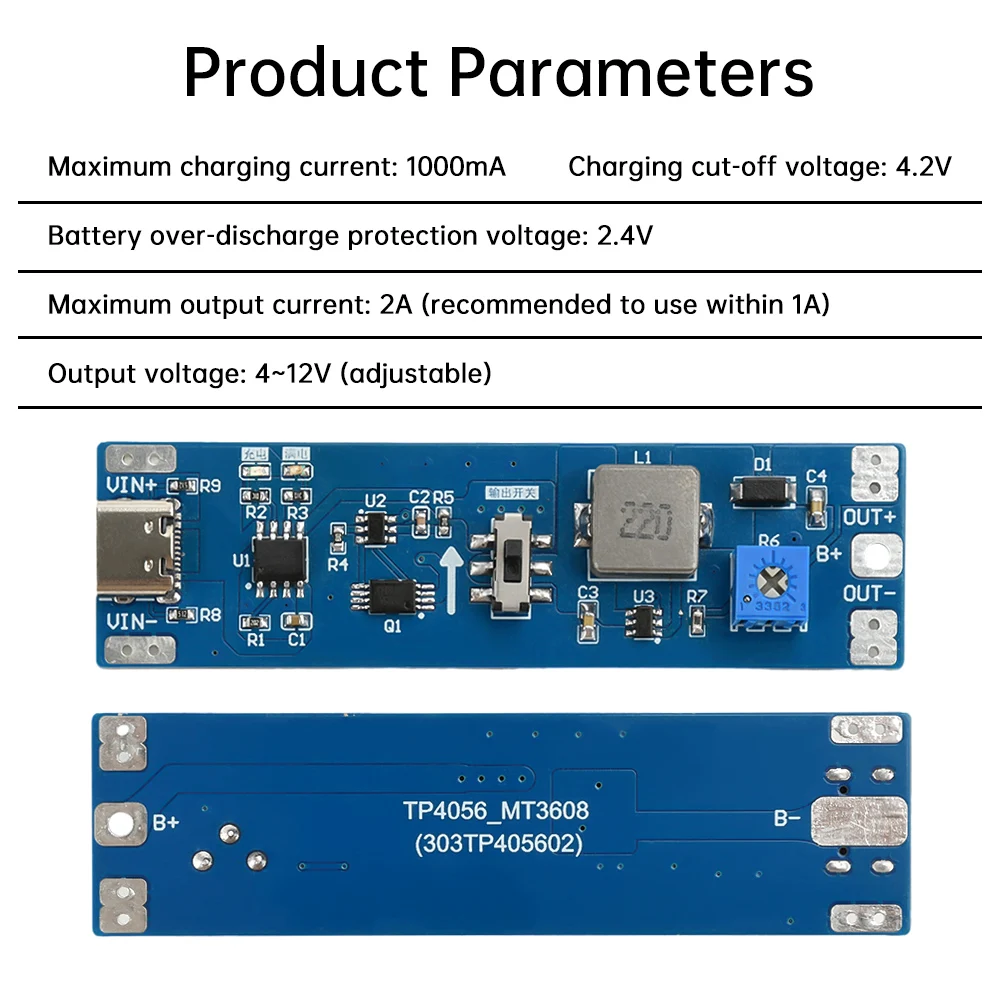

Product Specifications:
Maximum Charging Current: 1000mA
Charge Cut-off Voltage: 4.2V
Battery Over-discharge Protection Voltage: 2.4V
Maximum Output Current: 2A (Recommended use within 1A)
Output Voltage: 4~12V (Adjustable)

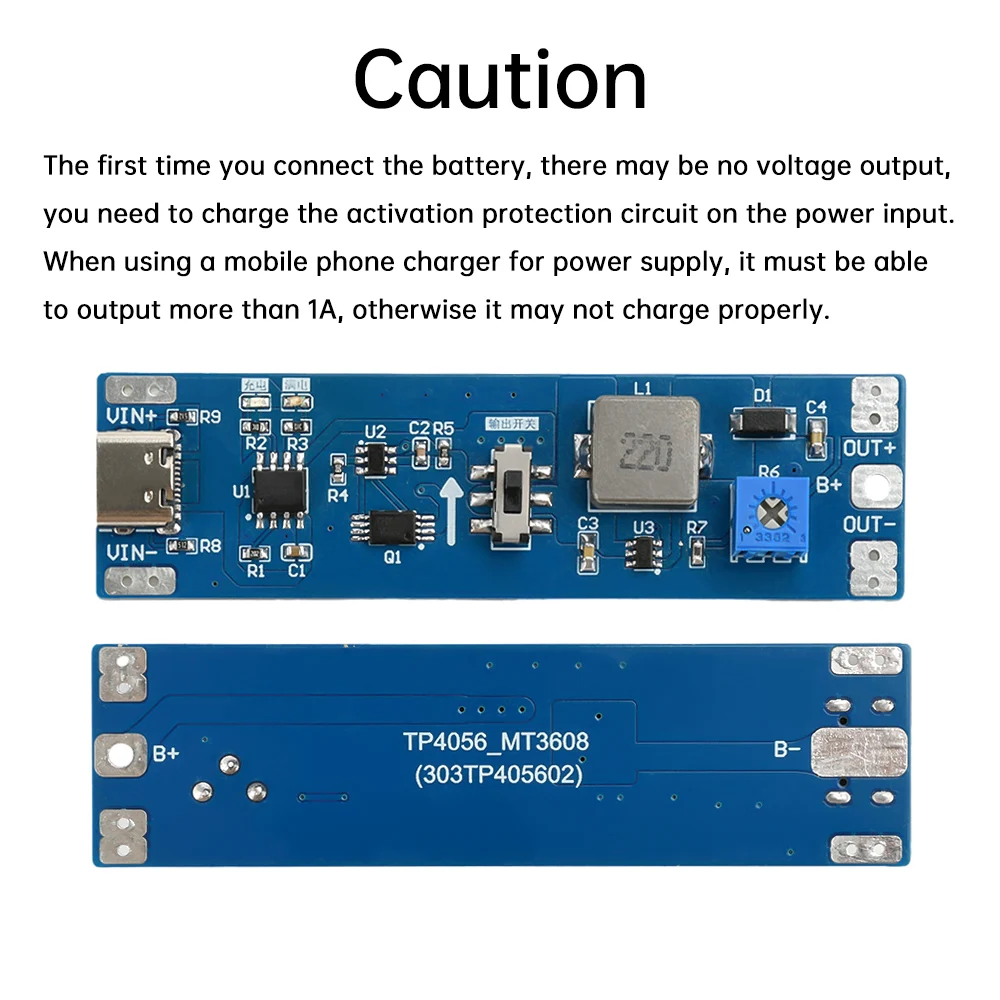

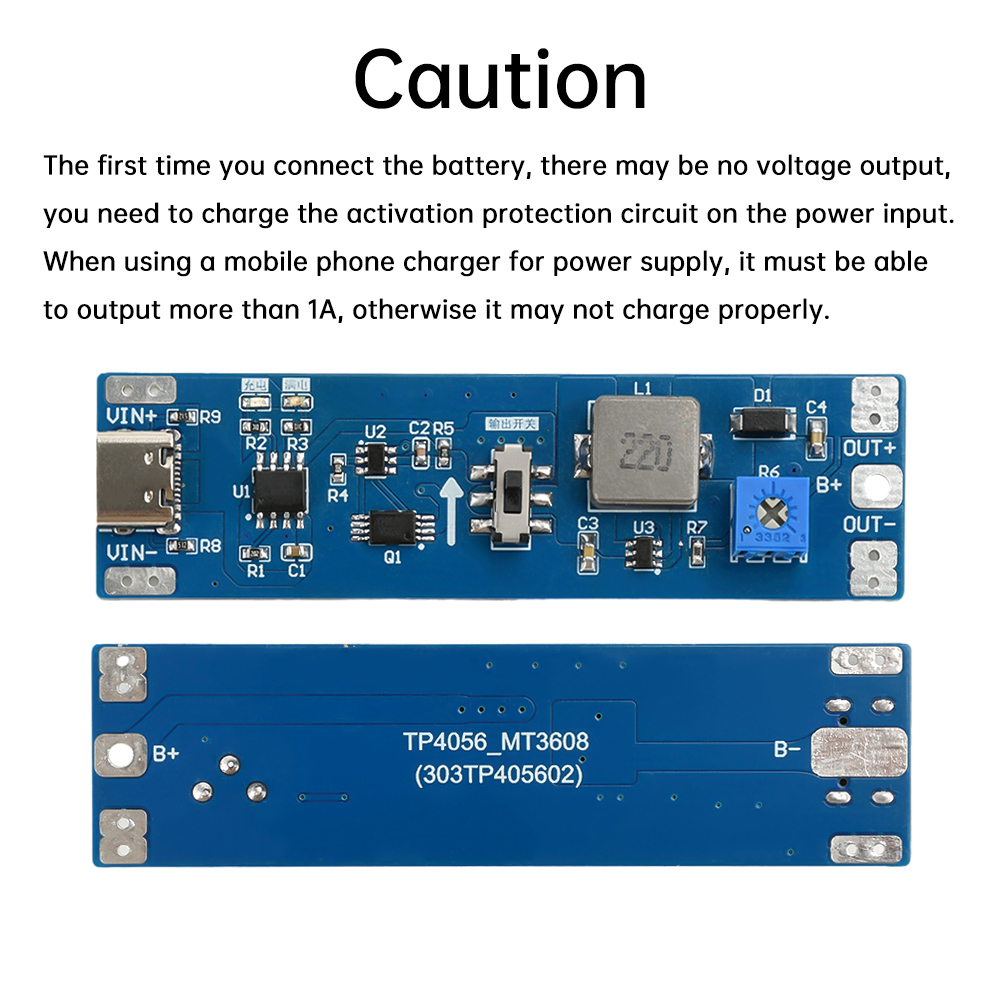

Important Notes:
When connecting the battery for the first time, no voltage output may be present. Charge the battery at the power input to activate the protection circuit. When using a mobile phone charger for power, it must be capable of outputting over 1A; otherwise, normal charging may not occur.
Package Contents:
Charge/Discharge Module*1 (Style Optional)
