Board specifications

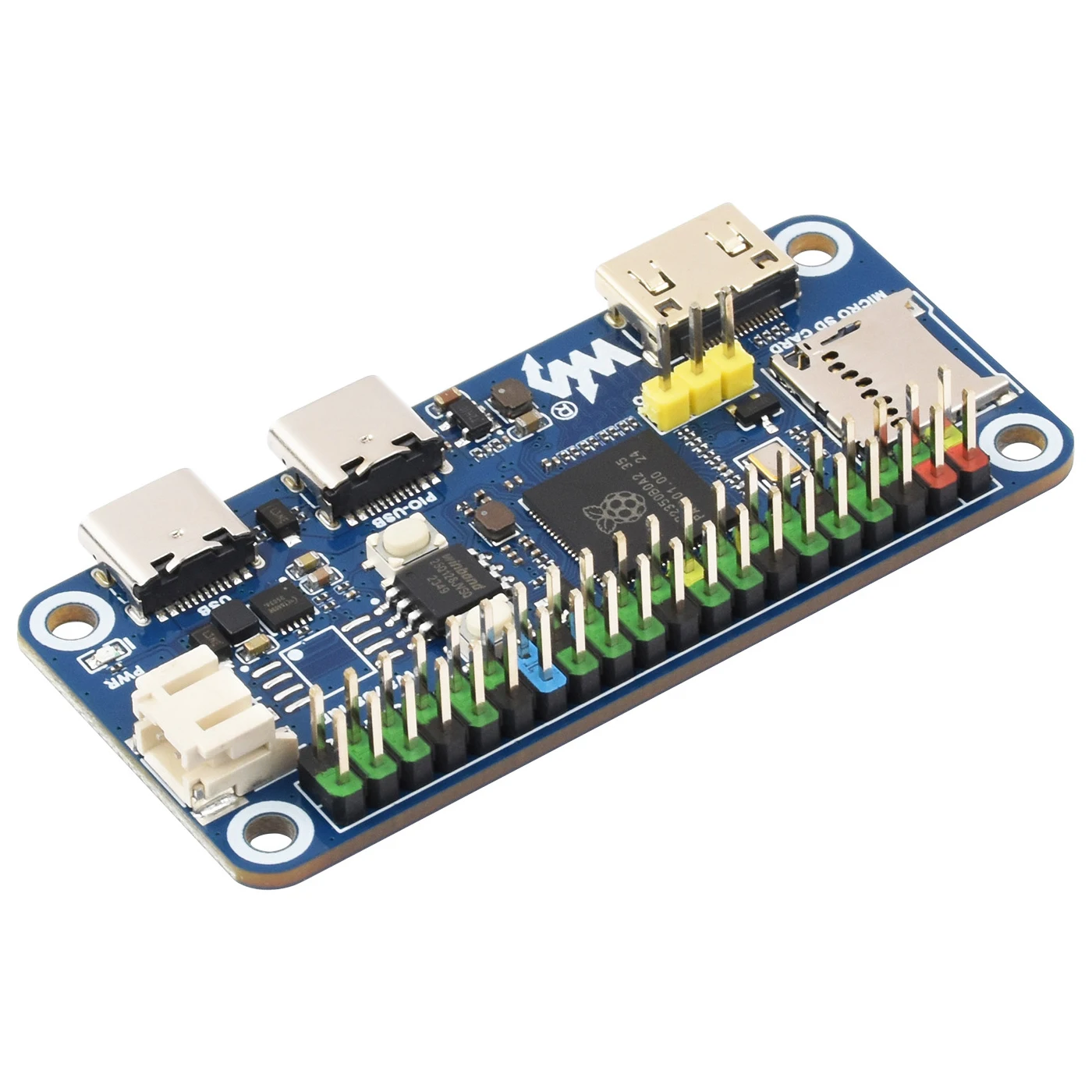

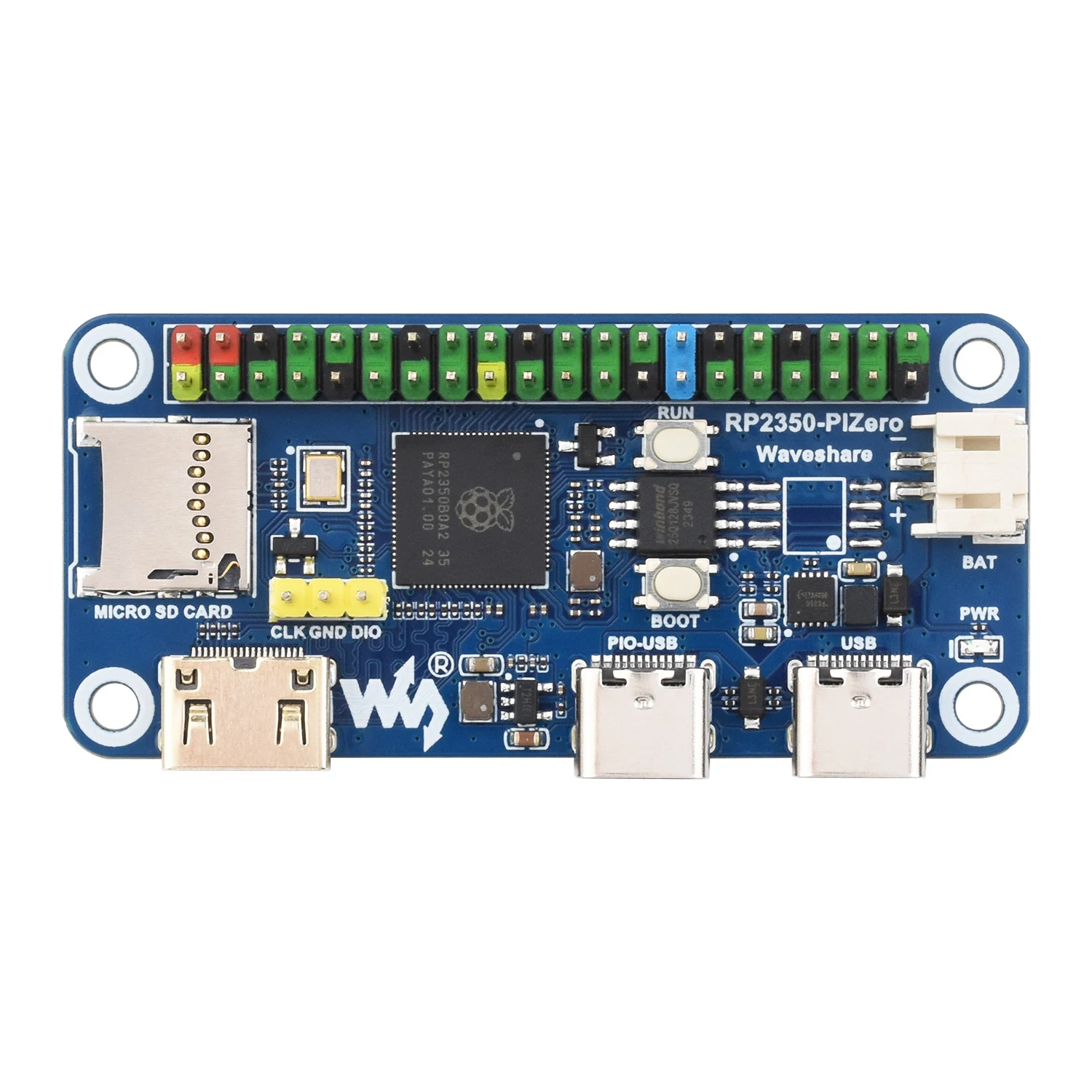

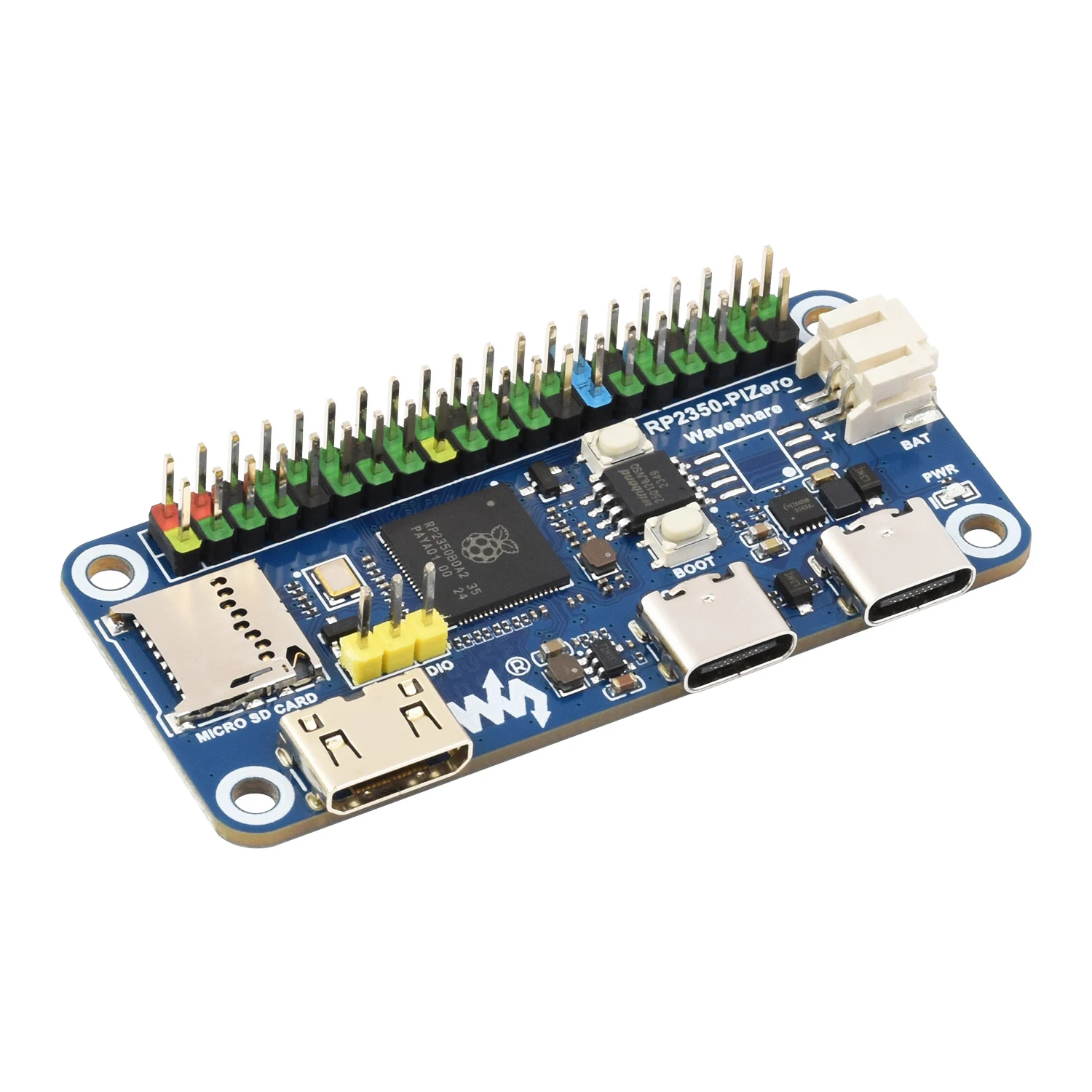

RP2350-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products.
- RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion
- Type-C connector for easier use
- Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
- Supports using as a USB host or device via onboard PIO-USB port
- Onboard TF card slot for reading and writing TF card
- Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB

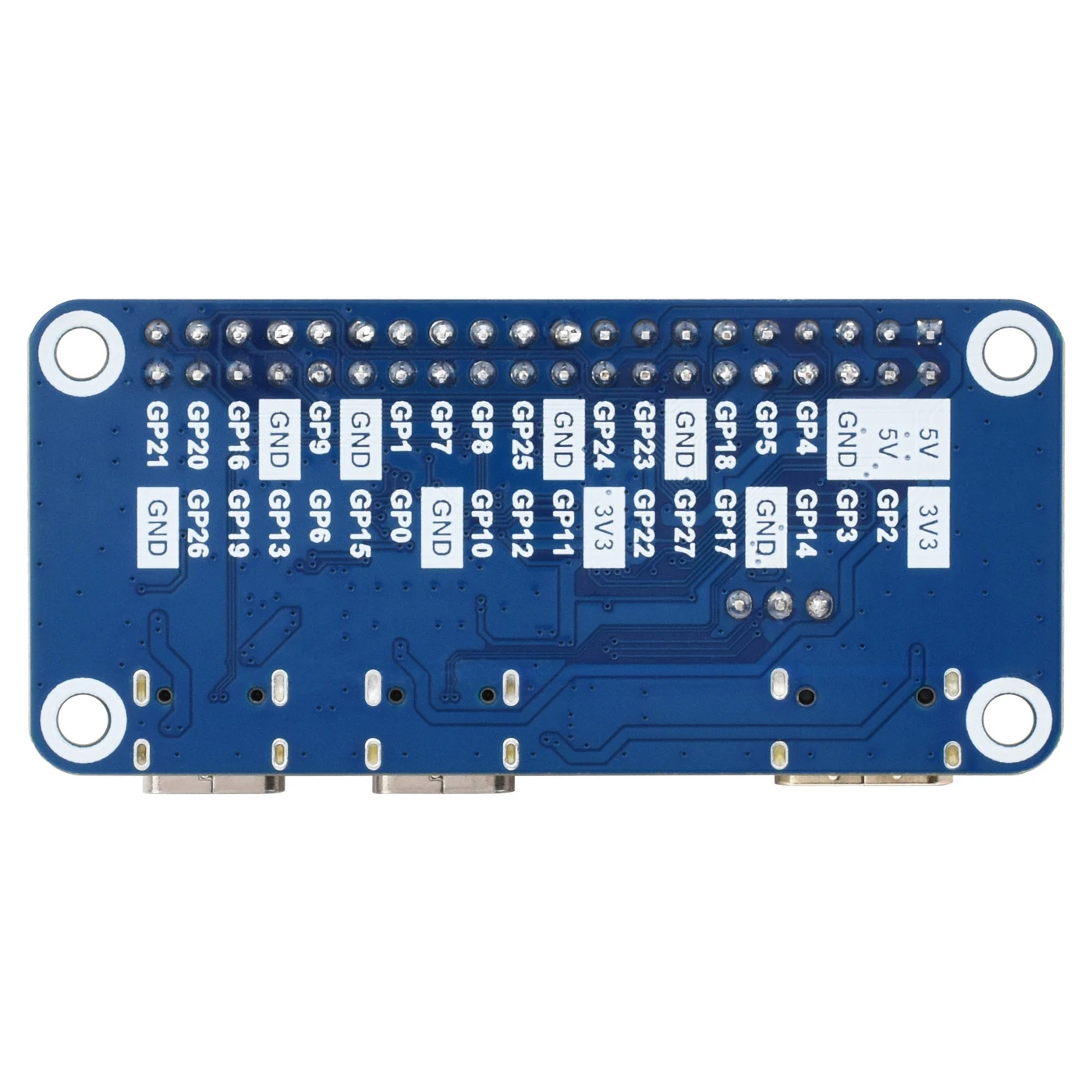

- Adapting 5 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
