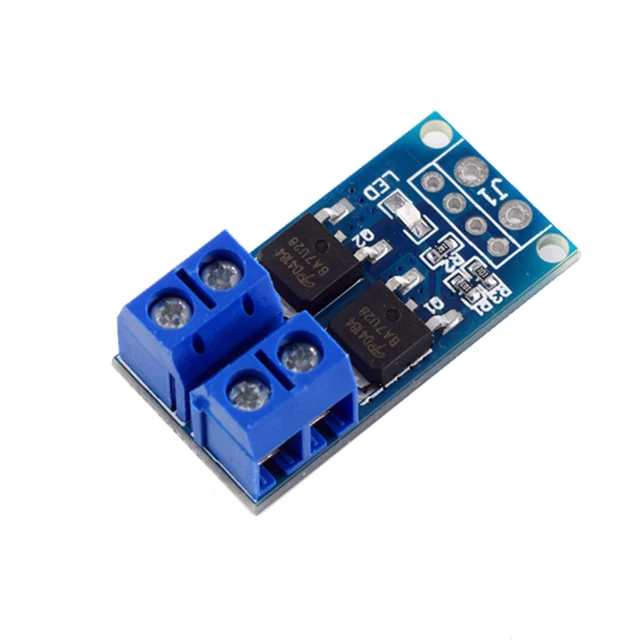

1. Adopting dual MOS parallel active output, the internal resistance is lower, the current is higher, and the power is strong. At room temperature, it is 15A and 400W, which meets the needs of most devices
2. Wide voltage, supports PWM
3. Able to control high-power devices
Product parameters
1: Working voltage: DC 5V-36V

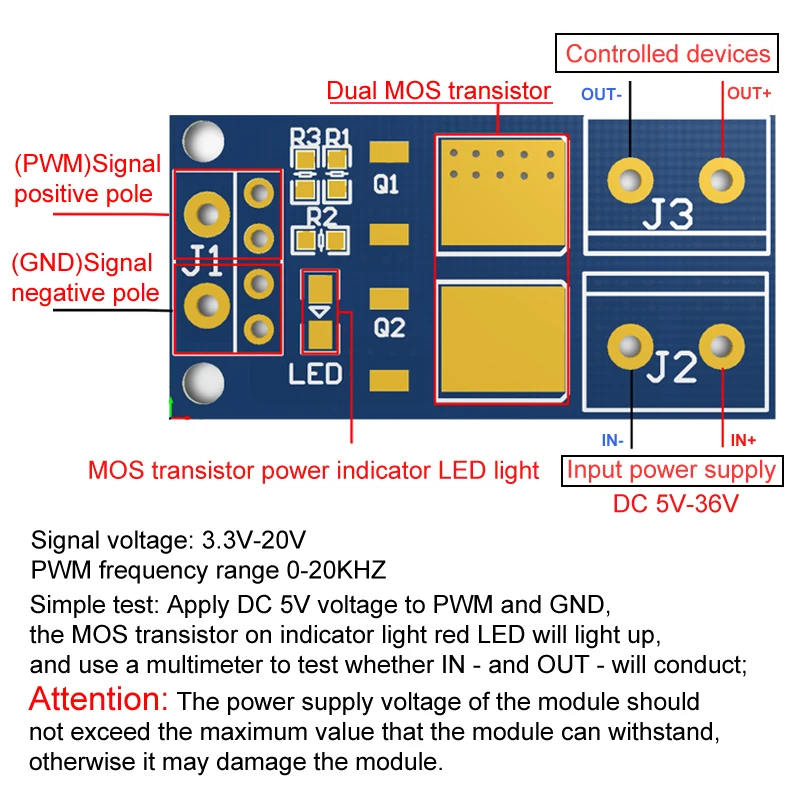

2: Trigger signal source: digital high and low levels (DC3.3V-20V), can be connected to microcontroller IO ports, PLC interfaces, DC power supplies, etc., can be connected to PWM signals, signal frequency 0-20KHz
3: Output capability: DC 5V-36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the maximum current can reach 30A
4: Application: The output terminal can control high-power devices, motors, light bulbs, LED light strip, DC motor, micro water pump, solenoid valve, etc., can input PWM to control motor speed, light brightness, etc
