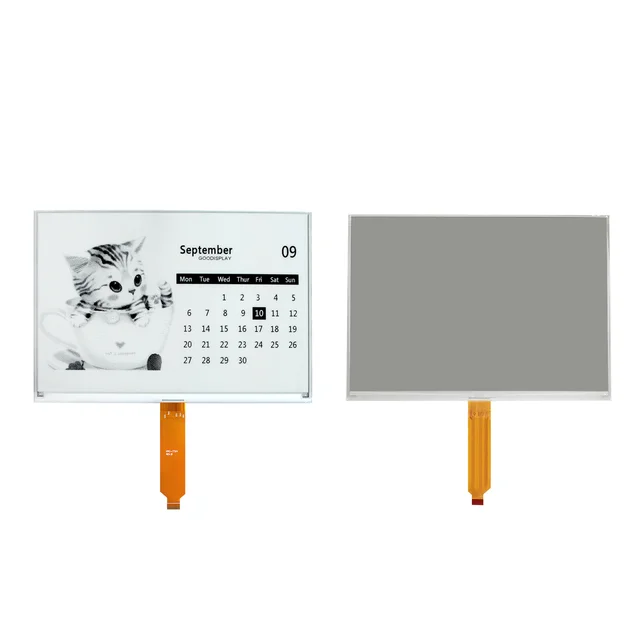

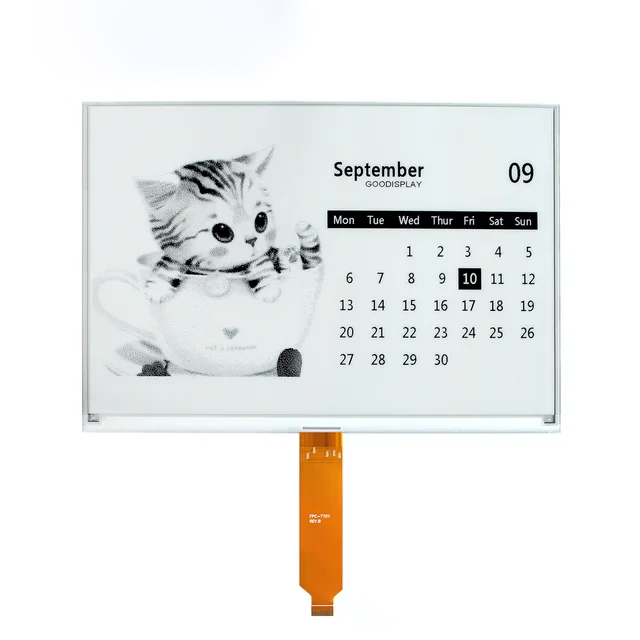

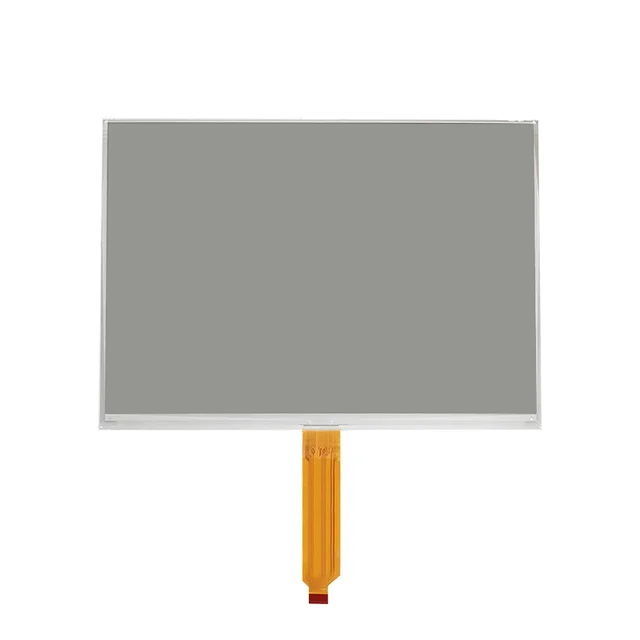

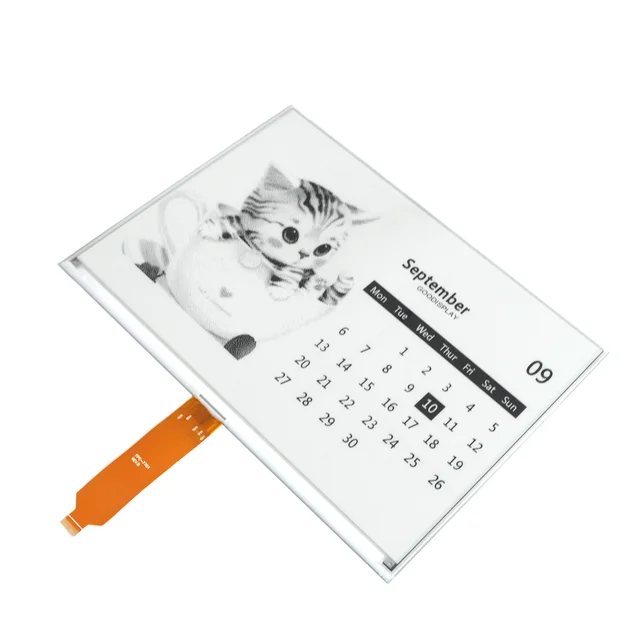

13.3 inch A4 E-ink Display Large SPI E-Paper HD 960×680 Electronic Paper Screen 0.4s Partial Refresh

For bulk pricing or OEM/ODM solutions, please contact [email protected]

Price range: $159.80 through $173.90

Guaranteed Safe Checkout

Features & Compatibility

13.3-Inch HD E-Ink Screen, 960×680, SPI Interface

Meet the 13.3-inch E-Ink display, your eyes’ new best friend! Whether you’re reading under the bright sun, displaying industrial data, or showing off an electronic menu, this screen does it all! Just refresh the image once, and it stays put even when the power’s off. With ultra-low power consumption, it’s the battery’s best buddy. Its paper-like reading experience keeps your eyes relaxed, even during those marathon reading sessions.

Special Features

● Super-Fast Refresh: With a 0.4s partial refresh, goodbye to image ghosting and hello to fast content updates – perfect for interactive use!
● Zero Power Consumption: When not refreshing, it uses virtually no power – making it the ultimate battery saver.
● Eye Comfort: The reading experience mimics real paper, making it easy on the eyes for extended reading or document viewing.
● Readable in Bright Sunlight: High contrast ensures crystal-clear text and images, even in direct sunlight – no squinting required!
● Eco-Friendly & Eye Safe: No blue light, no radiation, just pure comfort for your eyes and peace of mind for the planet.
● Versatile Applications: Ideal for eBooks, industrial instruments, electronic menus, and more – it adapts to your needs with ease.

Product Specifications

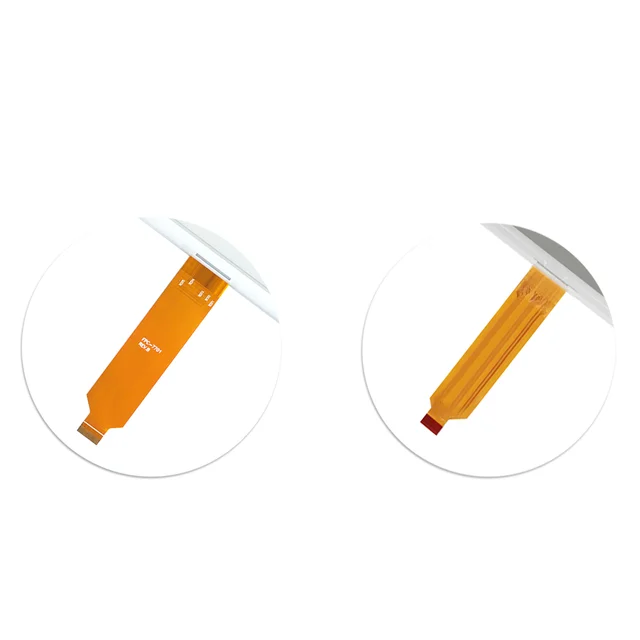

PART NUMBER GDEM133T91 CONNECTOR 24 PIN 0.5mm
TYPE Dot Matrix COLOR Black, White
SIZE 13.3 inch MAX GRAYSCALE 4
IC SSD1677 FULL UPDATE TIME(s) 4
RESOLUTION 960×680 PARTIAL UPDATE(s) 0.4
PPI 88.45 POWER CONSUMPTION(mW) 66
OUTLINE SIZE(mm) 286.32×212.26×1.20 STANDBY POWER CONSUMPTION(mW) 0.003
ACTIVE SIZE(mm) 275.52×195.16 STORAGE TEMP. -25℃~70℃
PIXEL PITCH(mm) 0.287×0.287 INTERFACE SPI
OPERATING TEMP. 0℃~40℃ 1

Additional information

Weight N/A
