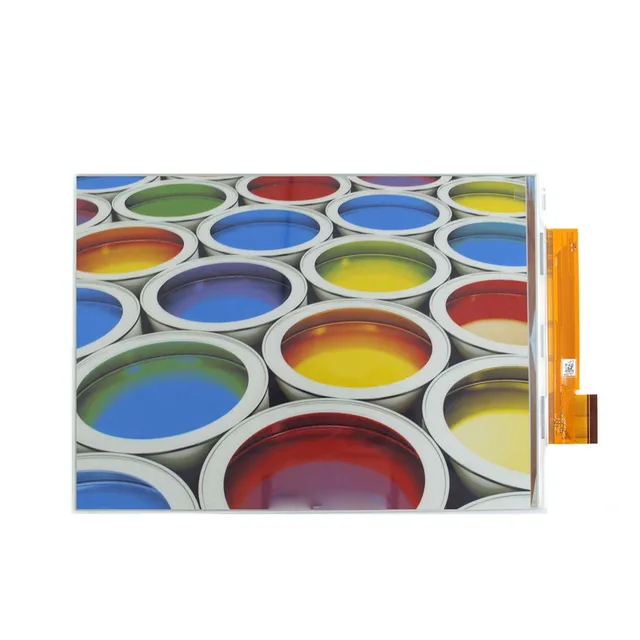

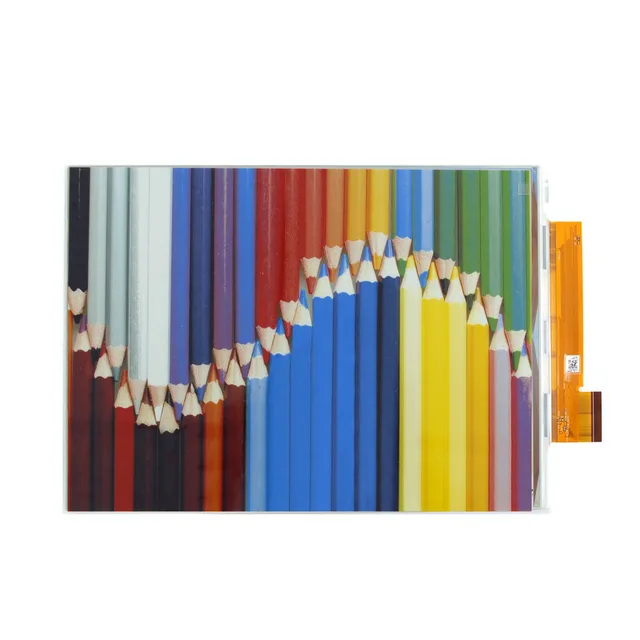

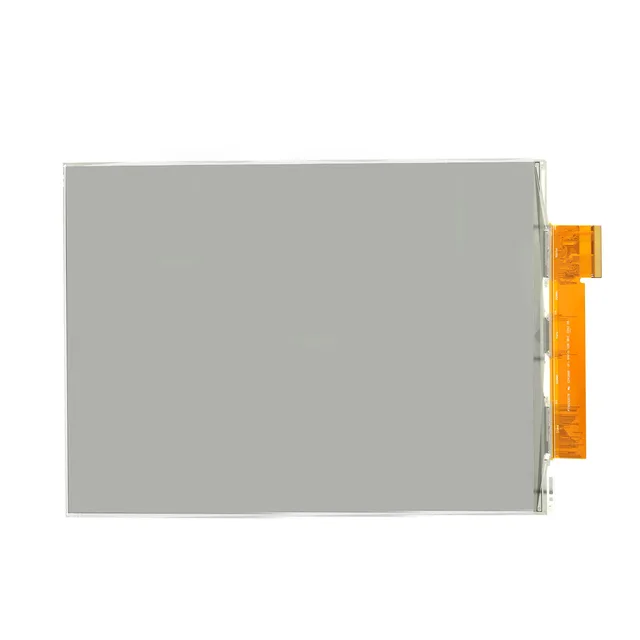

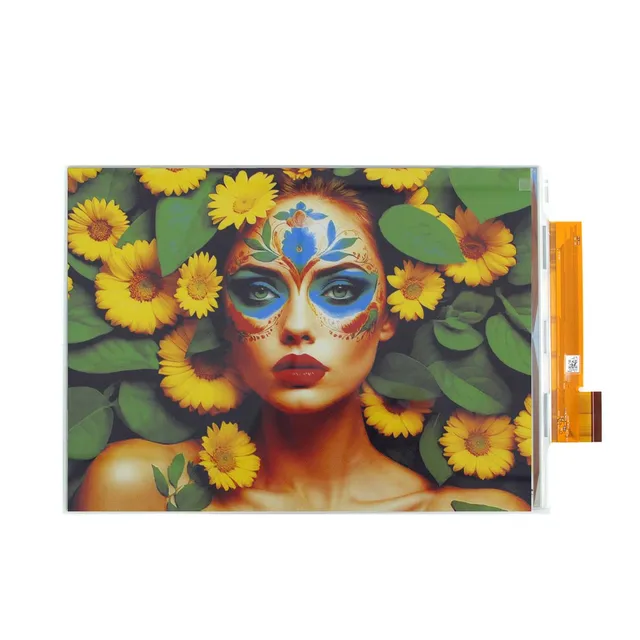

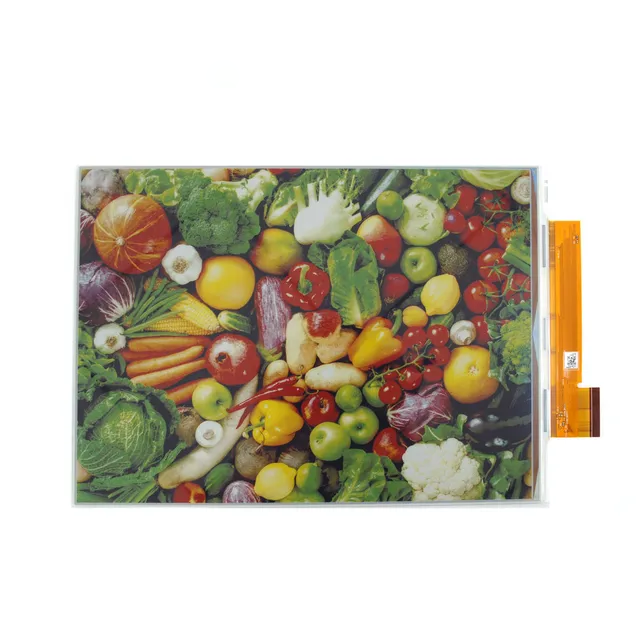

13.3″ E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600×1200 Display

Name: 13.3" E6 Full Color E-Ink Module E Ink Spectra 6 Big E-Paper 1600x1200 Display
SKU: 1005007130208311
Availability: InStock

For bulk pricing or OEM/ODM solutions, please contact [email protected]

Price range: $195.80 through $240.90

Size

Clear

Add to compare

Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

		E Ink Spectra 6 color E Ink module 13.3-inch QSPI Big ePaper display 1600×1200

		The 13.3-inch color E Ink display, featuring E Ink Spectra 6 technology, delivers enhanced color gamut and advanced color imaging algorithms for significantly improved visual performance. It creates an elegant and standout atmosphere, making it ideal for professional settings.

Special Features

● Introducing E Ink Spectra 6: the latest in color e-paper technology. With vibrant hues and lifelike saturation, it’s like bringing your favorite stories to life in full color! Dive into your reading with unparalleled realism.
● With a high resolution of 1600×1200, our color e-paper brings images to life with exquisite clarity, making every picture vivid and dynamic!
● Viewing angle: Wide viewing angle exceeding 170 degrees.
● Display feature: Bistable display (retains the current content after a power outage)
● Energy conservation: No power consumption when not refreshing the screen.

Product Specifications

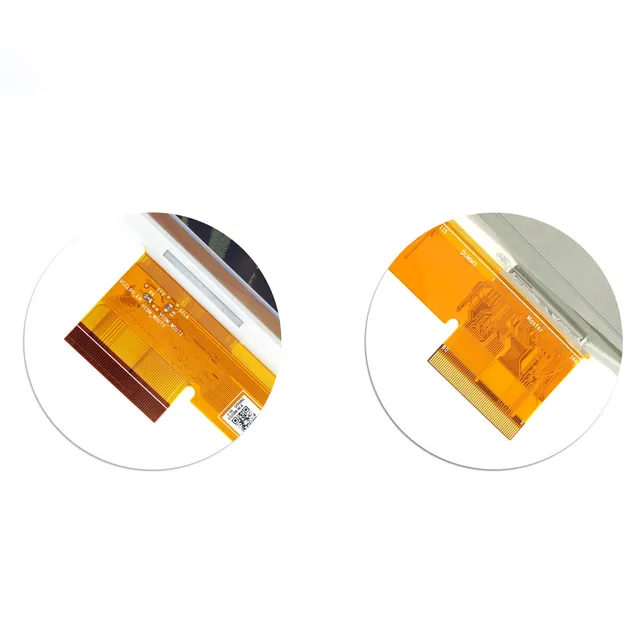

PART NUMBER	GDEP133C02	CONNECTOR	60 Pin FPC
SIZE	13.3 inch	COLOR	6 color(E Ink Spectra 6)
TYPE	Dot Matrix	FULL REFRESH TIME(s)	TBD
IC	NC	OPERATING TEMP.	0℃~50℃
PPI	150.38	STORAGE TEMP.	-25℃~50℃
RESOLUTION	1600×1200	POWER CONSUMPTION OF THE REFRESH(mW)	TBD

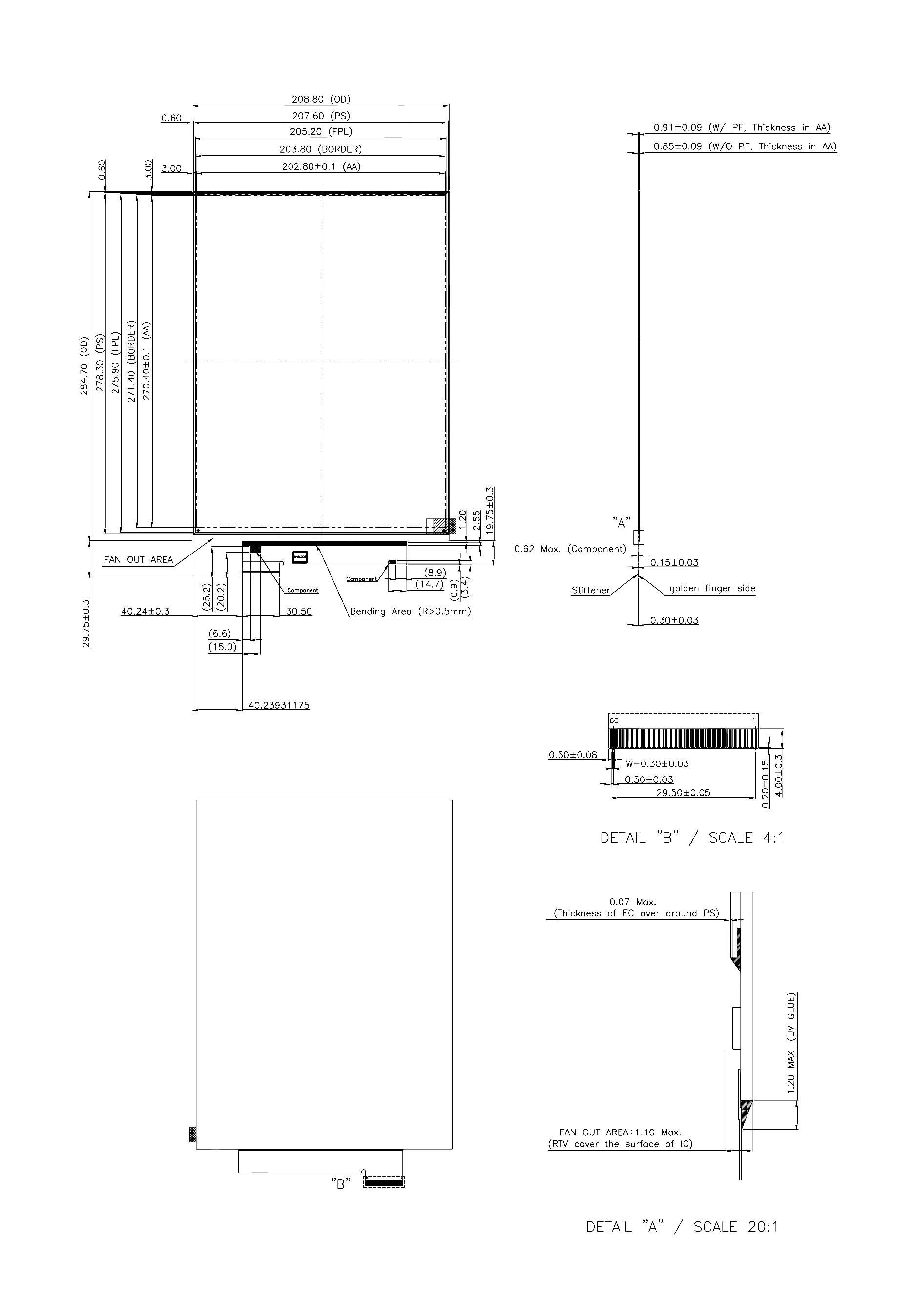

OUTLINE SIZE(mm)	208.8×284.7×0.85	STANDBY POWER CONSUMPTION (mW)	TBD
ACTIVE SIZE(mm)	202.8×270.4	INTERFACE	QSPI
PIXEL PITCH(mm)	0.169×0.169

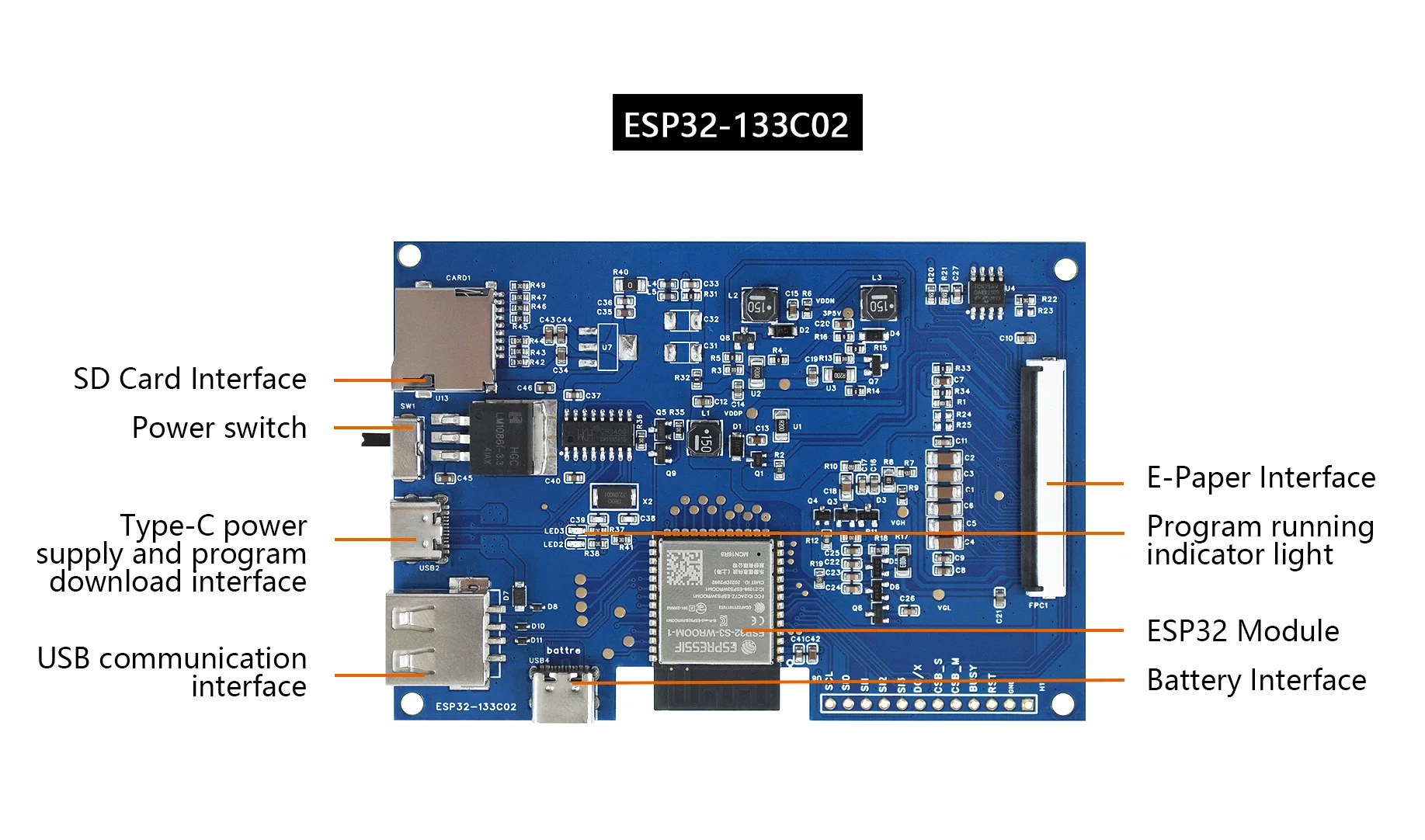

Matching Driver Boards

PART NUMBER	ESP32-133C02
FUNCTION	Drive 13.3inch E Ink Spectra 6 display
DEVELOPMENT ENVIRONMENT	ESP-IDF or Arduino IDE
OUTLINE SIZE	98.298mm x 69.215mm
POWER SUPPLY	Powered via Type-C adapter or Type-C lithium battery
EXAMPLE PROGRAM	Basic image refreshing/demo program provided
OPERATING TEMP	0℃~50℃
MAIN FUNCTION	Learn how to drive an e-paper display Test and evaluate e-paper display performance Secondary development based on this board: SD card storage/WiFi & BLE functionality/USB communication features
AUXILIARY FUNCTIONS	Indicator light, Lithium battery power supply
