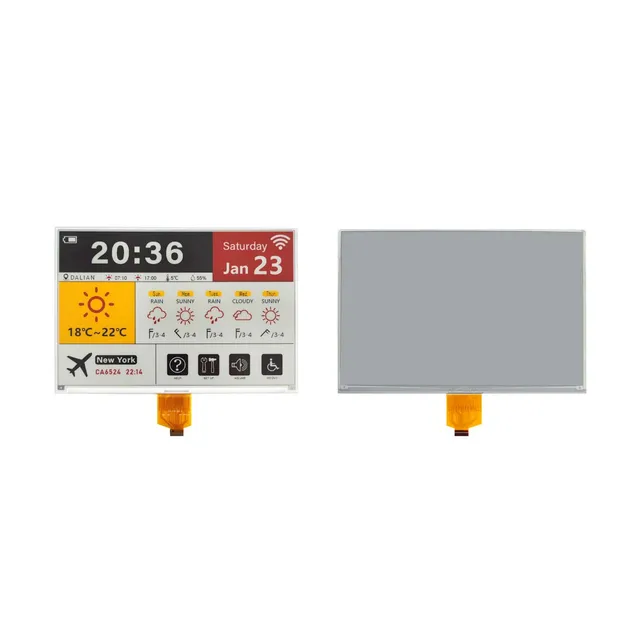

10.2 Inch 4 Color Large E-Ink Display 960×640 ePaper Screen

Name: 10.2 Inch 4 Color Large E-Ink Display 960x640 ePaper Screen
SKU: 1005006895156391
Availability: InStock

Price range: $100.90 through $126.90

Size

Guaranteed Safe Checkout

		10.2-Inch 4 Color E Ink Display – Innovation Meets Efficiency

		Meet the GDEM102F91, a game-changing 10.2-inch ePaper display that brings vibrant visuals and power-saving performance to your projects. With a sharp 960×640 resolution, four colors (black, white, red, yellow), and a sleek, elongated design, this display is perfect for everything from electronic table cards to smart devices.


	Special Features
	● High-Resolution & Vibrant Colors: Enjoy sharp, detailed images in four stunning colors—ideal for applications requiring clarity and style. ● Energy-Efficient: Bistable E Ink technology keeps your content on display even when powered off—no power needed to retain images. ● Eye-Friendly: Zero blue light and glare-reducing treatment make it comfortable for long-term viewing. ● Wide Viewing Angles: Crystal-clear display from any angle (over 170° visibility).

Technical Details

PART NUMBER	GDEM102F91	CONNECTOR	24 PIN 0.5mm
SIZE	10.2 inch	COLOR	Black, White, Red and Yellow
TYPE	Dot Matrix	MAX GRAYSCALE	2
IC	SSD2677	FULL UPDATE(s)	20
RESOLUTION	960×640	FULL UPDATE(s)TYPICAL POWER(mW)	20
PPI	113.12	TYPICAL POWER(mW)	66
OUTLINE SIZE(mm)	224.0×157.0×1.0	DEEP SLEEP POWER(mW)	0.003
ACTIVE SIZE(mm)	215.52×143.68	OPERATING TEMP.	0℃~40℃
PIXEL PITCH(mm)	0.2245×0.2245	STORAGE TEMP.	-25℃~70℃
INTERFACE	SPI
