1.54” E-Paper Display with 1.5s Fast Refresh for Digital Price Tags |
||||
 |
||||
|

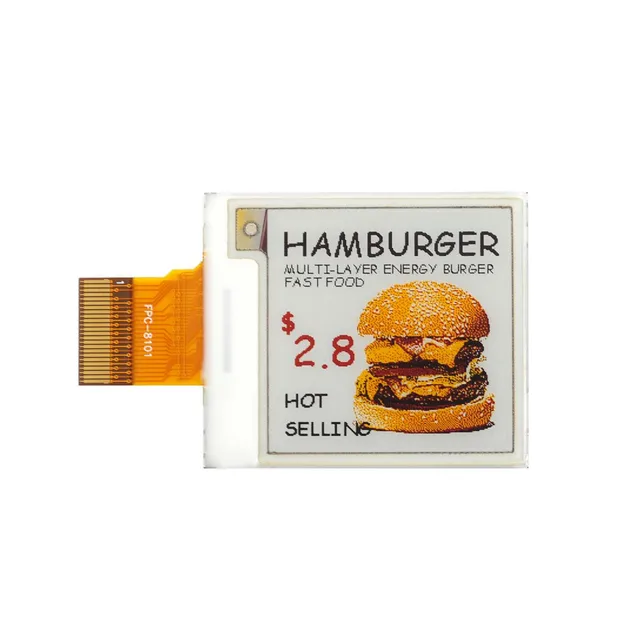

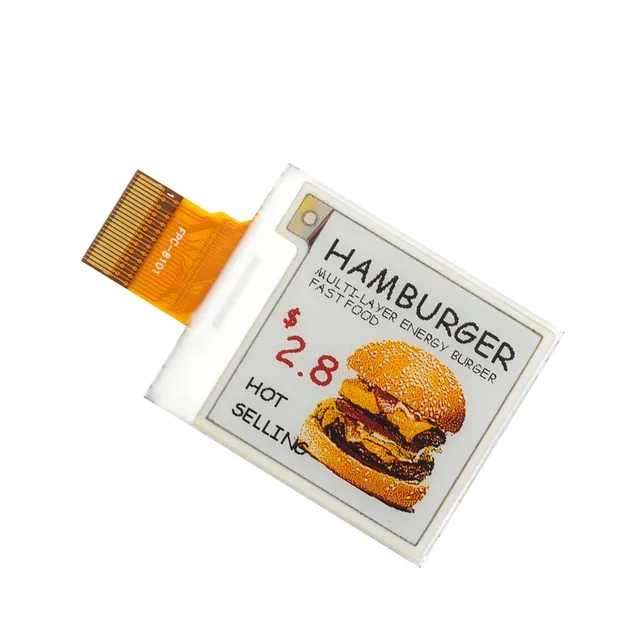

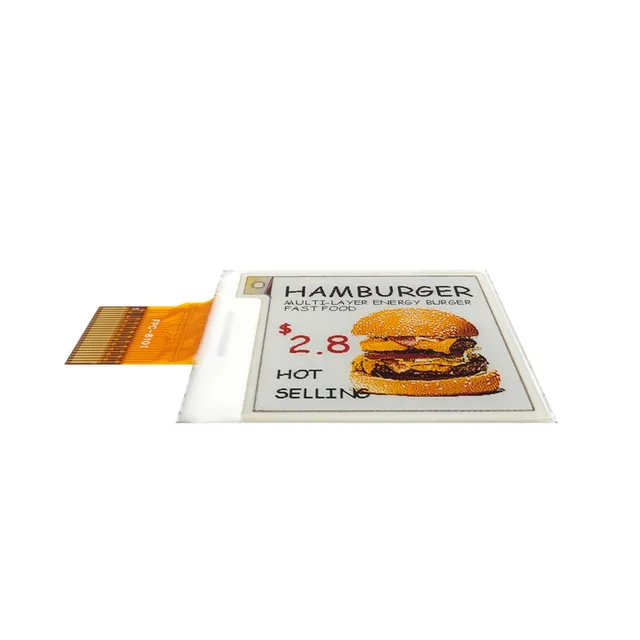

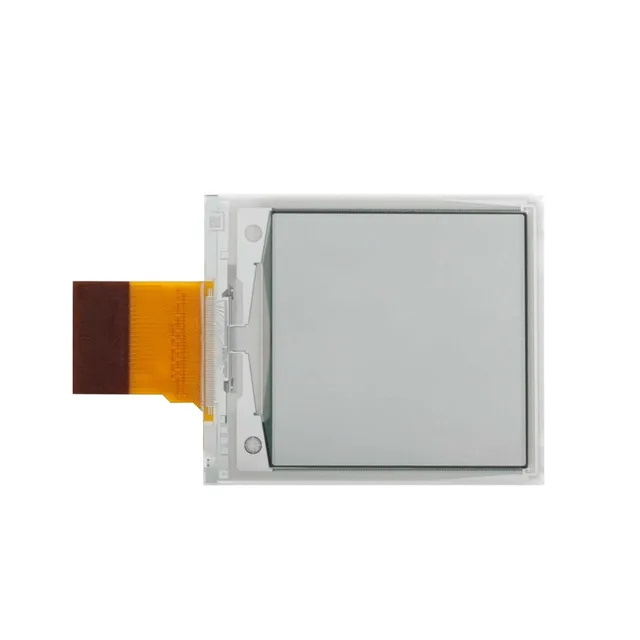

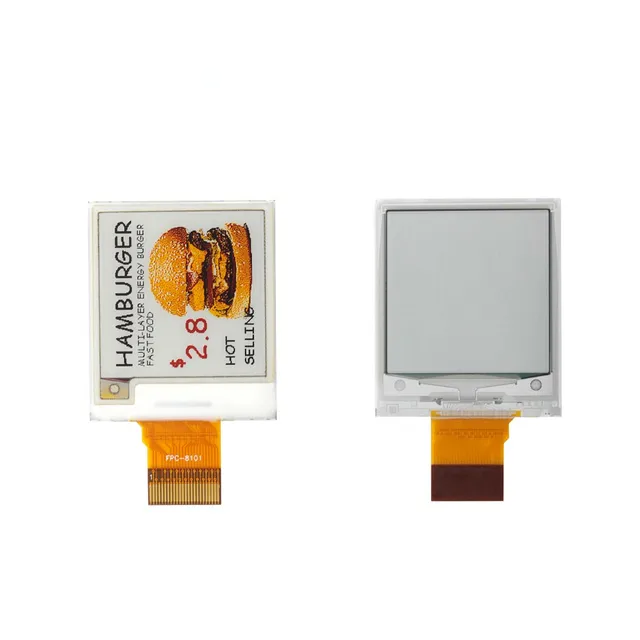

This is a 1.54 small e-ink display, is capable to display images with 4 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don’t require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0154F51H is perfect for low power devices powered by solar or batteries. |
Special Features |
||
| ● Four-color Display: Supports black, white, red, and yellow colors. ● Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors. ● Resolution: Features a resolution of 200×200 pixels. ● Viewing angle: Wide viewing angle exceeding 170 degrees ● Display feature: Bistable display (retains the current content after a power outage) ● Energy conservation: No power consumption when not refreshing the screen. |
||
Technical Details |
||
 |
Product Specifications |
|||||

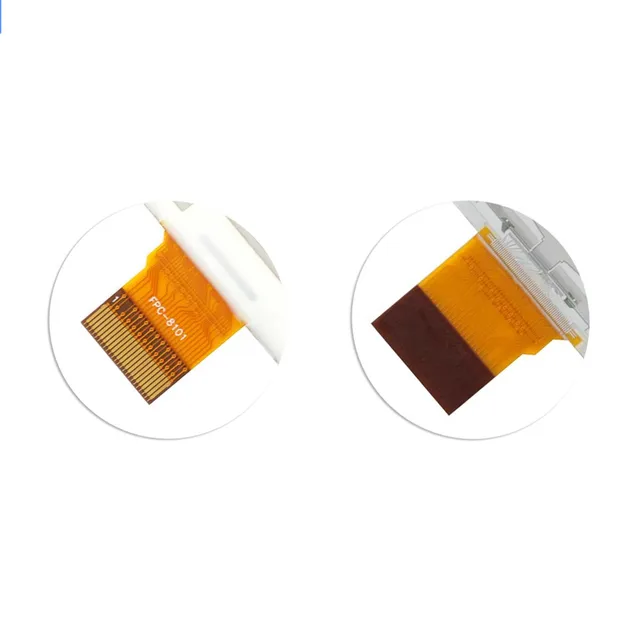

| PART NUMBER | GDEM0154F51H | CONNECTOR | 24 PIN 0.5mm | ||
| TYPE | Dot Matrix | COLOR | Black, White, Yellow and Red | ||
| SIZE | 1.54 inch | INTERFACE | SPI | ||
| IC | JD79660 | MAX GRAYSCALE | 2 | ||
| RESOLUTION | 200×200 | FULL UPDATE TIME(s) | 20 | ||
| PPI | 183.66 | FAST REFRESH TIME(s) | 12 | ||
| OUTLINE SIZE(mm) | 37.32×31.8×1.0 | POWER CONSUMPTION OF THE REFRESH(mW) | 9 | ||
| ACTIVE SIZE(mm) | 27×27 | STANDBY POWER CONSUMPTION (mW) | 0.0012 | ||
| PIXEL PITCH(mm) | 0.135×0.135 | STORAGE TEMP. | -25℃~70℃ | ||
| OPERATING TEMP. | 0℃~40℃ | ||||
Product Application |
||||
 |
 |
 |
 |
 |
Retail and Shelf Labels |
Logistics Management |
Smart Home and IoT Devices |
Transportation and Access Control |
Medical and Health Monitoring |
