Product Selling Points:

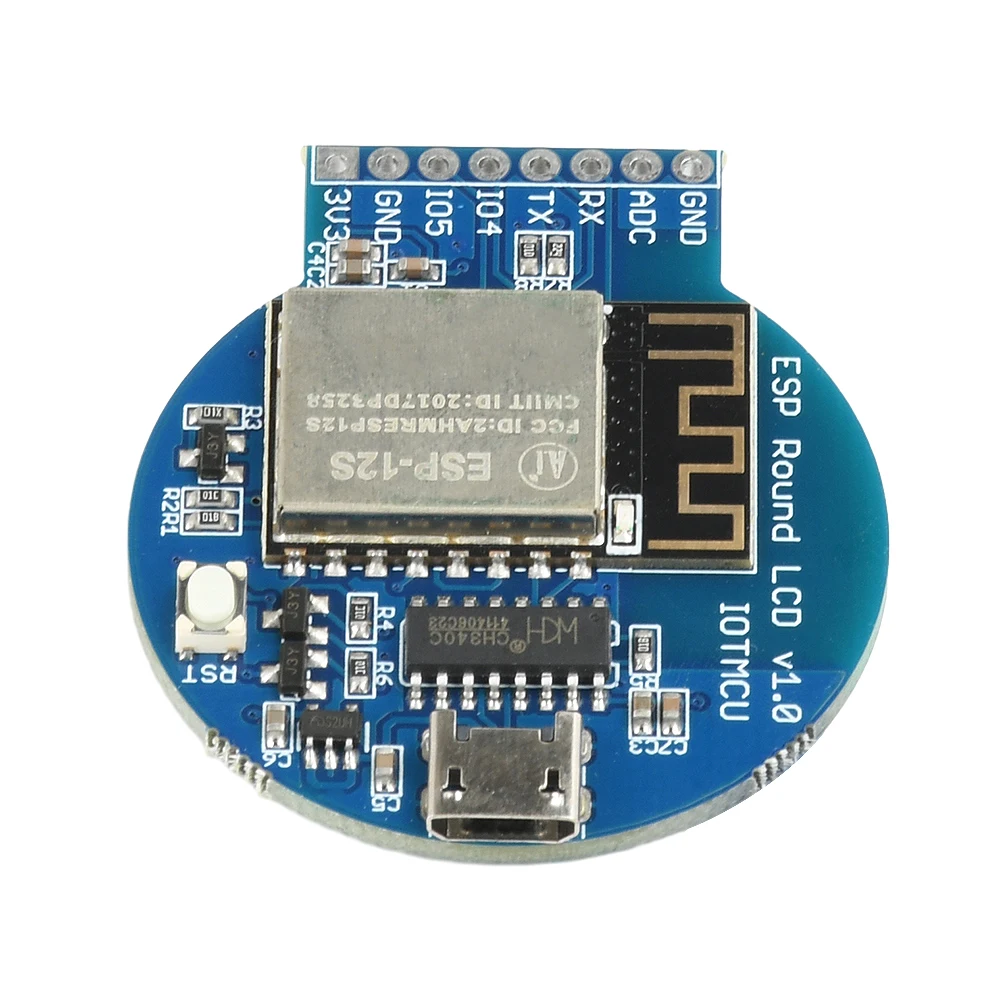

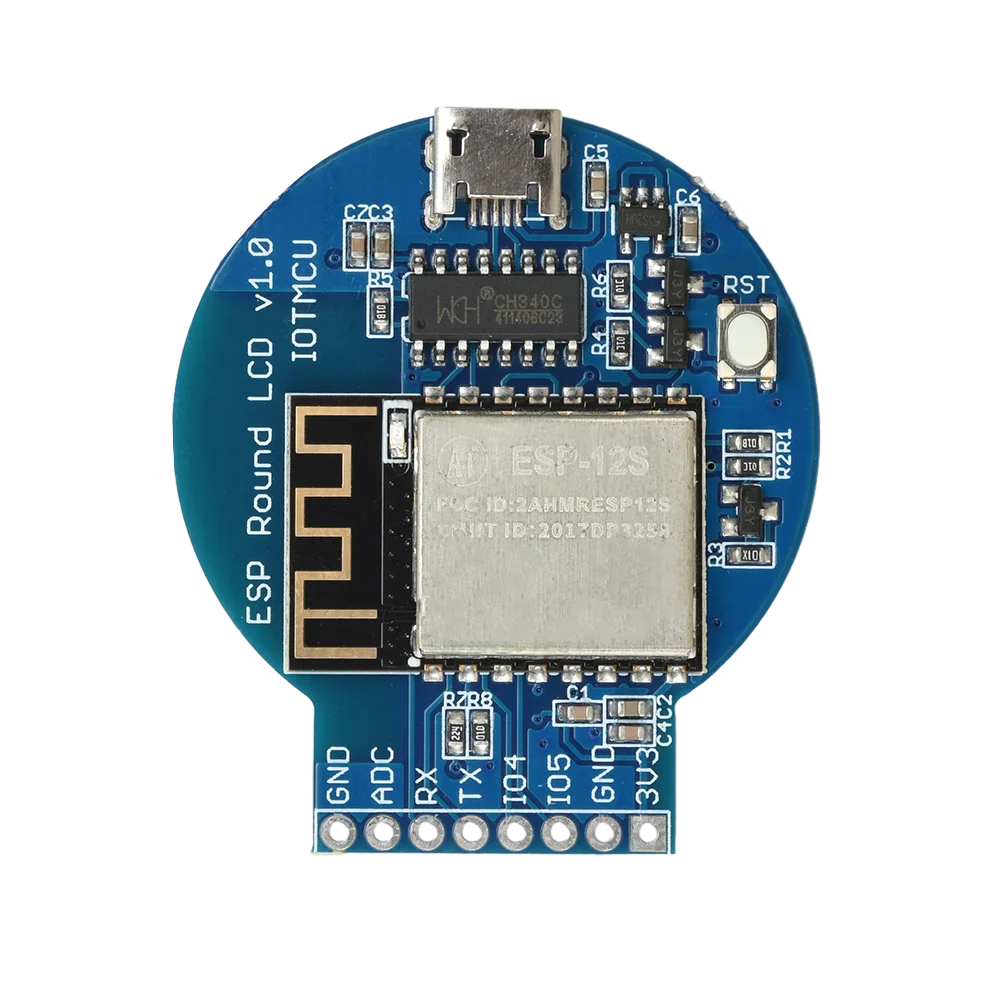

1. ESP Round LCD is a 1.28-inch circular liquid crystal display based on the ESP-12S MCU.
2. It can operate at 80 or 160 MHz and has built-in support for 802.11b/g/n WIFI.
3. The screen is a full-color display with a 240×240 resolution and is driven by CG9A01.
4. There are two interface options: USB MicroB or an 8-pin through-hole at the bottom of the screen (including male headers).
5. ESP Round LCD makes it easy to create color LCD projects on the screen through Arduino support and introductory examples.
Product Parameters:

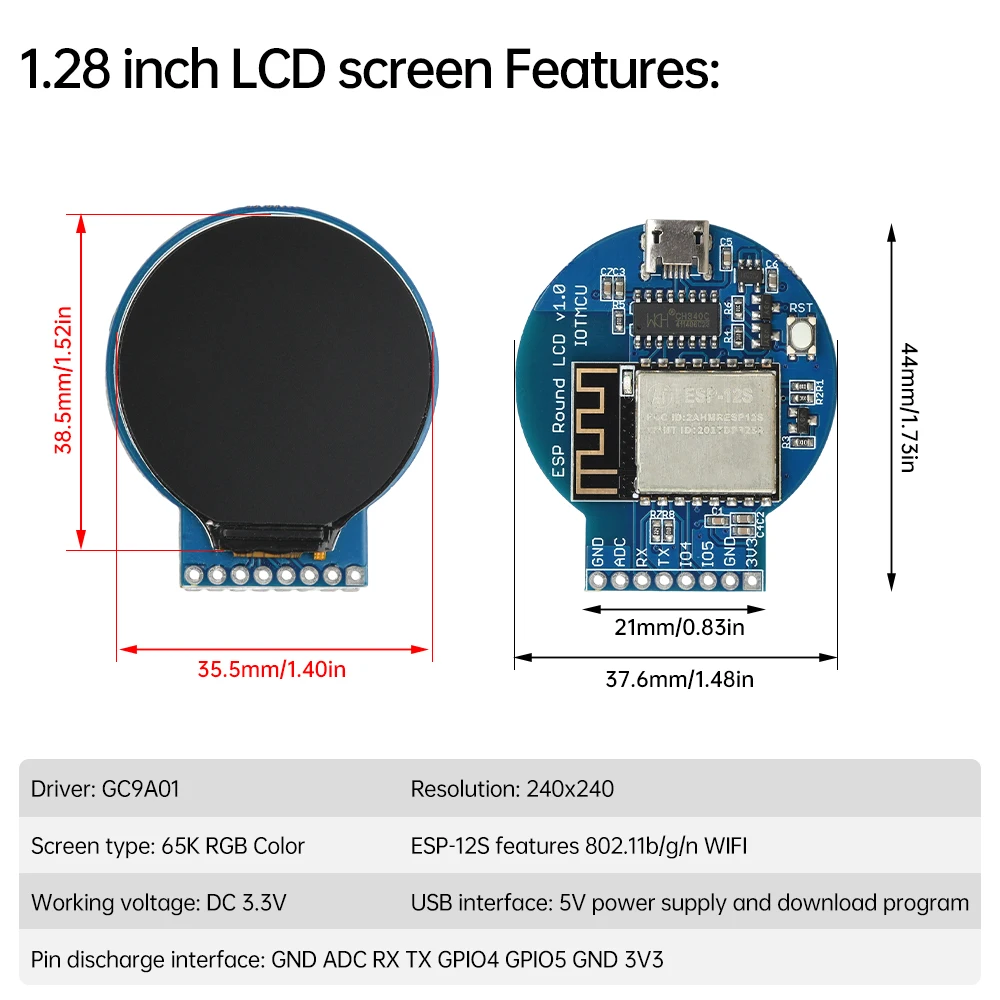

– 1.28 inch LCD Screen Features:
– Driver: GC9A01
– Resolution: 240×240
– Screen Type: 65K RGB Color
– ESP-12S Features:
– 802.11b/g/n WIFI
– Working Voltage: DC 3.3V
– USB Interface: 5V for power supply and program download
– Pin Header Interface: GND ADC RX TX GPIO4 GPIO5 GND 3V3
– Product Size: 44*37*6mm
Packing List:
1*Development Board
Product Selling Points:

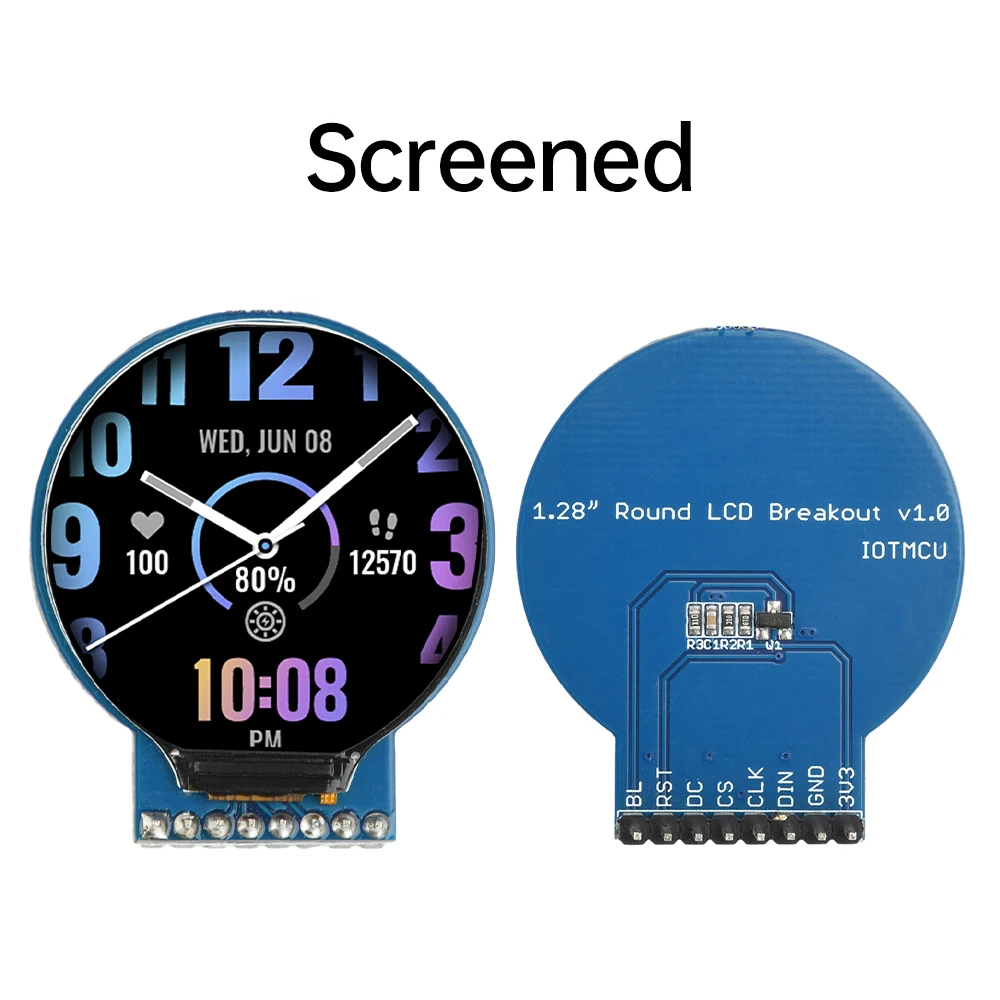

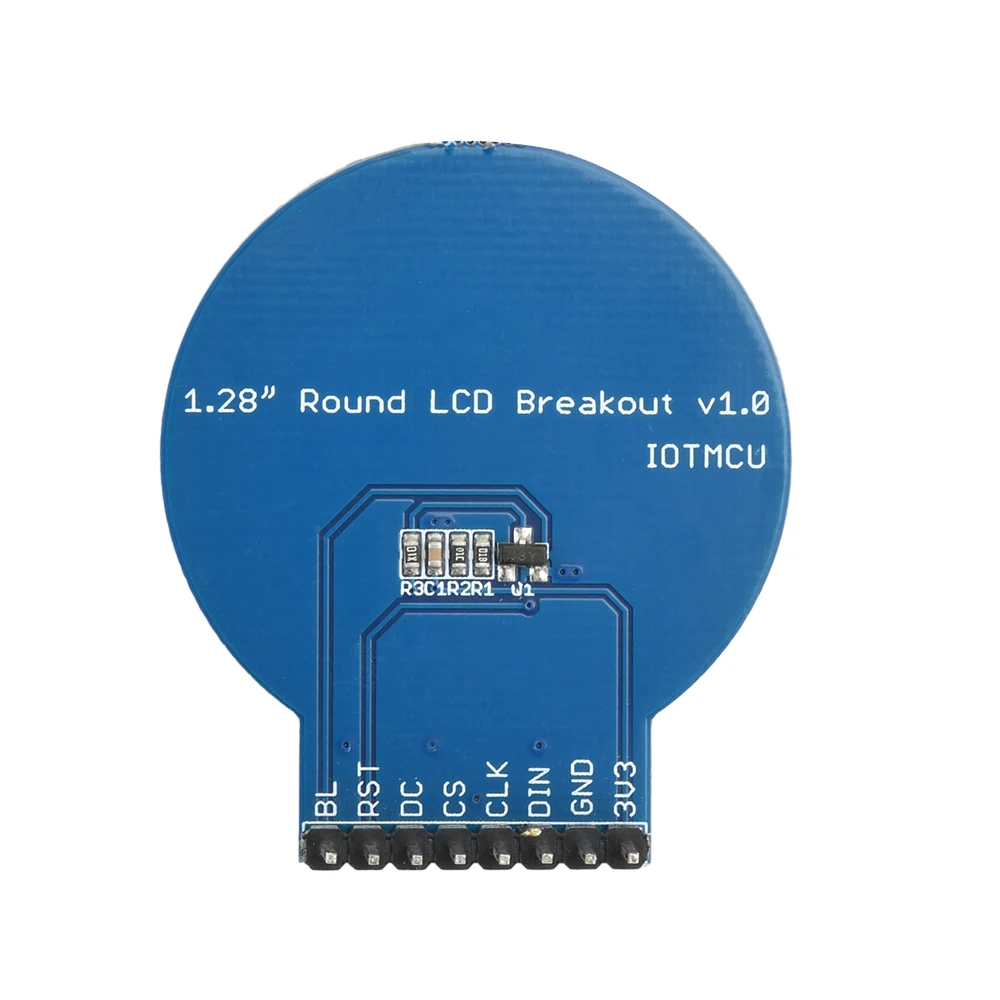

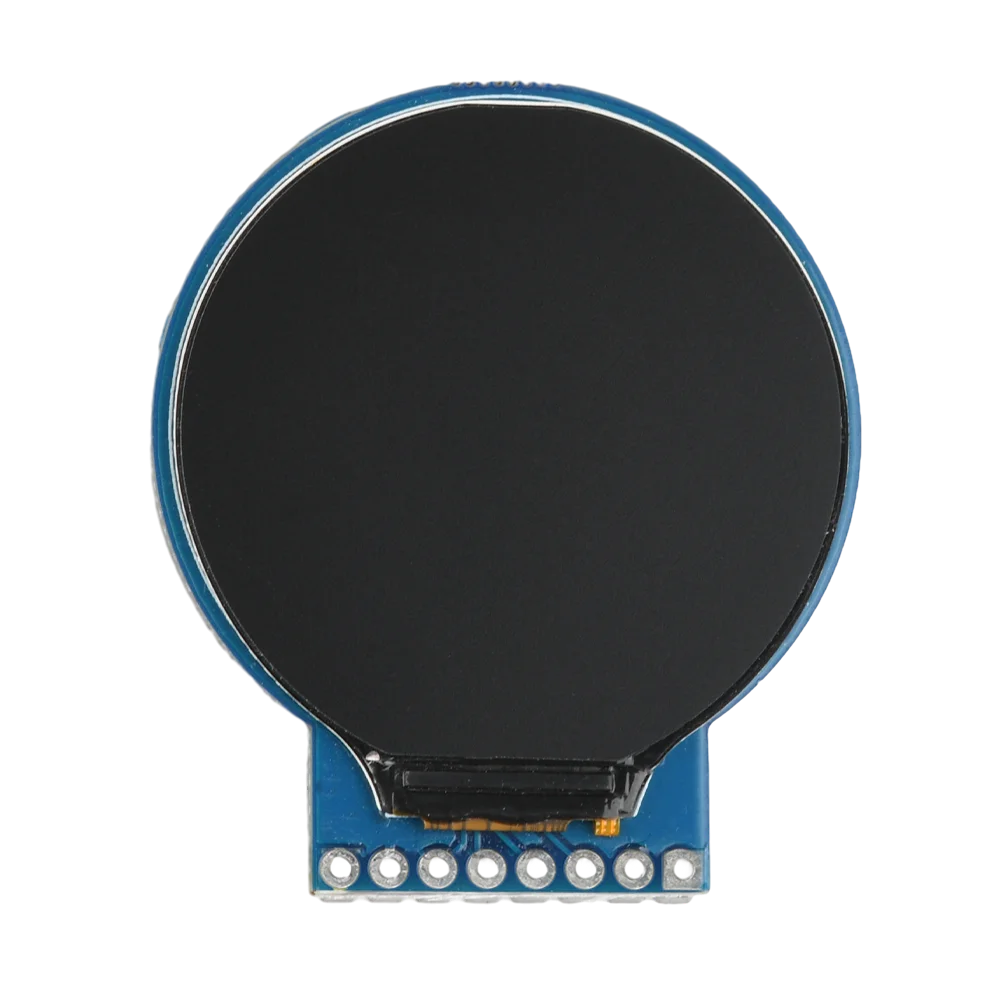

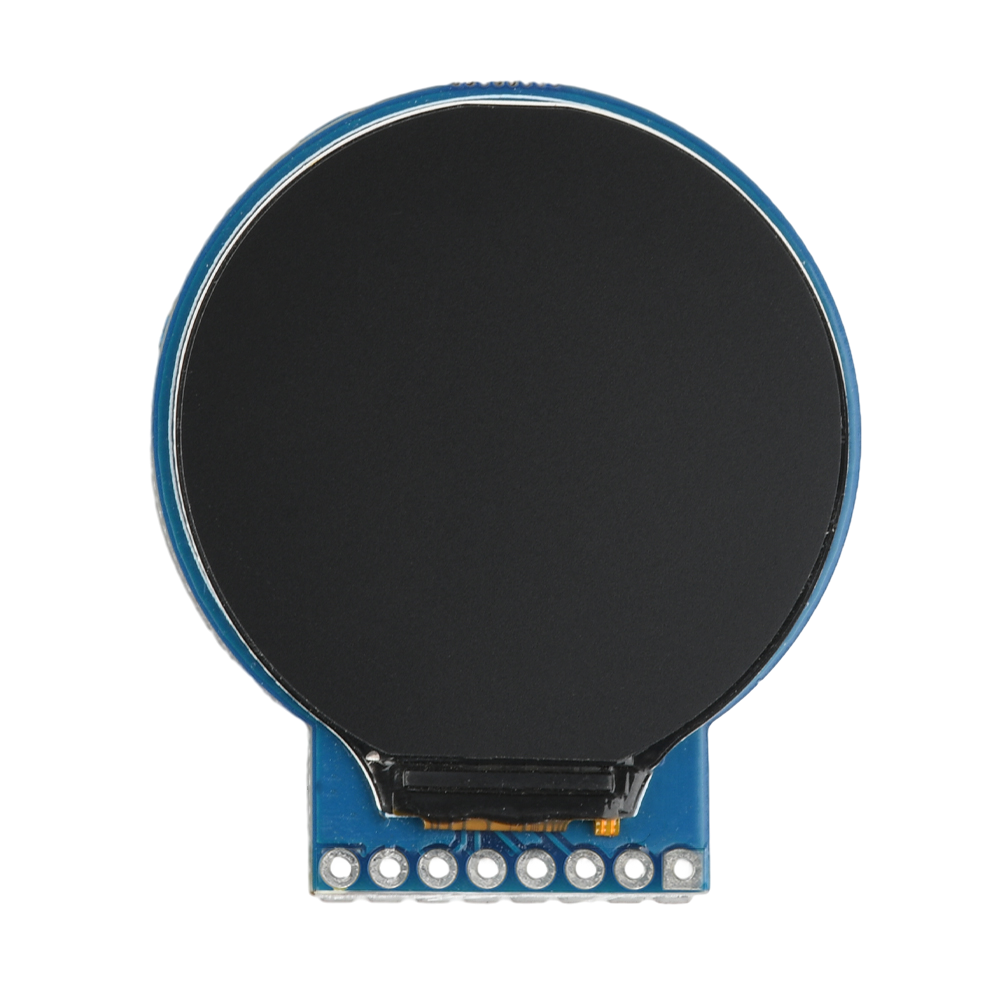

1. The circular LCD expansion board is a 240×240 resolution 1.28-inch display.
2. It has 65K RGB colors and a clear and colorful display effect.
3. It realizes the interface interaction of small devices through a simple SPI interface method.
4. The GC9A01 driver and SPI interface are integrated into the expansion board, reducing the number of required IO pins.
5. The LCD display module is suitable for various scenarios such as watches, dashboards, etc., and is used for various maker DIY projects.

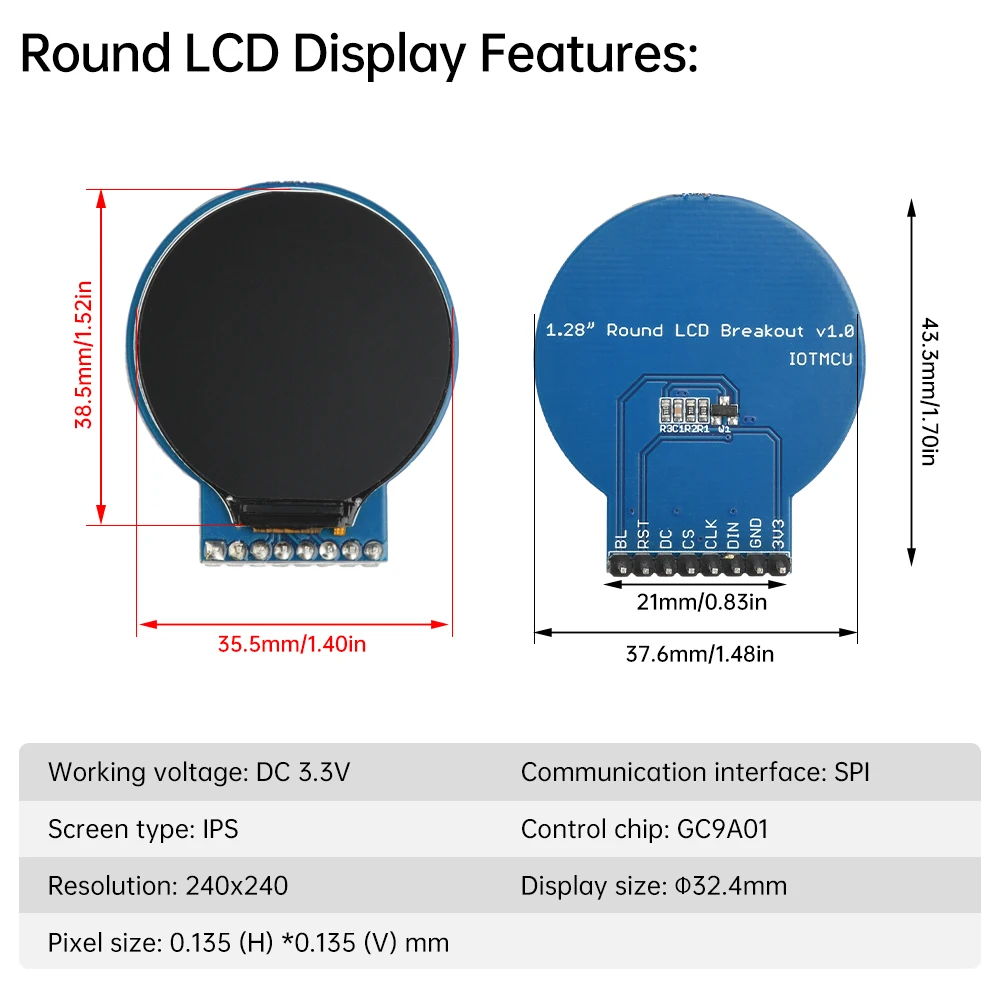

Product Parameters:
– Working Voltage: DC 3.3V
– Communication Interface: SPI
– Screen Type: IPS
– Control Chip: GC9A01
– Resolution: 240×240
– Display Size: Φ32.4mm
– Pixel Size: 0.135 (H) * 0.135 (V) mm
– Product Size: 43.3*37.6*6mm
Packing List:
1*Module
