- Battery Included: No
- High-concerned chemical: None
- Package: Yes
- Type: Industrial Monitor
- Brand Name: goodisplay
- Origin: Mainland China
- Certification: CE
- SIZE: 0.97 inch
- COLOR: Black, White, Yellow and Red
- TYPE: Dot Matrix
- IC: JD79661
- RESOLUTION: 184×88

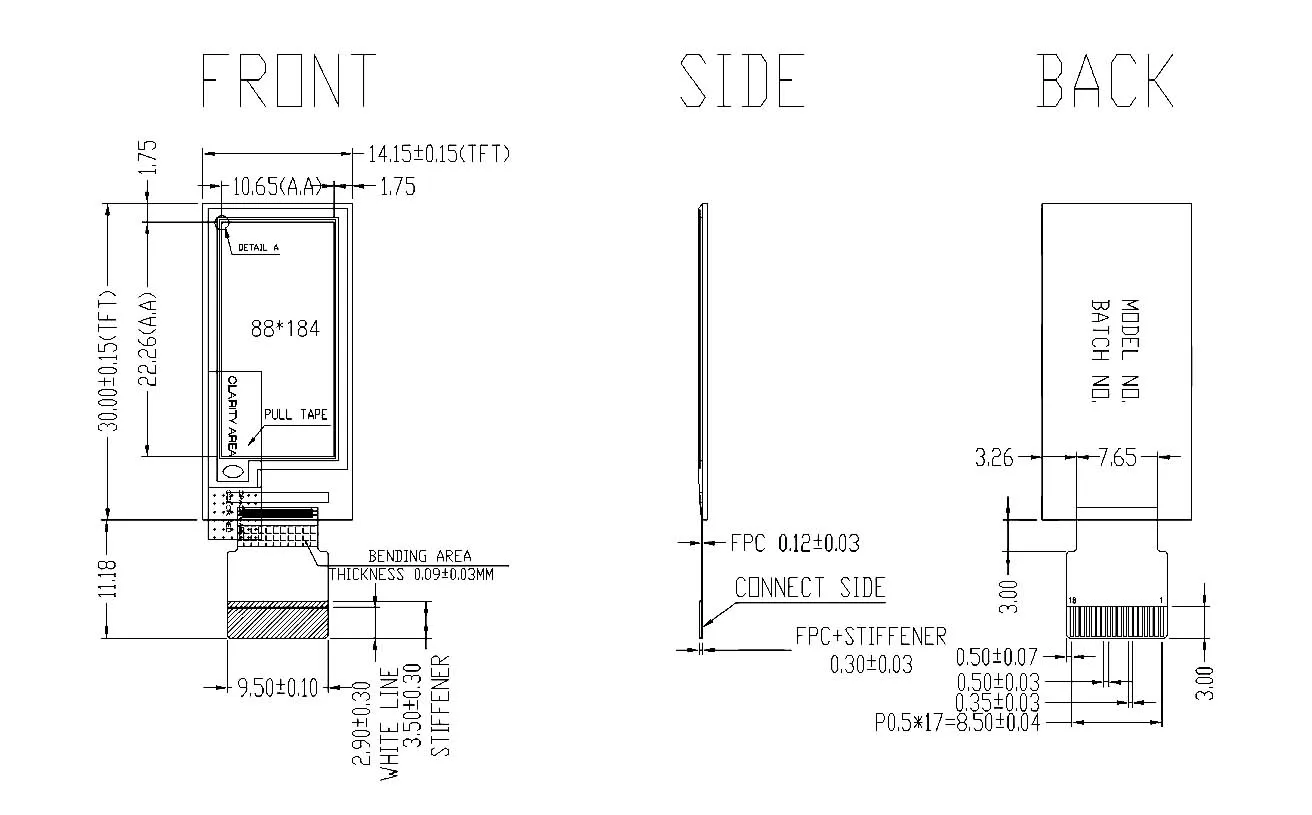

- OUTLINE SIZE(mm): 30.0×14.15×1.0
- Active Area(mm): 22.26×10.65
- Operating Temp.: 0℃~40℃
- Full Refresh(s): 16
- Fast Refresh(s): 12
- Interface: SPI

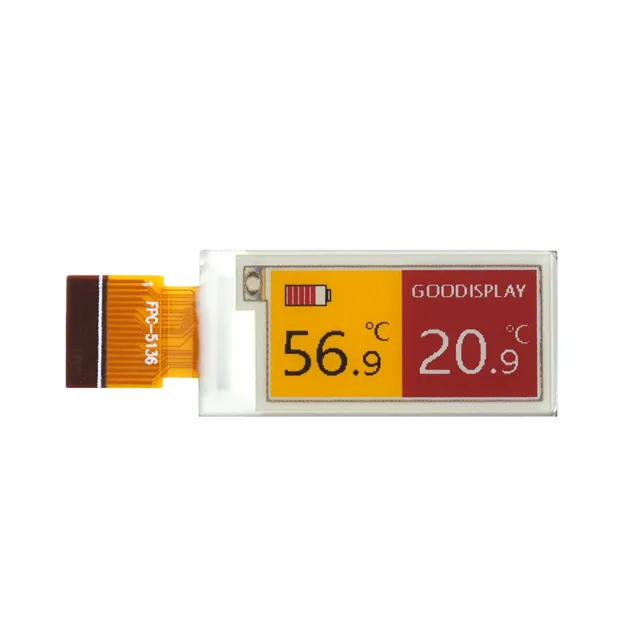

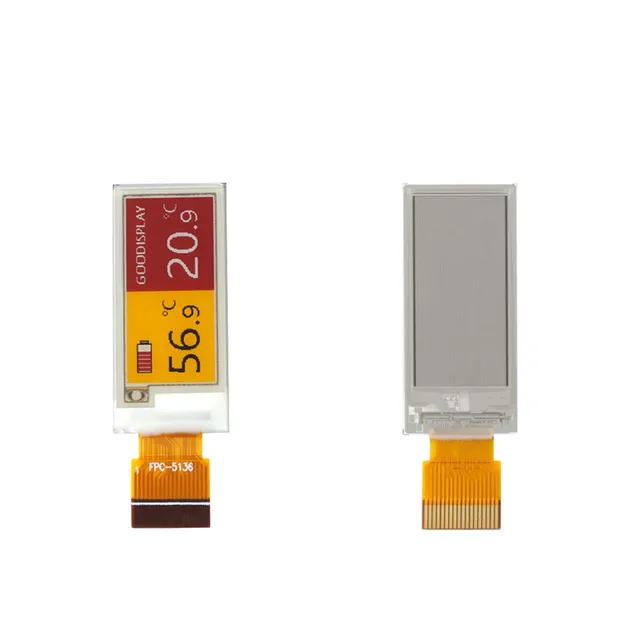

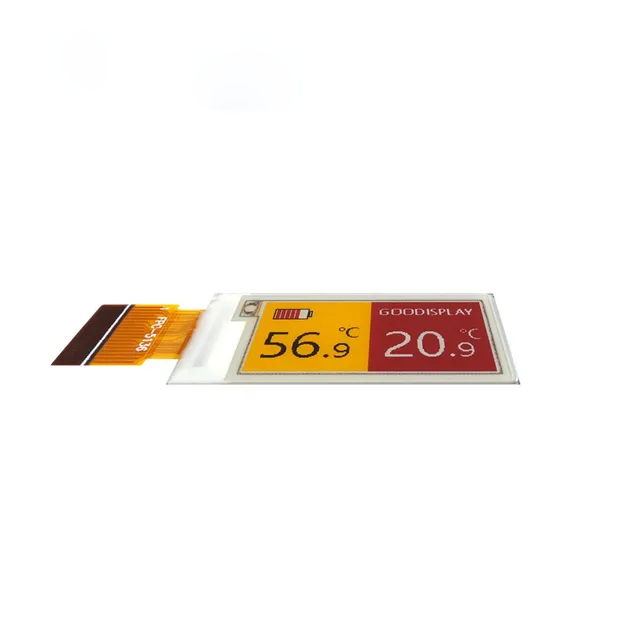

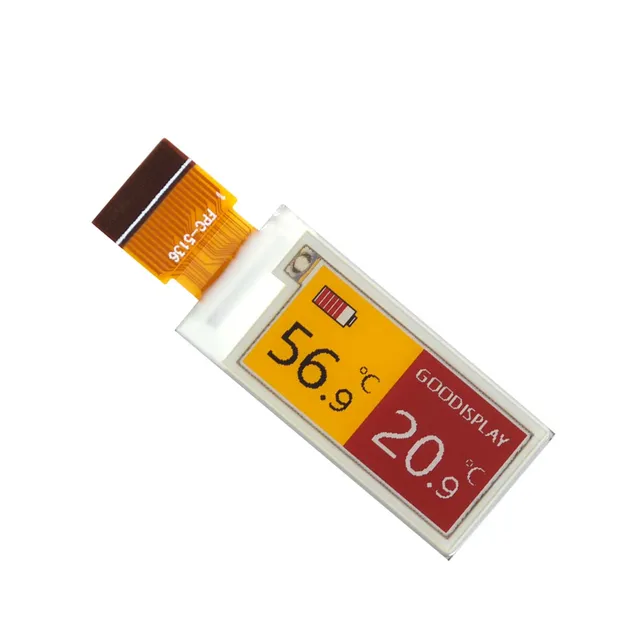

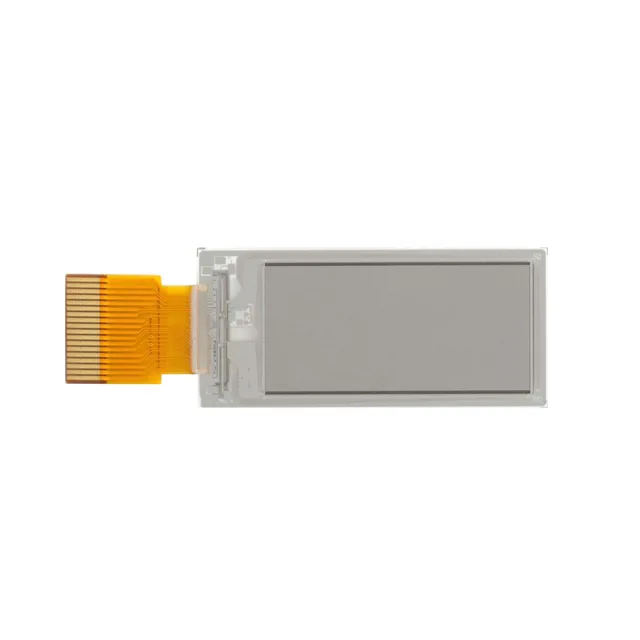

0.97-inch Mini Black, White, Yellow and Red E Ink Display |
||||
| This is a 0.97 small e-ink display, 184×88 resolution, SPI interface, and the display is capable to display images with 4 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don’t require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0097F51 is perfect for low power devices powered by solar or batteries, such as smart tags, wearable devices, smart home applications, industrial instruments, and smart cards. |
Special Features |
||||
| ● Ultra-thin and lightweight: The ultra-small 0.97-inch e-ink screen is extremely thin and weighs only 1.1g, making it suitable for use in portable devices without adding significant weight or thickness. ● Four-color Display: Supports black, white, red, and yellow colors. ● Features vibrant colors and the ability to achieve color mixing: This allows for enhanced visual appeal and richer display options, making it suitable for applications that require bright and diverse colors. ● Resolution: Features a resolution of 184×88 pixels. ● Viewing angle: Wide viewing angle exceeding 170 degrees. ● Display feature: Bistable display (retains the current content after a power outage) ● Energy conservation: No power consumption when not refreshing the screen. |
||||
Technical Details |
||||
 |
||||
Product Specifications |
||||||||||||||||||||||||||||||||||||||||
|
