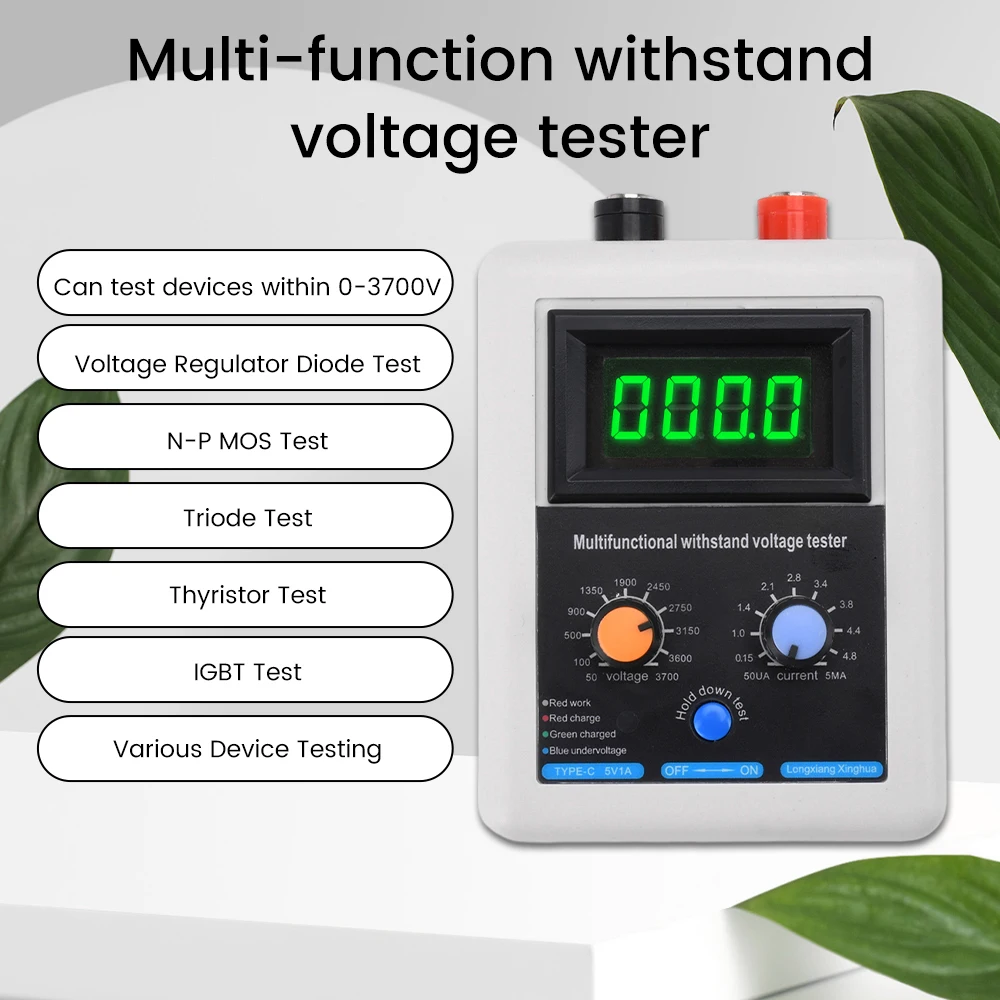

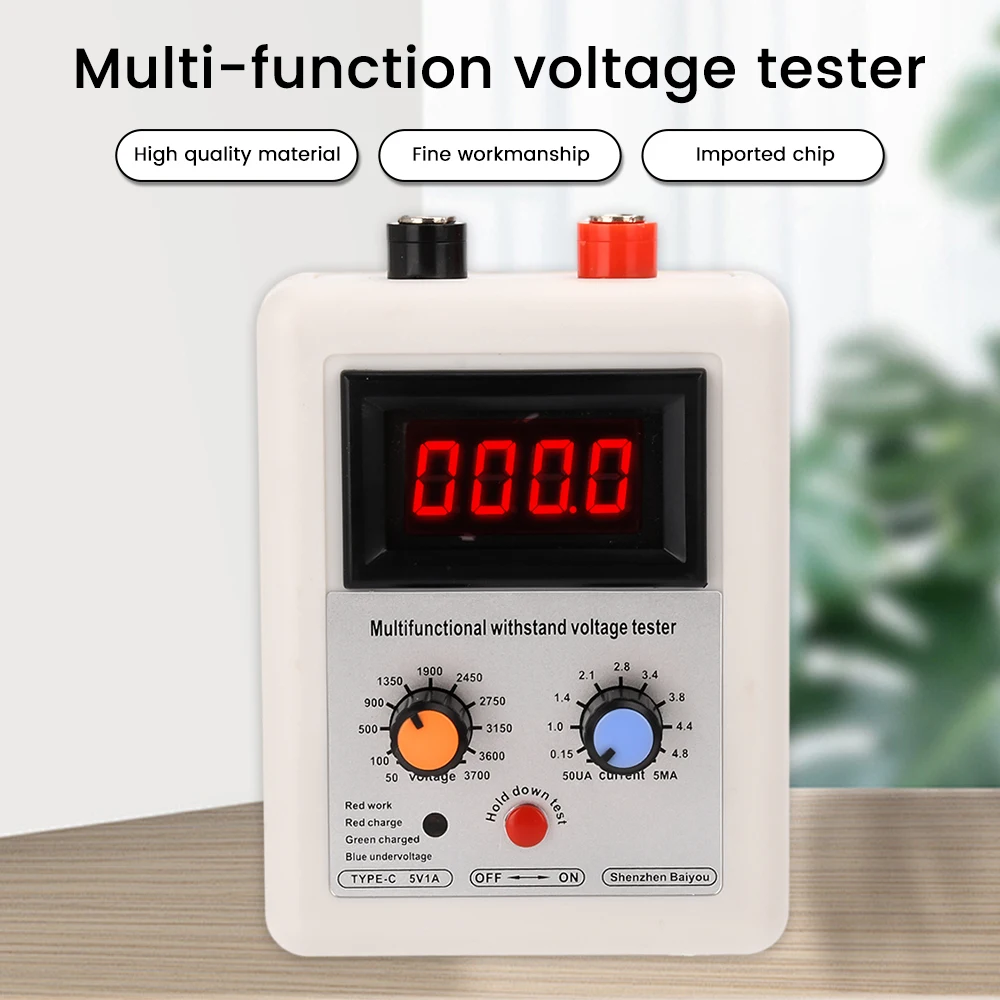

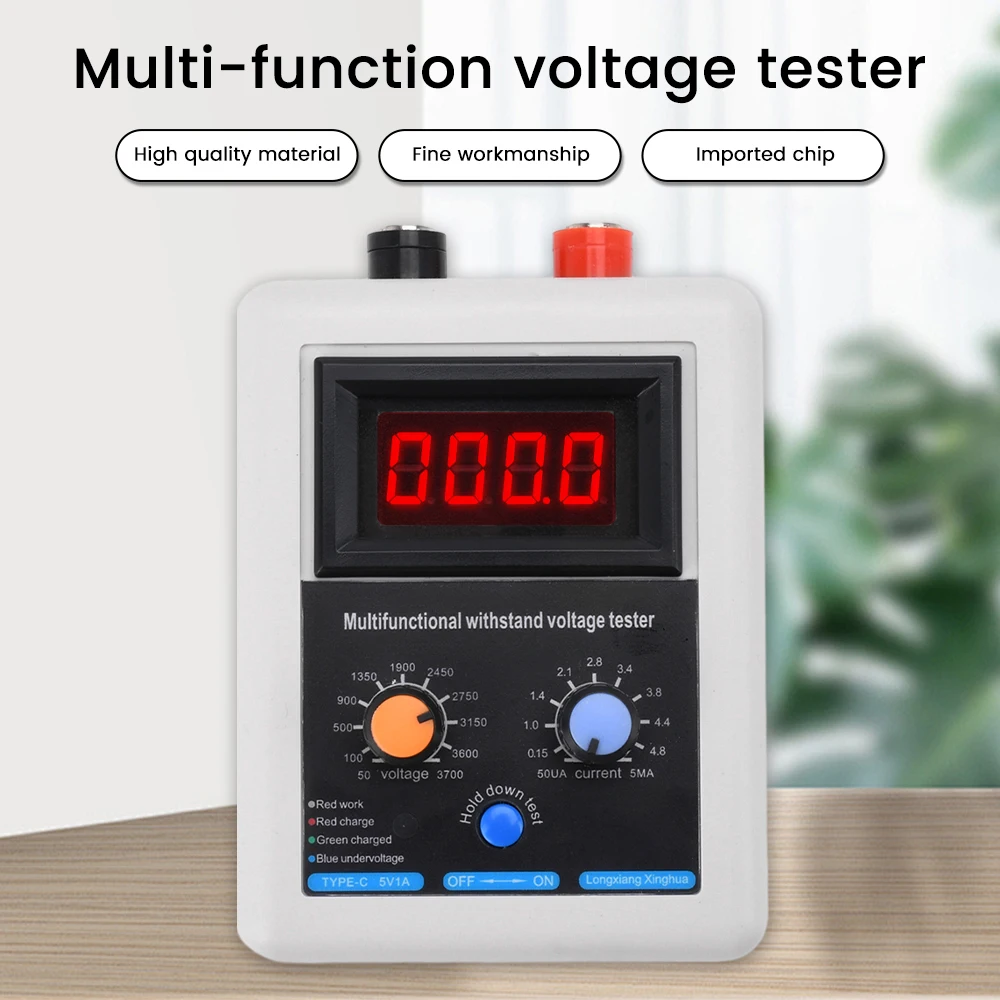

Features:
1. Simultaneously capable of testing the insulation voltage of objects. For example, insulation voltage testing between the two pins of switches, buttons, and connectors.
2. The product is compact and small
3. Convenient to carry and store
4. It is also convenient to test the insulation between windings, such as motors, power frequency transformers, high-frequency transformers, phase to phase insulation, and insulation testing of the shell core

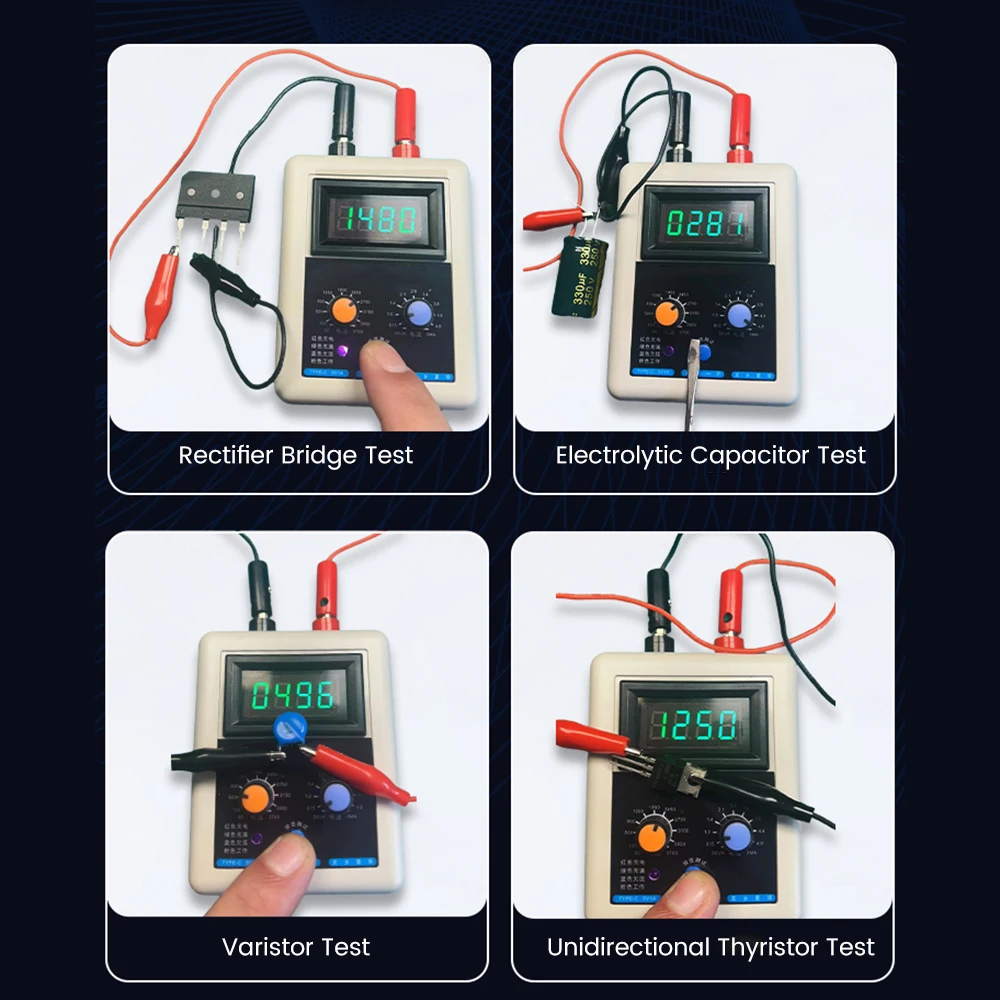

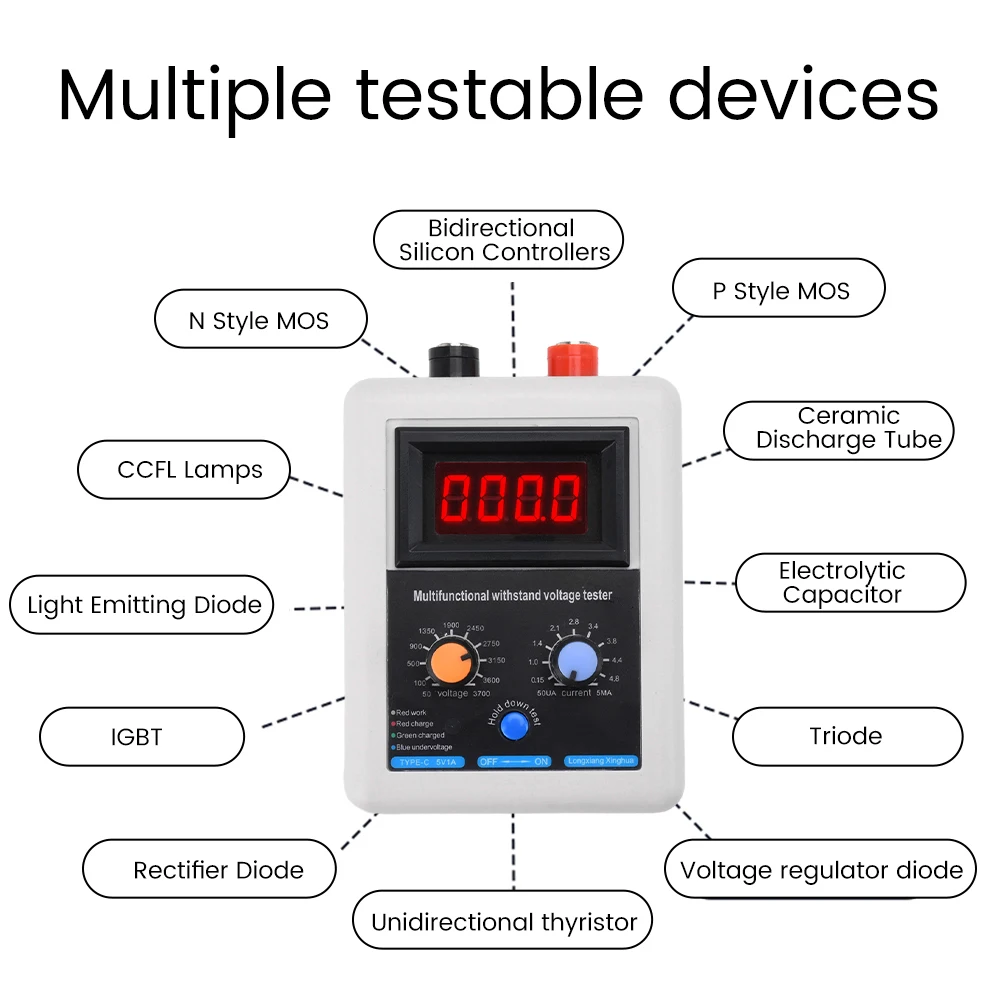

5. Widely applicable and measurable: withstand voltage values of NIMOS/PMOS/IGBT/transistor/unidirectional thyristor/voltage regulator diode/light-emitting diode/rectifier bridge/varistor/ceramic gas discharge tube/electrolytic capacitor

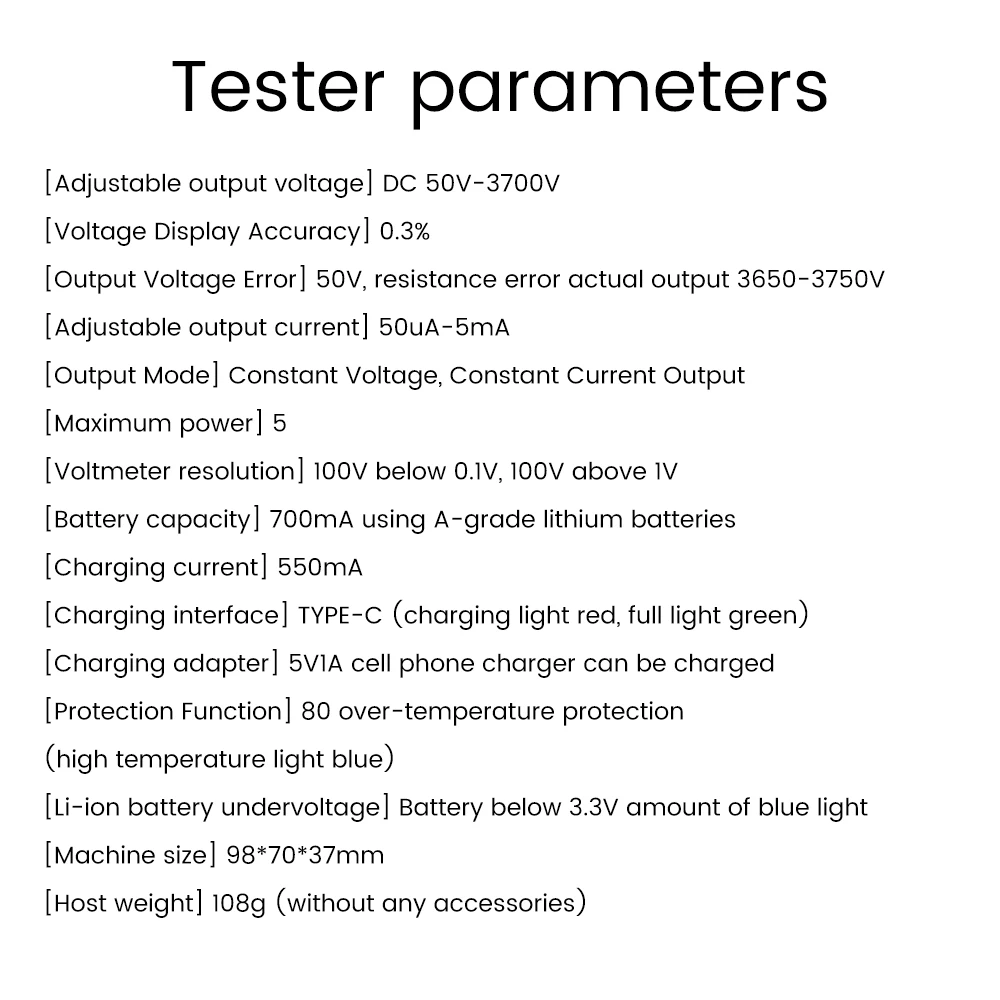

Parameters:
Adjustable output voltage: DC 50V-3700V
Voltage display accuracy: 0.3%
Output voltage error: ± 50V, resistance error, actual output 3650-3750V
Adjustable output current: 50uA-5mA
Output mode: constant voltage, constant current output
Maximum power of the whole machine: 5
Resolution of voltmeter: 0.1V below 100V, 1V above 100V
Battery capacity: 700mA lithium battery
Charging current: 550mA

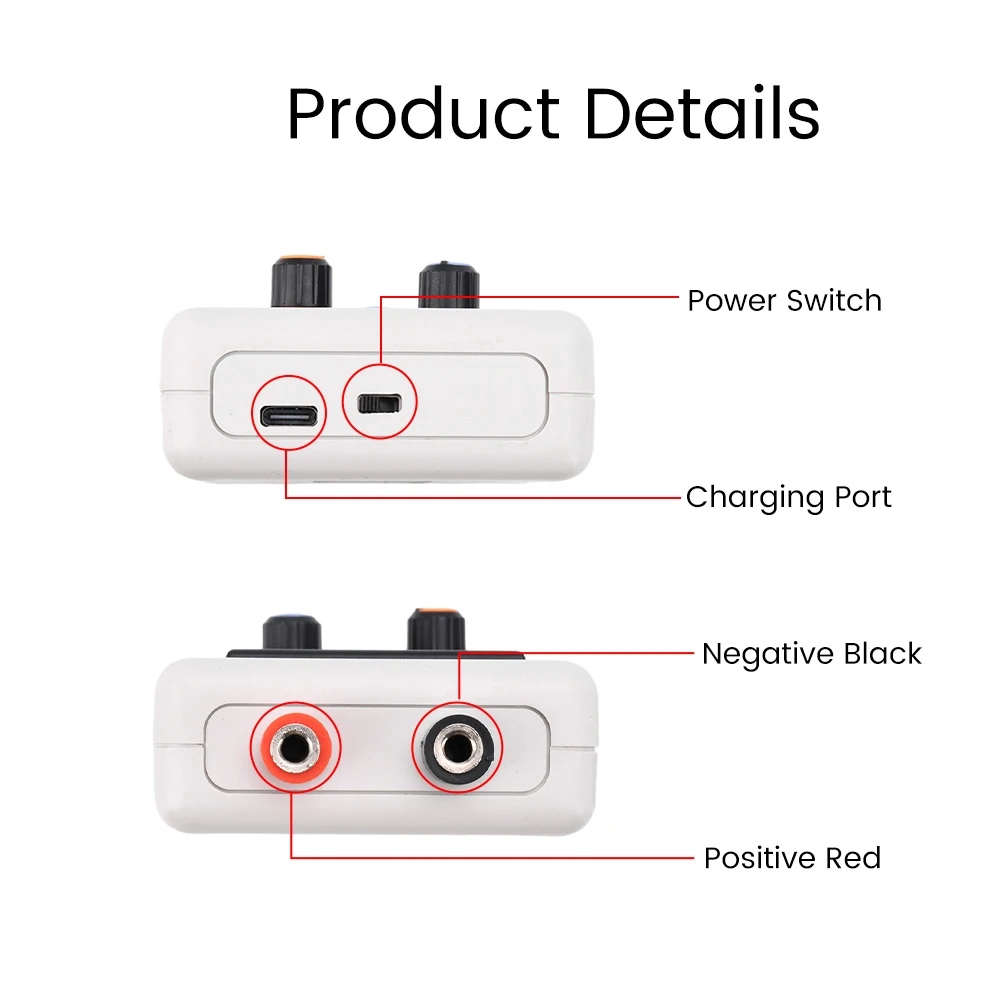

Charging interface: TYPE-C (red light for charging, green light for fully charged)
Charging adapter: 5V1A mobile phone charger is sufficient for charging
Protection function: 80 degree over temperature protection (high temperature with blue light on)
Lithium battery undervoltage: Blue light for battery below 3.3V

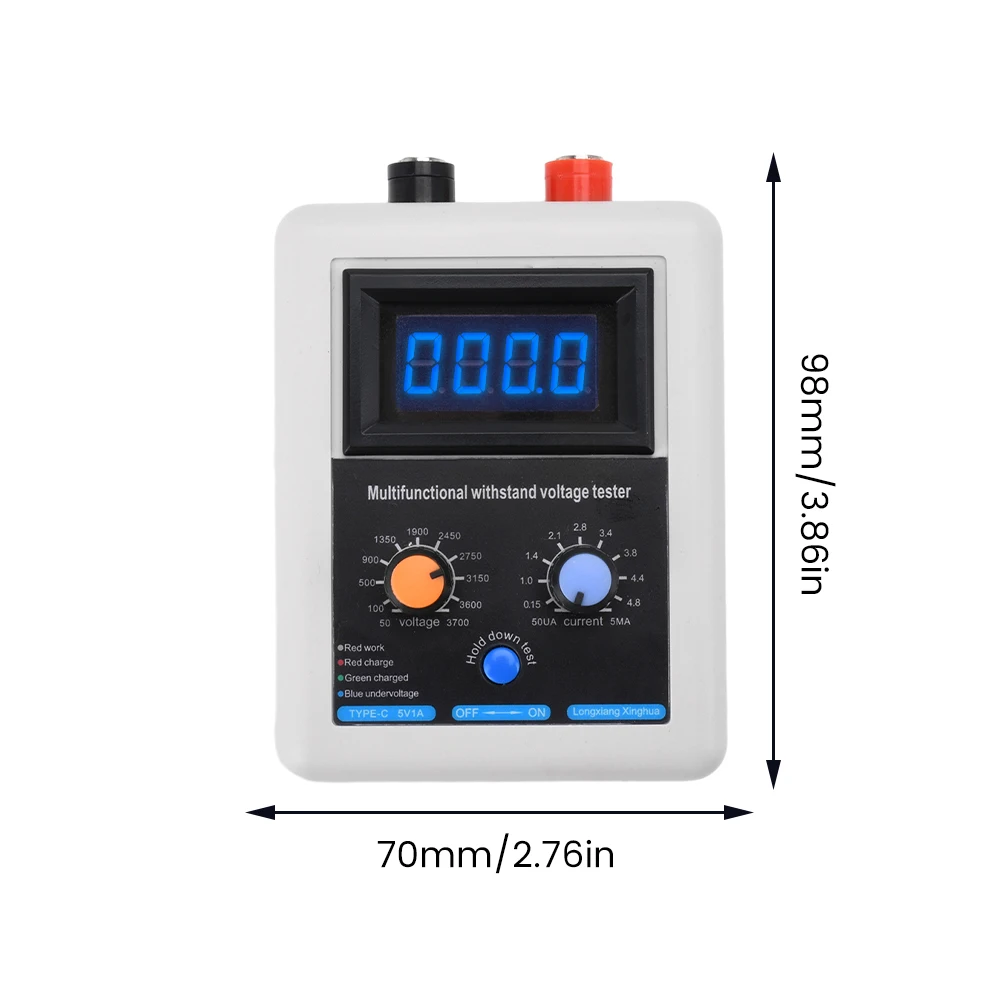

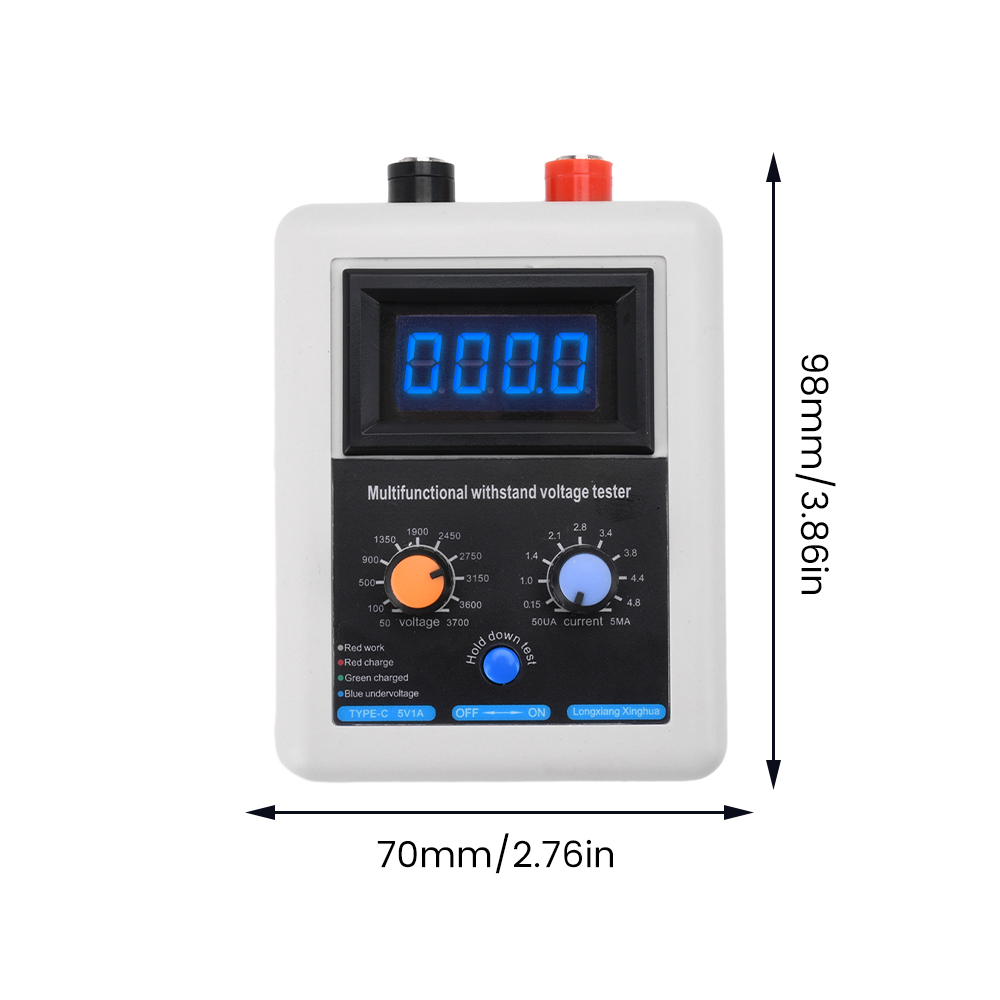

Overall dimensions: 98 * 70 * 37
Host weight: 108g (excluding any accessories)

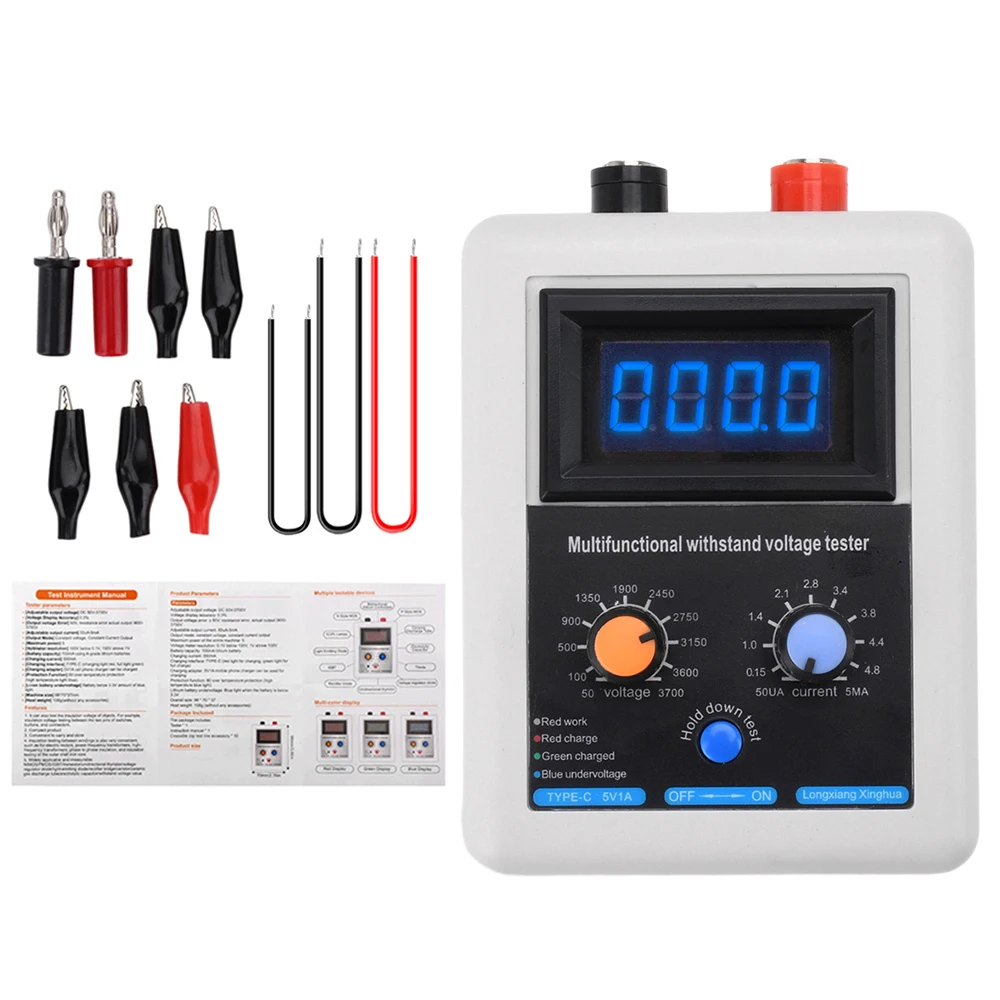

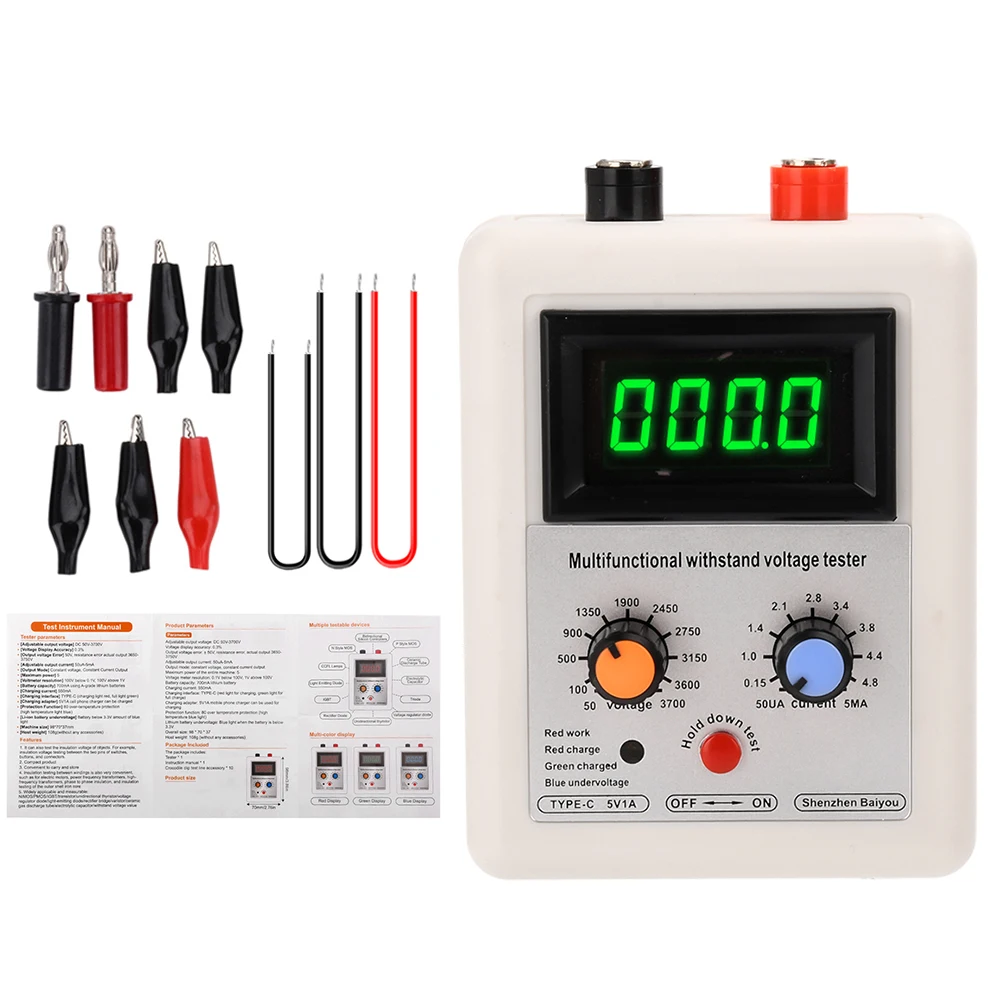

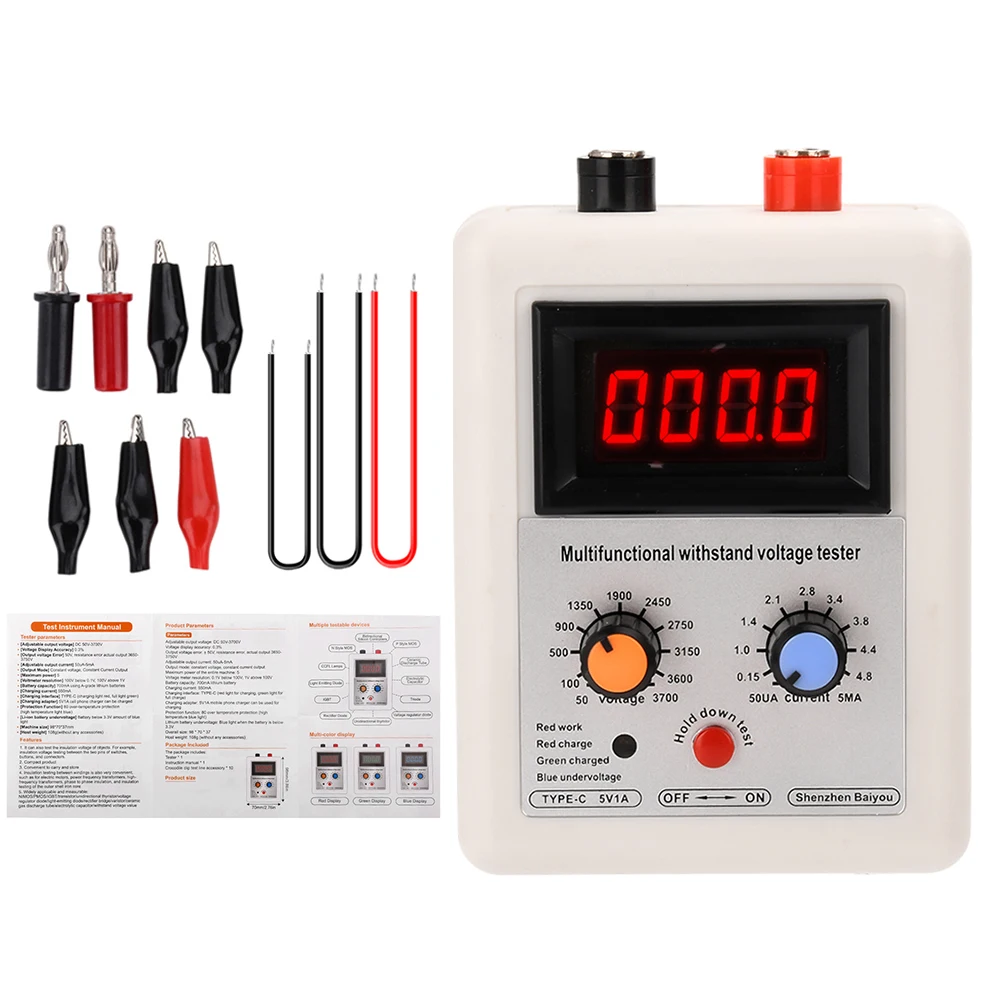

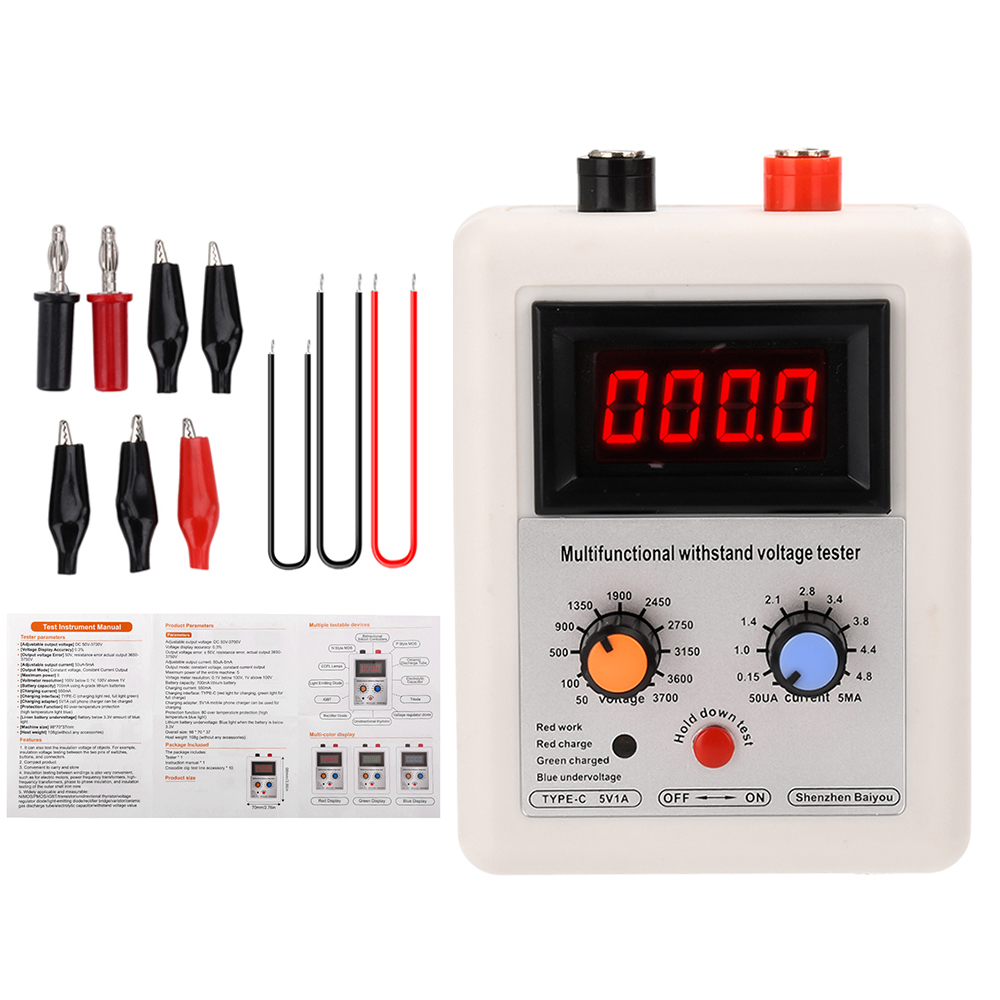

The package includes:
Tester * 1+Instruction manual * 1+Crocodile clip test line accessories * 10
