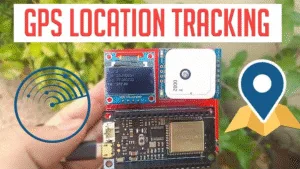

Build Your Own Portable ESP32 GPS Tracker: From Basics to Advanced Tips

*Imagine hiking through remote wilderness without relying on spotty phone signals. Your custom-built device—smaller than a wallet—records every step, streams your location to loved ones, or guides you back at sunset. This isn’t sci-fi; it’s what you achieve with an ESP32 and GPS module.*

Why ESP32 Dominates DIY GPS Trackers

The ESP32 isn’t just a microcontroller; it’s a Swiss Army knife for location-based projects:

• Dual-core power: Handles GPS data parsing, Wi-Fi/Bluetooth sync, and user interfaces simultaneously.

• Built-in connectivity: Upload data to the cloud via Wi-Fi or cache it locally when off-grid.

• Ultra-low cost: Boards start under $10, democratizing real-time tracking.

Core Components You’ll Need

1. ESP32 Board: Opt for the ESP32-S3 for enhanced power efficiency or ESP32-C3 for cost-sensitive builds.

2. GPS Module:

   • *Neo-6M*: Budget-friendly (~$15), ideal for hobbyists.

   • Reyax RYS352A: High sensitivity for tree cover/canyons.

3. Power Source: 18650 Li-ion battery (3.7V) with a TP4056 charger module for 8–12 hours runtime.

4. Optional Peripherals:

   • 0.96" OLED display for coordinates/speed.

   • MicroSD card slot for offline track logging.

Step-by-Step Build Guide

1. Hardware Wiring

• GPS ↔ ESP32:

  • GPS TX → ESP32 RX2 (GPIO16)

  • GPS RX → ESP32 TX2 (GPIO17)
    Critical: Avoid the default Serial (UART0) pins—they conflict with USB debugging. Use Serial1 or Serial2.

• Antenna Placement: Mount vertically with a clear sky view. Use a passive helical antenna for better signal lock in forests.

2. Software Essentials

Libraries:

• TinyGPS++ (decode NMEA data)

• WiFiClientSecure (HTTPS cloud sync)

• SPI (for SD card logging)

Code Snippet: Dual-Mode Logging

#include <TinyGPS++.h>
TinyGPSPlus gps;
HardwareSerial GPS_Serial(1); // Use UART1

void setup() {
  Serial.begin(115200);
  GPS_Serial.begin(9600, SERIAL_8N1, 16, 17); // RX=16, TX=17
}

void loop() {
  while (GPS_Serial.available() > 0) {
    if (gps.encode(GPS_Serial.read())) {
      if (gps.location.isValid()) {
        // Save to SD card
        logToSD(gps.lat(), gps.lng());
        // Or upload to cloud if Wi-Fi connected
        uploadToCloud(gps.lat(), gps.lng());
      }
    }
  }
}

Cloud vs. Offline: Data Sync Strategies

Pro Tip: Use ESP32.deepSleep() between 5–60 second intervals to slash power use by 80% during static tracking.

Troubleshooting Common Issues

• "No Fix" after 15 minutes?

  • Send $PQTMRESTOREPAR*13 to reset GPS module configurations.

  • Ensure the antenna isn’t shielded by metal components.

• Inaccurate Coordinates?

  • Wait for ≥7 satellite locks (HDOP < 2.0 = high accuracy).

  • Add a BMM150 compass module for dead-reckoning in urban canyons.

Project Inspiration: Beyond Basic Tracking

1. Wilderness Trail Mapper: Logs GPS waypoints every 30 seconds, plots routes via GeoLinker. Battery lasts 16+ hours.

2. Asset Tracker: Embed in vehicles/drones. Geofence triggers SMS alerts using IFTTT.

3. Glacier Research Pod: Solar-powered, transmits ice-movement data via satellite IoT (using Blues Wireless Notecard).

Conclusion: Your Gateway to Precision Tracking

The ESP32 transforms GPS tracking from complex engineering into an accessible weekend project. Whether monitoring a backpack in the Andes or tracking migratory birds, you control the data—without monthly fees or opaque algorithms.

Your Turn: What will you track? Share your build notes in the comments below!

*Last tested on ESP32-S3 DevKit v1.0 with firmware v2.0.11.*
